Lichtbron

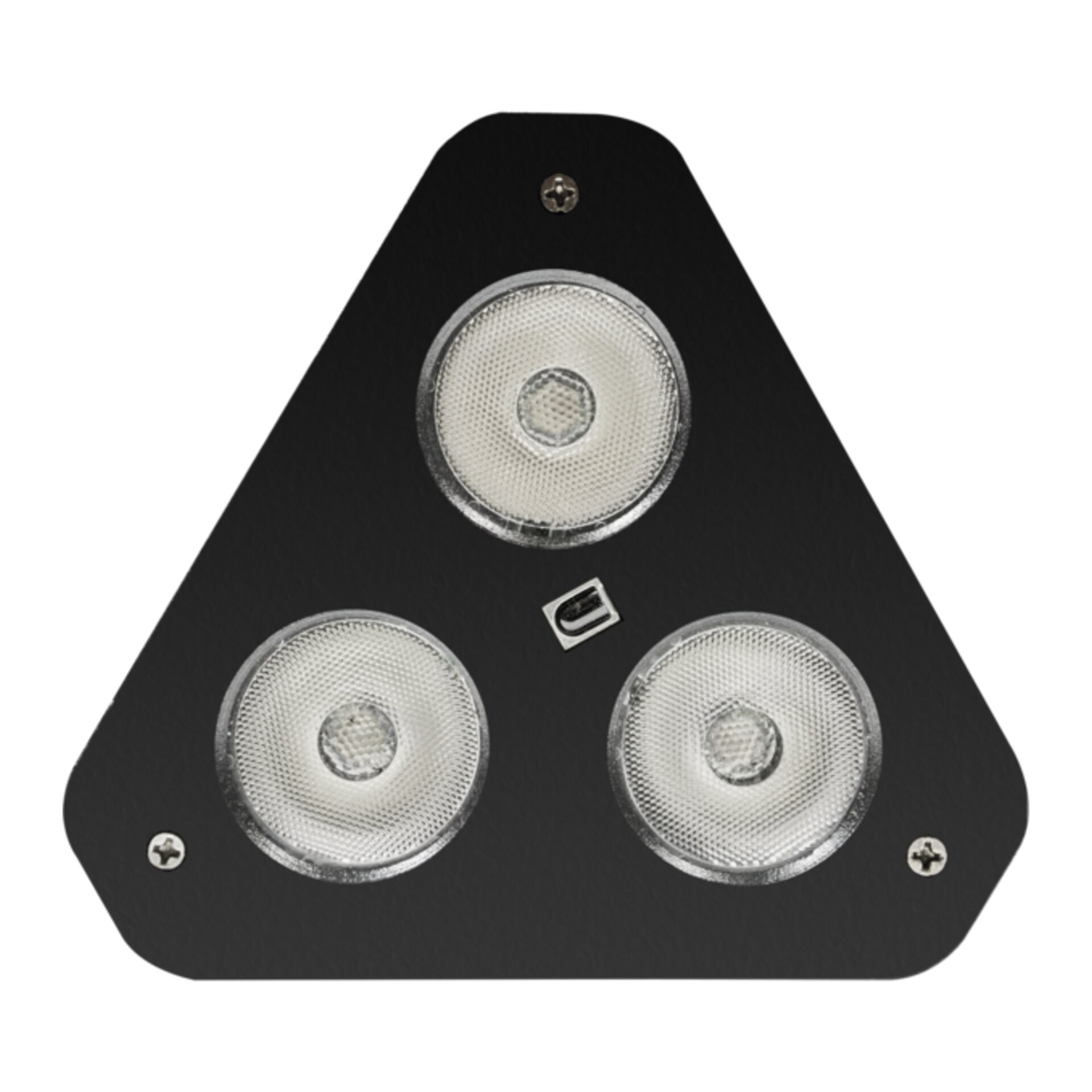

Lichtbron3x3,5W RGB LEDs
Luminous flux321lm

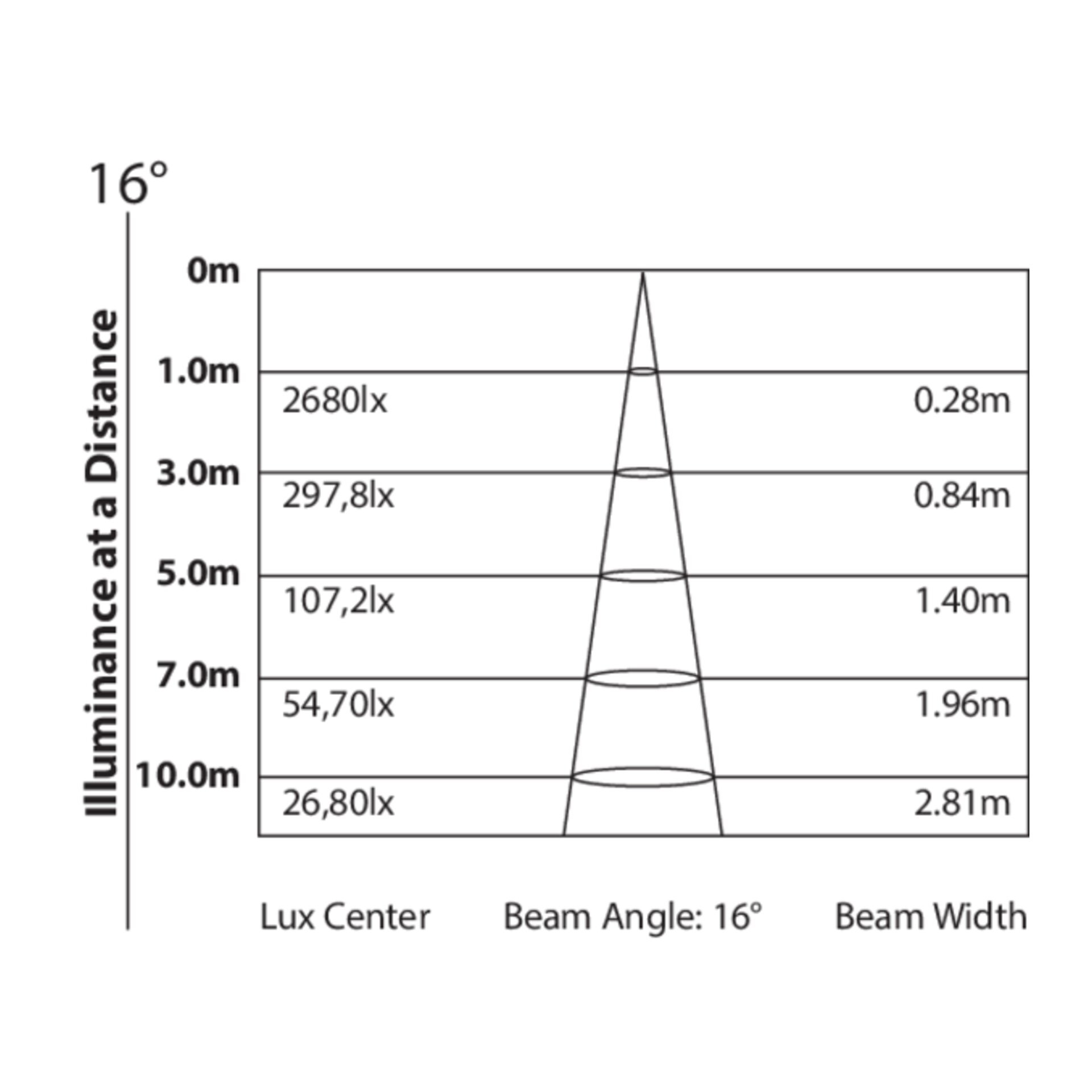

Lux295lx @3 m full
Levensverwachting lichtbron > 50.000 h
Kleuren
Manual colour mode manual adjustment of colour
Kleurmenging RGB / FC
Kleurenwiel virtual colour wheel with macros
Effecten
Macros built-in white presets
Behuizing
Kleur behuizing black
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512
DMX kanalen3 / 8channel
Master/Slave for synchronised operation of more units linked in a chain

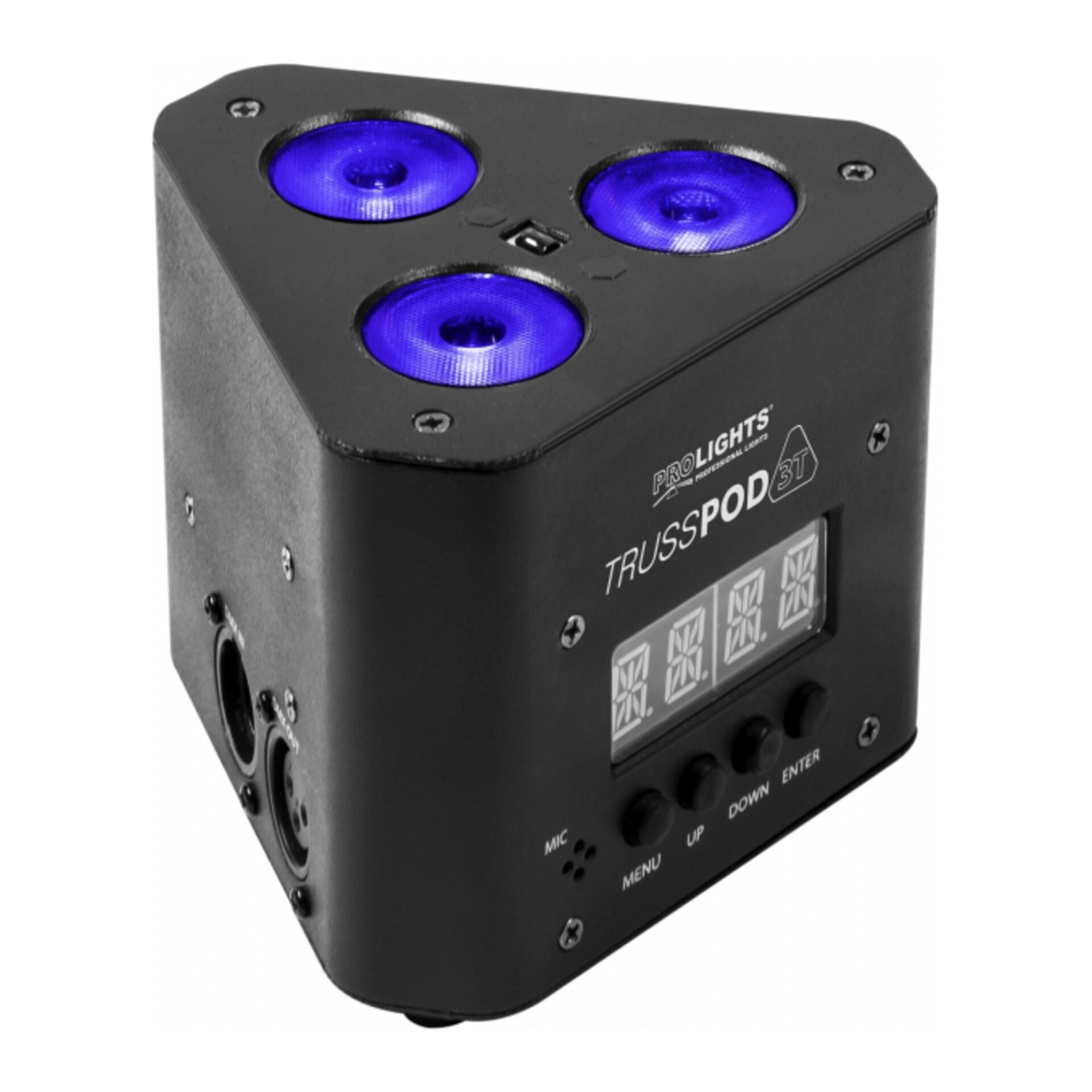

Display LED display user interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik11,4W
Output (at 230V)97 units on a single power line
Fysieke eigenschappen
Koeling passive cooling and fan-free

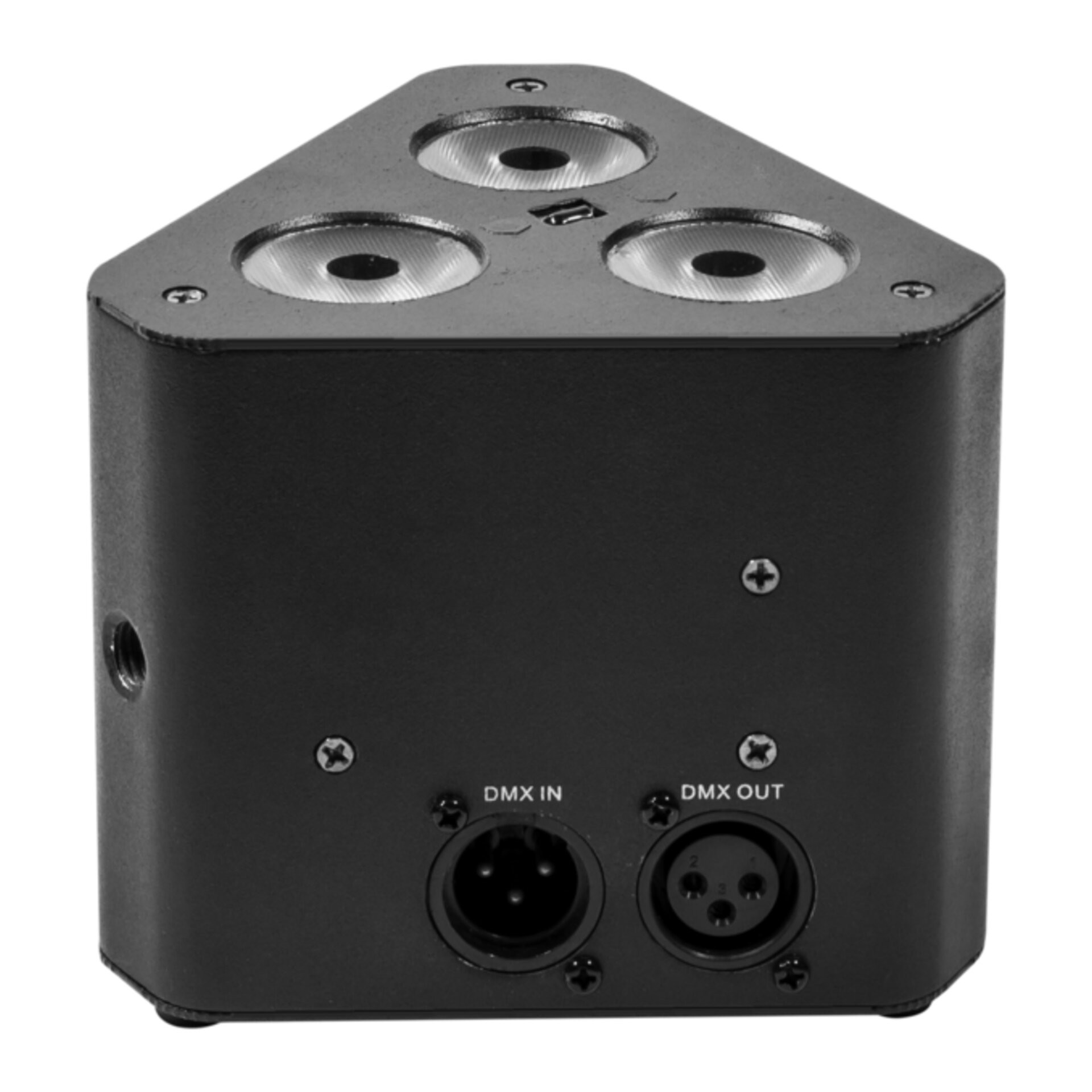

Signaal aansluiting XLR 3p IN/OUT connectors

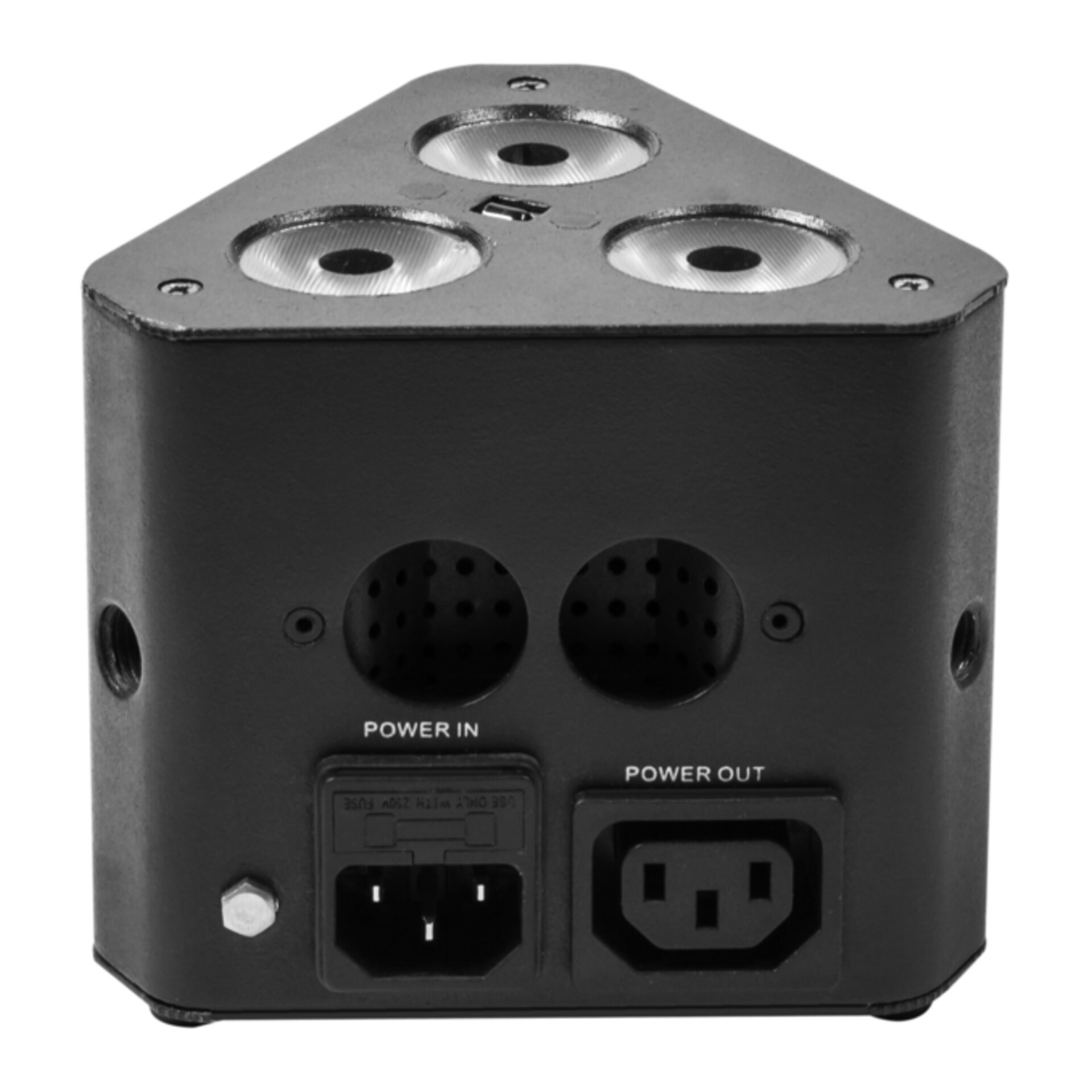

Stroomaansluiting IEC IN/OUT connectors
IP waarde30
Logistieke eigenschappen
Hoogte verpakking
10.4 cm
Breedte verpakking
12.1 cm
Diepte verpakking
10.8 cm
Gewicht verpakking
0.65 kg
