Lichtbron
Lichtbron80W UV LED
Luminous flux44,5lm
Levensverwachting lichtbron> 50.000 h
Optiek
Lens typereflector with collimator to achieve asymmetric beam diffusion
Extra optieken30° (inc)
Kleuren
Manual colour modemanual adjustment of dimmer and strobe
Behuizing
Kleur behuizingblack
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen1 / 5channel
Master/Slavefor synchronised operation of more units linked in a chain

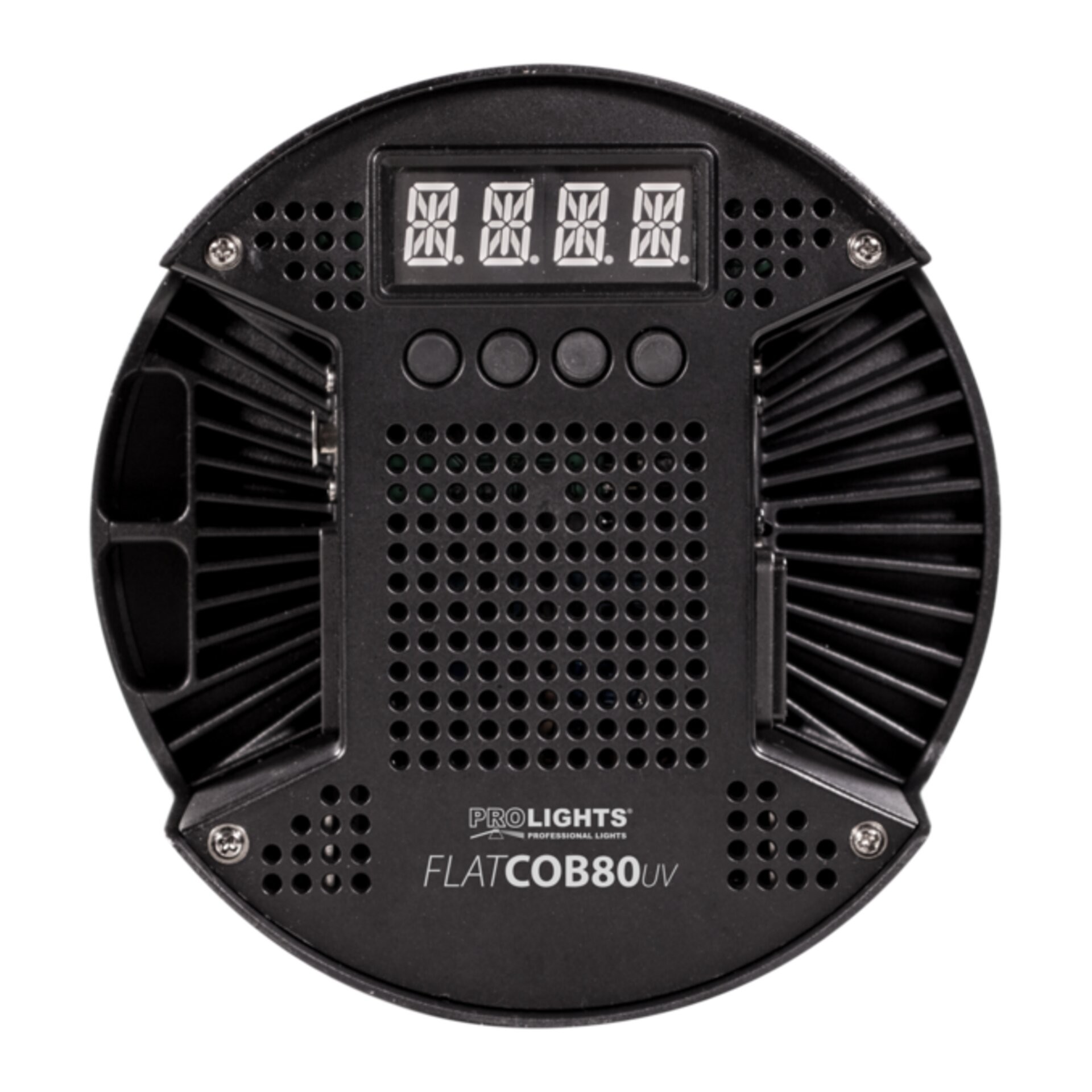

DisplayLED display user interface
Firmware upgradeyes, via USB - DMX interface (UPBOX2) not included
W-DMXoptional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik65W
Output (at 230V)20 units on a single power line
Fysieke eigenschappen
Koelingpassive cooling and fan-free

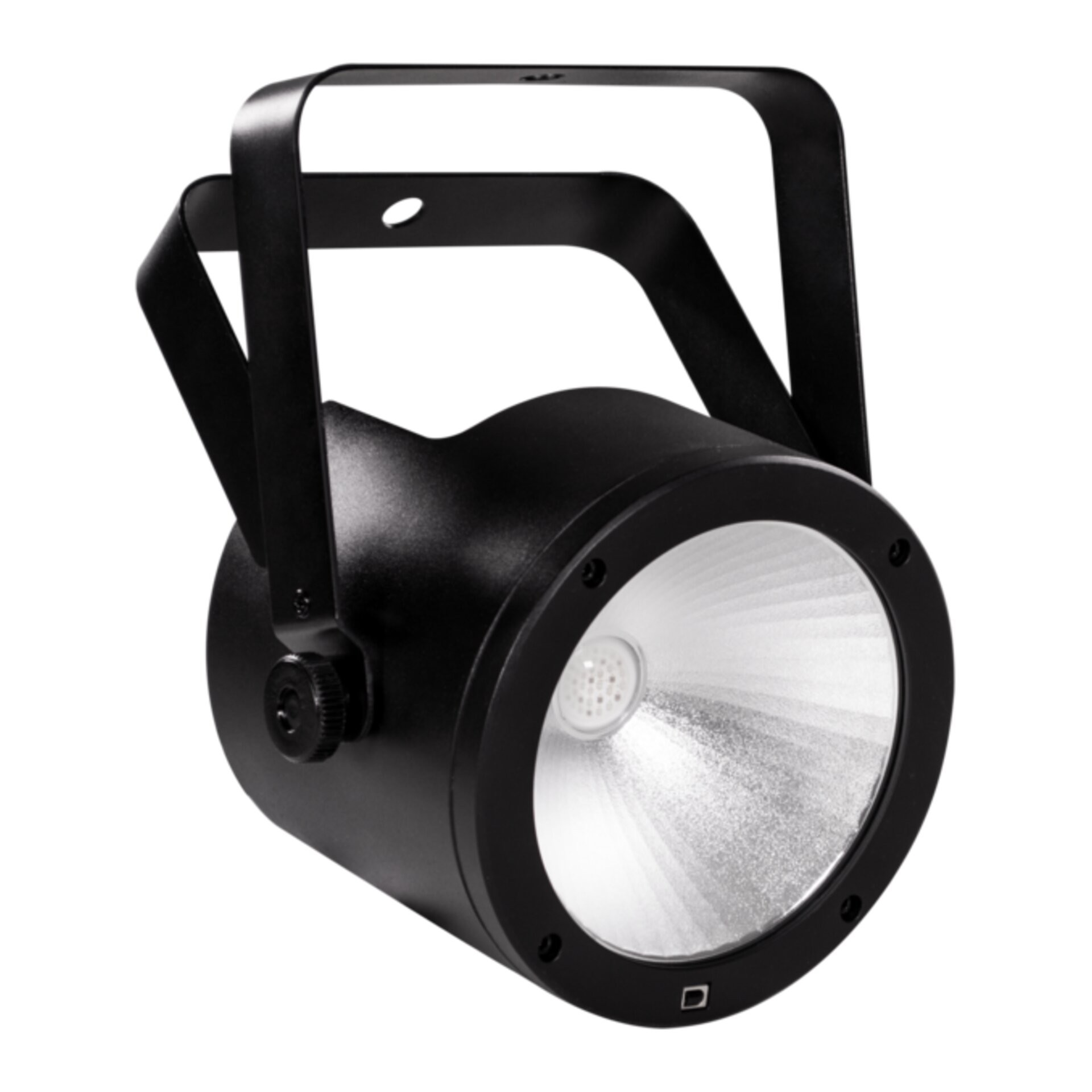

Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

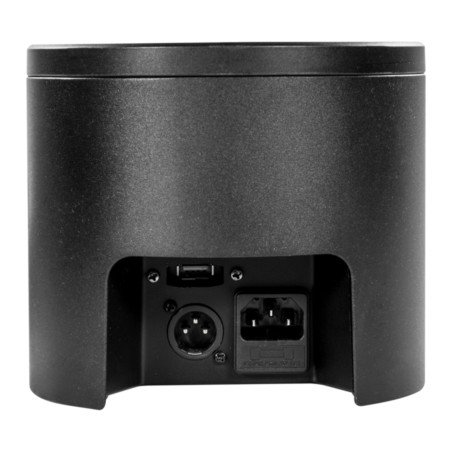

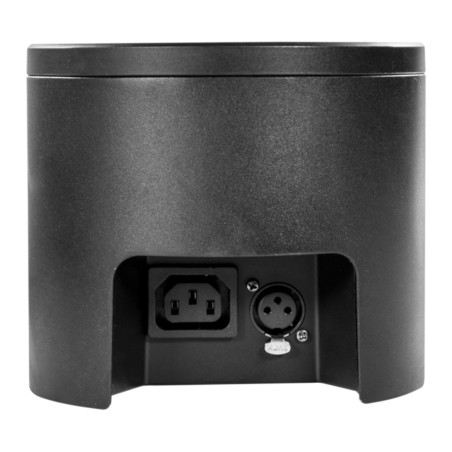

Signaal aansluitingXLR 3p IN/OUT connectors
StroomaansluitingIEC IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Gewicht verpakking
2.75 kg
