Lamp eigenschappen
Vermogen45W
Lichtbron
Lichtbron45W White COB LED
CCT5.000K
Luminous flux3'642lm @full
Lux(30°) 506lx @5 m full
Levensverwachting lichtbron > 30.000 h
CRI>91
R9>69
TLCI>94
TM30 Rf>88
TM30 Rg>97
Optiek
Lens type parabolic reflector in combination with HD fresnel lens

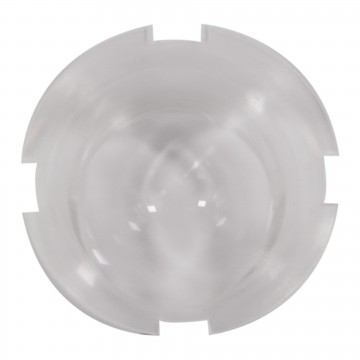

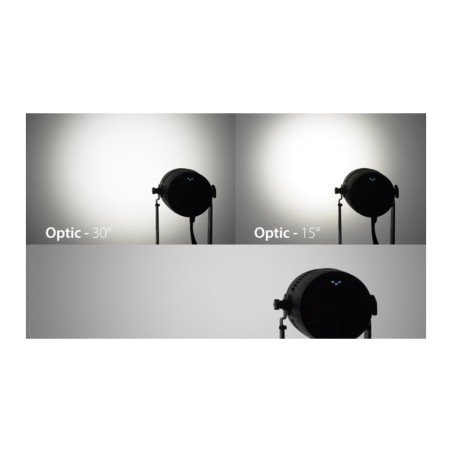

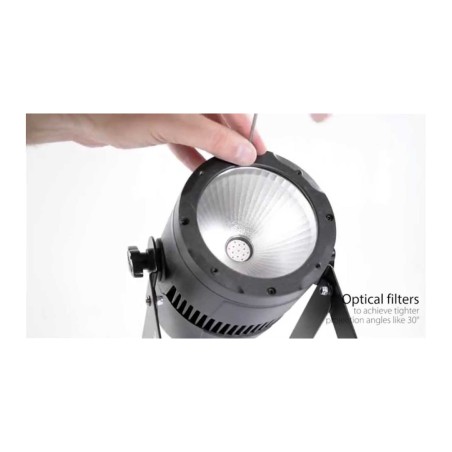

Extra optieken30° (inc) - 15° (opt)
Min. Zoombereik30
Max. Zoombereik60
Kleuren
Manual colour mode manual adjustment of dimmer and strobe
Behuizing
Kleur behuizingZwart
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512
DMX kanalen1 / 2 / 5channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik55W
Power factor>0,97
Fysieke eigenschappen

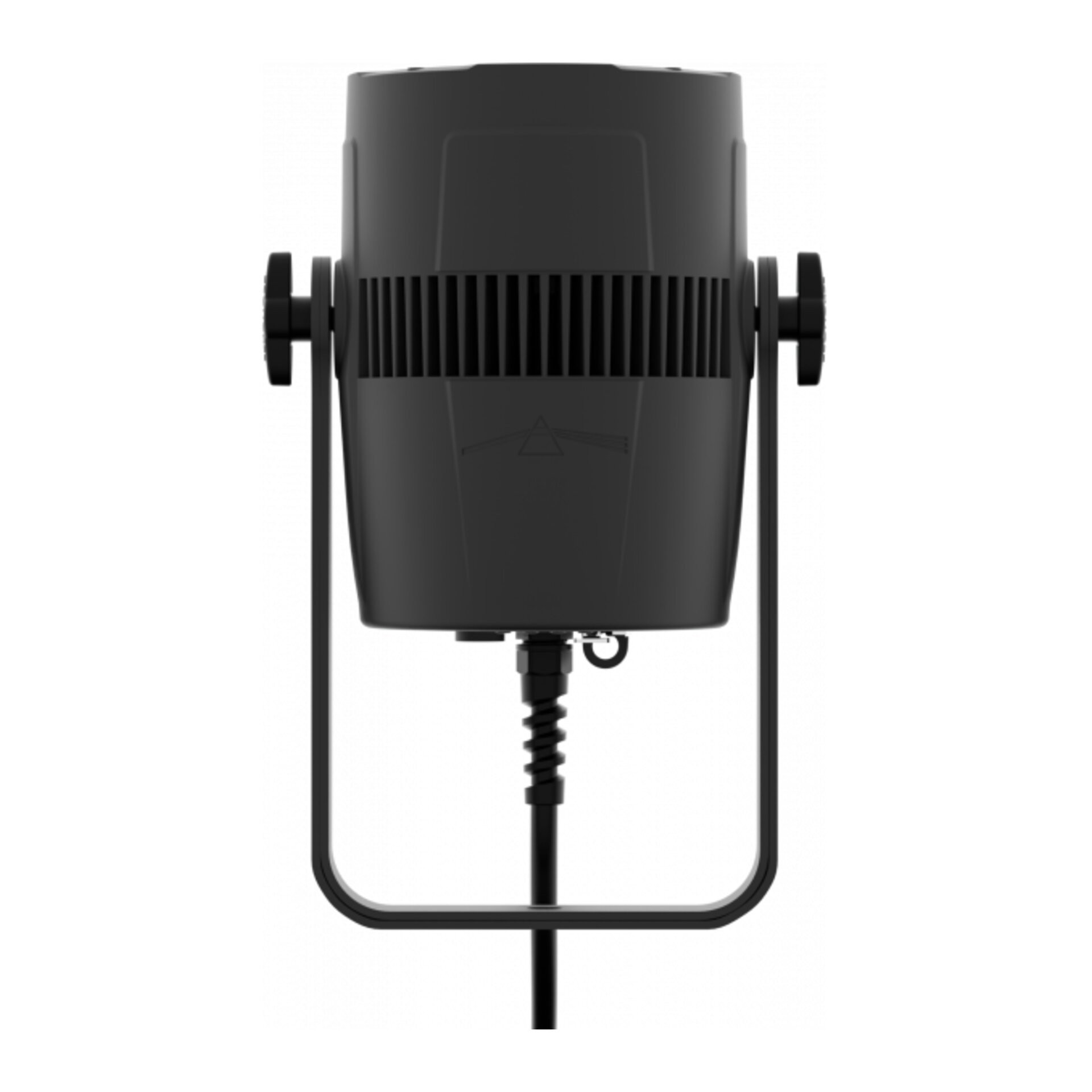

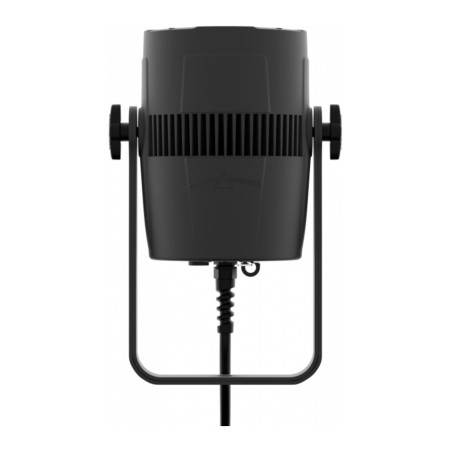

Koeling passive cooling and fan-free

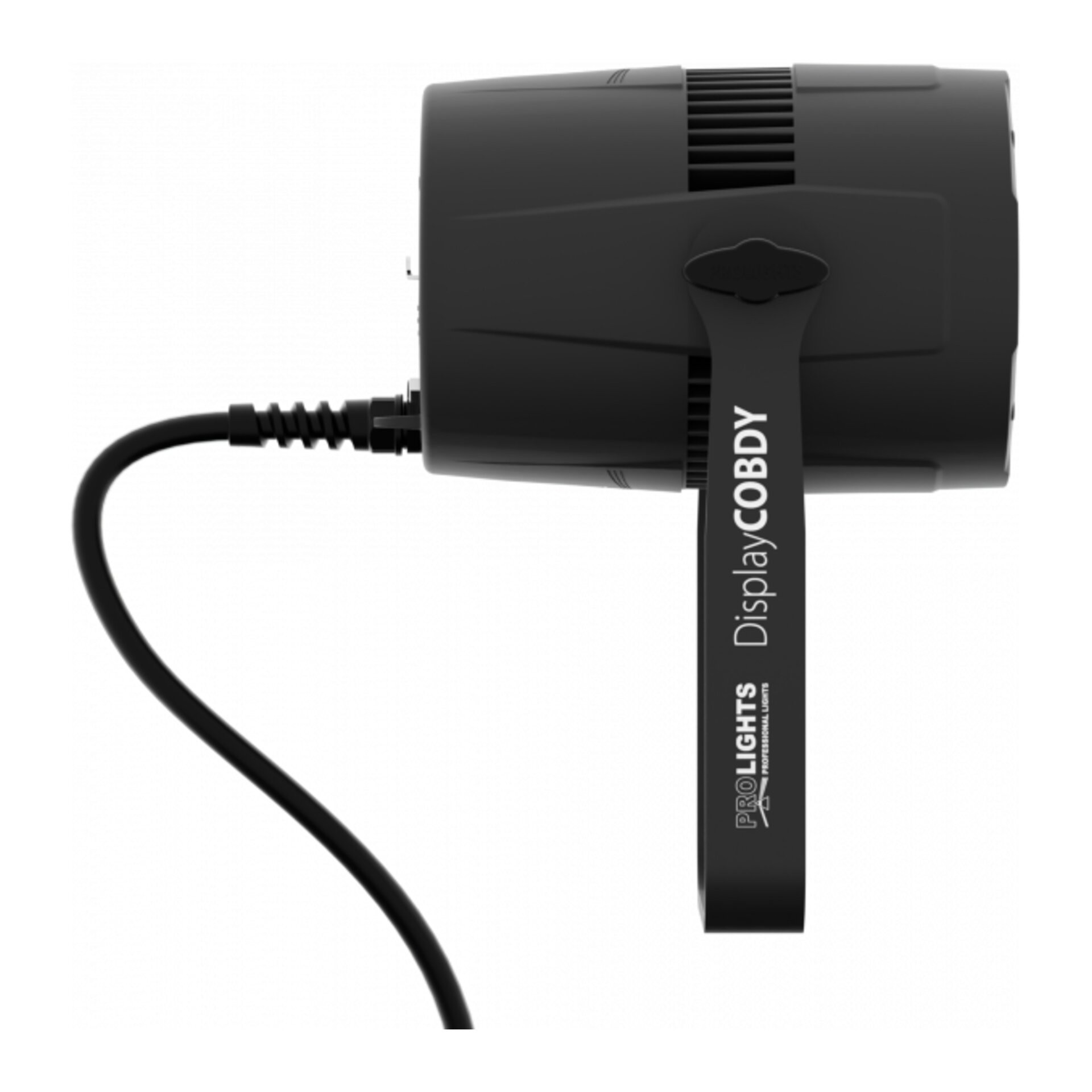

Bevestiging double hanging bracket suitable for safe hanging and for floor positioning

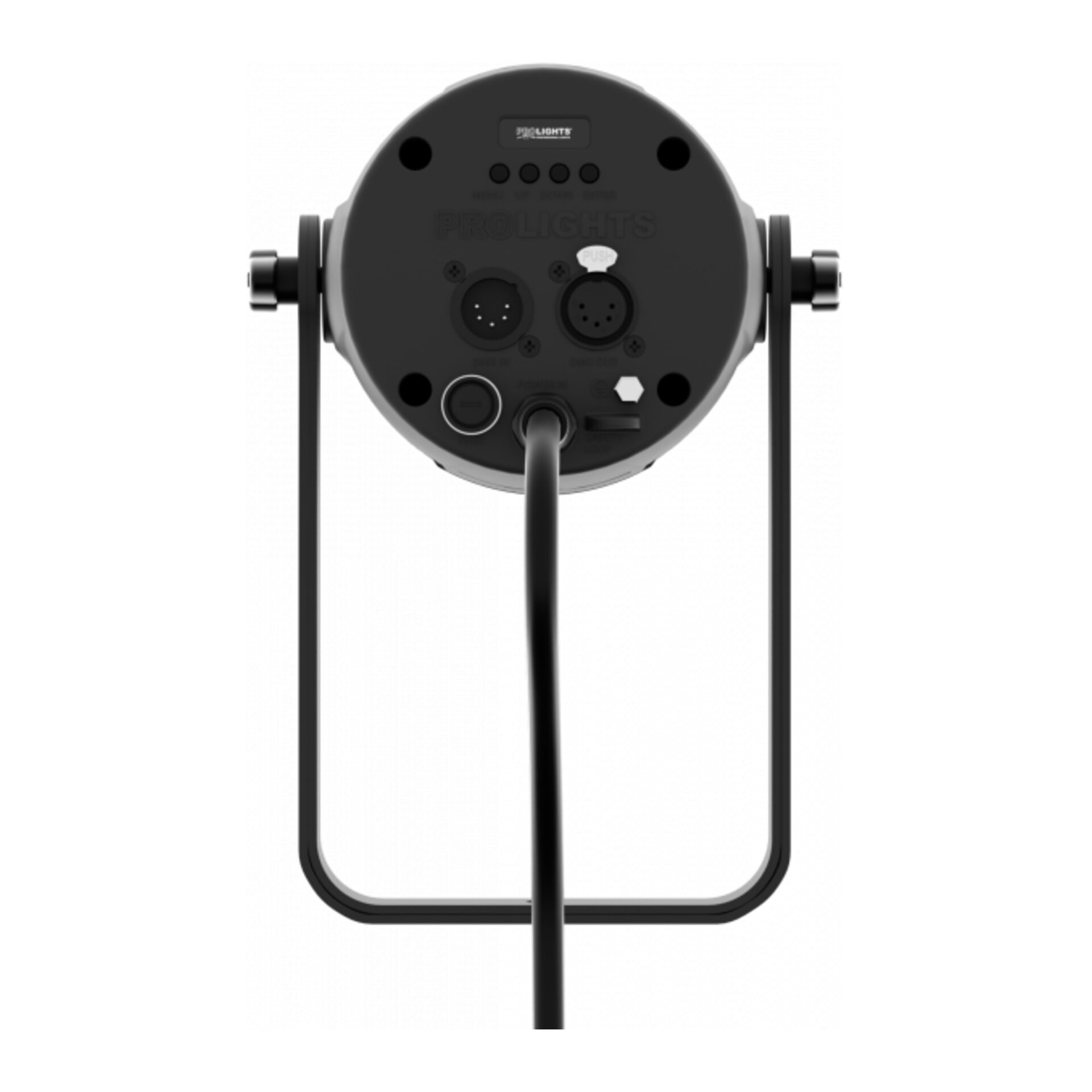

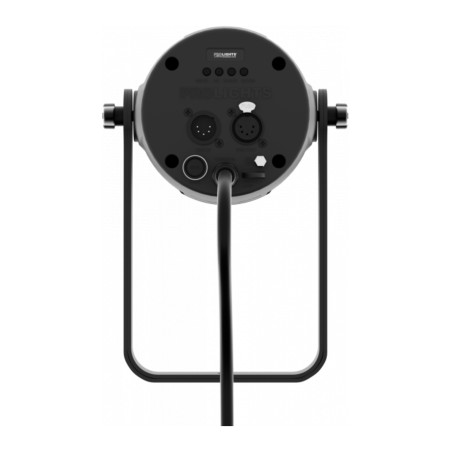

Signaal aansluiting XLR 5p IN/OUT connectors
Stroomaansluiting moulded IP power IN connector
IP waarde20, IP20
Gewicht2 kg
Logistieke eigenschappen
Gewicht verpakking
2.5 kg
