Lichtbron
Lichtbron8x12W RGBWAP LEDs
Luminous flux2'065lm
Lux(15°) 1'214lx @3 m full
Levensverwachting lichtbron > 50.000 h
Optiek
Lens diameter42mm
Extra optieken25° and 45° (optional)
Kleuren
Manual colour mode manual adjustment of colour
Kleurmenging RGBWAP / FC
Wit macro's3.200 K -10.000K
Kleurenwiel virtual colour wheel with macros
Effecten
Macros several pre-build pixel macros with adjustable speed
Behuizing
Kleur behuizing black
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512
DMX kanalen3 / 6 / 8 / 12 / 48 / 53channel
Master/Slave for synchronised operation of more units linked in a chain
Display LCD display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik85W
Output (at 230V)16 units on a single power line
Fysieke eigenschappen
Koeling passive cooling and fan-free

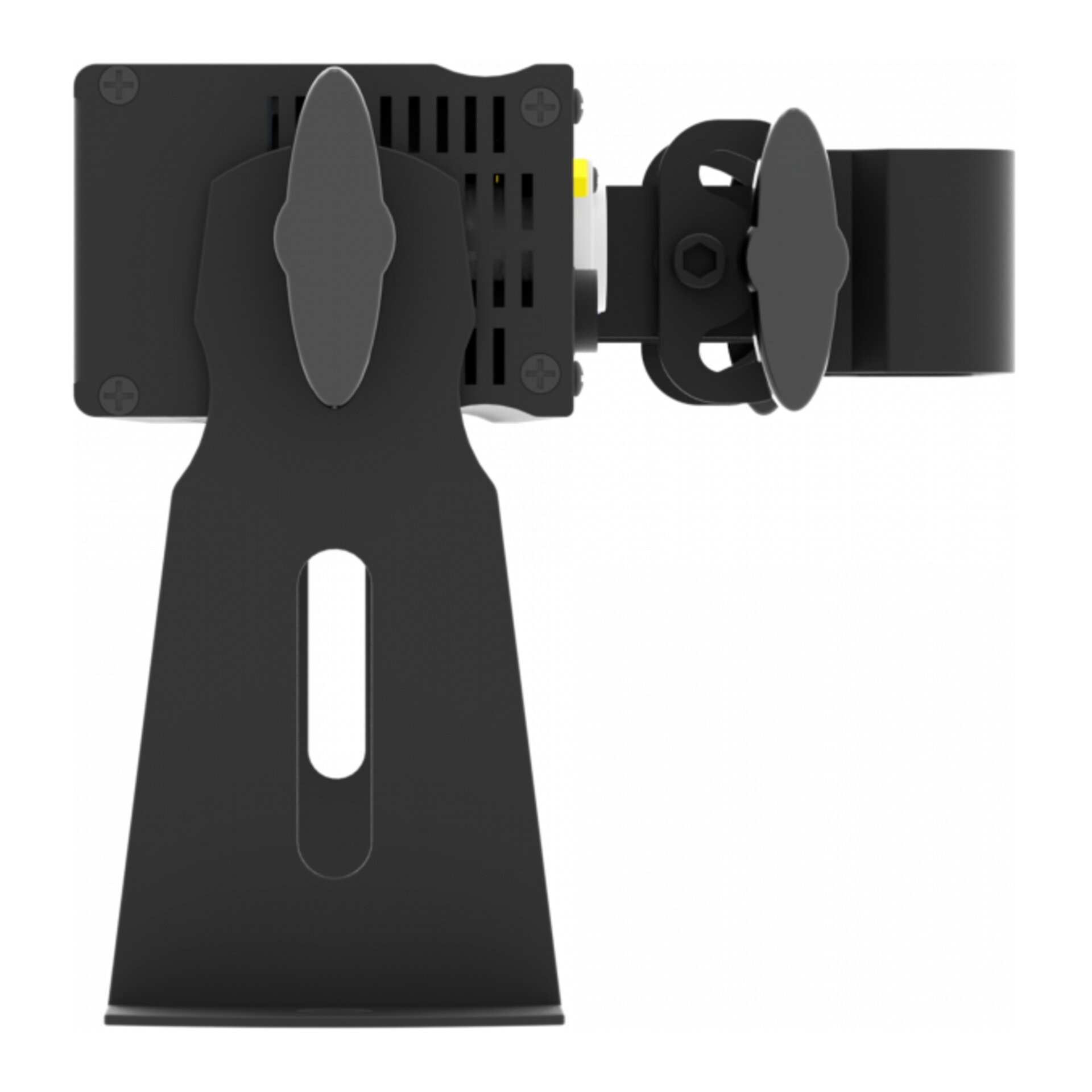

Bevestiging bracket for hanging and positioning

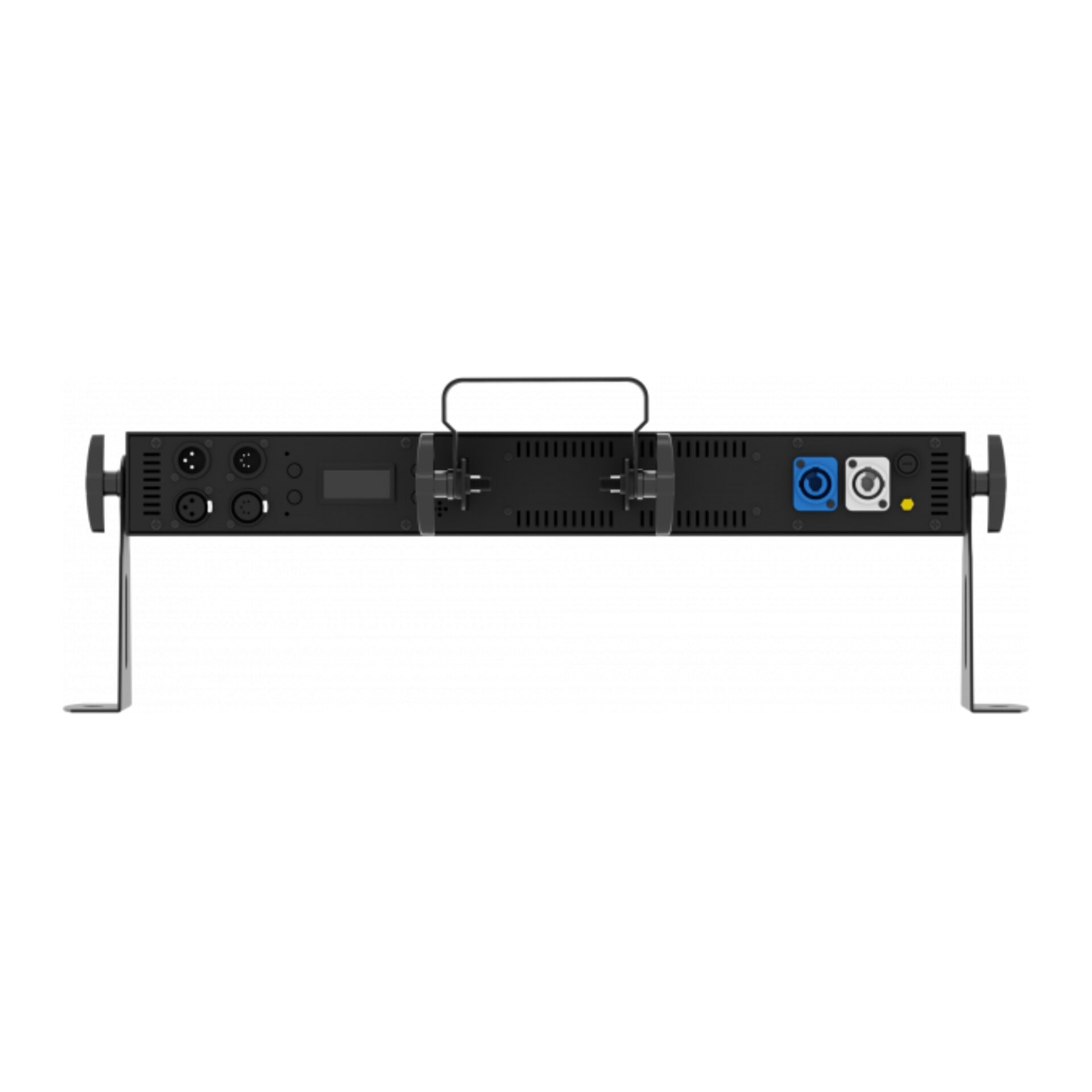

Signaal aansluiting XLR 3p + 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON IN/OUT connectors
IP waarde33
Logistieke eigenschappen
Hoogte verpakking
20 cm
Breedte verpakking
56.5 cm
Diepte verpakking
15 cm
Gewicht verpakking
4.5 kg
