Algemeen
Artikelnummer
21-00470
Merk
ProLights
Artikelnummer fabrikant
MOSAICOFX100FCBK
Garantie
2 jaar
Lamp eigenschappen
KleursysteemRGBW - Full Color
AansturingCRMX, DMX, RDM, W-DMX G3
Vermogen100W
SerieMosaico
Aansturing
Stand Alone3 push encoder
Lichtbron
Lichtbron100W RGBW / FC LED
Luminous flux(15°) 1'212 lm; (30° - WT) 1'214 lm; (30° - GB) 1'132 lm; (50° - WT) 1'340 lm; (50° GB) 896 lm; (70°) 960lm @full
Lux(15°) 633 lx; (30° - WT) 392 lx; (30° - GB)0 165 lx; (50° - WT) 179 lx; (50° GB) 74 lx; (70°) 92lx @5 m full
Levensverwachting lichtbron > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
Optiek
Focus manual
Kleuren

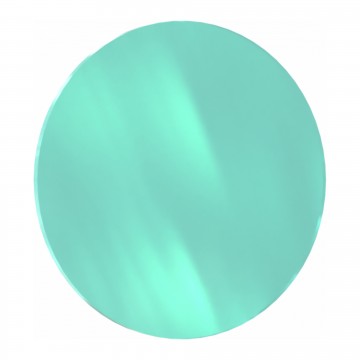

Kleurenwiel optional color wheel with 5 colors included on board (see available accessories) - included colors Light Orange, Light Green, Yellow, Aquamarine, Pink
Effecten

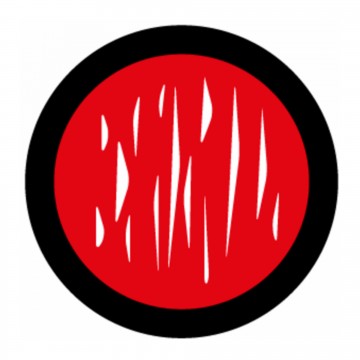

Roterende gobo's included 1 gobo holder with manual adjustable index position system for 1 gobo (gobo not included - see available accessories)
Vaste gobo's optional gobo wheel for 5 gobos + open (gobos not included - see available accessories)
Animatiewiel included 2 interchangeable wheels with indexing and CW and CCW rotation with variable speed (see available accessories)
Control Resolution 16-bit dimmer, colours
Behuizing
Kleur behuizing RAL 9006 or RAL 9004
MateriaalAluminium
Aansturing
Protocollen DMX512, RDM, CRMX + WDMX, 3 push encoder
DMX kanalen13channel
Master/Slave for synchronised operation of more units linked in a chain
Display user interface through DATAMASTER external coder (not included)
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100%, electronic and manual knob dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik120W
Output (at 230V)25
Power factor>0.95
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging bracket for hanging and positioning
Signaal aansluiting35 cm moulded IP signal IN/OUT connectors
Stroomaansluiting35 cm moulded IP power IN/OUT connectors
IP waardeIP66
Montage mogelijkhedenOpbouw
