Lamp eigenschappen
KleursysteemMono-color
AansturingDMX, RDM, W-DMX G3
Vermogen250W
Zoom12,9° - 46,5° motorised linear zoom
SerieMosaico
Lichtbron
Lichtbron250W high-power white LED
CCT8.500K
Luminous flux(12.9°) 10'740 lm - (46.5°) 11'667lm @full
Lux(12.9°) 10'512 lx - (46.5°) 1'409lx @5 m full
Levensverwachting lichtbron> 30.000 hrs (L70B10 @Ta 25° C / 77° F)
Optiek
Lens diameter109mm
Lens typehigh-quality glass lens optics
Focusmotorised
Kleuren
Kleurenwiel14 colour filters on two colour wheels
Effecten
Roterende gobo's7 rotating gobos + open, interchangeable, indexing
Prisma3f with bi-directional rotation, indexing
Frostlinear 0 - 100% frost filter
Gobo maatouter: 26,7 mm - image: 23 mm - thickness: 1,1 mm
Animatiewielanimation wheel with CW and CCW rotation
Iris5 - 100% motorised iris
Behuizing
Kleur behuizingRAL 9006
MateriaalAluminium, aluminium die-casting
Aansturing
ProtocollenDMX512, RDM, W-DMX, Stand Alone programmer and playback
DMX kanalen12 / 14 / 16 / 19channel

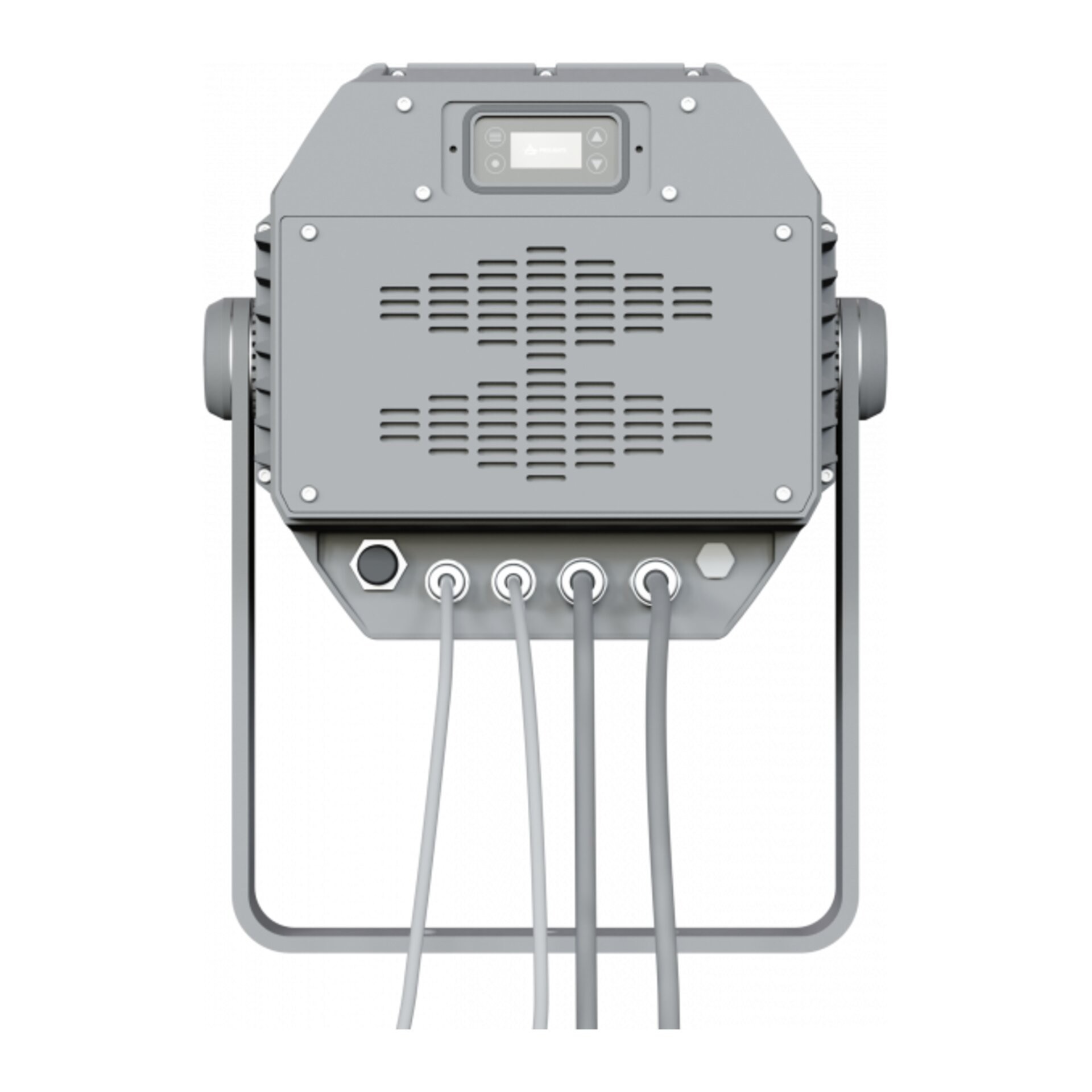

Displayblack OLED touch display
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXincluded, wireless solution receiver
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1~30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F)
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik320W
Output (at 230V)11 units on a single power line
Power factor>0,95
Fysieke eigenschappen
Koelingactive, with IP low noise fan

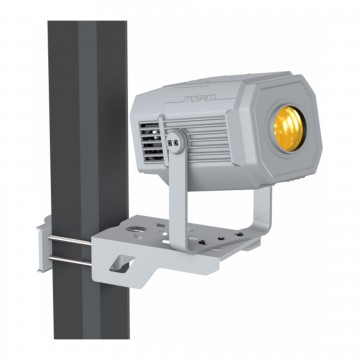

Bevestigingbracket for hanging and positioning
Signaal aansluitingmoulded IP signal IN/OUT connectors
Stroomaansluitingmoulded IP power IN/OUT connectors
IP waarde66 for outdoor installations, 66 for outdoor installations, IP66
Montage mogelijkhedenOpbouw
Logistieke eigenschappen
Hoogte verpakking
35.5 cm
Breedte verpakking
62 cm
Diepte verpakking
42.5 cm
Gewicht verpakking
23 kg
