Lichtbron
Lichtbron28W CREE LED
CCT(TU) 3.000 K - (DY) 5.700K
Luminous flux(DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
Lux(DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx @5 m full
Levensverwachting lichtbron > 70.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI(TU) >92; (DY) >80
TLCI(TU) >90; (DY) >68
TM30 Rf(TU) >90; (DY) >79
TM30 Rg(TU) >97; (DY) >97
Optiek
Lens type high-quality glass lens optics
Effecten
Vaste gobo'sgobo holder included in optics
Gobo maatE, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
Body
Kleur behuizing RAL 9003
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen W-DMX
DMX kanalen1 / 2 / 5channel
Display LCD display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik22W
Power factor>0,40
Fysieke eigenschappen

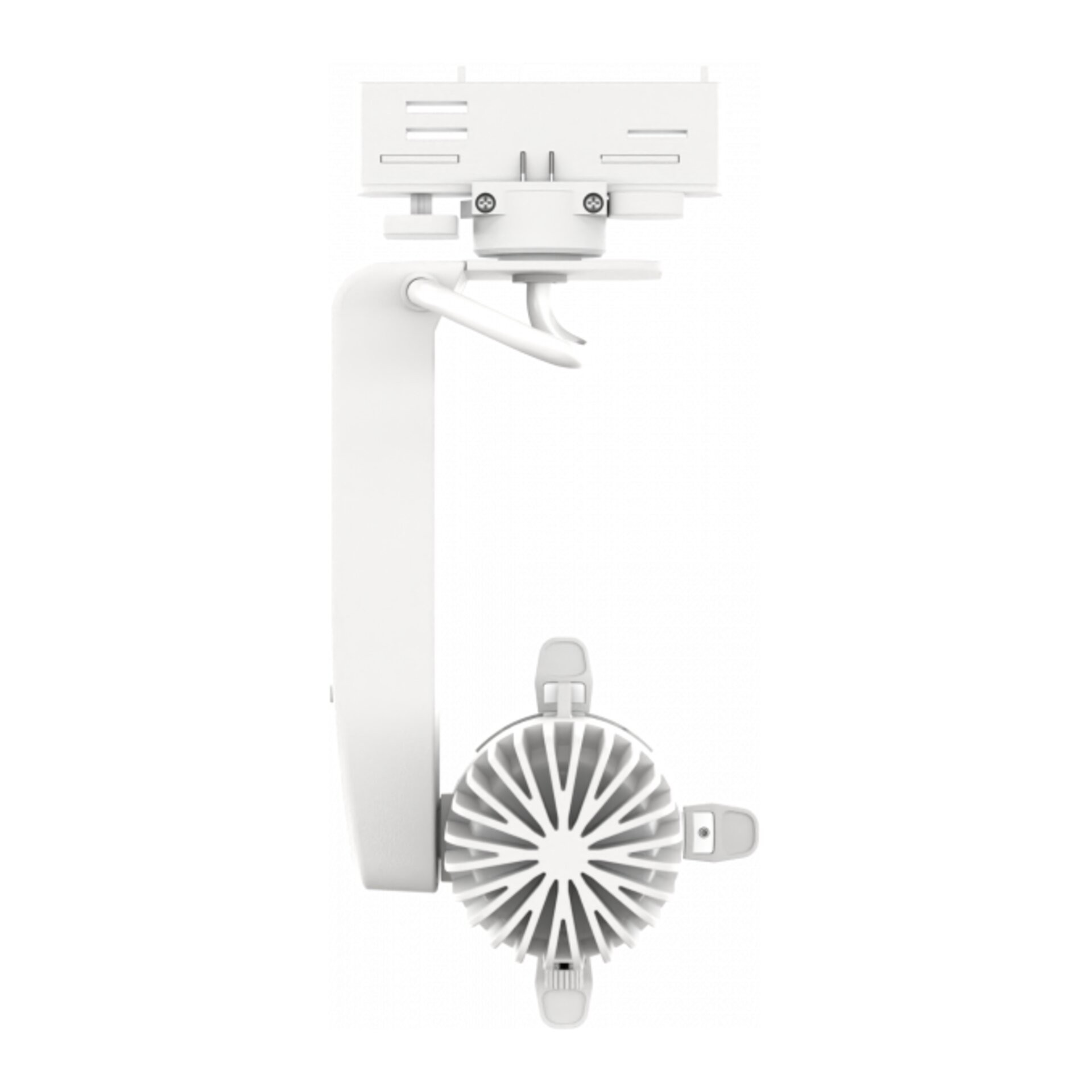

Koeling passive cooling and fan-free

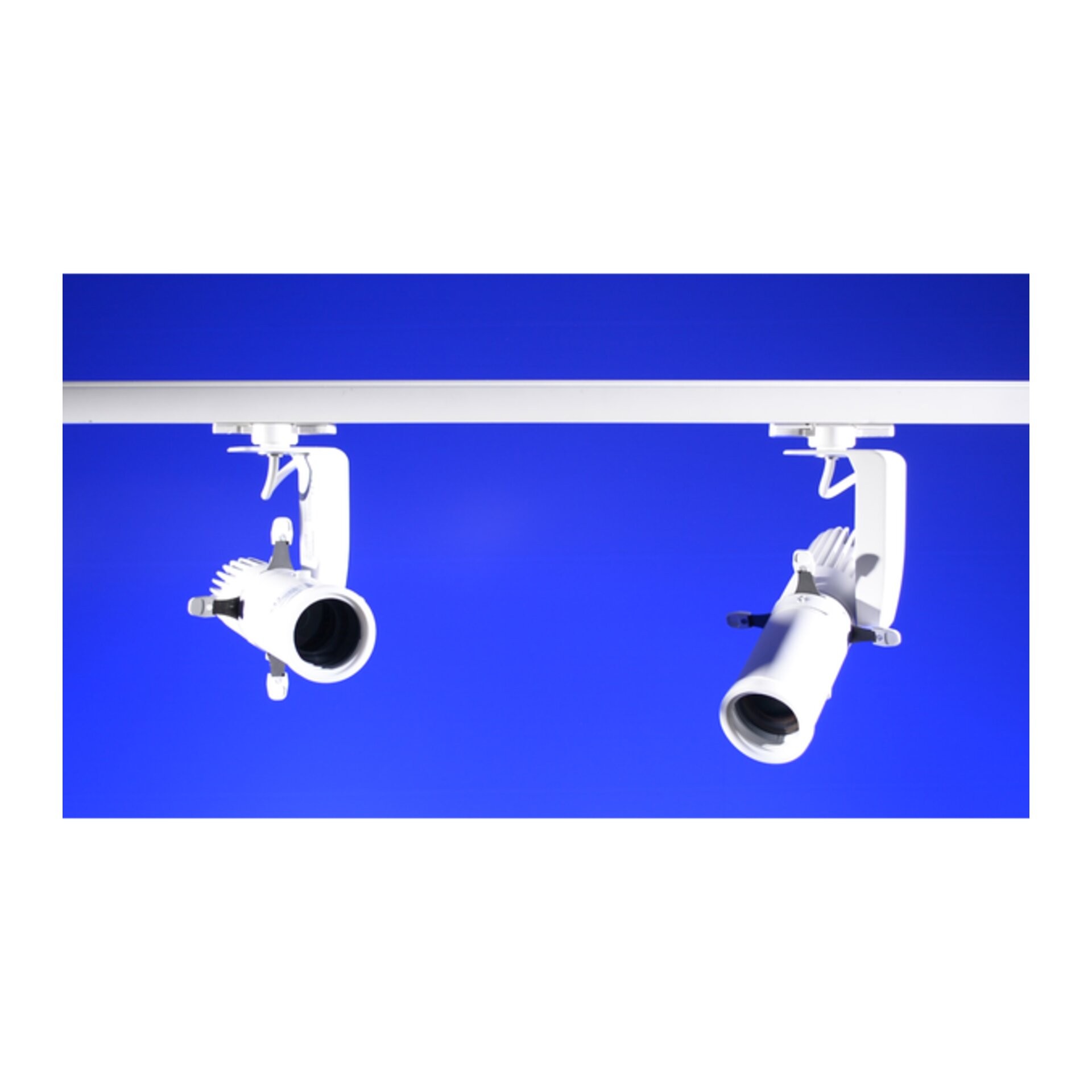

Bevestiging track-adapter included for suspension and fixing
Stroomaansluiting track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
IP waarde20
