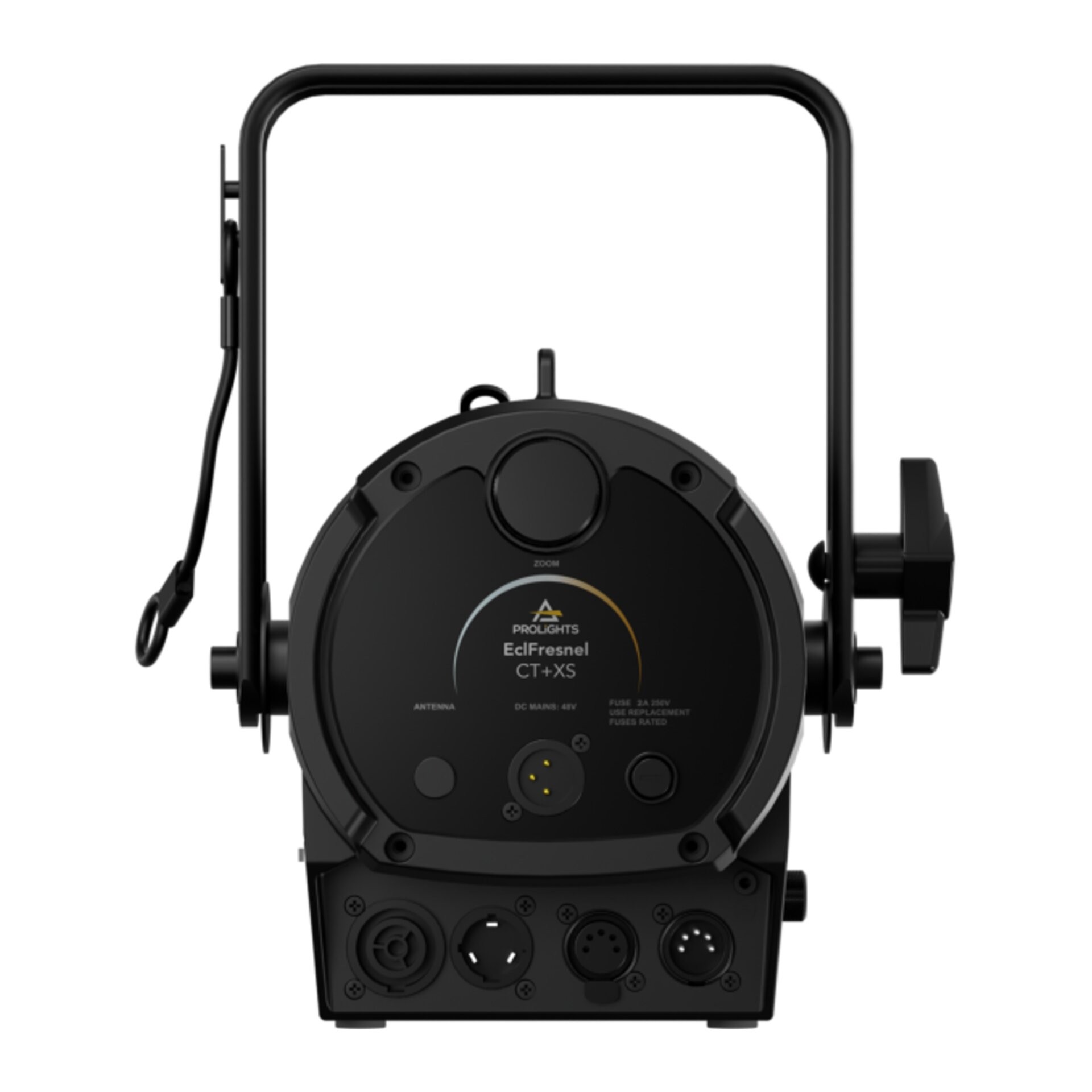

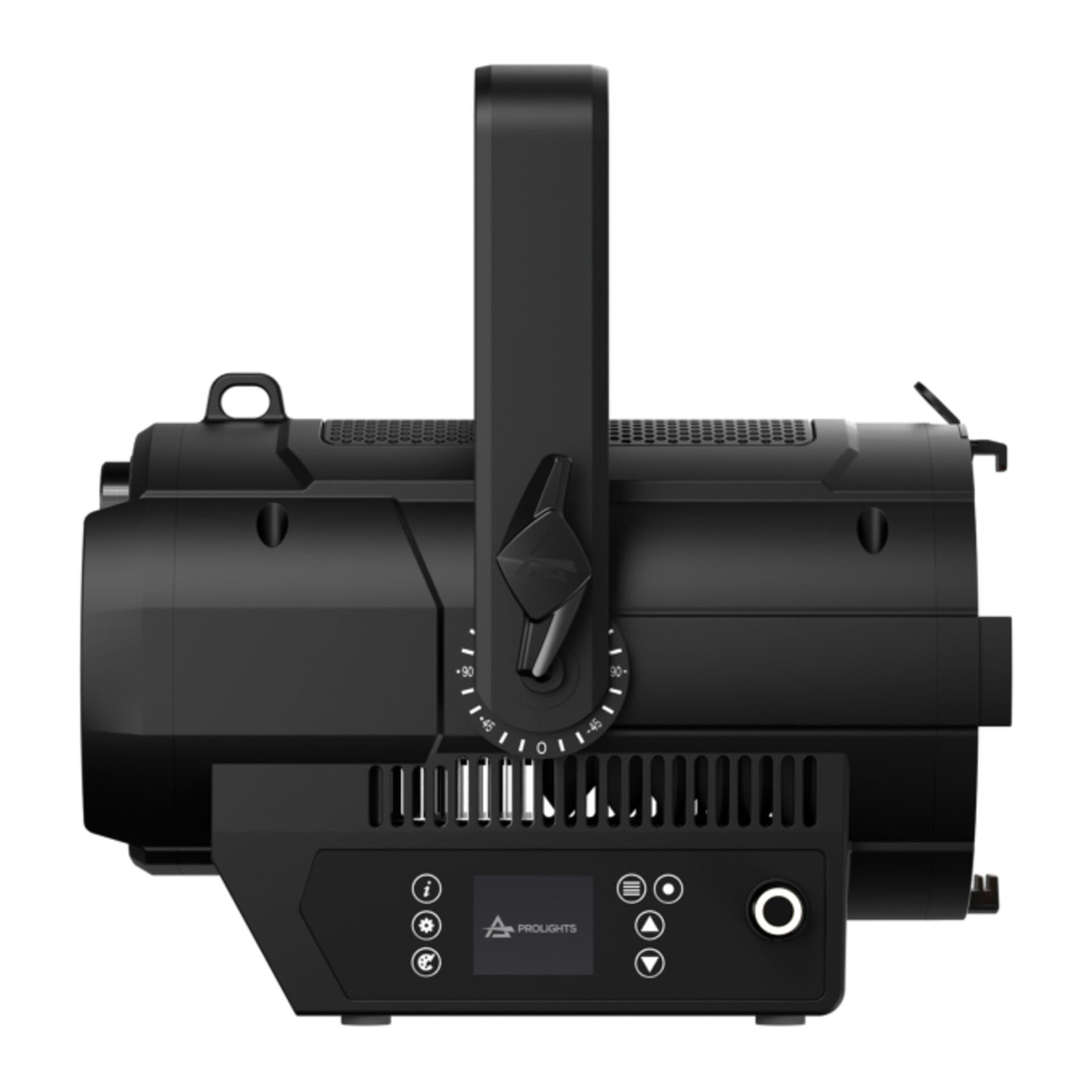

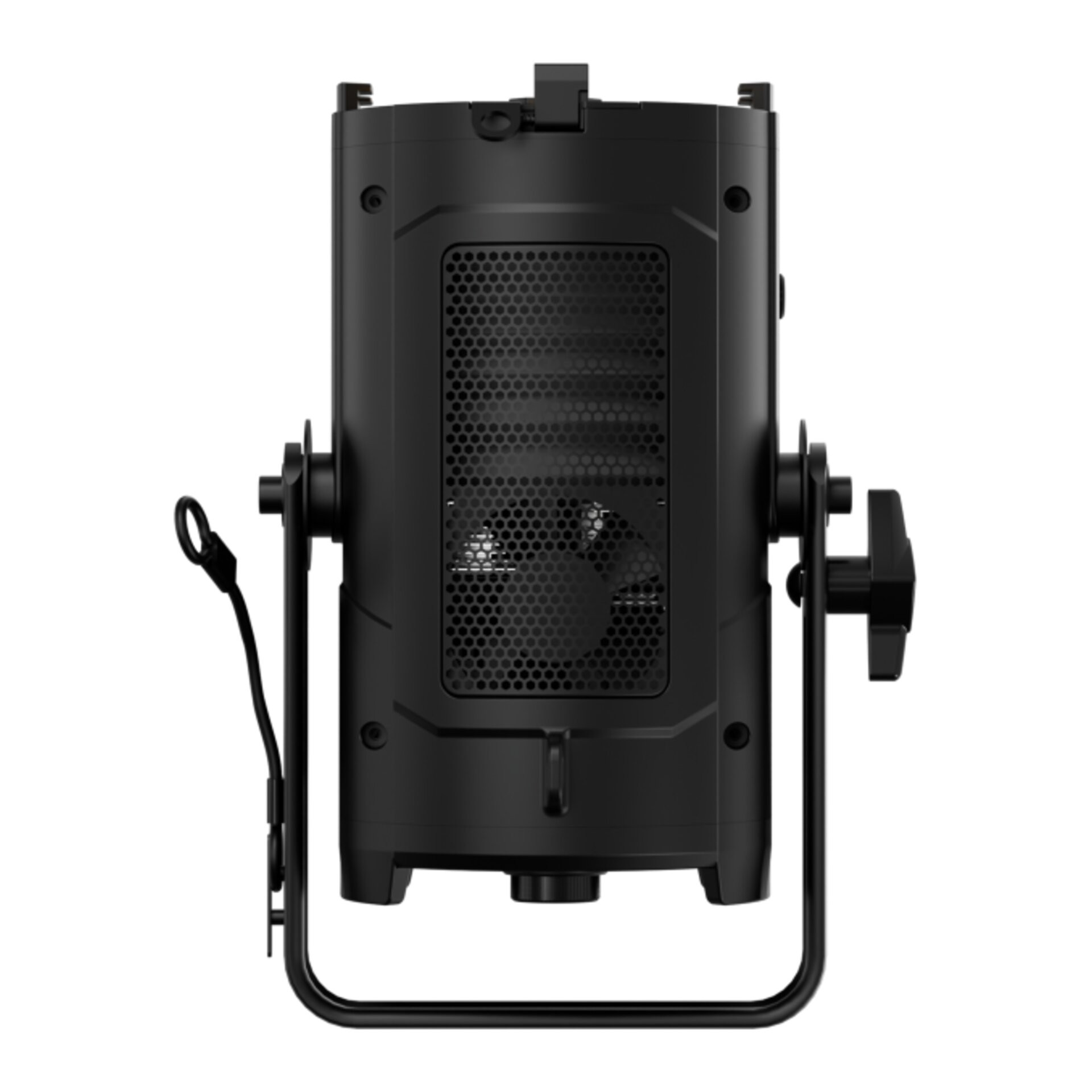

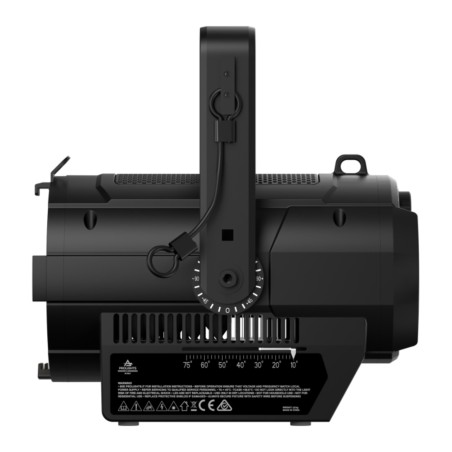

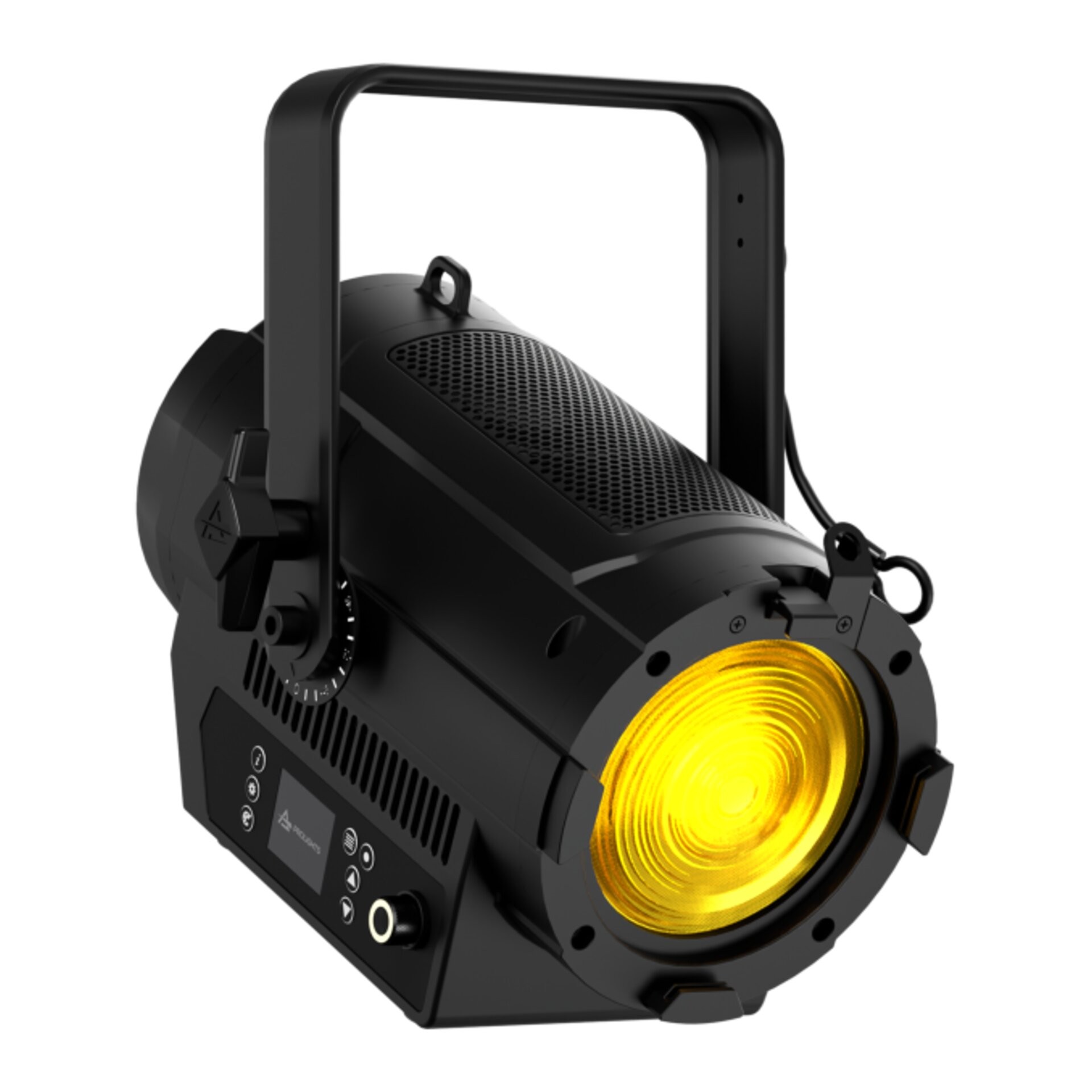

Prolights EclFresnel CT+XS

21-00622

  • Fresnel spot. Incl Barndoor
  • 120 W 6‑kleur LED
  • Zoombereik 10°–75°

Omschrijving:
De Prolights EclFresnel CT+XS is een compacte 120 W LED Fresnel met 6‑kleurensysteem en een interne zoom van 10°–75° via een hoogwaardige 130 mm / 5″ Fresnel‑lens. Hij levert tot circa 3.700 lumen en biedt uitstekende kleurconsistentie met hoge CRI‑waarden voor natuurgetrouwe weergave in tv, film, theater en evenementen. Dankzij het SpektraOS‑systeem en stille werking is dit een veelzijdige, professionele oplossing voor belichting in studio‑omgevingen.

Merk

Levertijd 10 werkdagen

Bruto prijs:
€ 1.210,00
  • accessoires (16)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (16)
  • Accessoires (8)
  • DMX kabels (1)
  • Haken/Safety's (5)
  • Stroom kabels (2)

ProLights LRT2WK1

21-21306

ProLights LRT2WK1
  • CRMX TiMo Two FX Kit
  • Upgrade armaturen met CRMX / WDMX
  • + Antenne
Bruto prijs:
€ 180,00

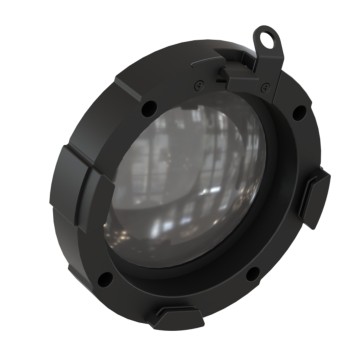

ProLights ECLFRCTPXSPCLKBK

21-21393

ProLights ECLFRCTPXSPCLKBK
  • 100 mm PC lens kit
  • Voor ECLFRCTPXS‑serie
Bruto prijs:
€ 150,00

ProLights ECLFRCTPXSFFBK

21-21392

ProLights ECLFRCTPXSFFBK
  • Filter frame voor ECLFRCTPXS series
Bruto prijs:
€ 15,00

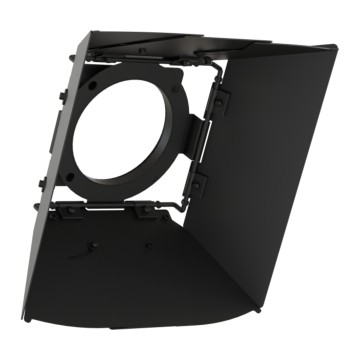

ProLights ECLFRCTPXSBDBK

21-21391

ProLights ECLFRCTPXSBDBK
  • Barndoor 8 leaf
Bruto prijs:
€ 120,00

ProLights FCLECLFRCTPXS

21-21390

ProLights FCLECLFRCTPXS
  • Flightcase voor 6 ECLFRCTPXS
Bruto prijs:
€ 900,00

CQ - PowerCon True1 1,5m

52-20034

CQ - PowerCon True1 1,5m
  • 3x1,5mm2 True1 aansluitkabel, 1,5m
  • Schuko 16A male stekker
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 27,70

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 170,00

ProTruss SPGM12

24-01399

ProTruss SPGM12
  • 28mm spigot
  • M12
Bruto prijs:
€ 10,70

ProTruss SPGM10

24-01400

ProTruss SPGM10
  • 28mm spigot
  • M10
Bruto prijs:
€ 10,50

ProLights EFSBUFDS

21-20419

ProLights EFSBUFDS
  • Snapbag
  • Geschikt voor ECLfresnel & ECLfresnel 2K
  • DoPchoice
Bruto prijs:
€ 860,00

ProAudio Tour 53415GR

Meerdere opties

ProAudio Tour 53415GR
  • 5 polige DMX kabel, grijze kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 49,00

GDE True1 verlengkabel

Meerdere opties

GDE True1 verlengkabel
  • 3x2,5mm2 TH07 True1 verlengkabel
  • PowerCon True1 male kabeldeel
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 55,00

ProTruss RSR0630B

24-00246

ProTruss RSR0630B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 4,80

ProTruss C6040B

24-00190

ProTruss C6040B
  • Halfcoupler voor TV spigot
  • SWL: 200kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 30,50

ProTruss C6016B

24-00173

ProTruss C6016B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

Prolights ECLFRSPG

21-20172

Prolights ECLFRSPG - Full AVL Distribution
  • TV spigot voor Prolights Fresnel & Panel
  • 28mm M10
Bruto prijs:
€ 31,50

Gegevens

Algemeen

Artikelnummer 21-00622
Merk ProLights
Artikelnummer fabrikant ECLFRCTPXSBK
Garantie 2 jaar

Lamp eigenschappen

KleursysteemRGBCMA - Full Color
Vermogen120W

Aansturing

Stand Alone1 push encoder

Lichtbron

Lichtbron120W 6 colour LEDs source
CCTLinear CCT adjustment from 1.850 K-20.000K
Luminous flux(11,2°) 2.406 lm - (74,7°) 3.669 @Full
Lux(11,2°) 2.560 lx - (74,7°) 225lx @5 m full
Levensverwachting lichtbron> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI97,7 @3.200K; 95,9 @5.600 K
R996,5 @3200K; 96,2 @5.600 K
TLCI89 @3200K; 93 @5.600 K
TM30 Rf> 94,8 @3.200K; > 94,3 @5.600 K

Optiek

Lens diameter5'' / 130mm
Lens typePMMA lens
Extra optiekenPC lens available as accessory
Min. Zoombereik10
Max. Zoombereik75
BedieningHandmatig

Kleuren

Kleurmenging6 colour LEDs source

Behuizing

Kleur behuizingZwart
Materiaaldie-cast magnesium alloy

Aansturing

ProtocollenDMX512, RDM, CRMX (optional)
DMX kanalenFrom 1 to 34channel
Master/Slavefor synchronised operation of more units linked in a chain
Display2.4'' Color display
Firmware upgradevia DMX with UPBOXPRO (USB-DMX interface not included)
RDMRDM for remote monitoring and settings

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45° Ta
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie1282 ~ 40.000 Hz

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik130W
Output (at 230V)20 units on a single power line
Power factor> 0,94
DC spanning48V

Fysieke eigenschappen

Koelingactive, silent operation
Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingPowerCon
IP waardeIP20
