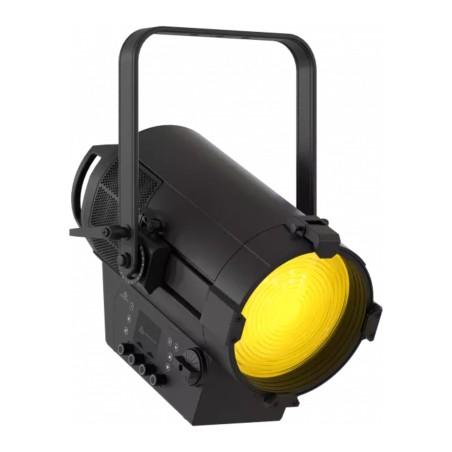

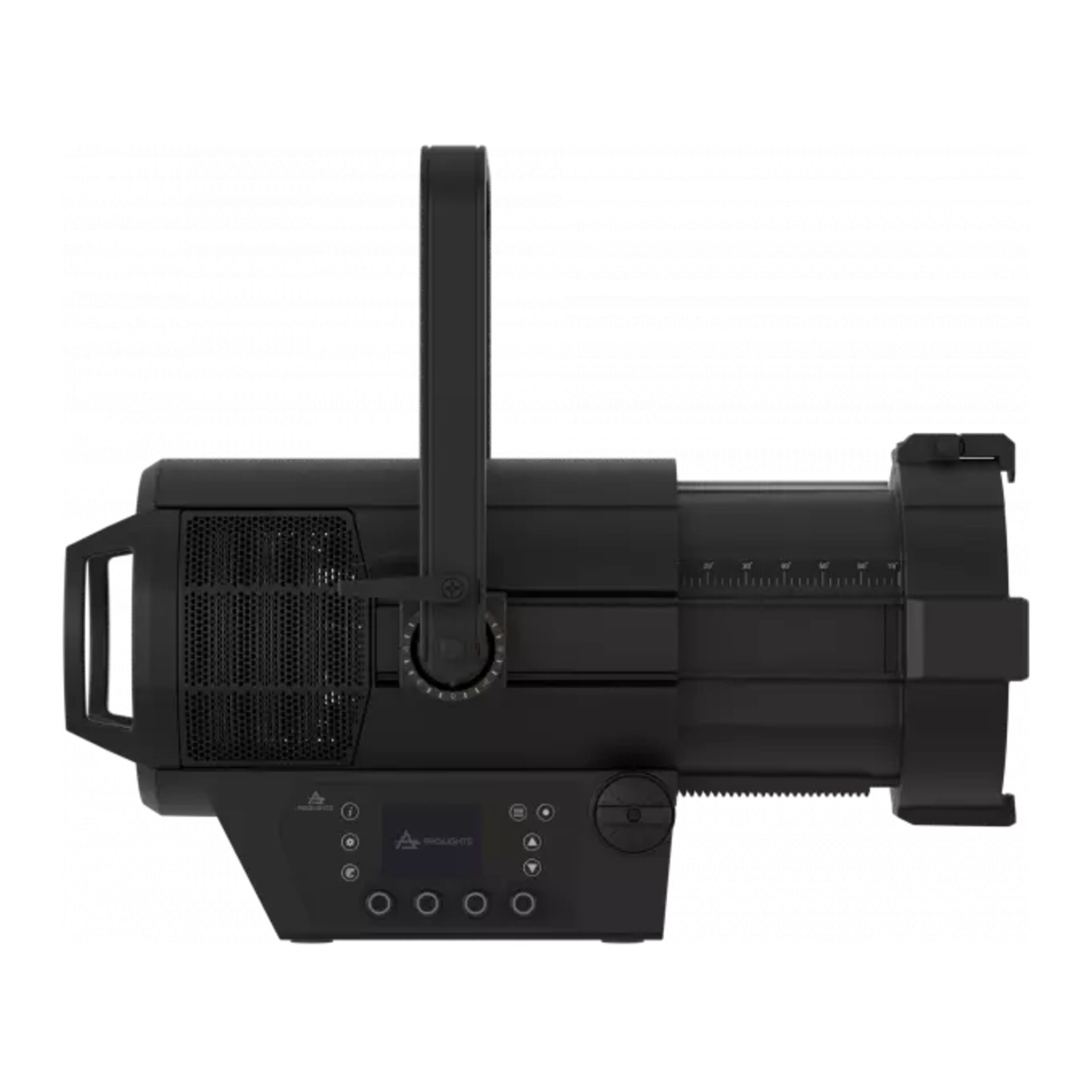

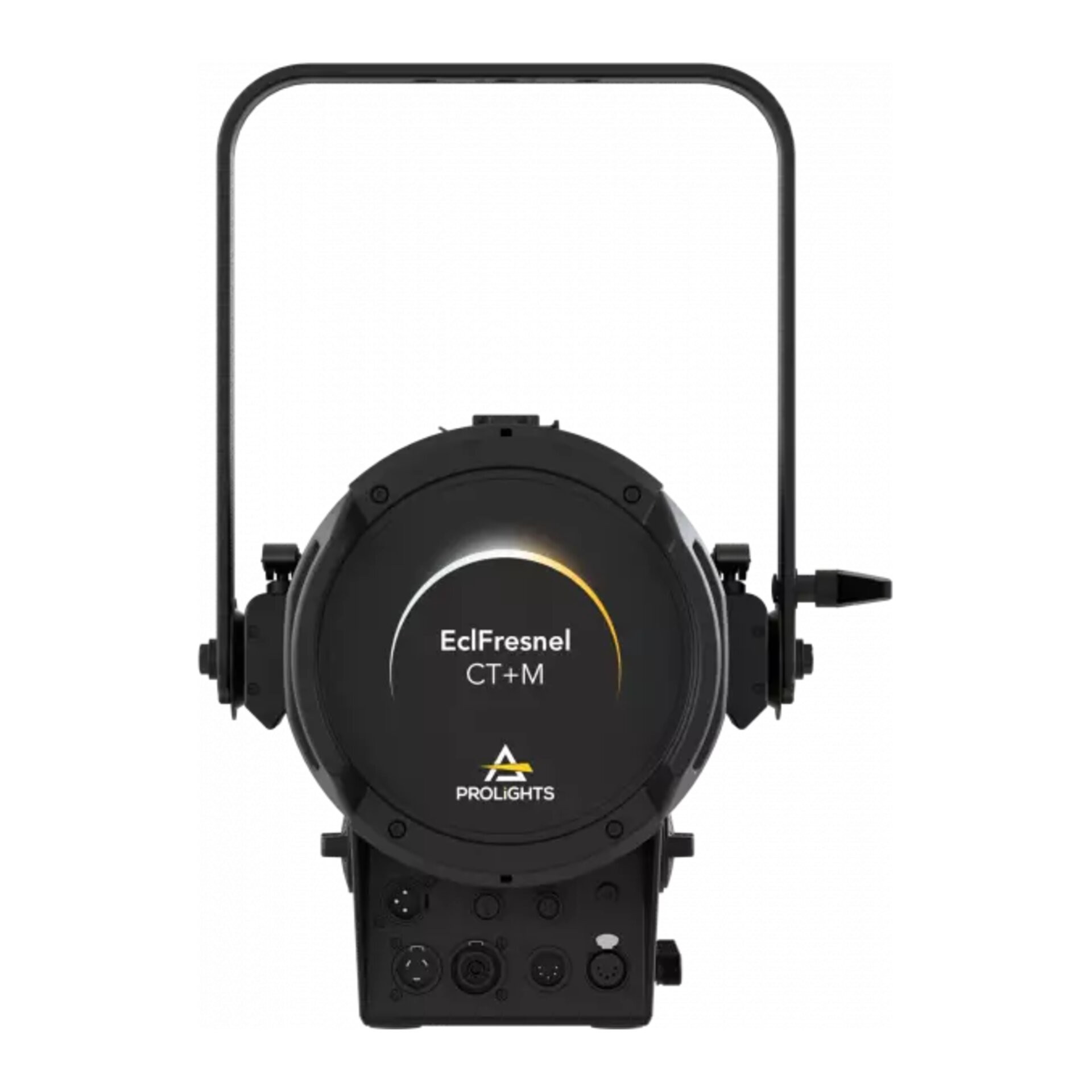

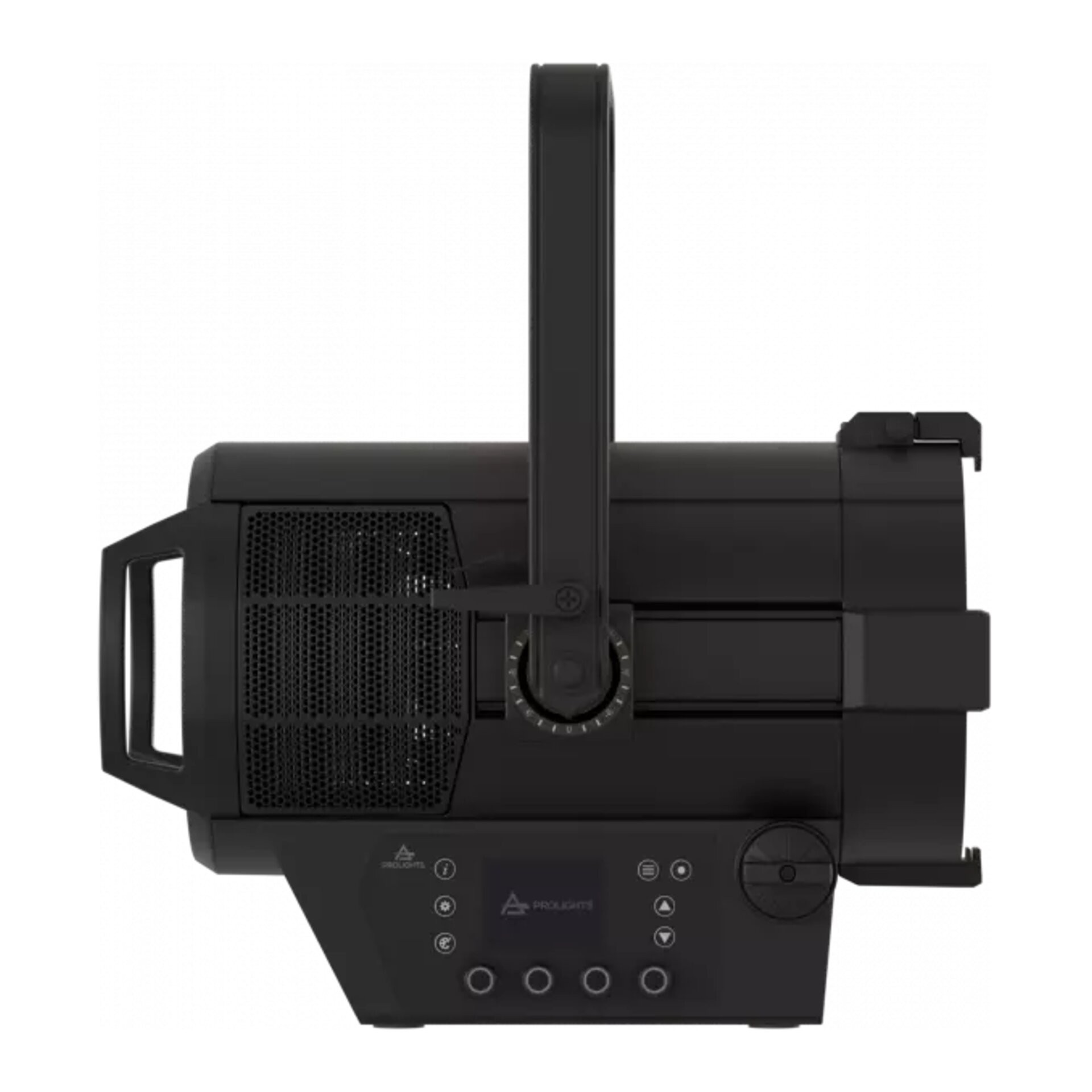

Lamp eigenschappen
KleursysteemRGBCMA - Full Color
Vermogen350W
Zoom9,4° - 80,8° manual
Aansturing
Stand Alone4 pushable RGB backlit encoder
Lichtbron
Lichtbron350W 6 colour LEDs source
CCTLinear CCT adjustment from 1.800 K-20.000K
Luminous flux(9,4°) 3'867 lm - (80,8°) 9'827lm @4.000 K
Lux(9,4°) 5'706 lx - (80,8°) 451lx @5m @4.000 K
Levensverwachting lichtbron> 50.000 h
CRI97 @3.200K; 96,8 @5.600 K
R991,7 @3200K; 96,9 @5.600 K
TLCI88 @3200K; 94 @5.600 K
TM30 Rf> 94 @3.200K; > 94 @5.600 K
TM30 RgSource life expectancy: > 50.000 h
Optiek
Lens diameter8'' / 200mm
Lens typeFresnel glass lens with AR coating

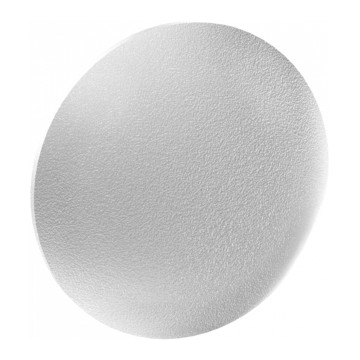

Extra optiekenPC lens available as accessory
Min. Zoombereik9
Max. Zoombereik80
BedieningHandmatig, Pole operated
Kleuren
Kleurmenging6 colour LEDs source
Behuizing
Kleur behuizingRAL 9004, Zwart
MateriaalDie-cast magnesium alloy
Aansturing
ProtocollenDMX512, RDM, CRMX
Master/Slavefor synchronised operation of more units linked in a chain
Display2.8'' Color display
Firmware upgradeyes, via USB - DMX interface (UPBOXPRO) not included
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik350W
Output (at 230V)8 units on a single power line
Power factor> 0,94
DC spanning48V
Fysieke eigenschappen
Koelingcombination of heat pipe cooling system and low noise fan
Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN/OUT connectors, PowerCON TRUE1
DC ConnectorXLR 3p for 48V
IP waarde20, IP20
Logistieke eigenschappen
Hoogte verpakking
41.5 cm
Breedte verpakking
57.5 cm
Diepte verpakking
40 cm
Gewicht verpakking
14.3 kg
