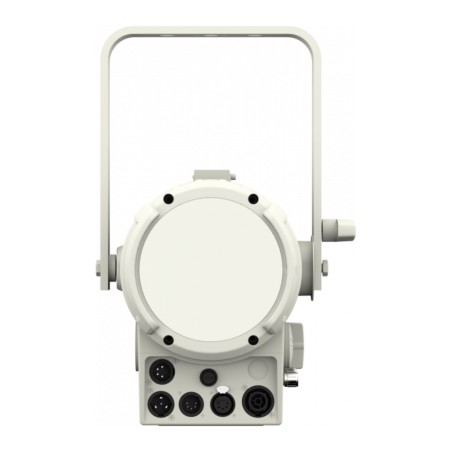

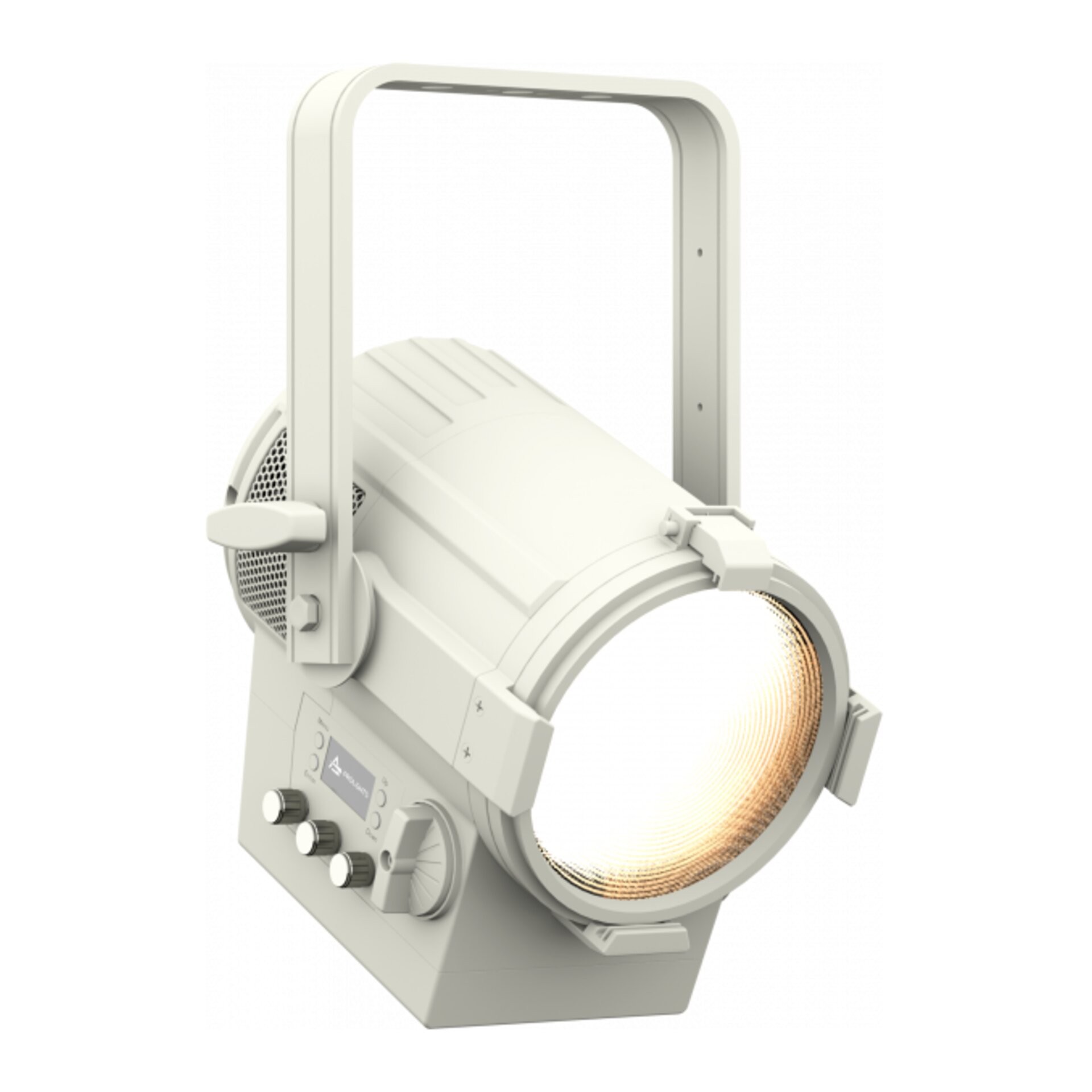

ProLights EclFresnel Jr VW WH

21-00395

  • Fresnel spot, incl barndoor
  • 150W LED, 2700K - 5600K, witte behuizing
  • Zoom 15 tot 83°

Omschrijving:
De EclFresnel JRVW WH is een krachtige LED Fresnel, ontworpen als vervanging voor een 650W armatuur, met een helder en hoogwaardig variabel wit licht, van 2.700K tot 5.600K, met behulp van een 150W LED-bron. Dit is het perfecte armatuur voor toepassingen die een hoogwaardige witweergave vereisen, zoals tv-studio's, galerijen en virtuele producties, met hoge CRI (>96), TLCI (>96), TM- 30 en R9. De EclFresnel JRVW WH heeft een handmatig zoombereik van 15° tot 83°, met nauwkeurige scherpstelling, en een barndoor (meegeleverd). Dit armatuur heeft een intuïtieve gebruikersinterface met draaiknoppen. Het heeft ook stand-alone instellingen, PowerCon True in & uit-verbindingen en DMX in & uit, wat een ongelooflijke gebruikerservaring en eenvoudige installatie biedt.

Merk

Bruto prijs:
€ 1.240,00

Levertijd 9 werkdagen

  • accessoires (11)
  • productspecificaties
  • gerelateerde producten

Prolights ECLFRS PG

21-20172

Prolights ECLFRS PG
  • TV spigot voor Prolights Fresnel & Panel
  • 28mm M10
Bruto prijs:
€ 35,50

Prolights ECLFRS JR BP4

21-20178

Prolights ECLFRS JR BP4
  • Battery pack voor de ECL fresnel JR
  • 1 lader, 4 batterijen
  • incl. koffer
Bruto prijs:
€ 1.900,00

Prolights ECLFRS JR BD

21-20179

Prolights ECLFRS JR BD
  • Barndoor voor de ECLFRESNEL JR
  • Kleur: zwart
  • incl. filterframe
Bruto prijs:
€ 120,00

ProTruss C 6016 B

24-00173

ProTruss C 6016 B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 20,50

ProTruss C 6040 B

24-00190

ProTruss C 6040 B
  • Halfcoupler voor TV spigot
  • SWL: 200kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 34,50

ProTruss RSR 0630 B

24-00246

ProTruss RSR 0630 B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 5,50

GDE True1 verlengkabel

Meerdere opties

GDE True1 verlengkabel
  • 3x2,5mm2 TH07 True1 verlengkabel
  • PowerCon True1 male kabeldeel
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 44,00

ProAudio Tour 53415BK

Meerdere opties

ProAudio Tour 53415BK
  • 5 polige DMX kabel, zwarte kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 45,00

ProTruss SPGM10

24-01400

ProTruss SPGM10
  • 28mm spigot for fixtures
  • M10 bolt
Bruto prijs:
€ 11,50

ProTruss SPGM12

24-01399

ProTruss SPGM12
  • 28mm spigot for fixtures
  • M12 bolt
Bruto prijs:
€ 11,50
Nieuw

CQ - PowerCon True1 1,5m

52-20034

CQ - PowerCon True1 1,5m
  • 3x1,5mm2 True1 aansluitkabel, 1,5m
  • Schuko 16A male stekker
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 26,20

Gegevens

Algemeen

Artikelnummer 21-00395
Merk ProLights
Artikelnummer fabrikant ECLFRESNELJVWWH
Garantie 2 jaar

Aansturing

Stand Alone3 rotatory knobs

Lichtbron

Lichtbron150W Variable White LED
CCT CCT control through dedicated DMX channel
Luminous flux(15,5°) 2'270 lm - (83°) 4'558lm @full
Lux(15,5°) 1'196 lx - (83°) 201lx @5 m full
Levensverwachting lichtbron > 50.000 h
CRI94 @WW; 95 @CW; 94 @full
R989 @WW; 88 @CW; 78 @full
TLCI98 @WW; 98 @CW; 98 @full
TM30 Rf>94 @WW; >93 @CW; >94 @full

Optiek

Lens diameter6'' - 150mm
Lens typefresnel zoom lens
Zoom15,5° - 83° manual

Kleuren

Kleurmenging tunable white
Wit macro's2.700 K - 5.600K
Kleurenwiel built-in white presets

Effecten

Control Resolution 16-bit dimmer

Body

Pan angle(for pole operated version) 360° with manual regulation
Tilt angle(for pole operated version) 340° with manual regulation
Kleur behuizing RAL 9004 or RAL 9003
Behuizing sturdy die-cast aluminium body

Aansturing

Protocolen DMX512, RDM
DMX kanalen1 / 2 / 4 / 5 / 11channel
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings

Electronics

Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -20° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 25.000 Hz

Elektrische eigenschappen

Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik125W
Output (at 230V)23 units on a single power line
Power factor> 0,95
Batterij29,6V 4400 mAh external battery (optional ECLFRSJBP4)

Fysieke eigenschappen

Koeling combination of heat pipe cooling system and low noise fan
Bevestiging bracket for hanging and positioning
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON TRUE1 IN/OUT connectors
Oplaad connectieconnection for external battery throught XLR 4p
IP waarde20
