Algemeen
Artikelnummer
21-00303
Artikelnummer fabrikant
ECLFRESNELTUWH
Garantie
2 jaar
Lichtbron
Lichtbron230W high-power white LED
CCT(TU) 3.200 K - (DY) 5.600K
Luminous flux(DY) (17°) 12'546 lm (42°) 15'623 lm @full
Lux(DY) (17°) 4'260 lx - (42°) 1'182lx @5 m full
Levensverwachting lichtbron > 50.000 h
CRI(TU) >98 - (DY) >95
R9(TU) >90 - (DY) >90
TLCI(TU) >98; (DY) >95
TM30 Rf(TU) >92; (DY) >89
TM30 Rg(TU) >99; (DY) >98
Optiek
Lens diameter8'' - 200mm
Lens typefresnel zoom lens
Zoom17° - 42° half peak angle
Kleuren
Manual colour mode manual adjust of dimmer throught menu and knob
Kleurmenging white
Body
Pan angle(for pole operated version) 360° with manual regulation
Tilt angle(for pole operated version) 340° with manual regulation
Kleur behuizing black, white finishing available
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512, RDM, rotatory knob
DMX kanalench1: 1 / 2 - ch2: 2 / 3 / 5channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100%, manual knob dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik210W
Output (at 230V)10 units on a single power line
Power factor0,95
Fysieke eigenschappen
Koeling combination of heat pipe cooling system and low noise fan
Bevestiging bracket for hanging and positioning

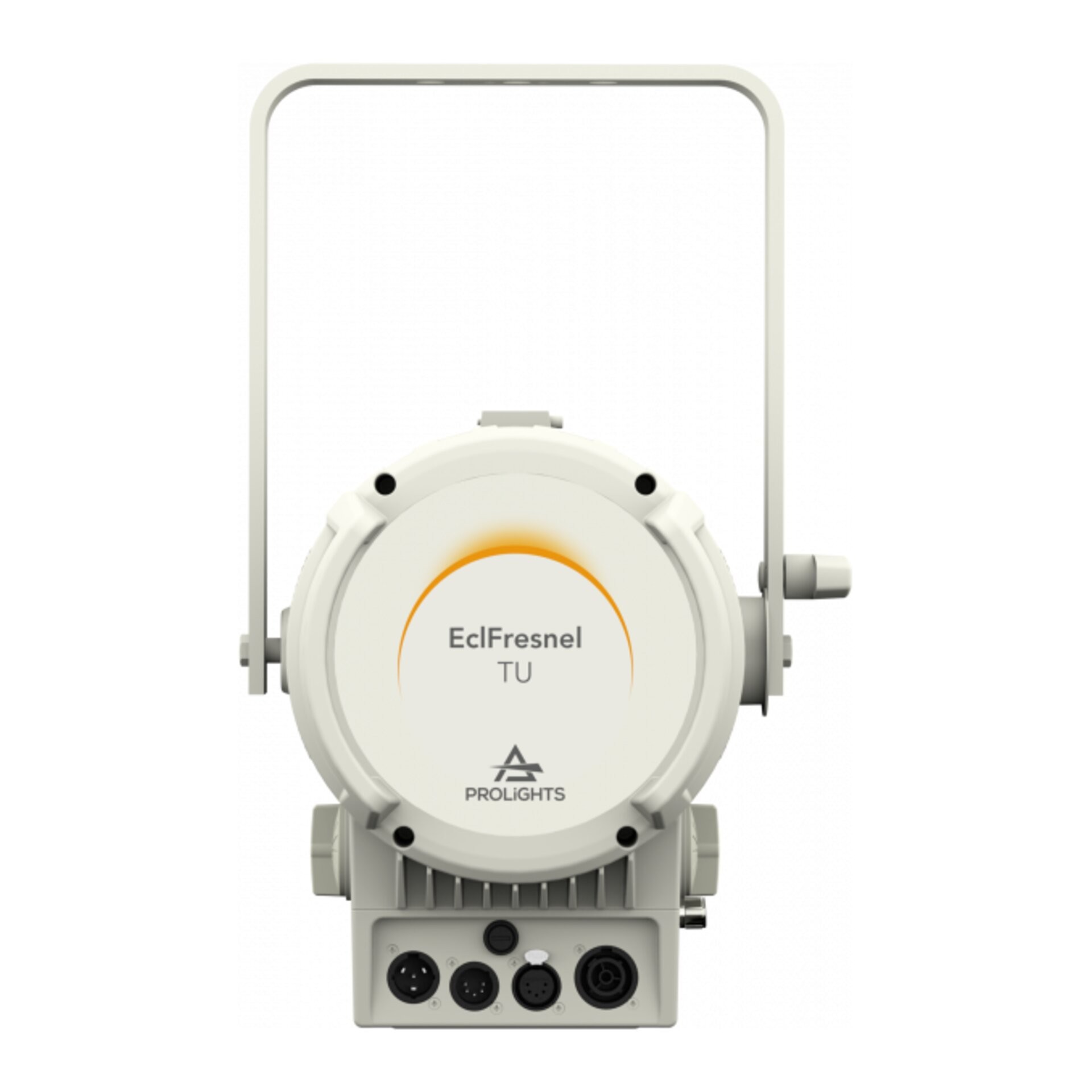

Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON TRUE1 IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte
44 cm
Breedte
28.3 cm
Diepte
34.3 cm
Gewicht
0.01 kg
