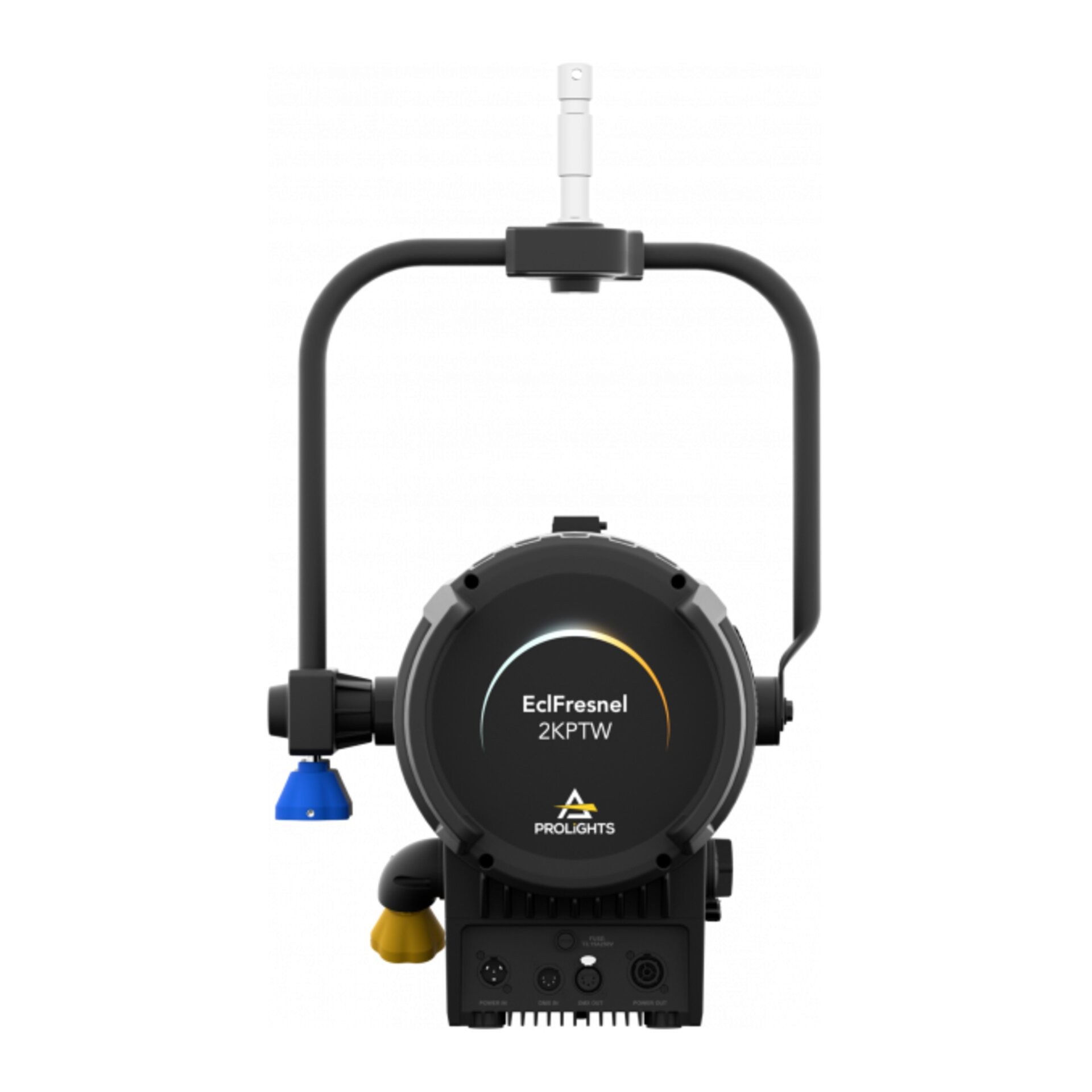

Algemeen
Artikelnummer
21-00204
Merk
ProLights
MPN
ECLFR2KPTW
Artikelnummer fabrikant
ECLFR2KPTW
Garantie
2 jaar
Lamp eigenschappen
KleursysteemROGRBBL - Full Color
Vermogen500W
Zoom17° - 52° half peak angle
Lichtbron
Lichtbron500W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(17°) 10'100 - (52°) 13'400lm @full
Lux(17°) 3'864 lx - (52°) 710lx @5 m full
Levensverwachting lichtbron> 70.000 h
CRI89 @ 3200K; 90,7 @ 5600K
R980 @ 3200K; 85,4 @ 5600K
TLCI87 @ 5600K
TM30 Rf89,4 @ 3200K; 86,2 @ 5600K
TM30 Rg101,6 @ 3200K; 102,1 @ 5600K
Optiek
Lens diameter250mm
Lens typefresnel zoom lens
Min. Zoombereik17
Max. Zoombereik52
BedieningPole operated
Kleuren
Manual colour modemanual adjustment of intensity, CT, colour correction from knob
Kleurmenging6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
Wit macro's2.800 K - 10.000K
Kleurenwielvirtual colour wheel with macros
Effecten
Macrosseveral pre-build macros with adjustable speed
Behuizing
Pan angle360° with manual regulation
Tilt angle150° with manual regulation
Kleur behuizingZwart, black, white finishing available
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM, rotatory knob
DMX kanalen1 / 2 / 5 - 1 / 5 - 2 / 7 - 1 / 7 - 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik400W
Output (at 230V)5 units on a single power line
Power factor>0,93
Fysieke eigenschappen
Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingbracket for hanging and positioning
Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN/OUT connectors, PowerCON TRUE1
IP waarde20, IP20
Logistieke eigenschappen
Hoogte verpakking
46.5 cm
Breedte verpakking
75.5 cm
Diepte verpakking
53 cm
Gewicht verpakking
21 kg
