Algemeen
Artikelnummer
21-00161
Merk
ProLights
Artikelnummer fabrikant
ECLFRESNELPTU
Garantie
2 jaar
Lamp eigenschappen
KleursysteemMono-color
Vermogen230W
Zoom17° - 42° half peak angle
Lichtbron
Lichtbron230W high-power white LED
CCT(TU) 3.200 K - (DY) 5.600K
Luminous flux(DY) (17°) 12'546 lm (42°) 15'623 lm @full
Lux(DY) (17°) 4'260 lx - (42°) 1'182lx @5 m full
Levensverwachting lichtbron> 50.000 h
CRI(TU) >98 - (DY) >95
R9(TU) >90 - (DY) >90
TLCI(TU) >98; (DY) >95
TM30 Rf(TU) >92; (DY) >89
TM30 Rg(TU) >99; (DY) >98
Optiek

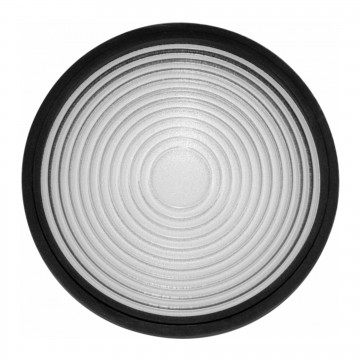

Lens diameter200mm
Lens typefresnel zoom lens
Min. Zoombereik17
Max. Zoombereik42
BedieningPole operated
Kleuren
Manual colour modemanual adjust of dimmer throught menu and knob
Kleurmengingwhite
Behuizing
Pan angle(for pole operated version) 360° with manual regulation
Tilt angle(for pole operated version) 340° with manual regulation
Kleur behuizingZwart, black, white finishing available
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM, rotatory knob
DMX kanalench1: 1 / 2 - ch2: 2 / 3 / 5channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100%, manual knob dimmer
Dimmer curvesselectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik210W
Output (at 230V)10 units on a single power line
Power factor0,95
Fysieke eigenschappen
Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingbracket for hanging and positioning
Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN/OUT connectors, PowerCON TRUE1
IP waarde20, IP20
Logistieke eigenschappen
Hoogte verpakking
35 cm
Breedte verpakking
61.5 cm
Diepte verpakking
40.5 cm
Gewicht verpakking
12.3 kg
