Lamp eigenschappen
KleursysteemMono-color
Vermogen230W
Zoom17° - 42° half peak angle
Lichtbron
Lichtbron230W high-power white LED
CCT(TU) 3.200 K - (DY) 5.600K
Luminous flux(DY) (17°) 12'546 lm (42°) 15'623 lm @full
Lux(DY) (17°) 4'260 lx - (42°) 1'182lx @5 m full
Levensverwachting lichtbron > 50.000 h
CRI(TU) >98 - (DY) >95
R9(TU) >90 - (DY) >90
TLCI(TU) >98; (DY) >95
TM30 Rf(TU) >92; (DY) >89
TM30 Rg(TU) >99; (DY) >98
Optiek
Lens diameter200mm
Lens typefresnel zoom lens
Min. Zoombereik17
Max. Zoombereik42
BedieningHandmatig
Kleuren
Manual colour mode manual adjust of dimmer throught menu and knob
Kleurmenging white
Behuizing
Pan angle(for pole operated version) 360° with manual regulation
Tilt angle(for pole operated version) 340° with manual regulation
Kleur behuizingZwart
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512, RDM, rotatory knob
DMX kanalench1: 1 / 2 - ch2: 2 / 3 / 5channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100%, manual knob dimmer
Dimmer curves selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik210W
Output (at 230V)10 units on a single power line
Power factor0,95
Fysieke eigenschappen
Koeling combination of heat pipe cooling system and low noise fan
Bevestiging bracket for hanging and positioning

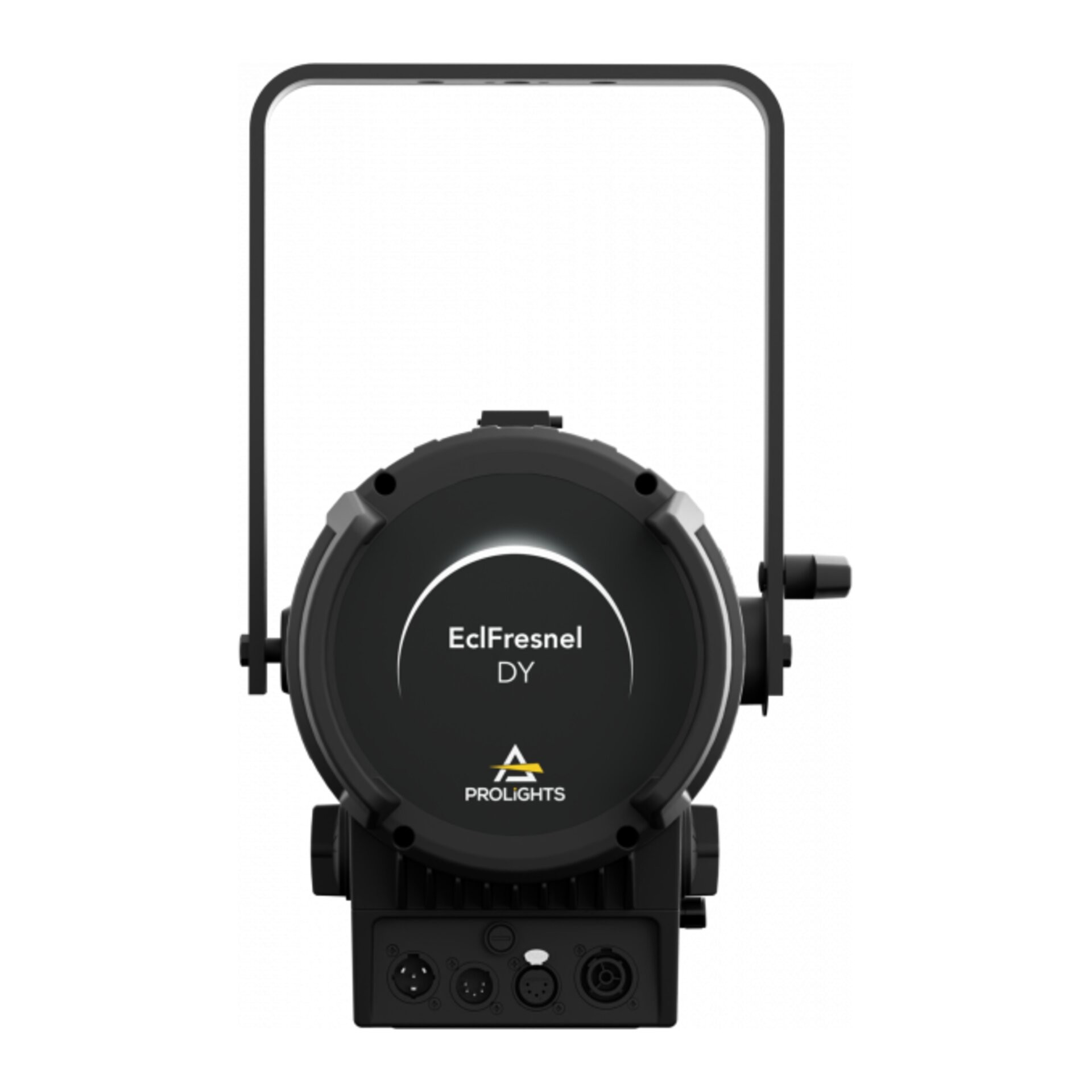

Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
StroomaansluitingPowerCON TRUE1
IP waarde20, IP20
Logistieke eigenschappen
Hoogte verpakking
35 cm
Breedte verpakking
50 cm
Diepte verpakking
41.5 cm
Gewicht verpakking
10 kg
