Lamp eigenschappen
KleursysteemRGBW - Full Color
AansturingDMX, RDM
Vermogen1020W

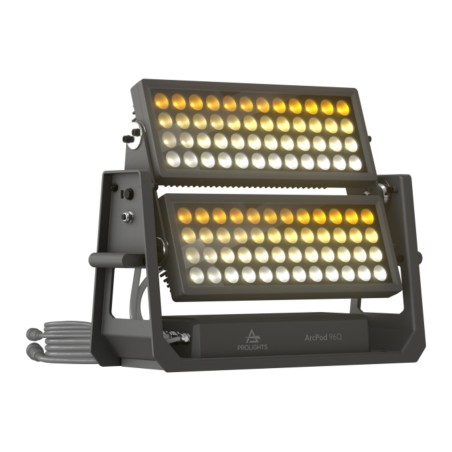

SerieArcPod
Lichtbron
Lichtbron96x10W RGBW / FC LEDs
CCTCCT control through dedicated DMX channel
Luminous flux(15°) 46'094 lm - (25°) 41'570 lm - (45°) 33'410 @Full
Lux(15°) 22'307 lx - (25°) 9'266 lx - (45°) 2'007lx @5 m full
Levensverwachting lichtbron> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Optiek
Extra optieken25° - 45° (optional) - see available accessories
Kleuren
KleurmengingRGBW / FC
Kleurenwielvirtual colour wheel with macros
Effecten
FX generatorup to 8 linear controllable sections
Macrosseveral pre-built macros with adjustable speed
Behuizing
Kleur behuizingGrijs
MateriaalAluminium
Aansturing
ProtocollenDMX512, RDM
DMX kanalen8 / 10 / 14 / 20 / 34 / 44channel
Master/Slavefor synchronised operation of more units linked in a chain
Displayuser interface through DATAMASTER external coder (not included)
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
RDMRDM for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 ~ 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F) Ta
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik1020W
Output (at 230V)4 units on a single power line
Power factor> 0,96
Fysieke eigenschappen
Koelingnatural convection cooling enabled by a fanless design and a chassis engineered for passiv
Signaal aansluiting1,8 m moulded IP signal IN connector
IP waardeIP66
Montage mogelijkhedenOpbouw, Statief
