Lamp eigenschappen
KleursysteemRGBW - Full Color
AansturingDMX, RDM
Vermogen270W
SerieArcPod
Lichtbron
Lichtbron27x10W RGBW / FC LEDs
CCT CCT control through dedicated DMX channel
Luminous flux(10°) 9'437 lm; (15°) 11'179 lm; (25°) 10'757; (45°) 9'816 @Full
Lux(10°) 6'463 lx; (15°) 5'046 lx; (25°) 2'282 lx; (45°) 523lx @5 m full
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
Optiek
Extra optieken10° - 25° - 45° (optional) - see available accessories
Kleuren
Kleurmenging RGBW / FC
Kleurenwielvirtual colour wheel with presets
Effecten
FX generatorup to 3 linear controllable sections
Macros several pre-built macros with adjustable speed
Behuizing
Kleur behuizingRAL 7012 - see available finishing
MateriaalAluminium
Aansturing
Protocollen DMX512, RDM
DMX kanalen5 / 7 / 10 / 13 / 17channel
Master/Slave for synchronised operation of more units linked in a chain
Display user interface through DATAMASTER external coder (not included)
Firmware upgrade via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F) Ta
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik270W
Output (at 230V)9 units on a single power line
Power factor0,97
Fysieke eigenschappen
Koeling fan-free projector with a chassis designed for natural convection cooling

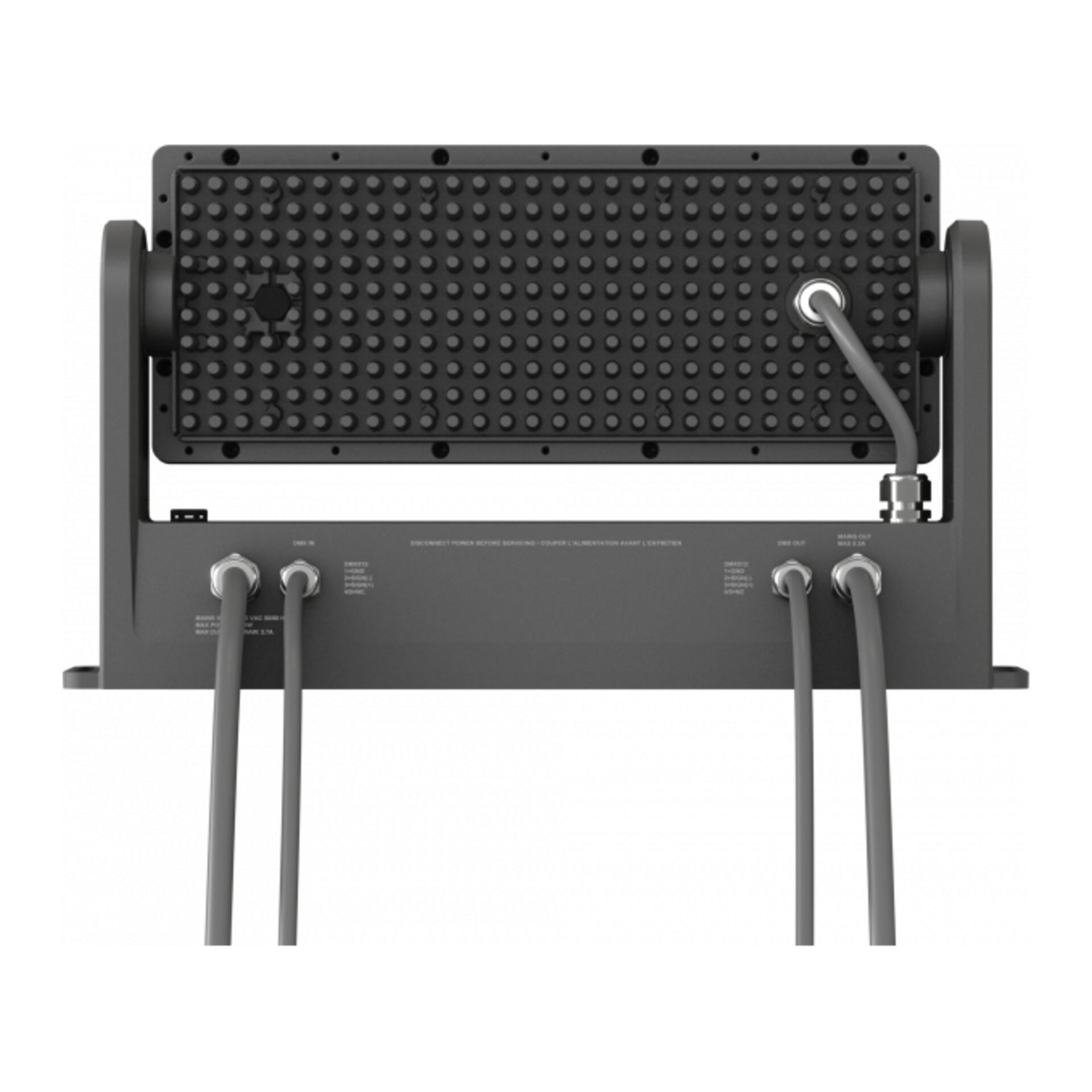

Signaal aansluiting1,8 m moulded IP signal IN/OUT connectors
Stroomaansluiting1,8 m moulded IP signal IN/OUT connectors
IP waarde66 for outdoor installations
