Lamp eigenschappen
KleursysteemCC/CW - Tunable White
AansturingDMX, RDM
Vermogen520W

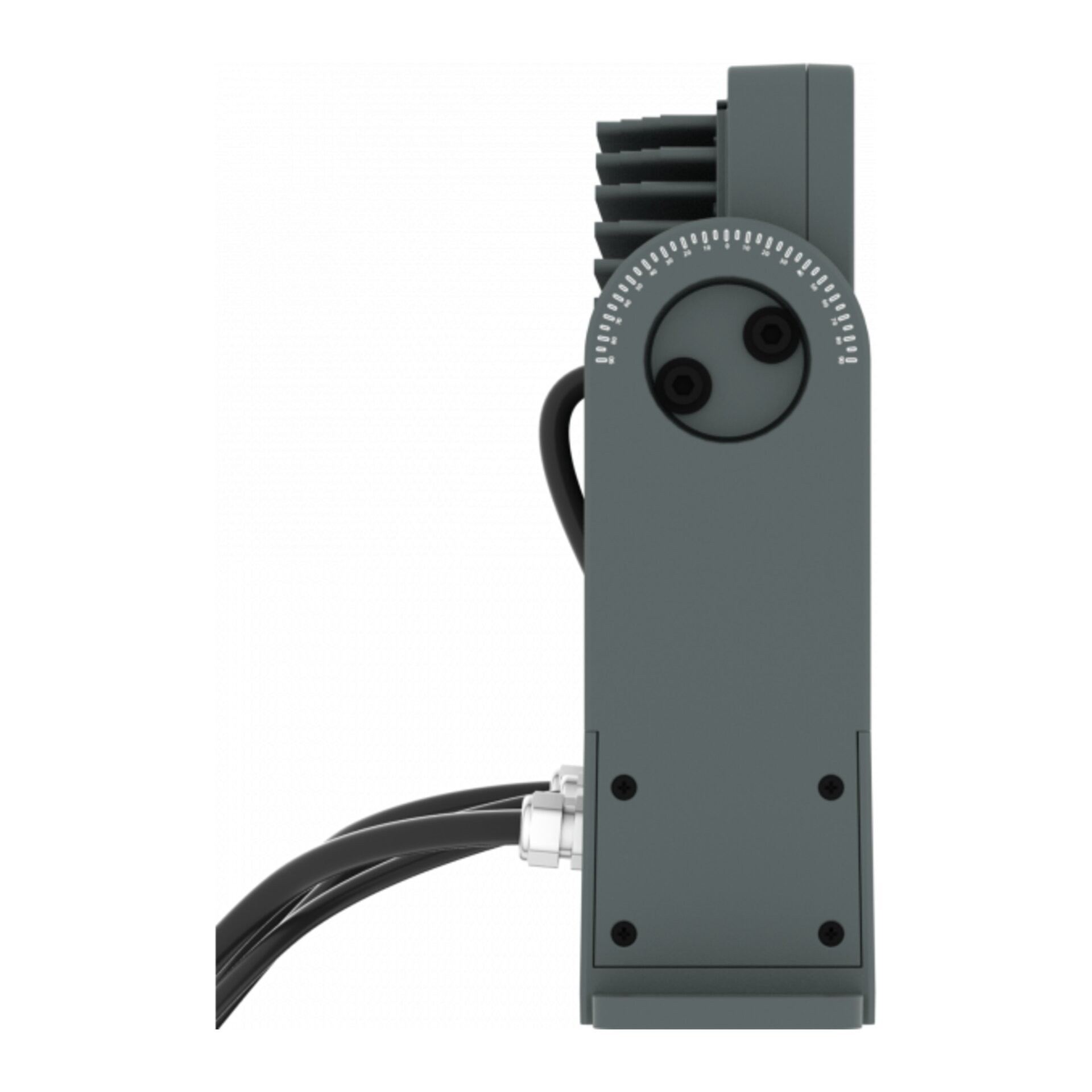

SerieArcPod
Lichtbron
Lichtbron48x10W Warm White + Cold White LEDs
CCT CCT control through dedicated DMX channel
Luminous flux(15°) 25'309 lm; (15°+20°) 24'786 lm; (15°+30°) 24'628 lm; (15°+40°) 24'658 lm; (15°+60°) 24'204 lm; (15°+80°) 23'372 lm; (15°+10°x60°) 46'553 lm; (15°+30°x60°) 27'287lm @full
Lux(15°) 19'746 lx; (15°+20°) 3'992 lx; (15°+30°) 2'485 lx: (15°+40°) 1'310 lx; (15°+60°) 906 lx; (15°+80°) 585 lx; (15°+10°x60°) 3'470 lx; (15°+30°x60°) 1'578lx @3 m full
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI81,3 @ WW; 83.5 @ CW; 86,2 @ full
Optiek
Extra optieken see available accessories
Kleuren
Kleurmenging tunable white
Wit macro's2.700 K ~ 6.500K
Kleurenwiel virtual colour wheel with macros
Effecten
FX generatorup to 4 linear controllable sections
Macros several pre-built macros with adjustable speed
Behuizing
Tilt angle0 ~ 130° with manual regulation
Kleur behuizing RAL 7012
MateriaalAluminium
Aansturing
Protocollen DMX512, RDM
DMX kanalen1 / 2 / 3 / 5 / 11 / 14channel
Master/Slave for synchronised operation of more units linked in a chain
Display user interface through DATAMASTER external coder (not included)
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 ~ 30 Hz, electronic
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik520W
Output (at 230V)4 units on a single power line
Power factor0,96
Fysieke eigenschappen
Koeling passive cooling and fan-free
Signaal aansluiting moulded IP signal IN/OUT connectors
Stroomaansluiting moulded IP power IN/OUT connectors
IP waardeIP66
Montage mogelijkhedenOpbouw
Logistieke eigenschappen
Hoogte verpakking
39.5 cm
Breedte verpakking
65 cm
Diepte verpakking
20.5 cm
Gewicht verpakking
15.5 kg
