Lamp eigenschappen
KleursysteemCC/CW - Tunable White
AansturingDMX, RDM
Vermogen270W

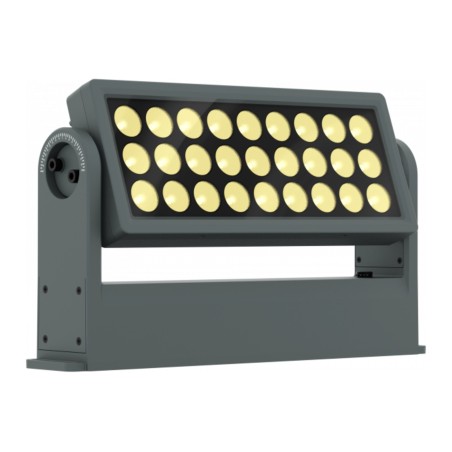

SerieArcPod
Lichtbron
Lichtbron27x10W Warm White + Cold White LEDs
CCT CCT control through dedicated DMX channel
Luminous flux(15°) 16'036 lm; (15°+20°) 14'121 lm; (15°+30°) 13'204 lm; (15°+40°) 14'030 lm; (15°+60°) 13'811 lm; (15°+80°) 12'534 lm; (15°+10°x60°) 26'122 lm; (15°+30°x60°) 16'195lm @full
Lux(15°) 13'390 lx; (15°+20°) 2'353 lx; (15°+30°) 1'415 lx: (15°+40°) 743 lx; (15°+60°) 492 lx; (15°+80°) 331 lx; (15°+10°x60°) 1'989 lx; (15°+30°x60°) 963lx @3 m full
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI81,9 @ WW; 84 @ CW; 86,7 @ full
Optiek
Extra optieken see available accessories
Kleuren
Kleurmenging tunable white
Wit macro's2.700 K ~ 6.500K
Kleurenwielvirtual colour wheel with presets
Effecten
FX generatorup to 3 linear controllable sections
Macros several pre-built macros with adjustable speed
Behuizing

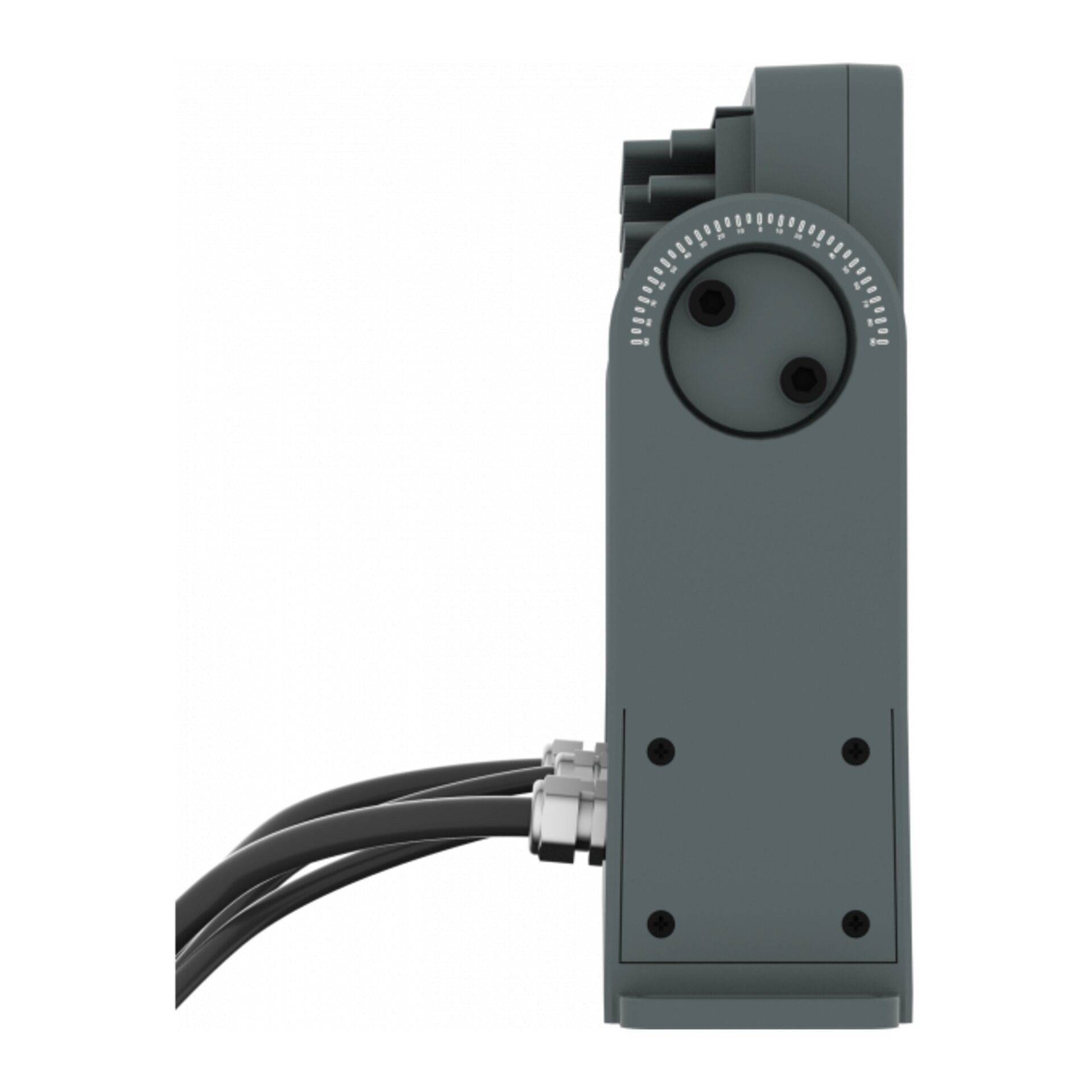

Tilt angle0 ~ 130° with manual regulation
Kleur behuizing RAL 7012
MateriaalAluminium
Aansturing
Protocollen DMX512, RDM
DMX kanalen1 / 2 / 3 / 5 / 11 / 11channel
Master/Slave for synchronised operation of more units linked in a chain
Display user interface through DATAMASTER external coder (not included)
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik265W
Output (at 230V)9 units on a single power line
Power factor0,98
Fysieke eigenschappen
Koeling passive cooling and fan-free

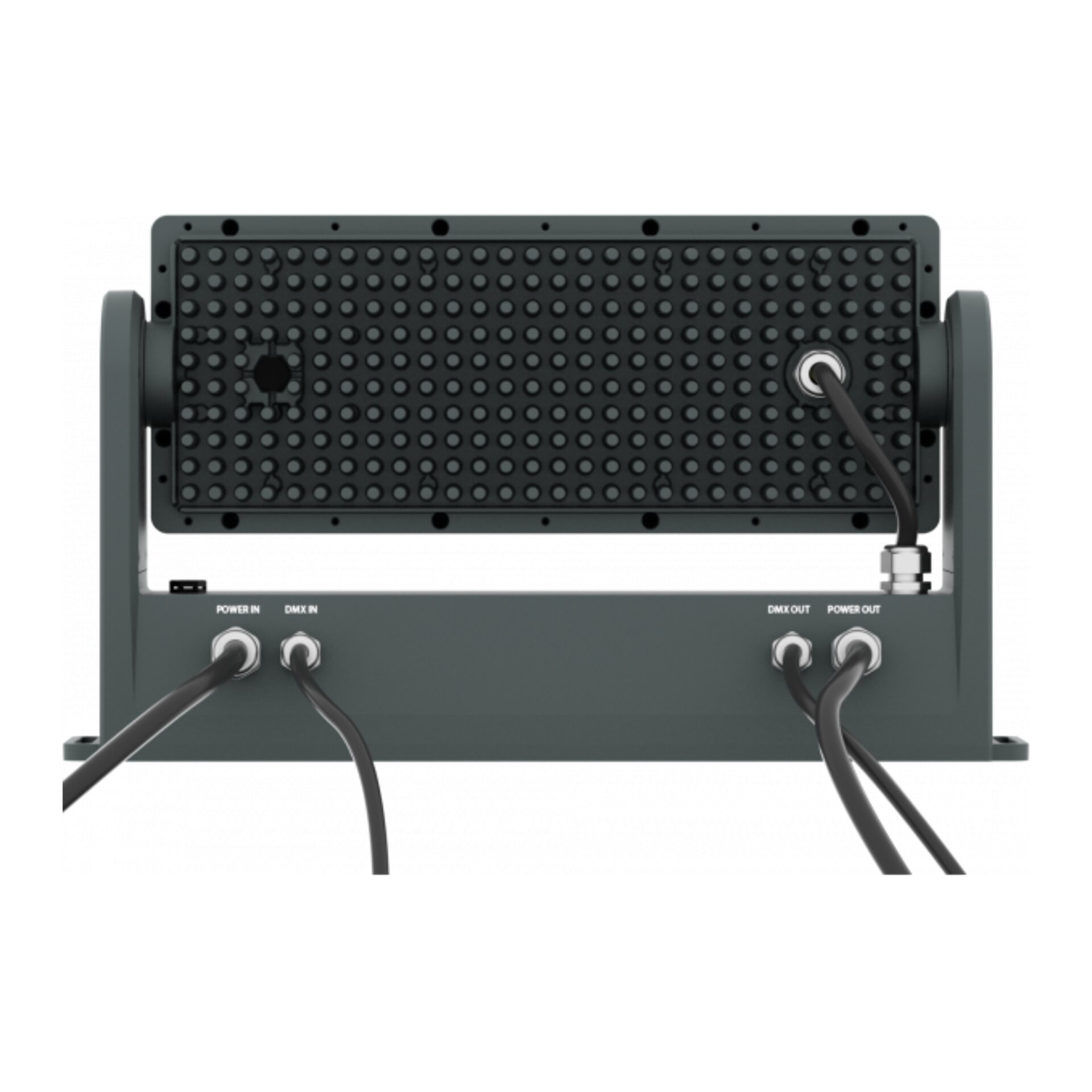

Signaal aansluiting moulded IP signal IN/OUT connectors
Stroomaansluiting moulded IP power IN/OUT connectors
IP waardeIP66
Montage mogelijkhedenOpbouw
Logistieke eigenschappen
Hoogte verpakking
23.5 cm
Breedte verpakking
53 cm
Diepte verpakking
34 cm
Gewicht verpakking
10.6 kg
