Lamp eigenschappen
KleursysteemCC/CW - Tunable White
AansturingDMX, RDM
Vermogen150W
SerieArcPod
Lichtbron
Lichtbron15x10W Warm White + Cold White LEDs
CCT CCT control through dedicated DMX channel
Luminous flux(15°) 8'884 lm; (15°+20°) 7'811 lm; (15°+30°) 7'846 lm; (15°+40°) 7'935 lm; (15°+60°) 7'902 lm; (15°+80°) 7'937 lm; (15°+10°x60°) 15'410 lm; (15°+30°x60°) 8667lm @full
Lux(15°) 7'769 lx; (15°+20°) 1'360 lx; (15°+30°) 822 lx: (15°+40°) 409 lx; (15°+60°) 292 lx; (15°+80°) 205 lx; (15°+10°x60°) 1'126 lx; (15°+30°x60°) 517lx @5 m full
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI81,3 @ WW; 83.9 @ CW; 86.5 @ full
Optiek
Lens diameter36mm

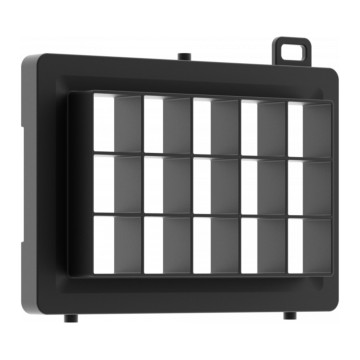

Extra optieken see available accessories
Kleuren
Kleurmenging tunable white
Wit macro's2.700 K ~ 6.500K
Kleurenwielvirtual colour wheel with presets
Effecten
Macros several pre-built macros with adjustable speed
Behuizing
Tilt angle0 - 130° with manual regulation
Kleur behuizing RAL 7012
MateriaalAluminium
Aansturing
Protocollen DMX512, RDM
DMX kanalen1 / 2 / 3 / 5 / 11channel
Master/Slave for synchronised operation of more units linked in a chain
Display user interface through DATAMASTER external coder (not included)
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter1 ~ 30 Hz, electronic
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik145W
Output (at 230V)14 units on a single power line
Power factor>0,97
Fysieke eigenschappen
Koeling passive cooling and fan-free

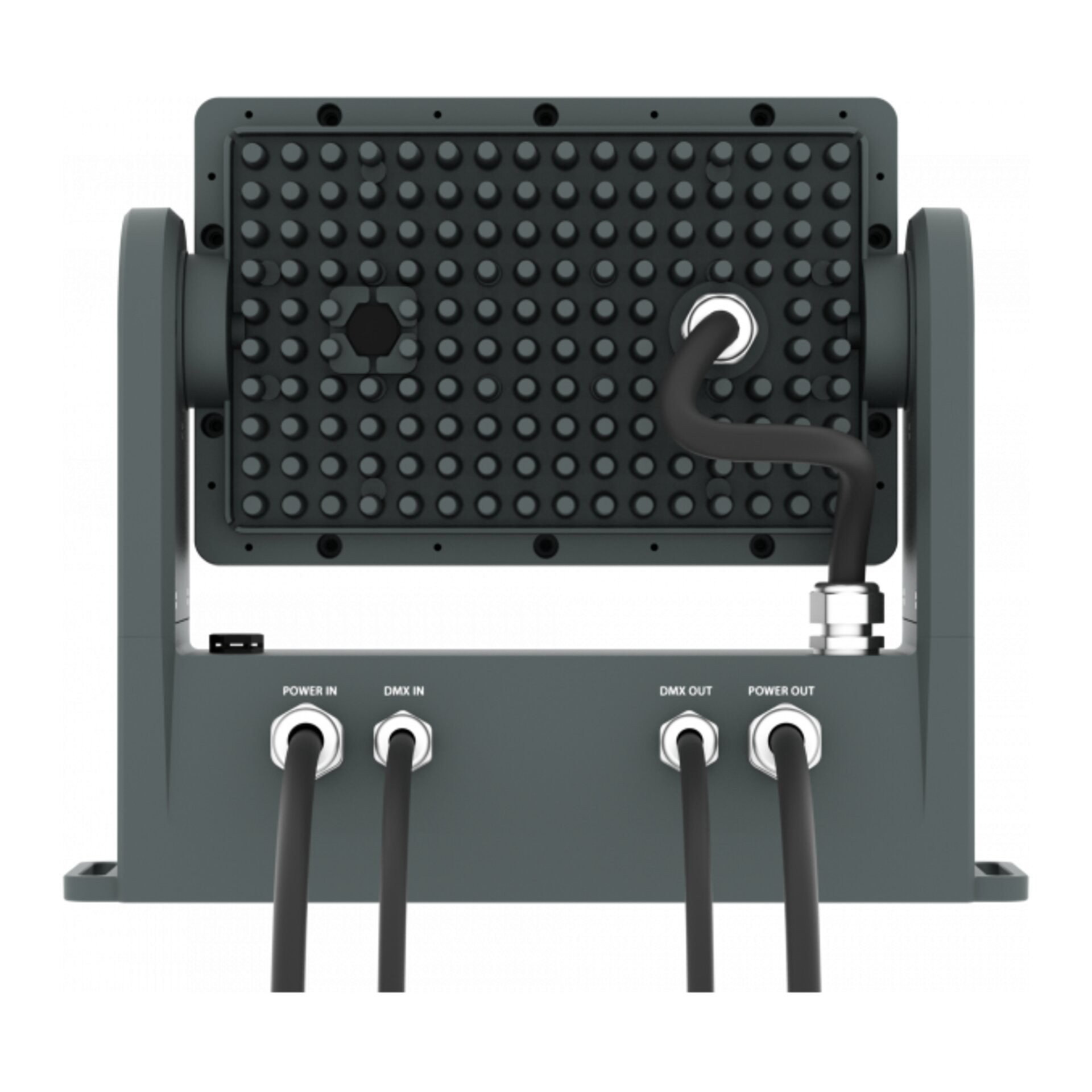

Signaal aansluiting moulded IP signal IN/OUT connectors
Stroomaansluiting moulded IP power IN/OUT connectors
IP waardeIP66
Montage mogelijkhedenOpbouw
