Lamp eigenschappen
KleursysteemRGBW - Full Color
AansturingDMX, RDM
Vermogen540W
SerieArcPod
Lichtbron
Lichtbron48x10W RGBW / FC LEDs
CCT CCT control through dedicated DMX channel
Luminous flux(10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408lm @full
Lux(10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986lx @5 m full
Levensverwachting lichtbron 50.000 hrs (L70 @25° C / 77° F)
Optiek
Extra optieken10° - 25° - 45° (optional)
Kleuren
Kleurmenging RGBW / FC
Wit macro's2.800 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros
Effecten
FX generatorup to 4 linear controllable sections
Macros several pre-build macros with adjustable speed
Behuizing
Tilt angle0 ~ 130° with manual regulation
Kleur behuizing RAL 7012
MateriaalAluminium
Aansturing
Protocollen DMX512, RDM
DMX kanalen5 / 7 / 10 / 17 / 22channel
Master/Slave for synchronised operation of more units linked in a chain

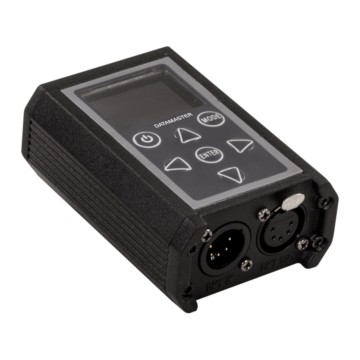

Display user interface through DATAMASTER external coder (not included)
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 ~ 30 Hz, electronic
Bedrijfstemperatuur -20° C / +45° C (-4° F / +113° F)
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik521W
Output (at 230V)4 units on a single power line
Power factor0,95
Fysieke eigenschappen
Koeling passive cooling and fan-free
Signaal aansluiting moulded IP signal IN/OUT connectors
Stroomaansluiting moulded IP power IN/OUT connectors
IP waarde66 for outdoor installations, IP66
Montage mogelijkhedenOpbouw
Logistieke eigenschappen
Hoogte verpakking
39.5 cm
Breedte verpakking
65 cm
Diepte verpakking
20.5 cm
Gewicht verpakking
15.5 kg
