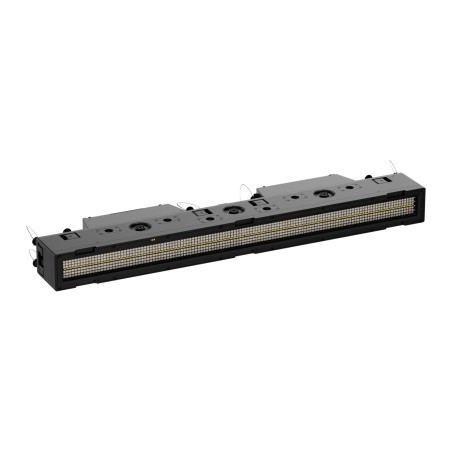

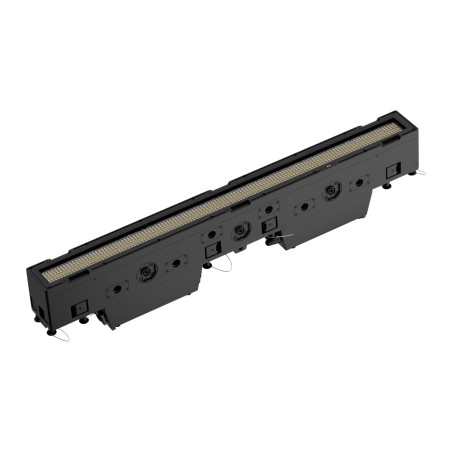

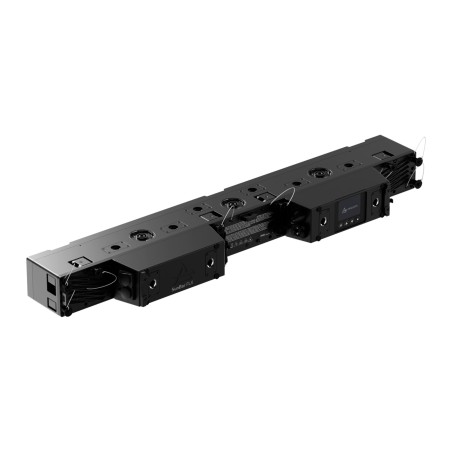

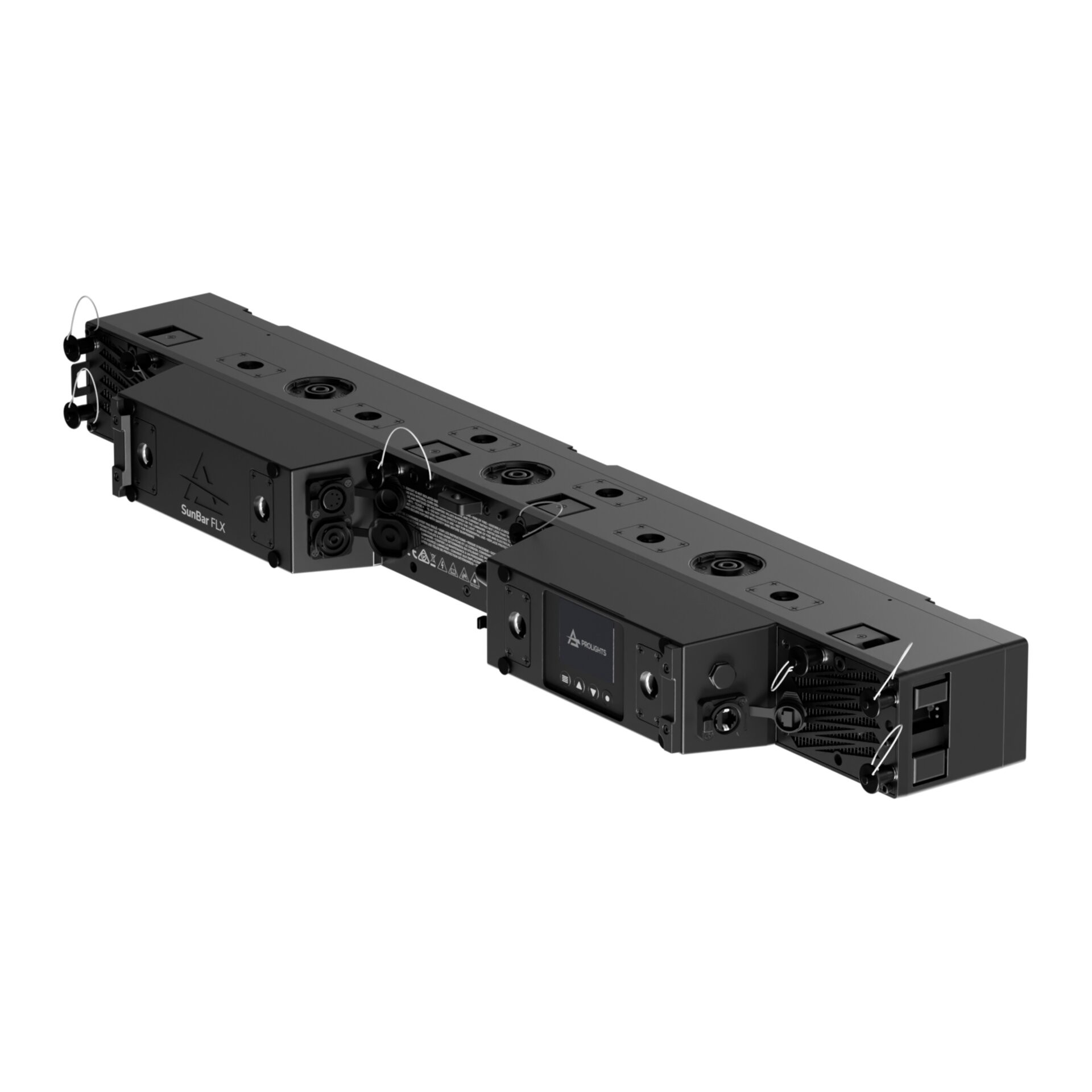

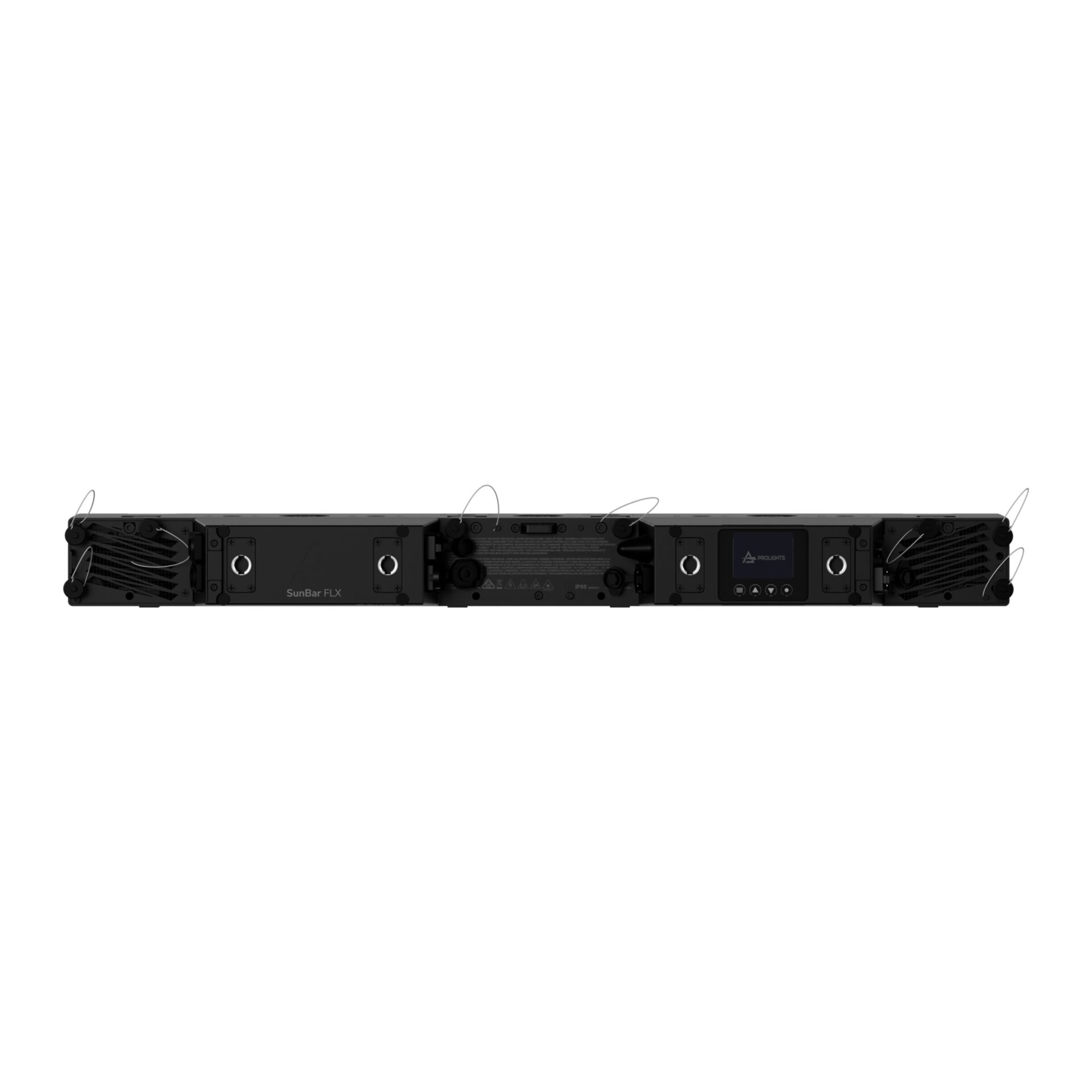

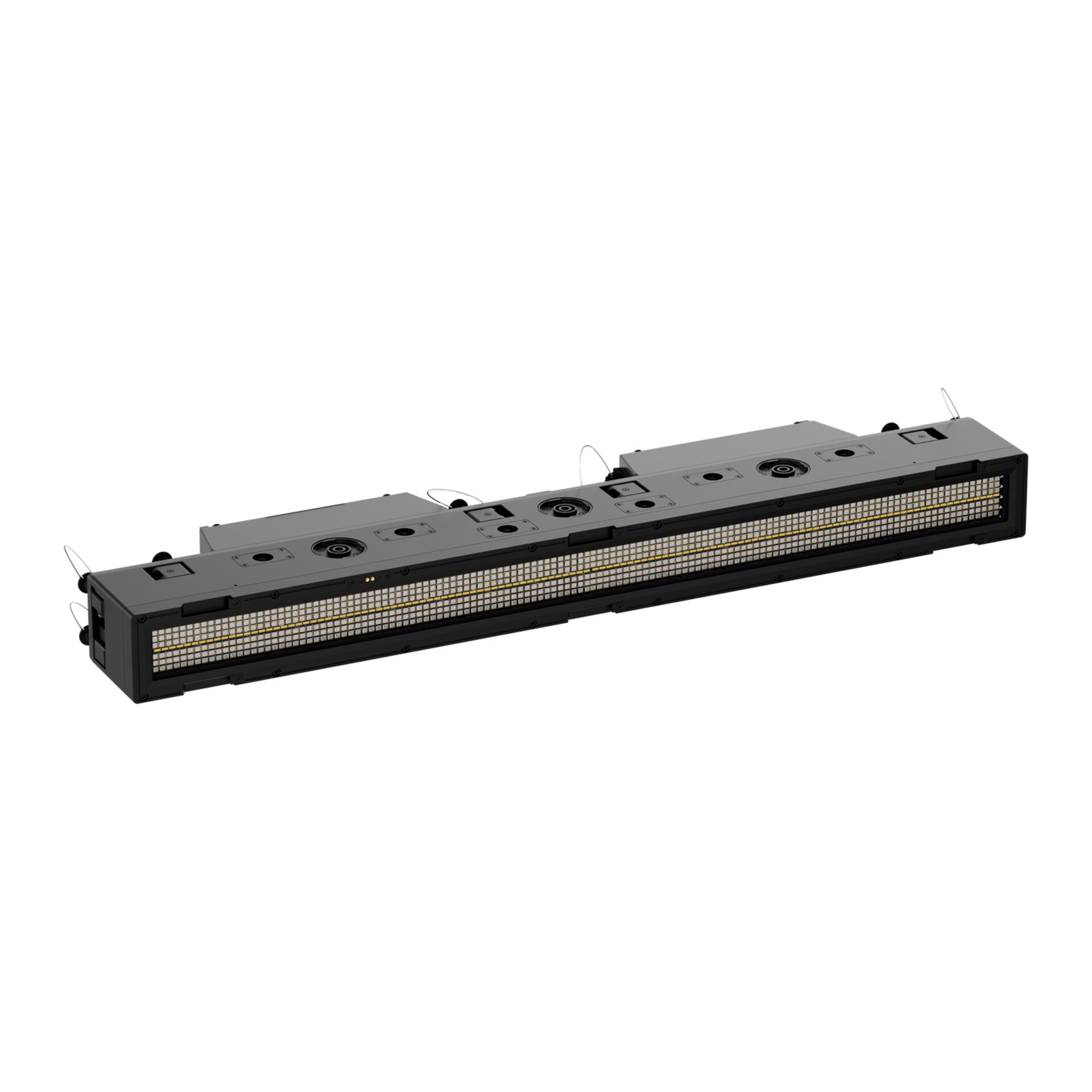

ProLights SUNBARFLX

21-00638

  • IP65 linear LED Strobe with white beam +
  • RGB+WW plate
  • 1200W peak power

Omschrijving:

SunBar FLX is a linear IP65 hybrid LED strobe and wash fixture, expanding the family of bright, modular Sun fixtures for strobes and blinders. It retains the core strengths of the range: versatility, free-form modularity, and extremely high output.

SunBar FLX features a central white LED beam with 24 controllable sections, paired with an RGB + Warm White plate with 32 pixels. This dual-source design delivers an impressive output of >90,000 lumens, with 1200W peak power in strobe mode and 400W continuous power in wash mode. Built for creative applications, SunBar FLX supports high-impact modular configurations, advanced pixel effects, and multi-unit clusters for any indoor or outdoor stage.

The colour engine is powered by the SpektraOS ecosystem, delivering rich colours, high-quality whites, and smooth, precise dimming.

Wide native beam angles on both sources make SunBar FLX equally effective as an audience blinder, colour strobe, or wide-area wash. An optional quick-lock electronic frost filter is available to soften and diffuse the output when required.

Designed for fast, tool-free assembly, SunBar FLX includes a modular rigging system for vertical or horizontal arrays and cluster setups with other Sun-series fixtures such as SunRise FLX and SunBlast FLX. With an IP65 rating, it delivers reliable outdoor performance, ideal for festivals, events, and temporary architectural lighting. Control options include wired sACN/Art-Net and optional wireless CRMX, ensuring seamless integration into any lighting system.



Merk

Informeer naar de levertijd

Bruto prijs:
€ 2.310,00
  • accessoires (18)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (18)
  • Accessoires (14)
  • Haken/Safety's (2)
  • Wireless DMX (2)

ProLights SBARFLXHB025V

21-21424

ProLights SBARFLXHB025V
  • Vertical suspension accessory for
  • SUNBARFLX
Bruto prijs:
€ 65,00

ProLights SBARFLXFLB

21-21423

ProLights SBARFLXFLB
  • Quick-lock rear central mounting bracket
  • designed for SUNBARFLX
Bruto prijs:
€ 46,00

ProLights SBARFLXDYNFILT

21-21422

ProLights SBARFLXDYNFILT
  • Electronic frost filter for SUNBARFLX
Bruto prijs:
€ 230,00

ProLights FCLSUNBARFLX

21-21421

ProLights FCLSUNBARFLX
  • Flight case for 4 pcs of SUNBARFLX
Bruto prijs:
€ 750,00

ProLights ÆtherBox One

21-00637

ProLights ÆtherBox One
  • IP65 CRMX, WDMX zender / ontvanger
  • 1 Universe, diverse montage opties
  • voeding via: AC, DC12V, Batterij of PoE
Bruto prijs:
€ 960,00

ProLights ÆtherBox

21-00585

ProLights ÆtherBox
  • IP65 CRMX, WDMX zender / ontvanger
  • 1 Universe, diverse montageopties.
  • Diverse voedingsopties
Bruto prijs:
€ 700,00

ProLights HDWK

21-21260

ProLights HDWK
  • Draadloze DMX kit
Bruto prijs:
€ 150,00

ProLights OS25H3PLUS

21-21250

ProLights OS25H3PLUS
  • Quick-lock omega beugel
  • M12
  • 6cm hoogte
Bruto prijs:
€ 32,50

ProLights OS25PLUS

21-21233

ProLights OS25PLUS
  • Quick-lock omega beugel
  • M12
Bruto prijs:
€ 32,50

ProLights SBLFLXHHFLRB

21-21232

ProLights SBLFLXHHFLRB
  • Vloerbeugel
  • Horizontale montage, instelbare tilt
  • Geschikt voor: SUN-FLX serie
Bruto prijs:
€ 220,00

ProLights SBLFLXFLR

21-21230

ProLights SBLFLXFLR
  • Vloerbeugel
  • Kleur: Zwart
  • Geschikt voor: SUN-FLX serie
Bruto prijs:
€ 250,00

ProLights SBLFLXHB01H

21-21229

ProLights SBLFLXHB01H
  • Montagebeugel
  • Horizontale suspensie
  • Geschikt voor: SUN-FLX serie
Bruto prijs:
€ 140,00

ProLights SBLFLXB02V

21-21223

ProLights SBLFLXB02V
  • Beugel voor SUN-FLX serie
  • Verticale montage (2x)
  • Kleur: Zwart
Bruto prijs:
€ 140,00

ProLights SBLFLXB01V

21-21221

ProLights SBLFLXB01V
  • Beugel voor SUN-FLX serie
  • Verticale montage (1x)
  • Kleur: Zwart
Bruto prijs:
€ 120,00

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 170,00

ProTruss RSR0630B

24-00246

ProTruss RSR0630B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 4,80

ProTruss C6016B

24-00173

ProTruss C6016B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

Prolights ECLFRSPG

21-20172

Prolights ECLFRSPG - Full AVL Distribution
  • TV spigot voor Prolights Fresnel & Panel
  • 28mm M10
Bruto prijs:
€ 31,50

Gegevens

Algemeen

Artikelnummer 21-00638
Merk ProLights
Artikelnummer fabrikant SUNBARFLX
Garantie 2 jaar

Lichtbron

Lichtbron(Beam 24 px) 120 x 12 White LEDs + (Plate 32 px) 768 x 1,2WW RGB + Warm White LEDs
CCTCCT channel from 2.800K to 10.000K
Luminous fluxFull Power Wash - Combined: 36'557 lm @full
LuxFull Power Wash - Combined: 514lx @5 m full
Levensverwachting lichtbron> 20.000 h

Kleuren

KleurmengingRGB+WW + White LEDs
Wit macro's2.800-10.000K

Effecten

FX generatoradjustable foreground/background colour, index, speed, direction
Frostoptional electronic frost filter, continuously variable - see available accessories
Control Resolution16-bit dimmer and color control, 16-bit dimmer and color control

Aansturing

DMX kanalen8 / 13 / 21 / 36 / 32 / 42 / 47 / 60ch modular and user-customizable DMX architecture (MCA, 8 / 13 / 21 / 36 / 32 / 42 / 47 / 60ch modular and user-customizable DMX architecture (MCA
DisplayGraphic User Interface, Graphic User Interface
Firmware upgradevia DMX with UPBOXPRO/UPBOX1 (not included), via DMX with UPBOXPRO/UPBOX1 (not included)
RDMfor remote addressing and parameter configuration, for remote addressing and parameter configuration

Electronics

Dimmerlinear 0 - 100% electronic dimmer, linear 0 - 100% electronic dimmer
Dimmer curves5 selectable dimming modes available, 5 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic, 1 - 30 Hz, electronic
BedrijfstemperatuurTa -20 to +45 °C (-4 to +113 °F), Ta -20 to +45 °C (-4 to +113 °F)
Display accuoptional, self-charging battery backup, optional, self-charging battery backup
Selecteerbare PWM frequentie1000 to 25000 Hz (selectable steps), 1000 to 25000 Hz (selectable steps)

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz, 100-240V - 50/60Hz
Output (at 230V)2 units on a single power line, 2 units on a single power line
Power factor> 0,94, > 0,94

Fysieke eigenschappen

Koelingforced-air with low-noise fan, forced-air with low-noise fan
Bevestiginghanging bracket for floor positioning with "Quick-Lock" system, hanging bracket for floor positioning with "Quick-Lock" system
Signaal aansluitingIP65 Seetronic XLR 5p IN/OUT connectors, IP65 Seetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON waterproof IN/OUT connectors, Seetronic powerCON waterproof IN/OUT connectors
IP waardeIP65 for temporary outdoor use, IP65 for temporary outdoor use

Overige eigenschappen

Data aansluitingSeetronic Ethernet IP in/out connectors Seetronic Ethernet IP in/out connectors
