Lichtbron
Lichtbron2 x 8 W Amber + 2 x 75W Warm White LEDs
CCT2.700K
Luminous flux10'088lm @full
Lux387lx @5 m full
Levensverwachting lichtbron> 70.000 h
CRI> 93
TLCI> 91
TM30 Rf> 91
TM30 Rg> 97
Optiek
Lens typeparabolic reflector
Kleuren
Manual colour modemanual adjustment of dimmer and strobe
Behuizing
Kleur behuizingRAL 9004
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM
DMX kanalen1 / 2 / 6 / 12channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 ~ 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik160W
Output (at 230V)16 units on a single power line
Power factor> 0,94
Fysieke eigenschappen

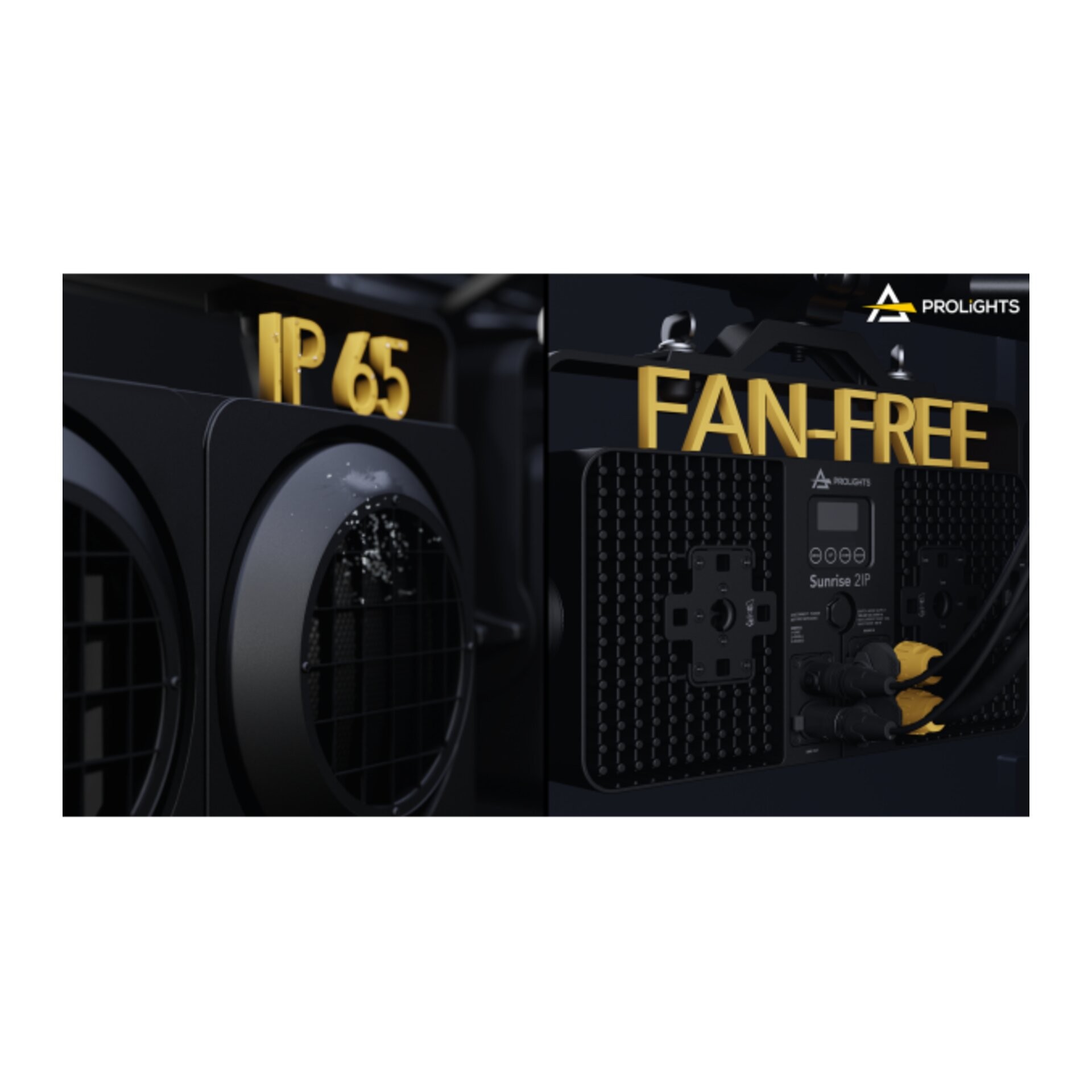

Koelingpassive cooling and fan-free

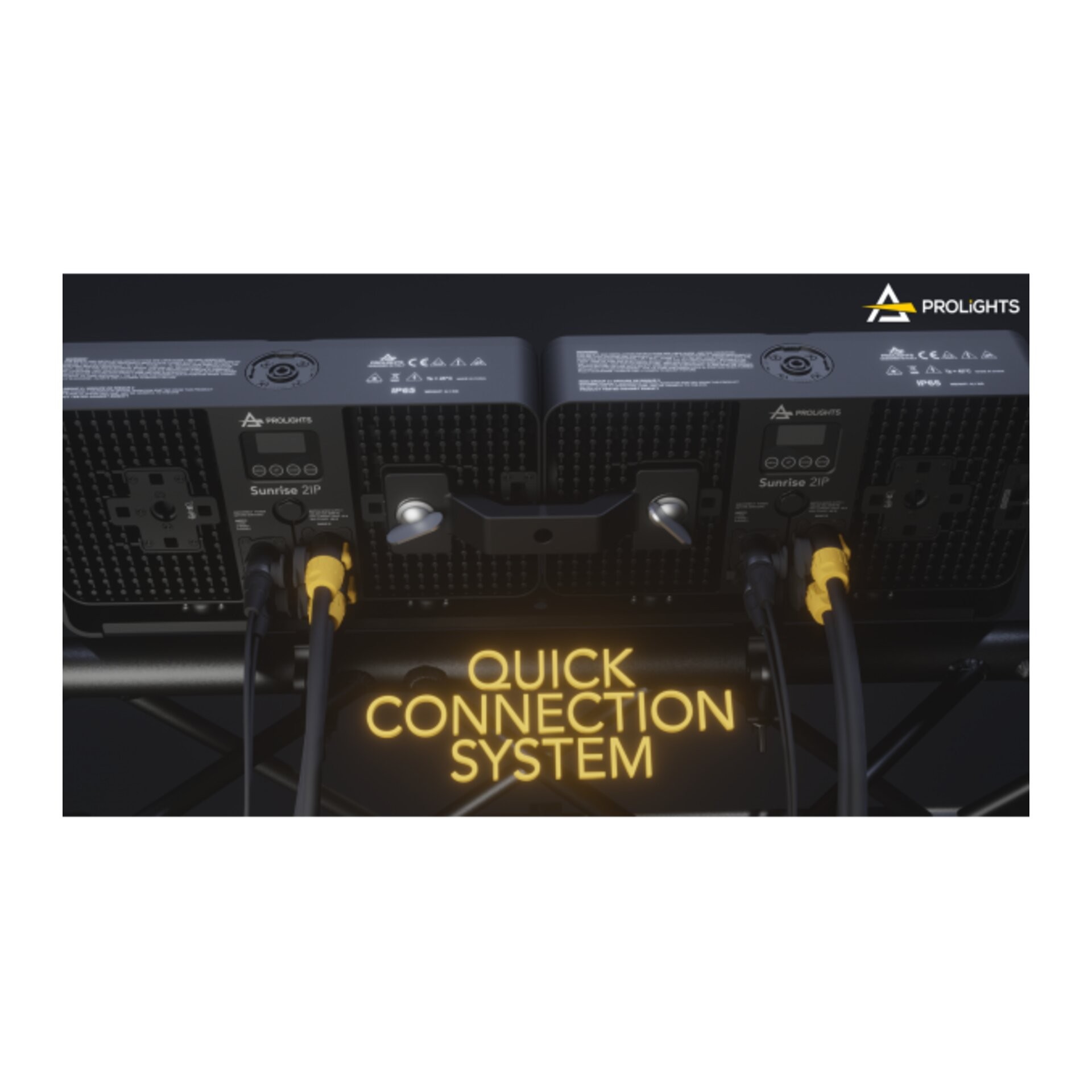

Bevestigingbracket for truss rigging and hardware for connection of more units

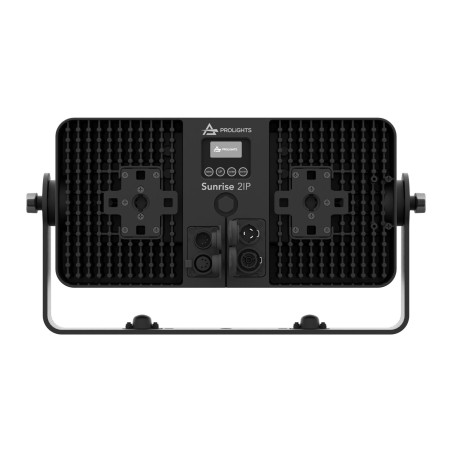

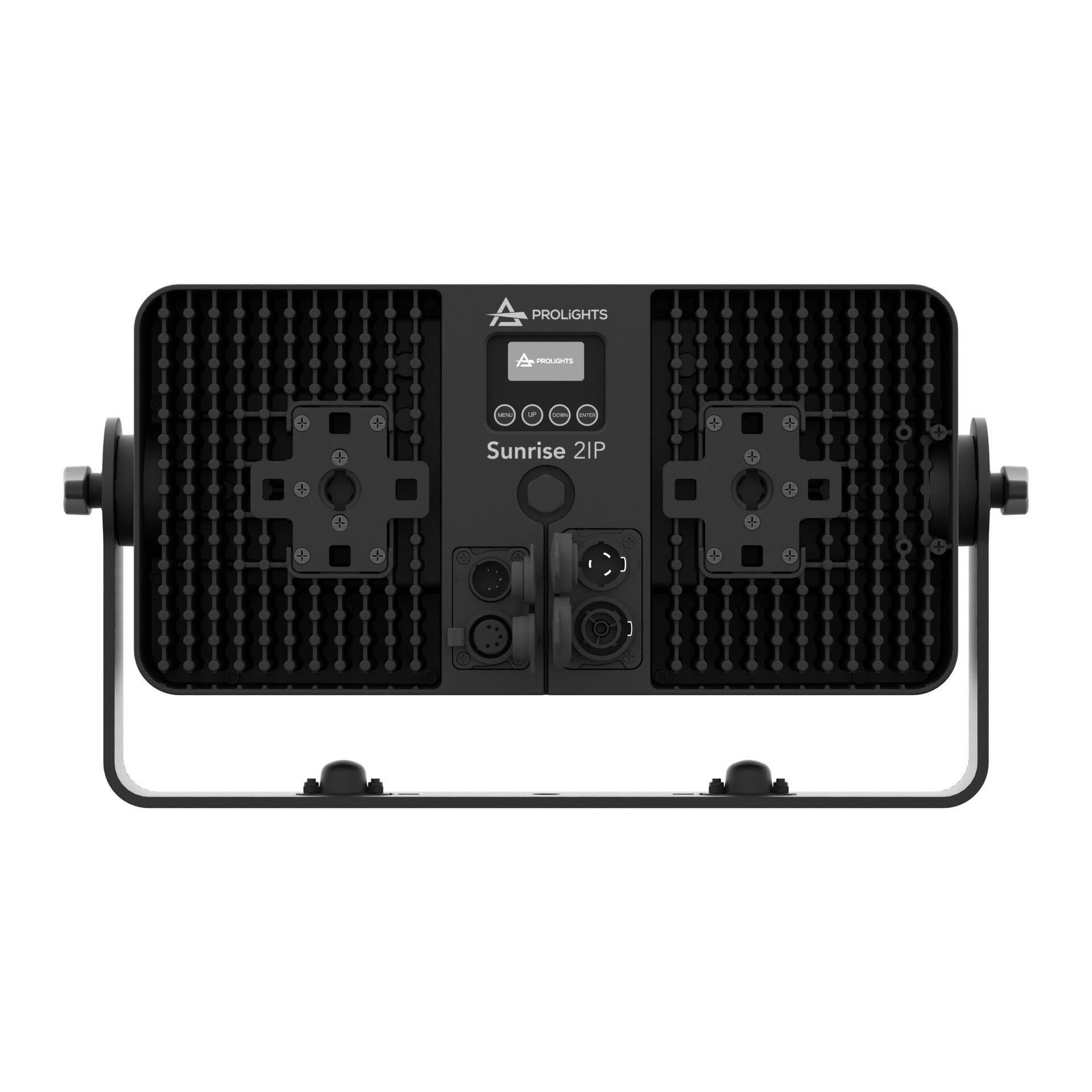

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON TRUE IP65 IN/OUT
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte verpakking
33 cm
Breedte verpakking
52.5 cm
Diepte verpakking
21 cm
Gewicht verpakking
7 kg
