Algemeen
Artikelnummer
21-00241
Merk
ProLights
Artikelnummer fabrikant
SUNBAR2500MAX
Garantie
2 jaar
Lichtbron
Lichtbron1.024x1,3W high-power white LED
CCTCW: 7.000K
Luminous fluxstrobe without lens (peak) 160'000 lm - static ON without lens 45'000 - strobe with lens (peak) 112'000 - static ON with lens 40'000lm
Lux(120°) 2'093 lx - (40°) 5'640lx @3 m
Levensverwachting lichtbron > 30.000 h
CRI87
Optiek

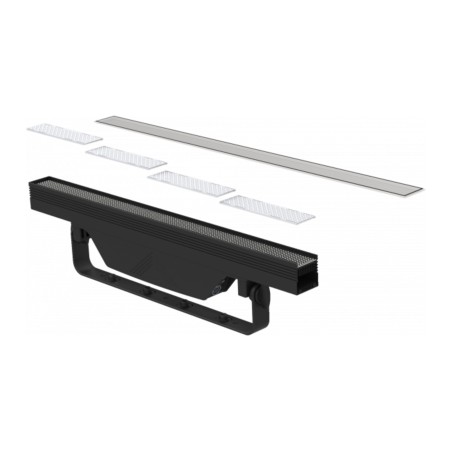

Extra optiekenmountable 40° lens reflector plate (included)
Kleuren
Manual colour mode manual adjustment of colour
Effecten
FX generatoradjustable foreground/background index, speed, direction
Roterende gobo's dynamic patterns with speed and rotation control
Body
Kleur behuizing black
Behuizing sturdy die-cast aluminium body
Aansturing
Protocolen DMX512, RDM, Art-Net, Kling-Net
DMX kanalenfrom 1 to 71channel
Display black TFT touch display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruikfull static: 596 W - strobing: 1'060W
Output (at 230V)3 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging hanging bracket for floor positioning with "Quick-Lock" system
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte
7.5 cm
Breedte
100 cm
Diepte
23.1 cm
Gewicht
9.55 kg
