Algemeen
Artikelnummer
21-00547
Merk
ProLights
Artikelnummer fabrikant
ECLPENDANTSTUBK
Garantie
2 jaar
Lichtbron
Lichtbron50W COB LED
CCT3000K (TU), 4000K (NW), 5600K (DY)
Luminous flux(TU) 2'814 lm; (NW) 3'851 lm; (DY) 4'045 @full
Lux(TU) 796 lx; (NW) 1'079 lx; (DY) 1'116lx @5 m full
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI(TU) 98,1; (NW) 95,3; (DY) 95,2
R9(TU) 91,8; (NW) 89,2; (DY) 91,8
TLCI(TU) 98; (NW) 96; (DY) 96
TM30 Rf(TU) 93,4; (NW) 92,3; (DY) 90,9
TM30 Rg(TU) 99,1; (NW) 101,3; (DY) 100,8
Optiek

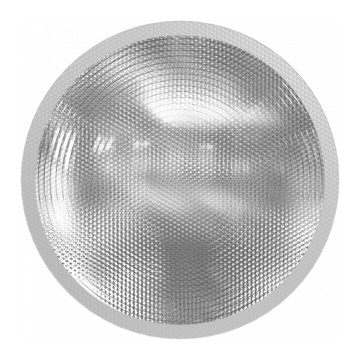

Lens diameter100mm
Lens type fresnel lens
Body
Kleur behuizing RAL 9004 or RAL 9010
Behuizing sturdy die-cast aluminium body
Aansturing
ProtocolenDALI Type6, DMX512, RDM
DMX kanalenUNO / DUO / Standard / Extendedchannel
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik60W
Output (at 230V)21 units on a single power line
Power factor> 0,93
DC spanningDC 48V for emergency light use
Fysieke eigenschappen
KoelingHeatsink with heat pipes, passive cooling and fan-free
Bevestiging bracket for hanging and positioning (bracket not included on the product)

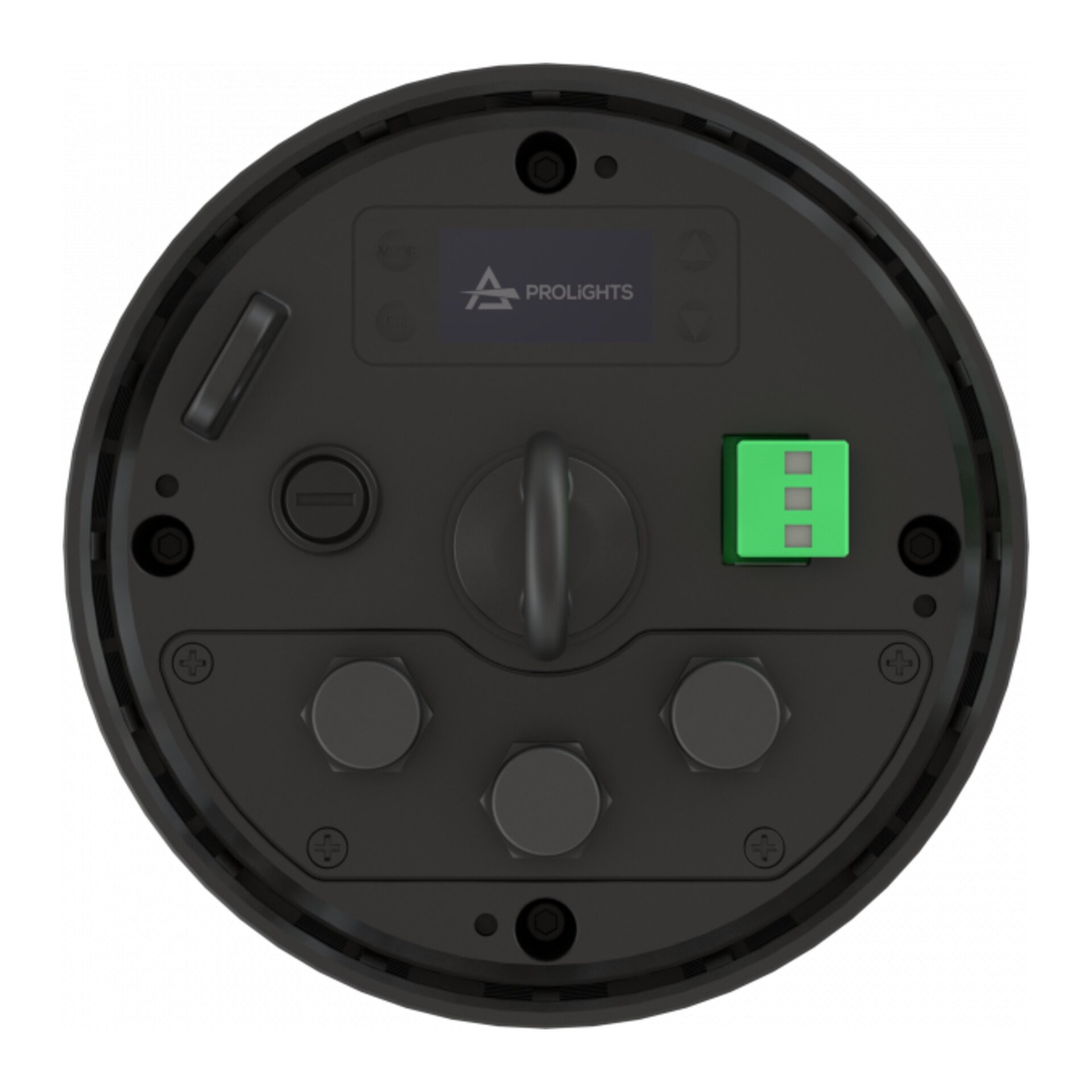

Signaal aansluitingScrew terminal block
StroomaansluitingScrew terminal block
IP waarde20
