Algemeen
Artikelnummer
21-00519
Merk
ProLights
Artikelnummer fabrikant
ECLPENDANTJRVWWH
Garantie
2 jaar
Lichtbron
Lichtbron100W Variable White LED
CCT linear CCT control
Luminous flux(2'700K) 6'092 lm; (6'500K) 8'287 lm; (FULL) 7'819lm
Lux(2'700K) 1'104 lx; (6'500K) 1'468 lx; (FULL) 1'388lx @5 m
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI95,3 @2'700K; 95,4 @6'500K; 96,2 @ full
R993,9 @2'700K; 86,5 @6'500K; 92,3 @ full
TLCI96 @2'700K; 96 @6'500K; 97 @ full
TM30 Rf95,3 @2'700K; 90,5 @6'500K; 92,9 @ full
TM30 Rg103,3 @2'700K; 100,5 @6'500K; 103,6 @ full
Optiek
Lens diameter122mm
Lens type fresnel lens
Kleuren
Kleurmenging tunable white
Kleurenwiel built-in white presets
Effecten
Macros several pre-built macros with adjustable speed
Body
Kleur behuizing RAL 9004 or RAL 9010
Behuizing sturdy die-cast aluminium body
Aansturing
ProtocolenDALI Type8, DMX512, RDM, CRMX
DMX kanalen1 / 2 / 5 / 9 / 13channel
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik121W
Power factor> 0,92
DC spanningDC 48V for emergency light use
Fysieke eigenschappen
KoelingHeatsink with heat pipes, passive cooling and fan-free
Bevestiging bracket for hanging and positioning (bracket not included on the product)

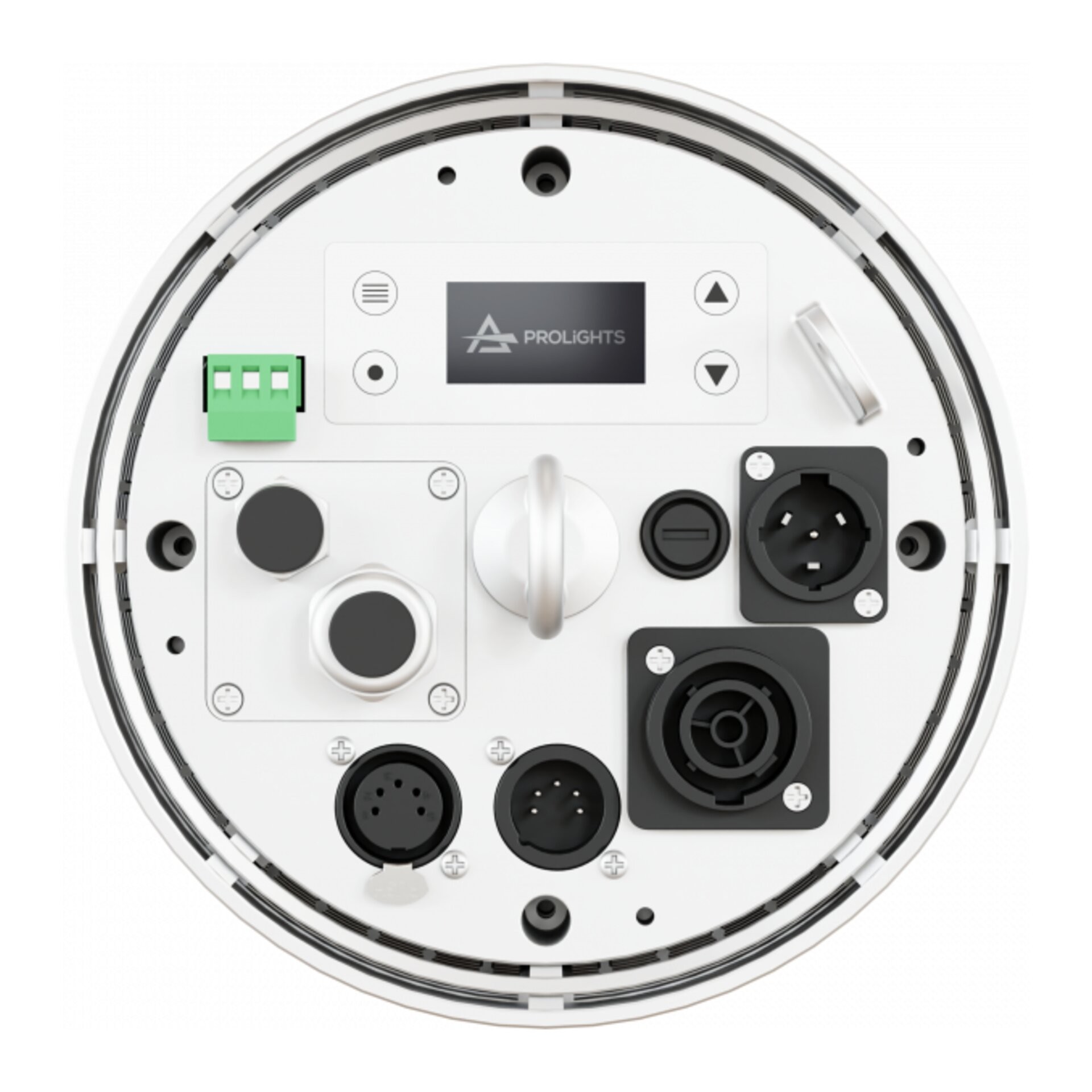

Signaal aansluitingscrew terminal block, Amphenol XLR 5p IN/OUT connectors
Stroomaansluitingscrew terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
DC Connector DC 48V through screw terminal block
IP waarde20
