Algemeen
Artikelnummer
21-00516
Merk
ProLights
Artikelnummer fabrikant
ECLPENDANTVWBK
Garantie
2 jaar
Lamp eigenschappen
KleursysteemCC/CW - Tunable White
AansturingCRMX, DALI, DMX, RDM, W-DMX G3
Vermogen200W
SerieEclPendant
Lichtbron
Lichtbron200W Variable White LED
CCT linear CCT control
Luminous flux(2'700K) 9'919 lm; (6'500K) 12'487 lm; (FULL) 14'571lm
Lux(2'700K) 1'956 lx; (6'500K) 2'529 lx; (FULL) 2'933lx @5 m
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI95,9 @2'700K; 96,3 @6'500K; 95,1 @ full
R995 @2'700K; 95 @6'500K; 79,9 @ full
TLCI97 @2'700K; 96 @6'500K; 97 @ full
TM30 Rf95,2 @2'700K; 90,8 @6'500K; 92,6 @ full
TM30 Rg104,2 @2'700K; 100,4 @6'500K; 104 @ full
Optiek
Lens diameter157mm
Lens type fresnel lens
Kleuren
Kleurmenging tunable white
Effecten
Macros built-in white presets
Behuizing
Kleur behuizing RAL 9004 or RAL 9010, Zwart
MateriaalAluminium, sturdy die-cast aluminium body
Aansturing
ProtocollenDALI Type8, DMX512, RDM, CRMX
DMX kanalen1 / 2 / 5 / 9 / 13channel
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 40.000 Hz
Elektrische eigenschappen
Voedingstype230V AC
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik225W
Power factor> 0,95
DC spanningDC 48V for emergency light use
Fysieke eigenschappen
KoelingHeatsink with heat pipes, passive cooling and fan-free
Bevestiging bracket for hanging and positioning (bracket not included on the product)

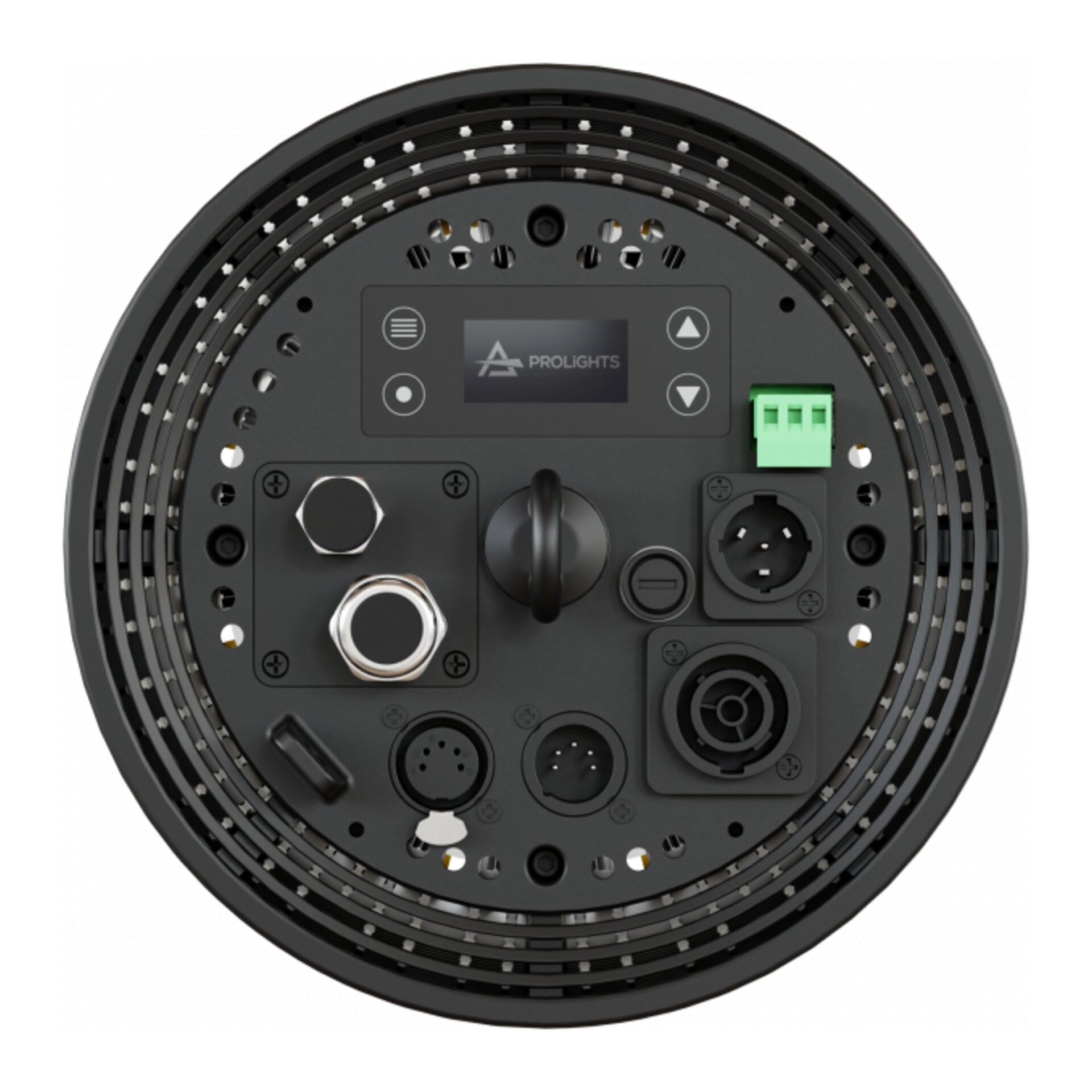

Signaal aansluitingscrew terminal block, Amphenol XLR 5p IN/OUT connectors
Stroomaansluitingscrew terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
DC Connector DC 48V through screw terminal block
IP waarde20, IP20
Montage mogelijkhedenInbouw, Opbouw, Pendel, Plafond, Wand
Logistieke eigenschappen
Hoogte verpakking
28 cm
Breedte verpakking
46.5 cm
Diepte verpakking
28 cm
Gewicht verpakking
8.8 kg
