Algemeen
Artikelnummer
21-00448
Merk
ProLights
Artikelnummer fabrikant
ECLPENDANTJRTUBK
Garantie
2 jaar
Lichtbron
Lichtbron100W COB LED
CCTsee available variants
Luminous flux(TU) 6'948 lm; (NW) 7'401 lm; (DY) 7'706lm @full
Lux(TU) 1'372 lx: (NW) 1'524 lx; (DY) 1'600lx @5 m full
Levensverwachting lichtbron > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
CRI(TU) > 96 - (NW) > 96 - (DY) > 94
R9(TU) > 98 - (NW) > 92 - (DY) > 97
TLCI(TU) > 95 - (NW) > 97 - (DY) > 97
TM30 Rf(TU) > 94 - (NW) > 93 - (DY) > 91
Optiek
Lens diameter122mm
Lens type fresnel lens
Kleuren
Kleurmenging see available versions
Body
Kleur behuizing RAL 9004 or RAL 9010
Behuizing sturdy die-cast aluminium body
Aansturing
ProtocolenDALI Type6, DMX512, RDM, W-DMX
DMX kanalenUNO / DUO / Standard / Extendedchannel

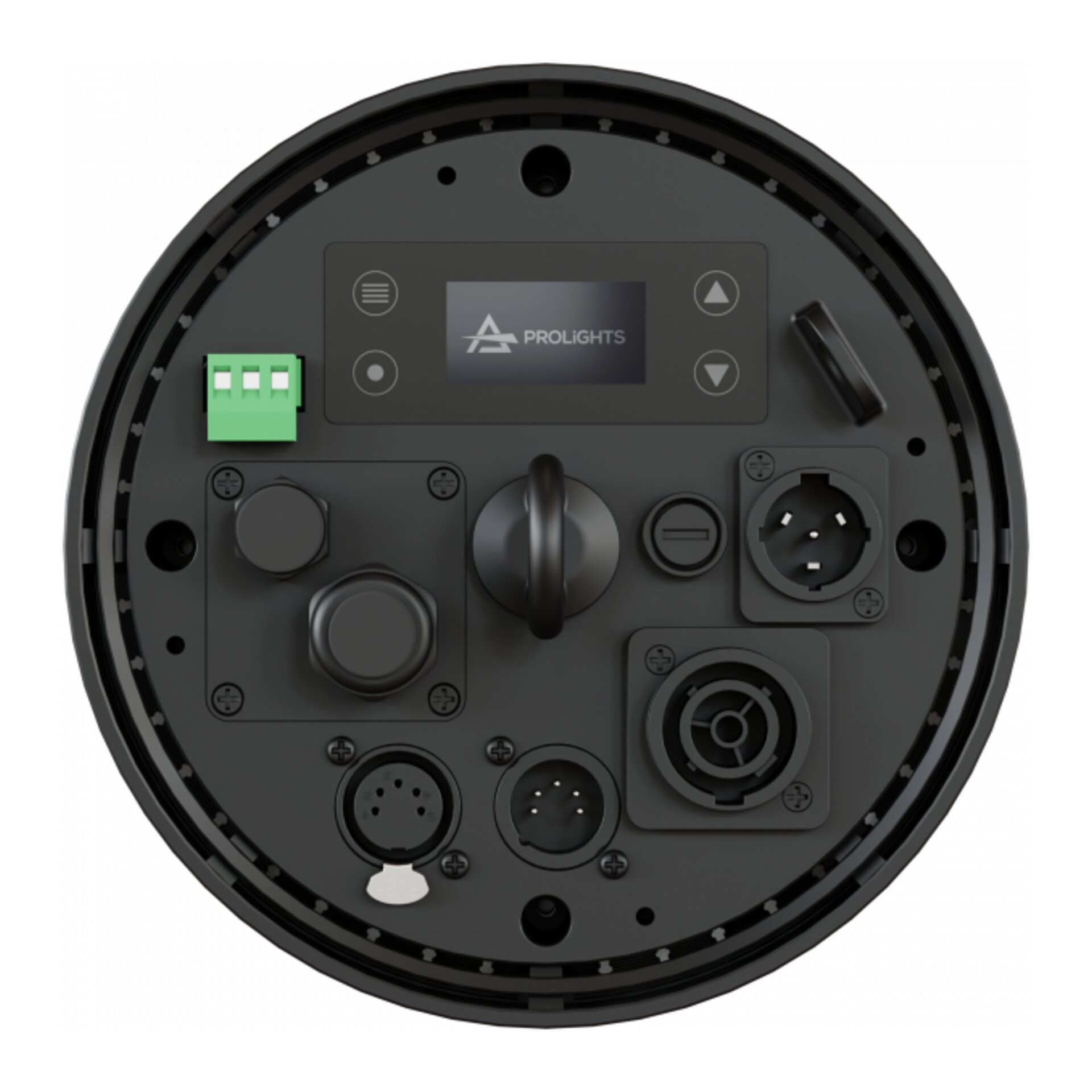

Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1-30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free frequency with adjustable PWM
Selecteerbare PWM frequentie 600 ~ 40.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik105W
Output (at 230V)21 units on a single power line
Power factor> 0,93
DC spanningDC 48V for emergency light use
Fysieke eigenschappen
KoelingHeatsink with heat pipes, passive cooling and fan-free
Bevestiging bracket for hanging and positioning (bracket not included on the product)
Signaal aansluitingscrew terminal block, Amphenol XLR 5p IN/OUT connectors
StroomaansluitingDC 48V, screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
IP waarde20
