Archwork ARCPOINT1FC

22-00033

  • 10W RGBW/FC LED projector
  • ground spike
  • 16°

Omschrijving:

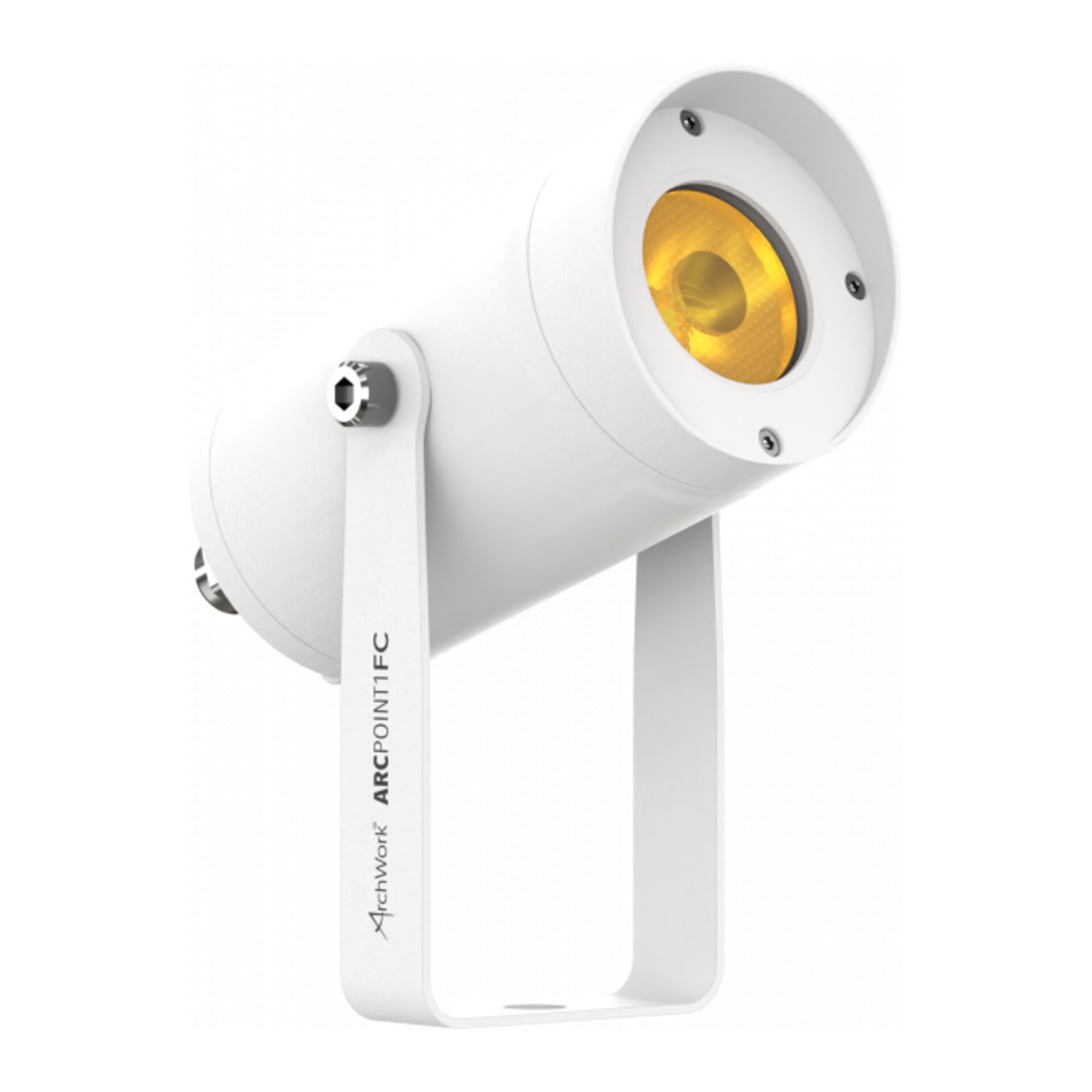

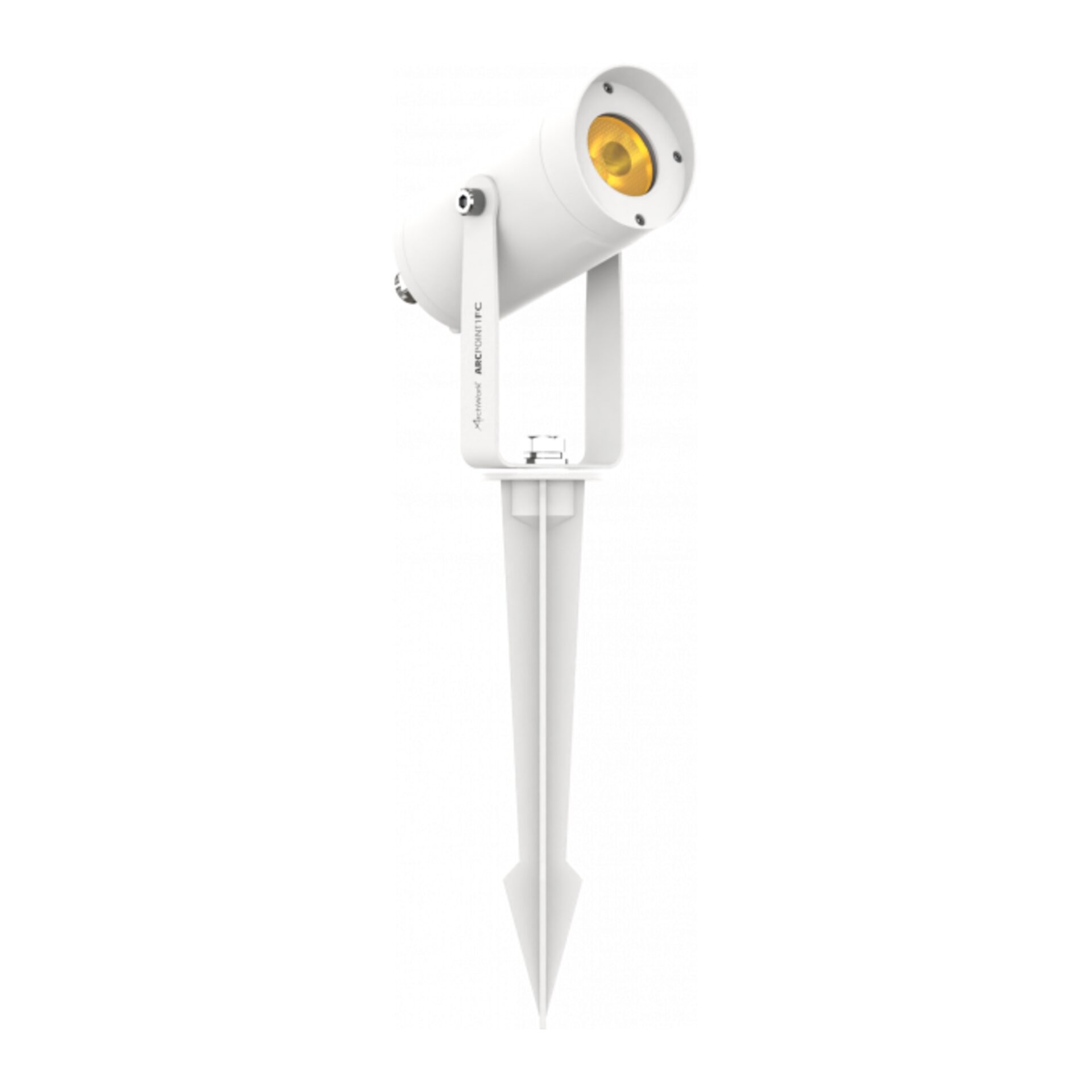

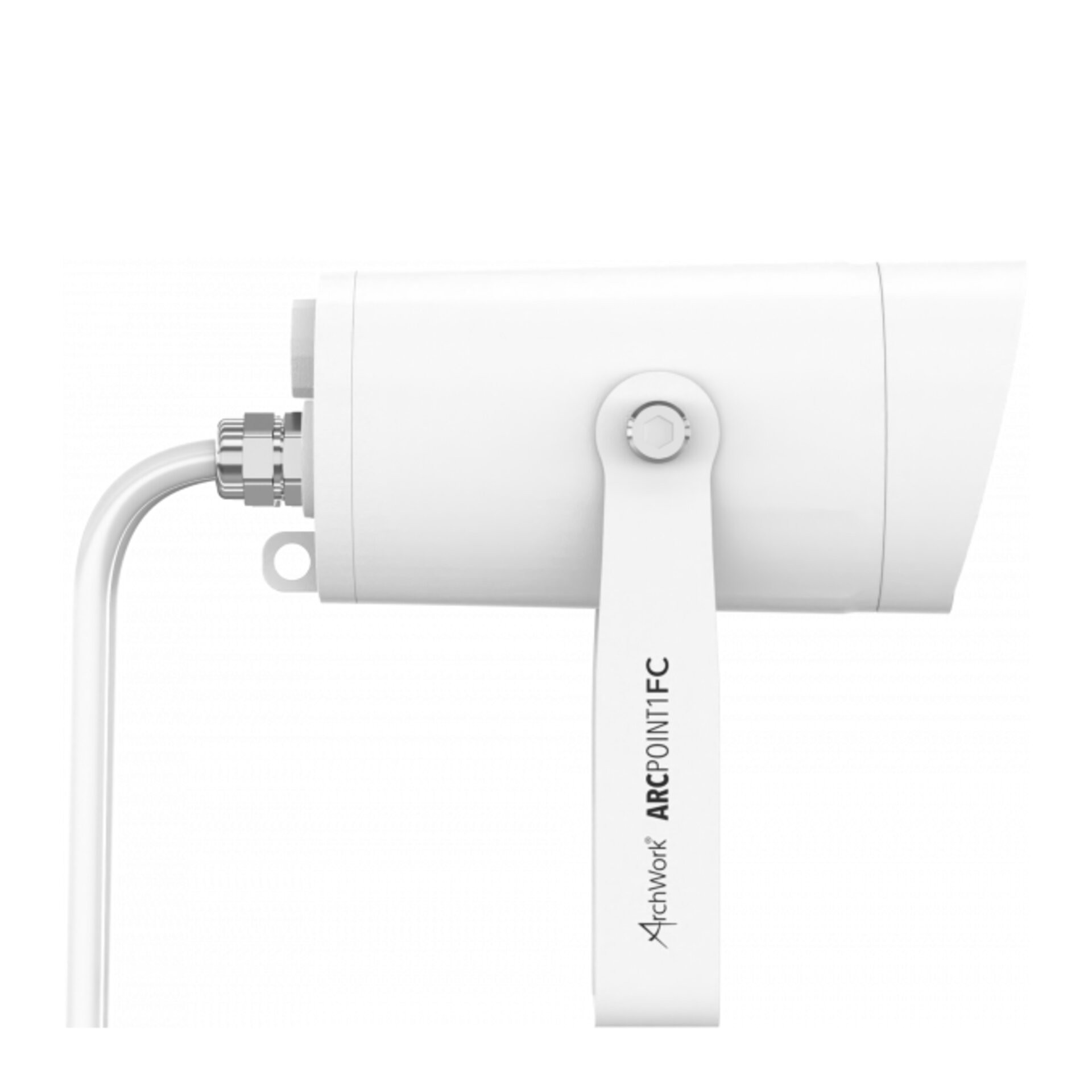

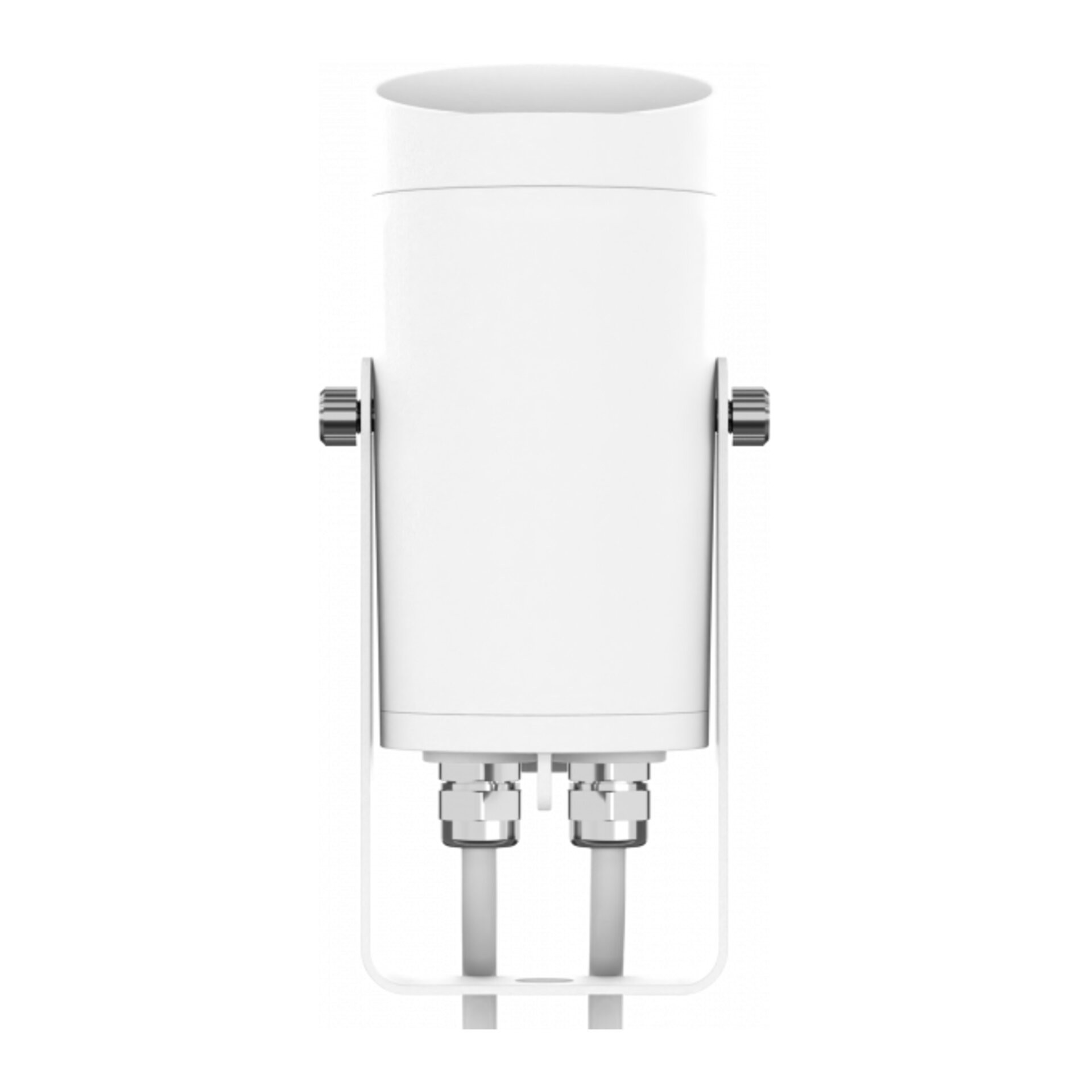

ArcPoint 1 is a compact exterior accent LED fixture designed for outdoor. The luminaire is equipped with a single Full Colour LED emitter delivering a wide spectrum of colours and whites all in a very compact housing. The fixture is supplied with a ground spike in the box, for easy implementation as garden light, and with the on board bracket it can be also implemented in larger foorprint installations as decor or accent light. The special design (IP66) and the innovative RDM control technology, makes ArcPoint 1 suitable for all weather conditions.

Merk

Product niet meer leverbaar

  • Documenten
  • accessoires (6)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (6)
  • Accessoires (3)
  • Haken & Safety's (2)
  • Sturingen (1)

ProLights UPBOXPRO

21-21073

ProLights UPBOXPRO
  • Prolights firmware upload tool
  • USB & DMX
  • 5-pin XLR DMX OUT connector
Bruto prijs:
€ 170,00

ProTruss RSR0630B

24-00246

ProTruss RSR0630B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 4,80

ProTruss C6016B

24-00173

ProTruss C6016B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

Prolights ARCLUMIL45D45

21-20278

Prolights ARCLUMIL45D45 - Full AVL Distribution
  • 45° lens
  • Diameter 45mm
Bruto prijs:
€ 4,50

Prolights ARCLUMIL25D45

21-20269

Prolights ARCLUMIL25D45 - Full AVL Distribution
  • 25° lens
  • Diameter 45mm
Bruto prijs:
€ 4,50

Prolights DataMaster

21-00267

Prolights DataMaster - Full AVL Distribution
  • DMX & RDM
  • 5p XLR, incl. tasje
  • Testen van kabels en armaturen
Bruto prijs:
€ 380,00

Gegevens

Algemeen

Artikelnummer 22-00033
Merk ArchWork
Artikelnummer fabrikant ARCPOINT1FC
Garantie 2 jaar

Lichtbron

Lichtbron10W CREE RGBW / FC LED
Luminous flux353lm
Lux(10°) 333lx @5 m full
Levensverwachting lichtbron50.000 hrs (L70 @25° C / 77° F)

Kleuren

Manual colour modemanual adjustment of colour
KleurmengingCREE RGBW / FC
Wit macro's3.200K ~ 10.000K
Kleurenwielvirtual colour wheel with macros

Effecten

Macrosseveral pre-build macros with adjustable speed

Behuizing

Kleur behuizingRAL 9003
Materiaalsturdy die-cast aluminium body

Aansturing

ProtocollenDMX512, RDM
DMX kanalen4 / 6 / 10channel
Master/Slavefor synchronised operation of more units linked in a chain
Displayuser interface through DATAMASTER external coder (not included)
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 ~ 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F)
LED Controlflicker free operation

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik13W

Fysieke eigenschappen

Koelingpassive cooling and fan-free
Bevestigingground spike for fixing in the ground

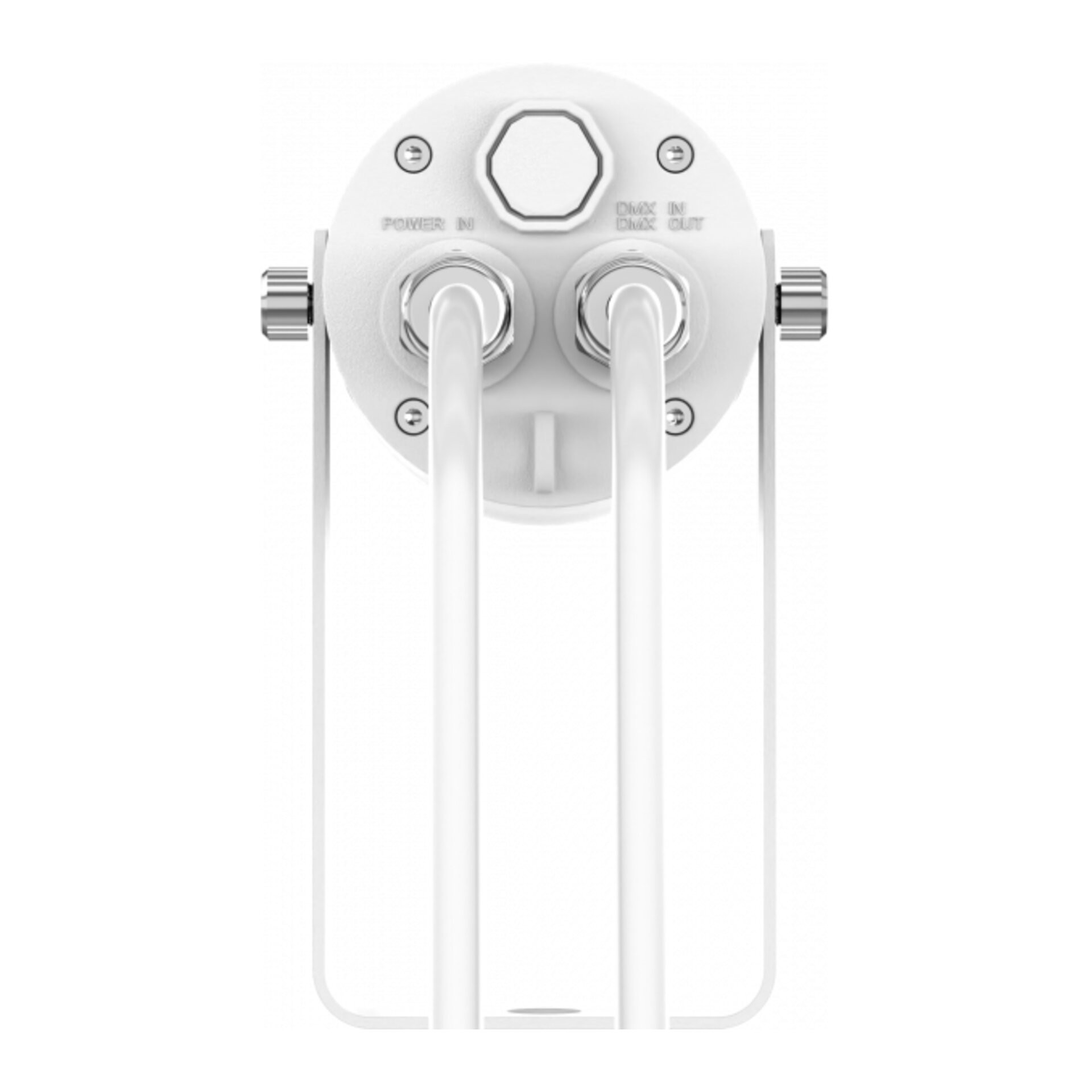

Signaal aansluitingmoulded IP signal IN/OUT connectors
Stroomaansluitingmoulded IP signal IN/OUT connectors
IP waarde66 for outdoor installations

Logistieke eigenschappen

Gewicht verpakking 1.83 kg
