Lamp eigenschappen
AansturingDMX
SerieArcPar
Lichtbron
Lichtbron7x8W RGBW / FC LEDs
Luminous flux1'933lm @full
Lux(15°) 882lx @5 m full
Levensverwachting lichtbron50.000 hrs (L70 @25° C / 77° F)
Optiek
Extra optieken25° - 45° (optional)
Kleuren
Manual colour modemanual adjustment of colour
KleurmengingRGBW / FC
Wit macro's3.200 K ~ 10.000K
Kleurenwielvirtual colour wheel with macros
Effecten
Macrosseveral pre-build macros with adjustable speed
Behuizing
Kleur behuizingRAL 9003
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen4 / 6 / 10channel
Master/Slavefor synchronised operation of more units linked in a chain

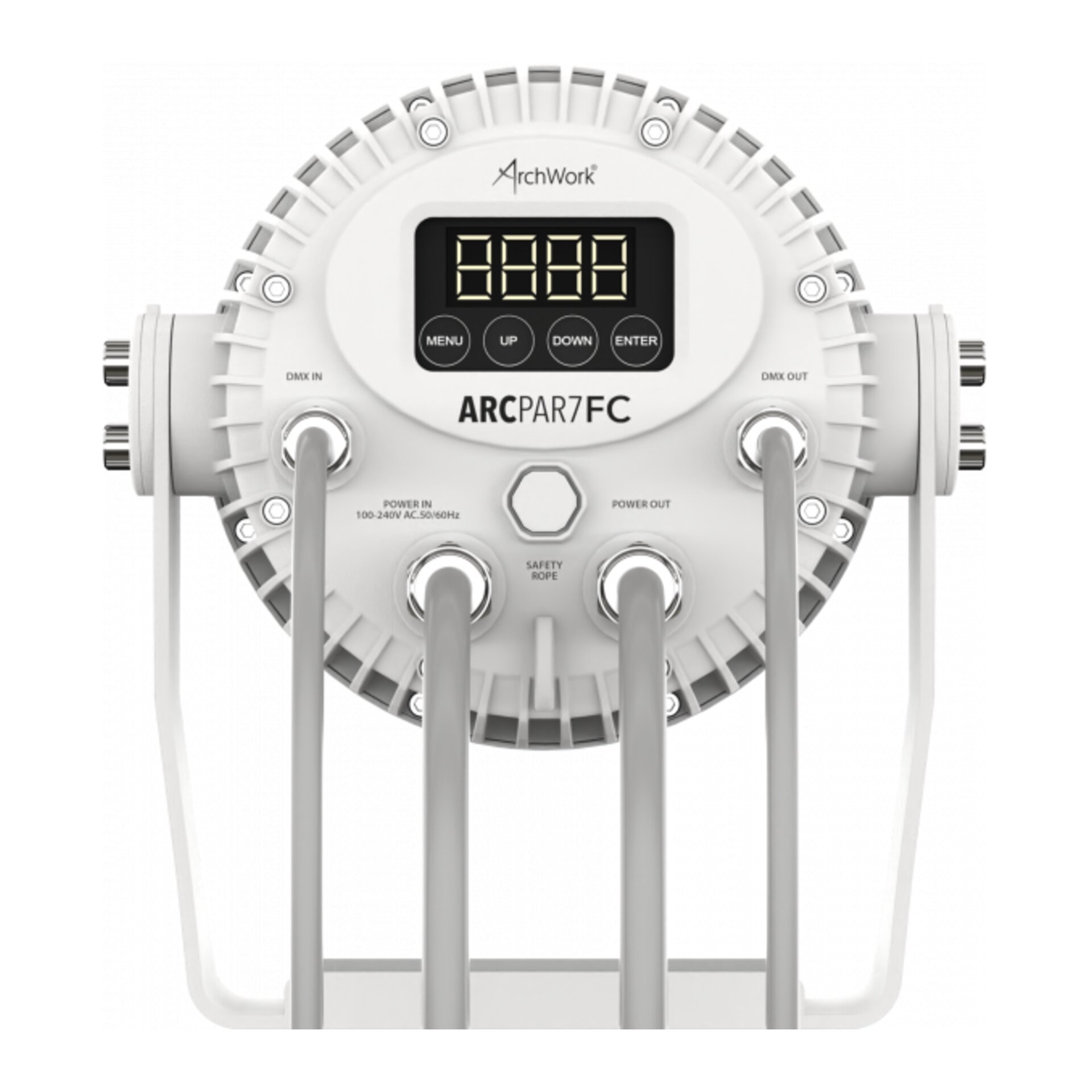

Displaytouch - sensitive LED display
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° C / +45° C (-4° F / +113° F)
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik55W
Output (at 230V)30 units on a single power line
Power factor0,98
Fysieke eigenschappen
Koelingpressure and temperature balance through GORE membrane vents
Bevestigingbracket for hanging and positioning
Signaal aansluitingmoulded IP signal IN/OUT connectors
Stroomaansluitingmoulded IP signal IN/OUT connectors
IP waarde66 for outdoor installations
Logistieke eigenschappen
Hoogte verpakking
19.2 cm
Breedte verpakking
24.1 cm
Diepte verpakking
22.1 cm
Gewicht verpakking
4.9 kg
