Archwork ARCFLOOD40WW

22-00005

  • 40x3W LED projector
  • 12° beam
  • IP66

Omschrijving:

ARCFLOOD40 is a LED luminaire conceived for architectural lighting projects of building facades and accent lighting, thanks to its high luminous output and versatility allowed by the design of the external structure. The light-source employs 40 high power 3W CREE LED, granting astonishing performance even for long-throw projection, representing a green replacement to the traditional discharge lamp outdoor projectors. ARCFLOOD40 has been designed with the innovative screw-less design for the frontal panel, which allows an IP66 protection rate for outdoor lighting projects. The wide range of accessory optics allows passing from a 6° narrow beam to 55° flood diffusion, providing the lighting designer with an indispensable tool for his projects.

Merk

Product niet meer leverbaar

  • productspecificaties
  • gerelateerde producten

Gegevens

Algemeen

Artikelnummer 22-00005
Merk ArchWork
Artikelnummer fabrikant ARCFLOOD40WW
Garantie 2 jaar

Lichtbron

Lichtbron40x3W CREE LEDs
Luminous flux(CW) 4'300 lm - WW @full 3200lm

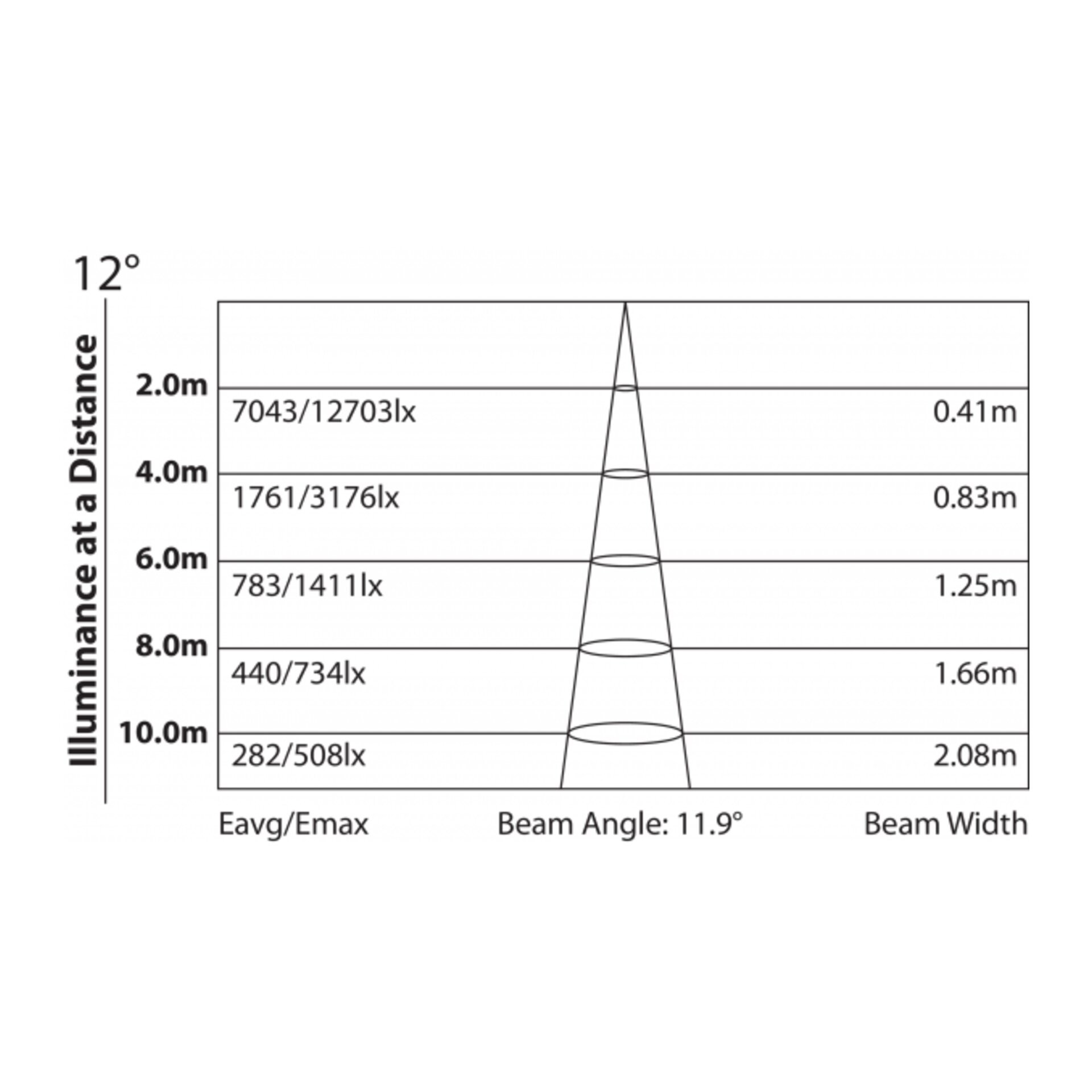

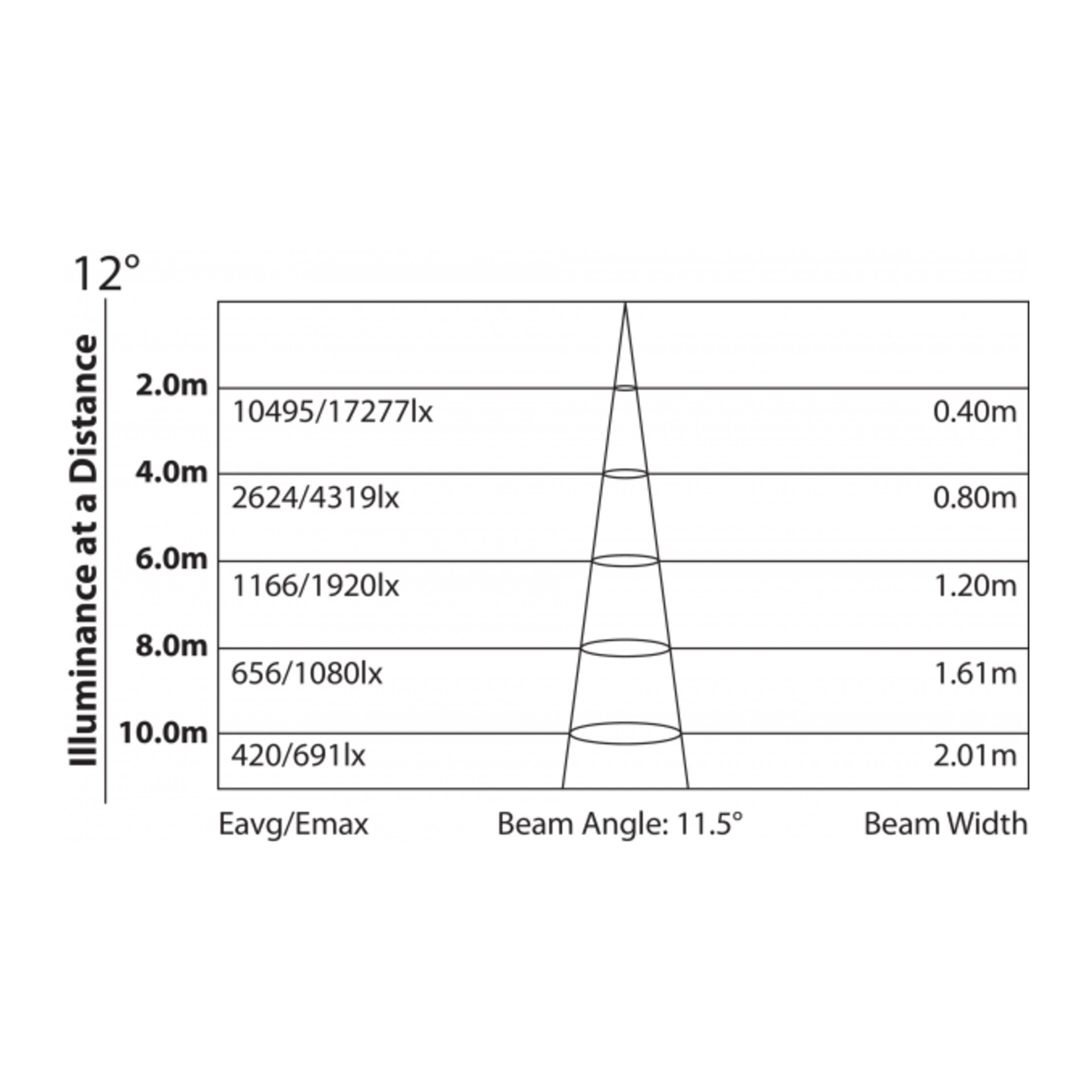

Lux12° @full CW 17277 lux - WW 12703lx
Levensverwachting lichtbron> 50.000 h

Optiek

Extra optieken6° - 30° - 55° optional

Kleuren

Manual colour modemanual adjustment of colour
Wit macro's3200K ~ 10000K
Kleurenwielvirtual colour wheel with macros

Effecten

Macrosseveral pre-build macros with adjustable speed

Behuizing

Kleur behuizingwhite
Materiaalsturdy die-cast aluminium body

Aansturing

ProtocollenDMX512
Displayuser interface through ARCMAT external coder

Electronics

Bedrijfstemperatuur-40° ~ +45°

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik115W

Fysieke eigenschappen

Koelingpassive cooling and fan-free
Bevestigingbracket for hanging and positioning
Signaal aansluitingmoulded IP signal IN/OUT connectors
Stroomaansluitingmoulded IP signal IN/OUT connectors
IP waarde66 for outdoor installations

Logistieke eigenschappen

Hoogte verpakking 30.7 cm
Breedte verpakking 37 cm
Diepte verpakking 8.1 cm
Gewicht verpakking 8.5 kg
