Lichtbron
Lichtbron6x3W RGB LEDs
Luminous flux659lm

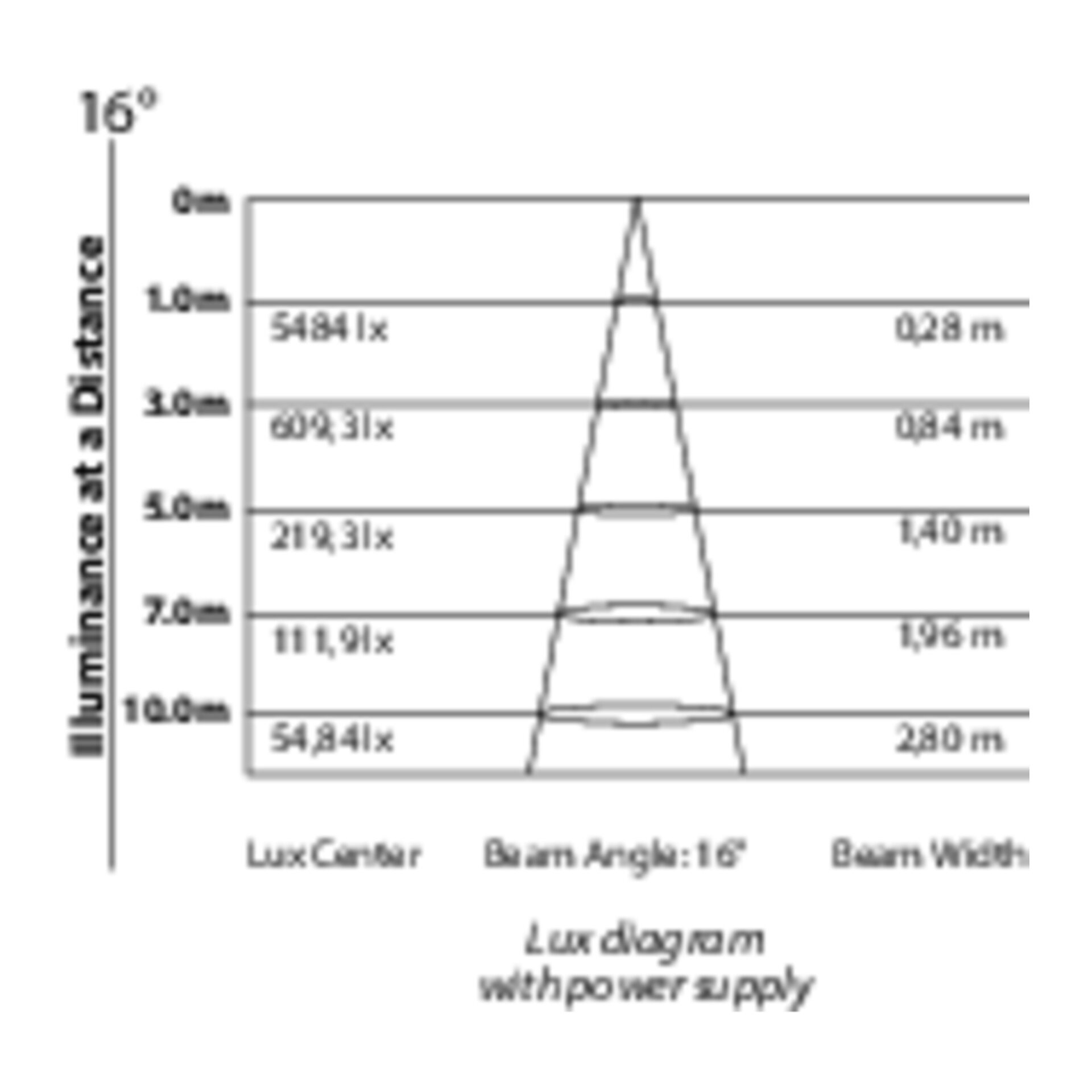

Lux610lx @3 m full
Levensverwachting lichtbron> 50.000 h
Kleuren
Manual colour modemanual adjustment of colour
Behuizing
Kleur behuizingblack
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen3 / 8channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLED display user interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXoptional, proprietary protocol compatible with WIFIBOX, WDBOX
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur0° ~ +45°
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik23,3W
Output (at 230V)50 units on a single power line
Batterij14,8V lithium
Fysieke eigenschappen
Koelingpassive cooling and fan-free
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluitingXLR 3p IN/OUT connectors
StroomaansluitingIEC IN/OUT connectors
IP waarde20
Oplaad connectiepower cable
Logistieke eigenschappen
Hoogte verpakking
17.9 cm
Breedte verpakking
23.1 cm
Diepte verpakking
10.5 cm
Gewicht verpakking
1.74 kg
