Lichtbron
Lichtbron2x100W White COB LEDs
CCT3.200K
Luminous flux11'334lm

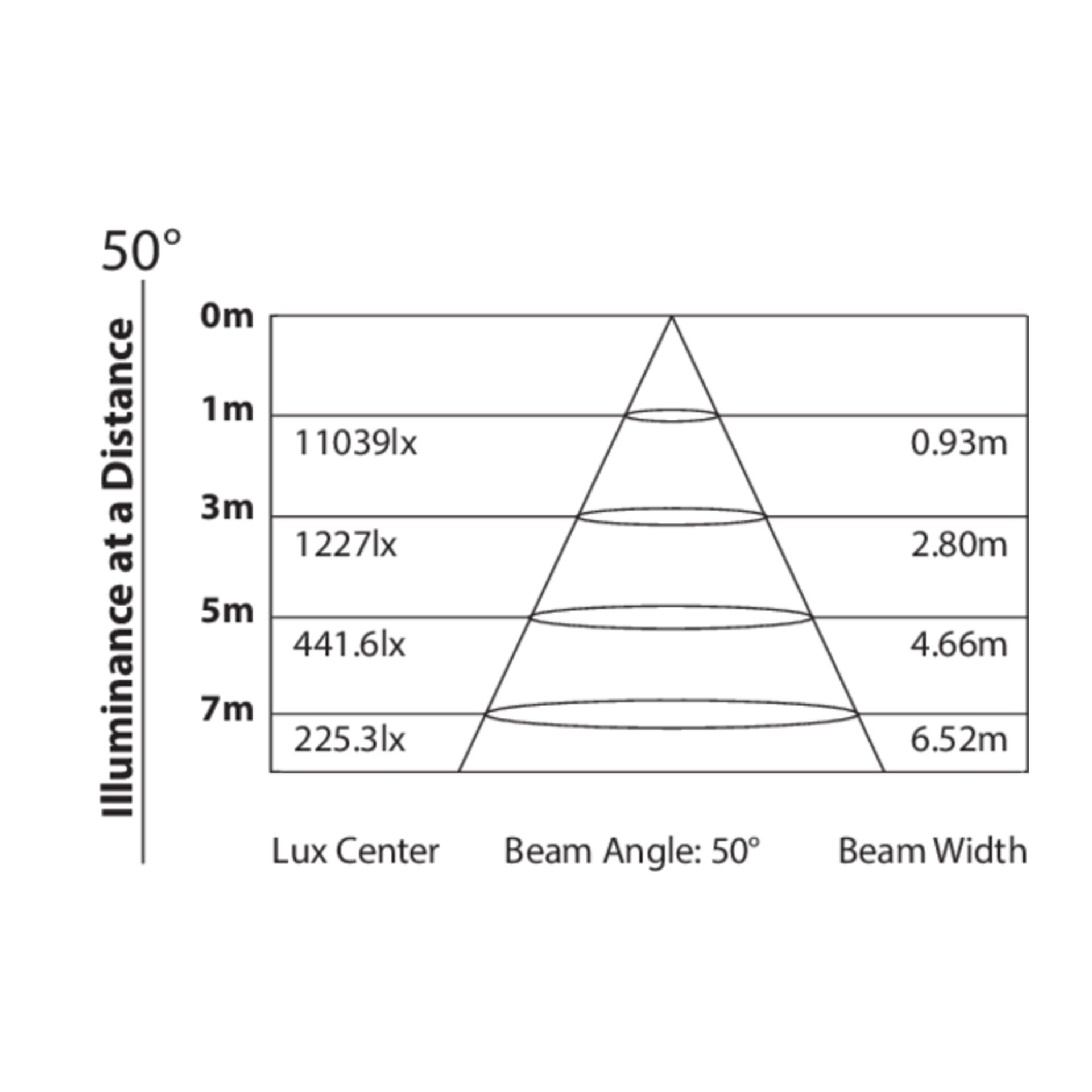

Lux1'392lx @3 m
Levensverwachting lichtbron> 50.000 h
CRI> 70
Optiek
Lens typeHD anti-reflection lenses with achromatic coating
Kleuren
Manual colour modemanual adjustment of colour
Effecten
Macrosseveral pre-build pixel macros with adjustable speed
Behuizing
Kleur behuizingblack
Materiaalsturdy aluminum profile
Aansturing
ProtocollenDMX512
DMX kanalen1 / 2 / 4 / 7channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik180W
Output (at 230V)12 units on a single power line
Power factor0,96
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingbracket for hanging and positioning

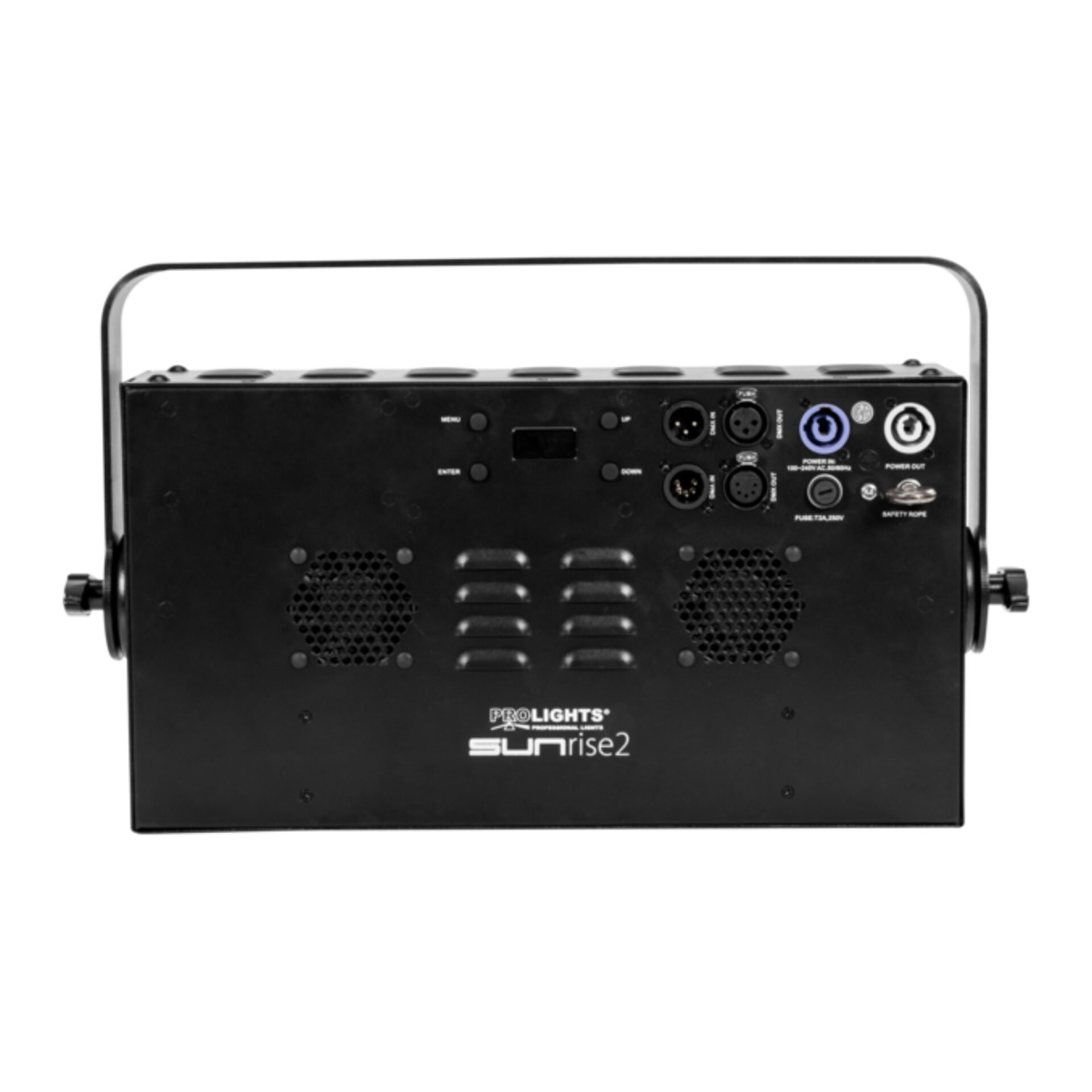

Signaal aansluitingXLR 3p + 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON IN/OUT connectors
IP waarde30
Logistieke eigenschappen

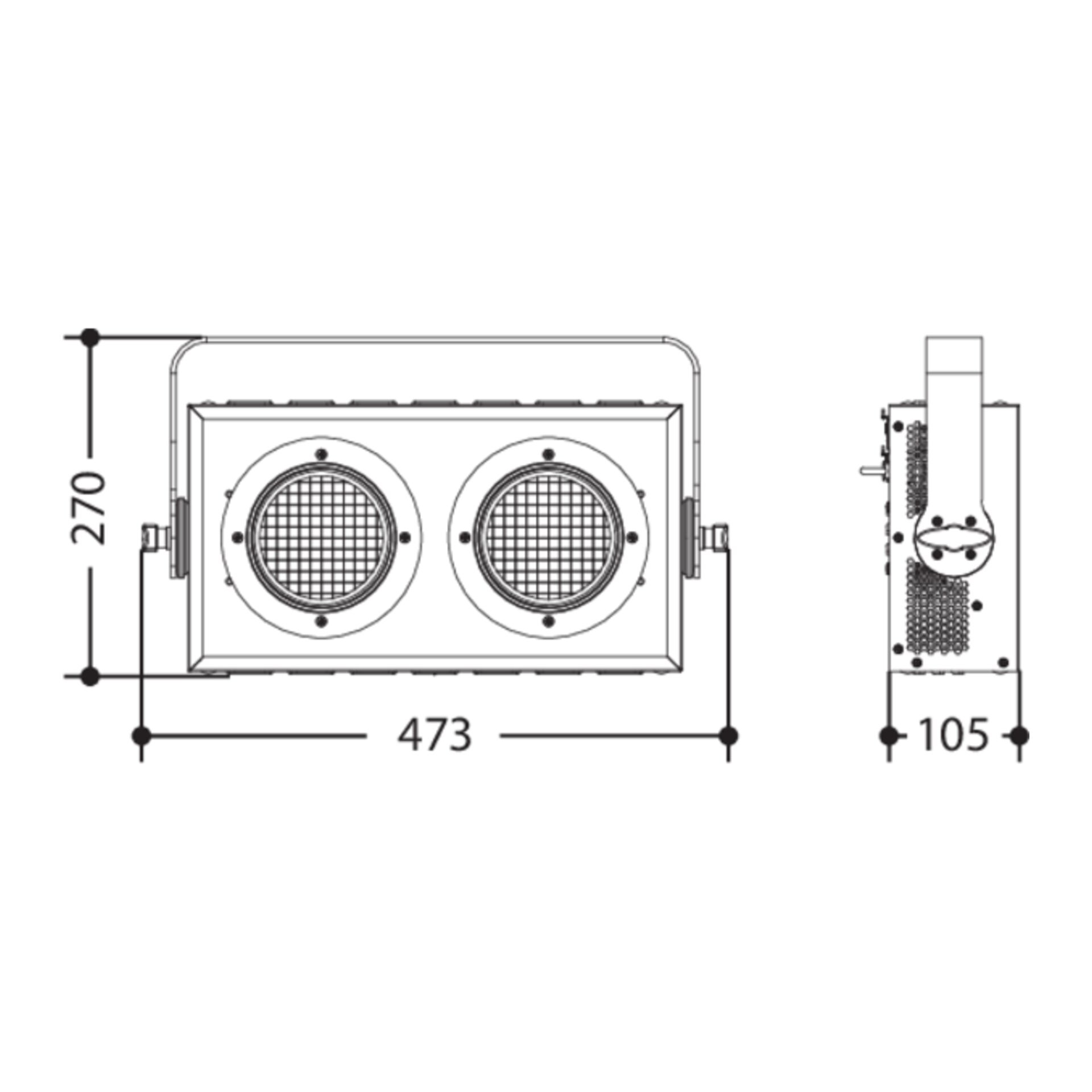

Hoogte verpakking
10.5 cm
Breedte verpakking
47.3 cm
Diepte verpakking
27 cm
Gewicht verpakking
6.8 kg
