Lamp eigenschappen
Zoom25° - 50° manual zoom lens
Lichtbron
Lichtbron100W high-power white LED
CCT(TU) 3.000 K - (DY) 5.000K
Luminous flux(TU) 3'545 lm - (DY) 3'757lm

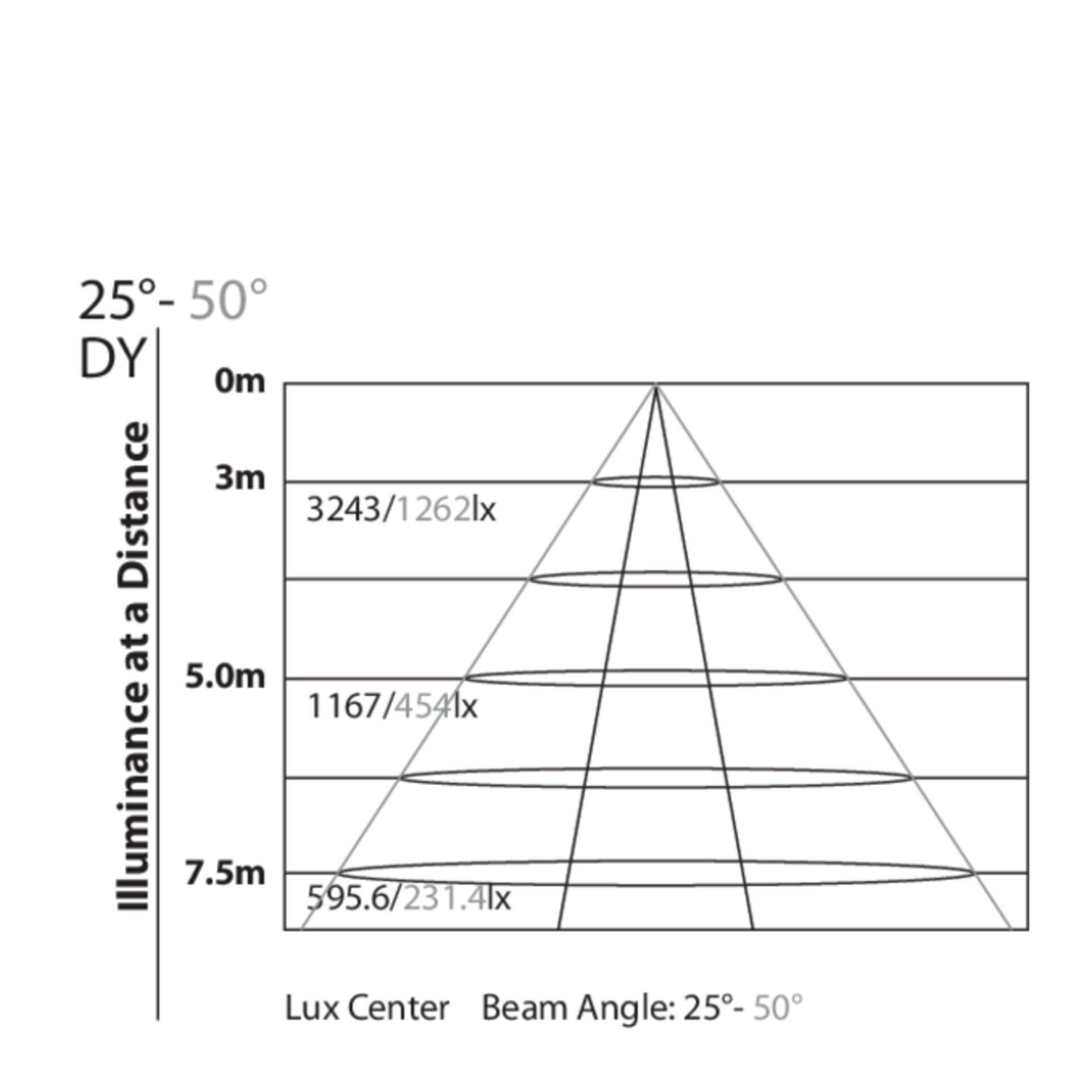

Lux(50° TU) 1'186 lx - (DY) 1'262lx @3 m
Levensverwachting lichtbron> 50.000 h
CRI(TU) 83 - (DY) 81
Optiek
Lens typehigh-quality glass lens optics
Kleuren
Manual colour modemanual adjustment of dimmer and strobe
Effecten
Gobo maatM, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
Behuizing
Kleur behuizingblack, white finishing available
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen1 / 3channel
Master/Slavefor synchronised operation of more units linked in a chain

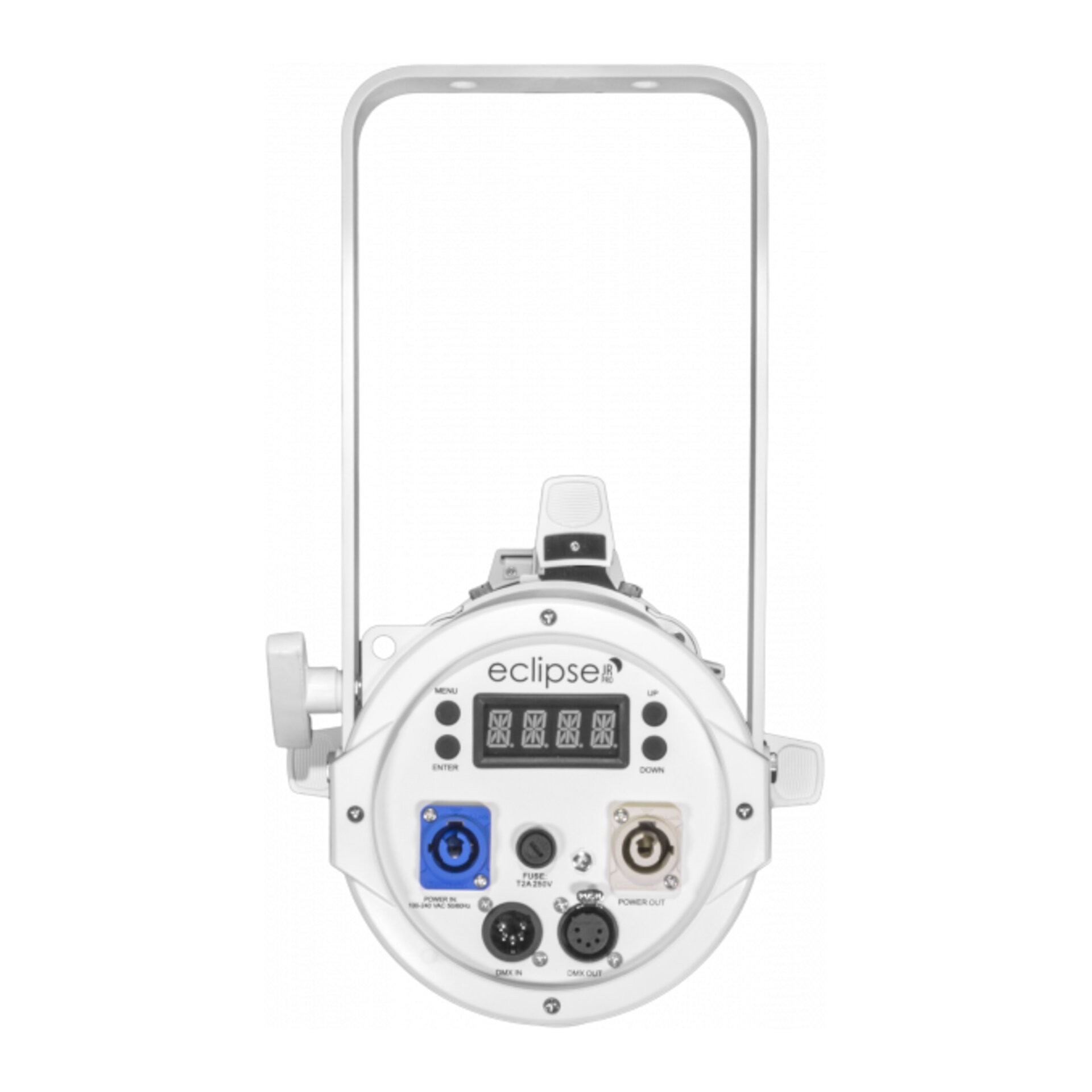

DisplayLED display user interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 ~ 28 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik105,5W
Output (at 230V)35 units on a single power line
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingbracket for hanging and positioning
Signaal aansluitingvariants available
Stroomaansluitingvariants available
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
43 cm
Breedte verpakking
25.9 cm
Diepte verpakking
52.9 cm
Gewicht verpakking
5.76 kg
