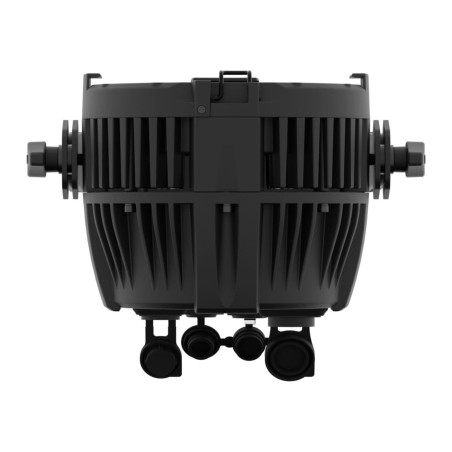

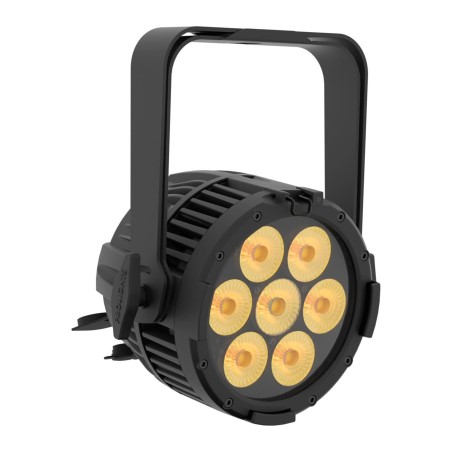

Prolights LumiPar 7IP 45D

23-00022

  • 7x9 W RGBW / FC LED Par
  • 45 graden openingshoek
  • 65 watt

Omschrijving:

lumiPar 7IP is a compact and flexible IP LED PAR made for small concerts and theatres, and to perform as architectural accent luminaire for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and totally fanless being totally silent during its operation.

Merk

Product niet meer leverbaar

  • productspecificaties
  • gerelateerde producten

Gegevens

Algemeen

Artikelnummer 23-00022
Merk ProLights
Artikelnummer fabrikant LUMIPAR7IP45D
Garantie 2 jaar

Lichtbron

Lichtbron7x9W RGBW LEDs
Luminous flux(20°) 2'945 lm - (45°) 3'835lm
Lux(45°) 654lx @3 m full
Levensverwachting lichtbron > 50.000 h

Kleuren

Manual colour mode manual adjustment of colour
Kleurmenging RGBW / FC
Wit macro's3.000 K ~ 10.000K
Kleurenwiel virtual colour wheel with macros

Effecten

Macros built-in white presets

Behuizing

Kleur behuizing black
Materiaal sturdy die-cast aluminium body

Aansturing

Protocollen DMX512
DMX kanalen4 / 6 / 11channel
Master/Slave for synchronised operation of more units linked in a chain
Display black OLED touch display
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included

Electronics

Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter0 - 30 Hz, electronic
Bedrijfstemperatuur -20° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz

Elektrische eigenschappen

Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik65W
Output (at 230V)58 units on a single power line

Fysieke eigenschappen

Koeling passive cooling and fan-free
Bevestiging double hanging bracket suitable for safe hanging and for floor positioning
Signaal aansluiting Seetronic XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation

Logistieke eigenschappen

Hoogte verpakking 28.6 cm
Breedte verpakking 24 cm
Diepte verpakking 15.4 cm
Gewicht verpakking 3.64 kg
