Lamp eigenschappen
Zoom10° - 15° manual, 10° - 15° manual
Lichtbron
Lichtbron100W high-power white LED
CCT7.000K

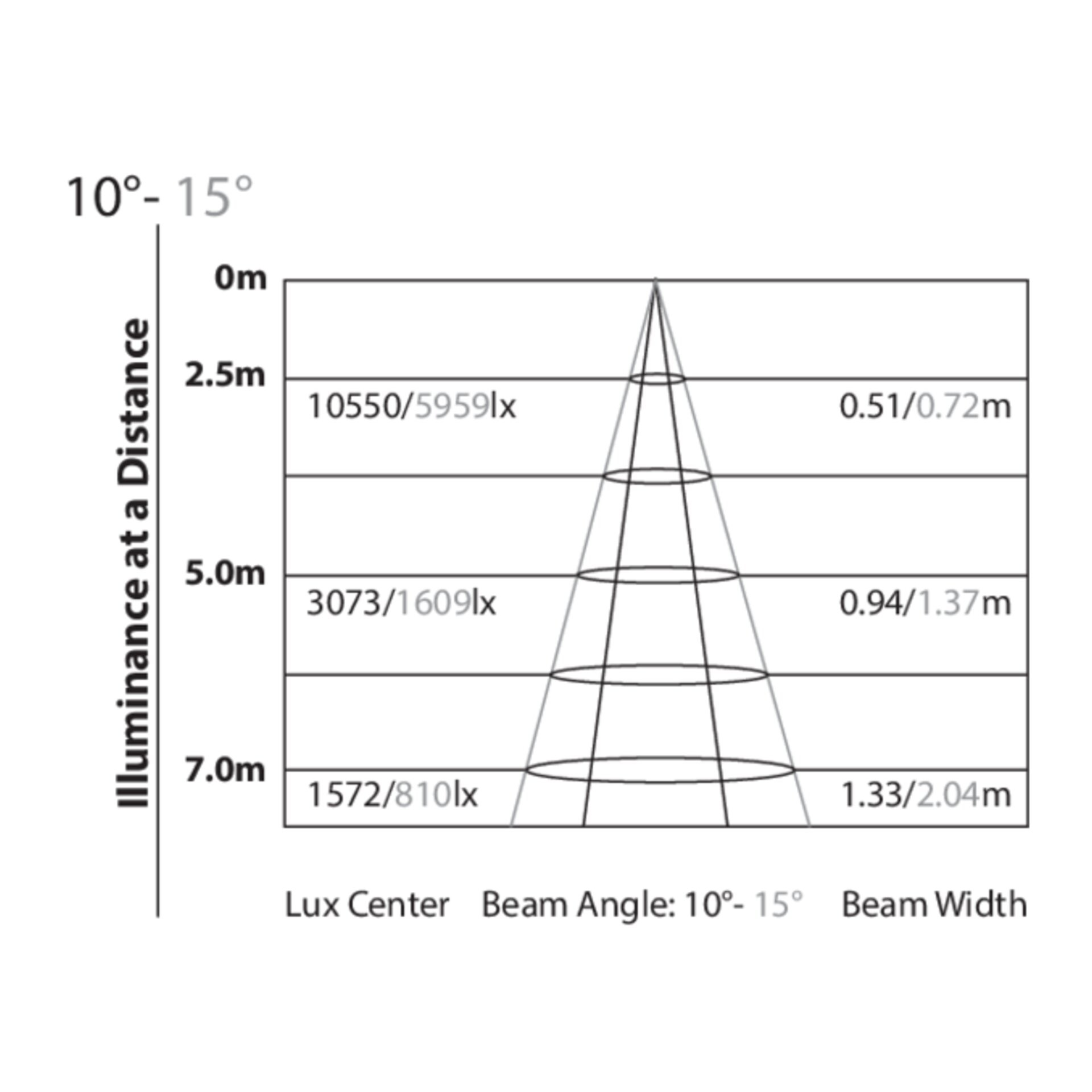

Lux3'073lx @5 m full
Levensverwachting lichtbron > 30.000 h
Optiek
Lens type high-quality glass lens optics, high-quality glass lens optics
Focus motorised with auto-focus, motorised with auto-focus
Kleuren
Kleurenwiel8 colour filters
Effecten
Macros linear, half colours, colour bounce
Roterende gobo's7 rotating gobos + open, interchangeable, indexing
Prisma3f with bi-directional rotation, 3f with bi-directional rotation
Gobo maatouter: 23,7 mm - image: 19 mm - thickness: 0,5 mm, outer: 23,7 mm - image: 19 mm - thickness: 0,5 mm
Behuizing
Pan angle540° / 630°
Tilt angle265°
Kleur behuizingwhite finishing
Pan/Tilt resolutiebit 8 / 16bit
Materiaal aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocollen DMX512, RDM
DMX kanalen11 / 13 / 15 / 18 channel
Display LCD high resolution colour display
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included, yes, via USB - DMX interface (UPBOX2) not included
W-DMX optional, wireless solution receiver, optional, wireless solution receiver
RDM RDM ready for remote monitoring and settings, RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 20 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Slaapstand power safe mode when lost DMX, power safe mode when lost DMX
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik125W
Output (at 230V)16 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging any position with quick-lock omega brackets
Signaal aansluiting Amphenol XLR 3p IN/OUT connectors
Stroomaansluiting Neutrik powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
43.2 cm
Breedte verpakking
29.4 cm
Diepte verpakking
20 cm
Gewicht verpakking
9 kg
