Lichtbron
Lichtbron18W high-power white LED
CCT7.000K
Luminous flux1'288lm
Lux227,97lx @10 m
Levensverwachting lichtbron > 30.000 h
CRI73
Optiek
Lens type high-quality glass lens optics
Kleuren
Kleurenwiel9 colour filters
Effecten
Vaste gobo's9 fixed gobos + open
Behuizing
Pan angle540°
Tilt angle270°
Kleur behuizing black, white finishing available
Pan/Tilt resolutiebit 8 / 16bit
Materiaal aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocollen DMX512, RDM
DMX kanalen8 / 10 channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX optional, proprietary protocol compatible with WIFIBOX, WDBOX
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter0 ~ 30 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik40,6W
Output (at 230V)67 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging any position with quick-lock omega brackets

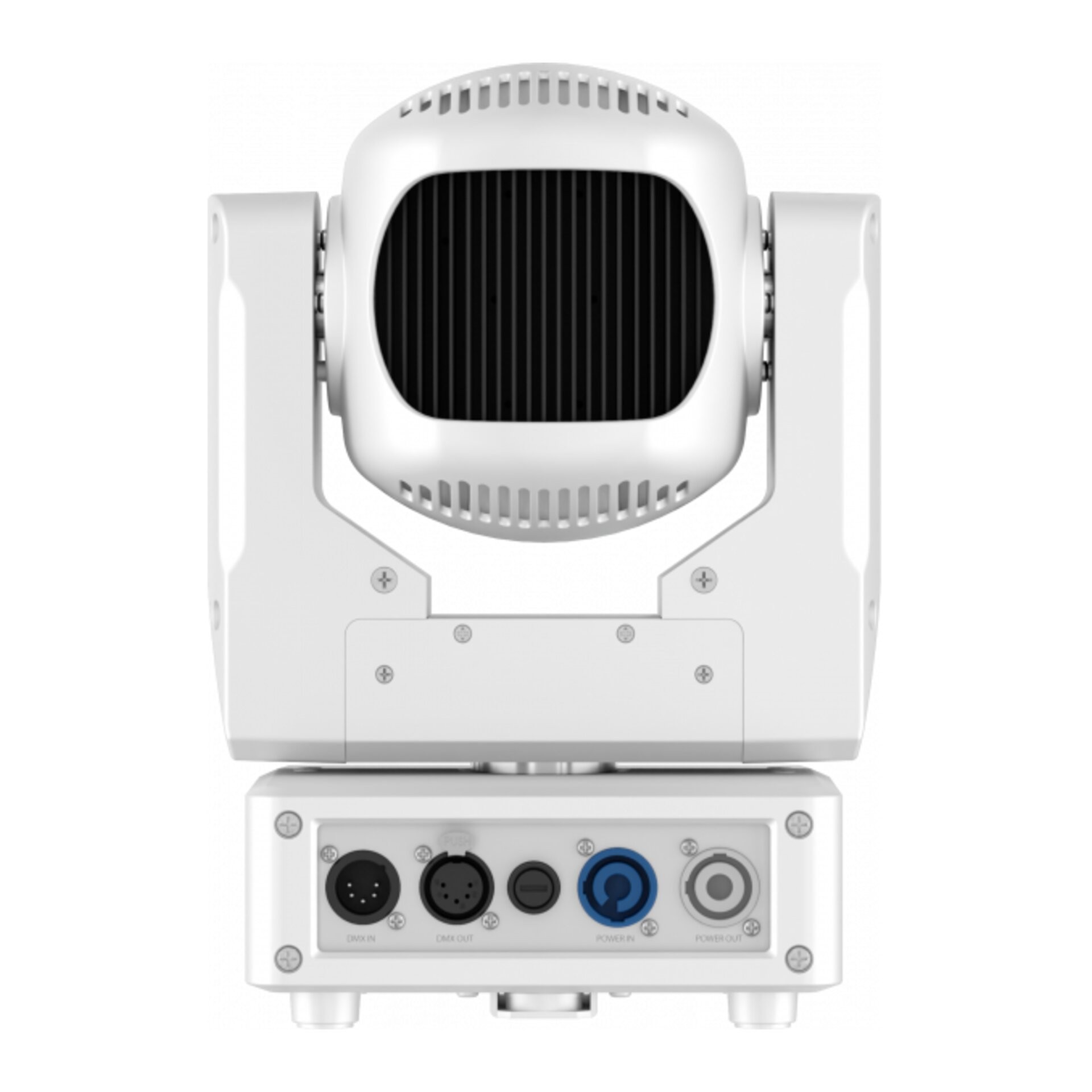

Signaal aansluiting XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
30.9 cm
Breedte verpakking
21 cm
Diepte verpakking
17 cm
Gewicht verpakking
4.2 kg
