Lichtbron
Lichtbron240W high-power white LED
CCT7.500K
Luminous flux12'459lm
Lux1'205lx @10 m
Levensverwachting lichtbron> 30.000 h
CRI78
Optiek
Lens diameter74mm
Lens typehigh-quality glass lens optics
Focusmotorised
Kleuren
Kleurenwiel7 colour filters on two colour wheels
Effecten
Roterende gobo's7 rotating gobos + open, interchangeable, indexing
Vaste gobo's8 fixed gobos + open, interchangeable
Prisma3f with bi-directional rotation, indexing
Frostlinear 0 - 100% frost filter
Gobo maatouter: 29,6 mm - image: 23 mm - thickness: 0,5 mm
Iris5 ~ 100% motorised iris
Behuizing
Pan angle540°
Tilt angle260°
Kleur behuizingblack, white finishing available
Pan/Tilt resolutiebit 16bit
Materiaalaluminium structure with hi-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM
DMX kanalen17 / 19channel
Master/Slavefor synchronised operation of more units linked in a chain

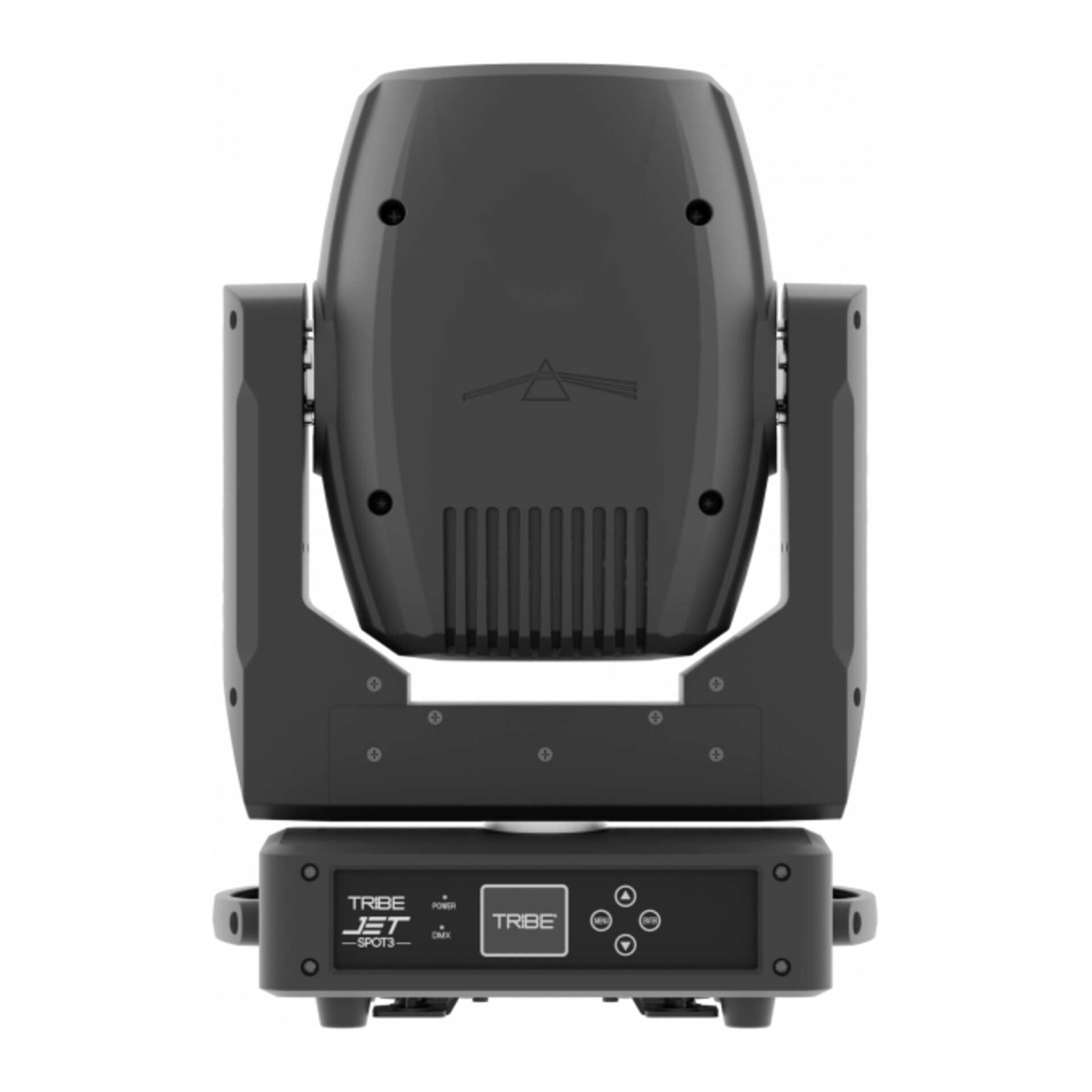

DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Strobe / shutter0 ~ 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik316W
Output (at 230V)12 units on a single power line
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingany position with quick-lock omega brackets

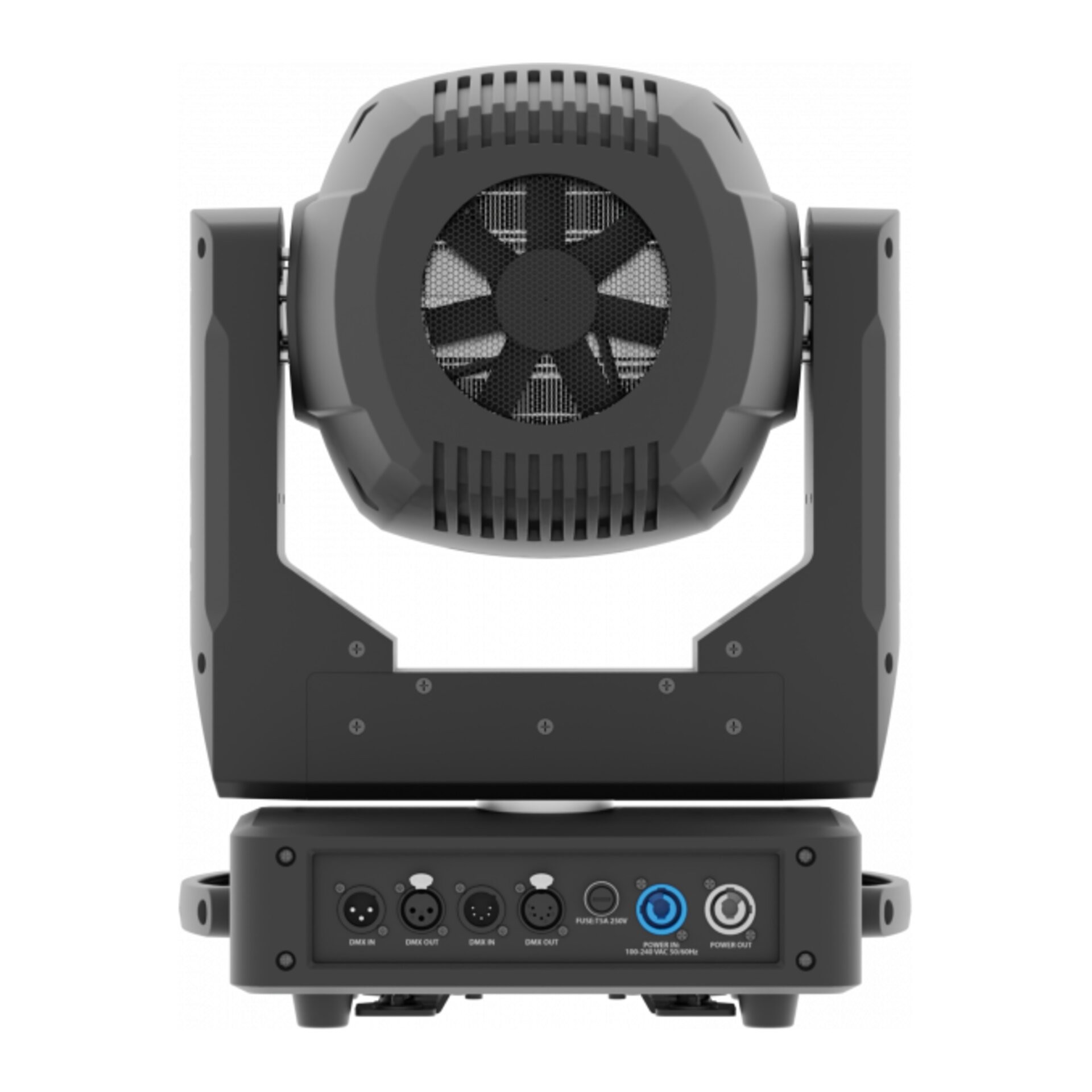

Signaal aansluitingAmphenol XLR 3p + 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON IN/OUT connectors
IP waarde20

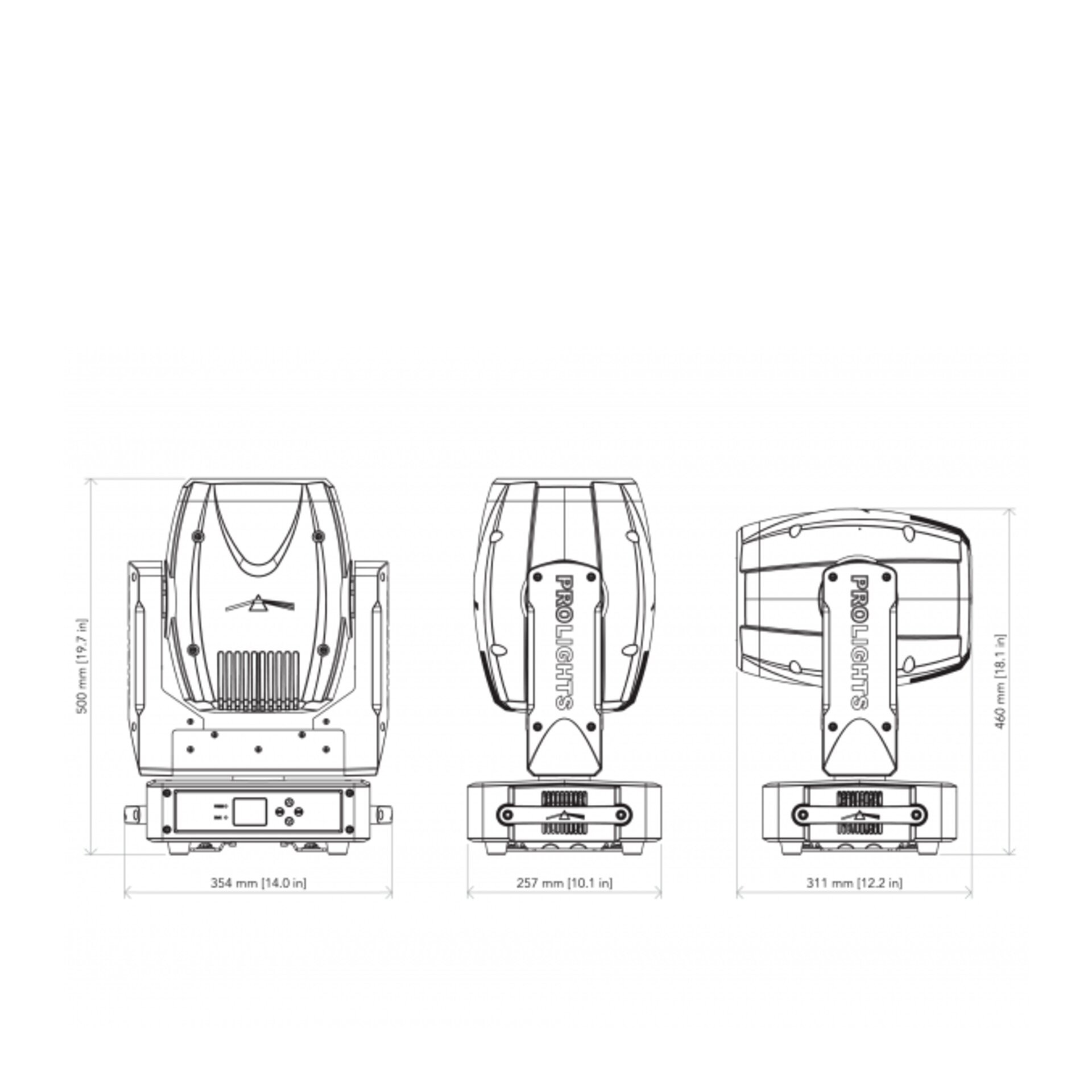

Logistieke eigenschappen
Hoogte verpakking
50 cm
Breedte verpakking
35.5 cm
Diepte verpakking
25.7 cm
Gewicht verpakking
17 kg
