Lamp eigenschappen
Zoom11 - 36° manual
Lichtbron
Lichtbron4x10W RGBW LEDs
Luminous flux1'164lm
Lux(36°) 625lx @3 m full
Levensverwachting lichtbron > 50.000 h
Kleuren
Manual colour mode manual adjustment of colour
Kleurmenging RGBW / FC
Wit macro's3.200 K ~10.000K
Kleurenwiel virtual colour wheel with macros
Effecten
Macros built-in white presets
Behuizing
Tilt angle+/- 105° with manual regulation
Kleur behuizing black, mirror finishing available
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512, W-DMX
DMX kanalen3 / 4 / 6 / 10 / 15channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
W-DMX included, wireless solution receiver
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur 0° ~ +35°
LED Control flicker free operation
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik53W
Batterij24V lithium
Fysieke eigenschappen
Koeling passive cooling and fan-free
Bevestiging any position with quick-lock omega brackets

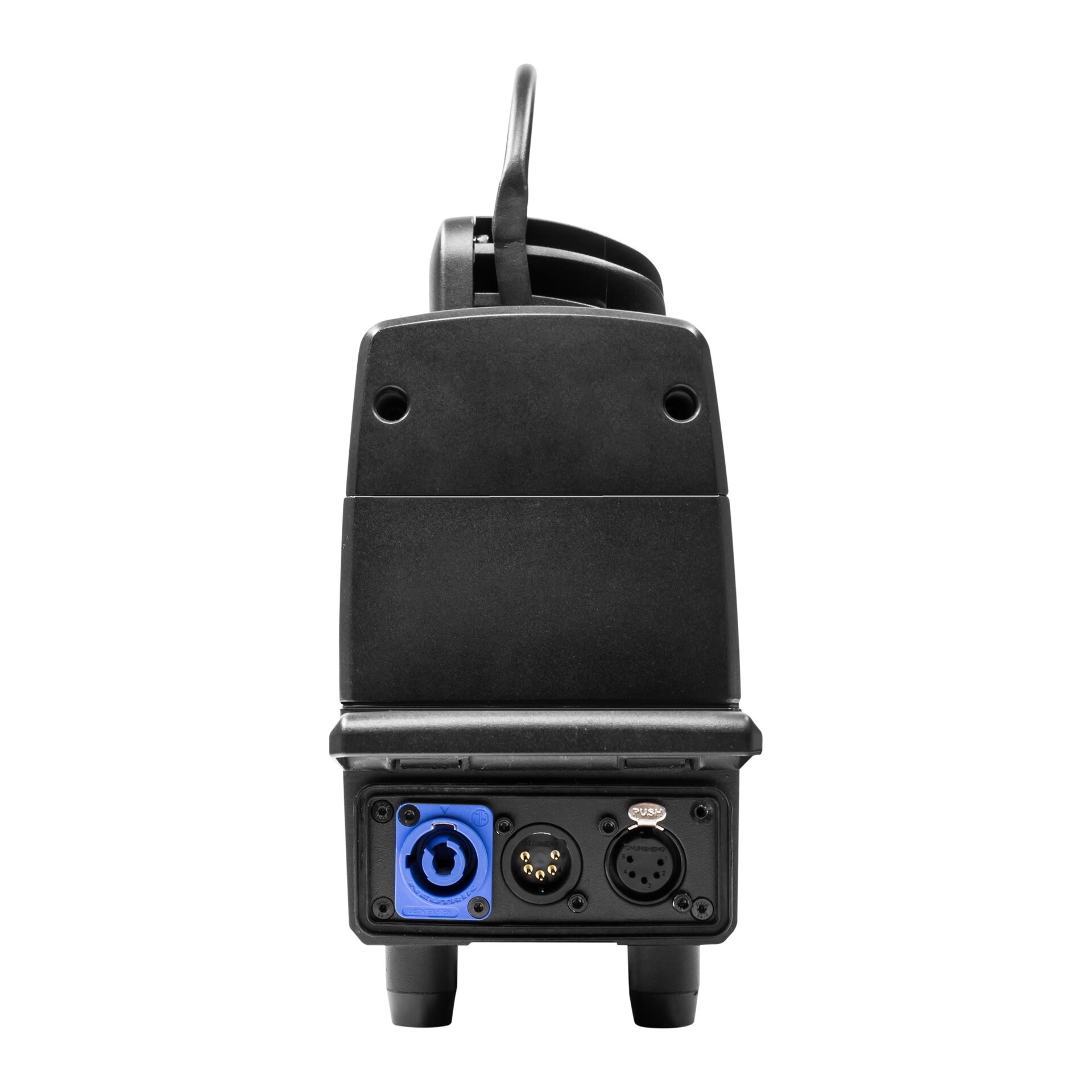

Signaal aansluiting XLR 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Oplaad connectie power cable and / or magnetic fast-charge in case
Logistieke eigenschappen
Hoogte verpakking
25 cm
Breedte verpakking
31.2 cm
Diepte verpakking
10.8 cm
Gewicht verpakking
5.5 kg
