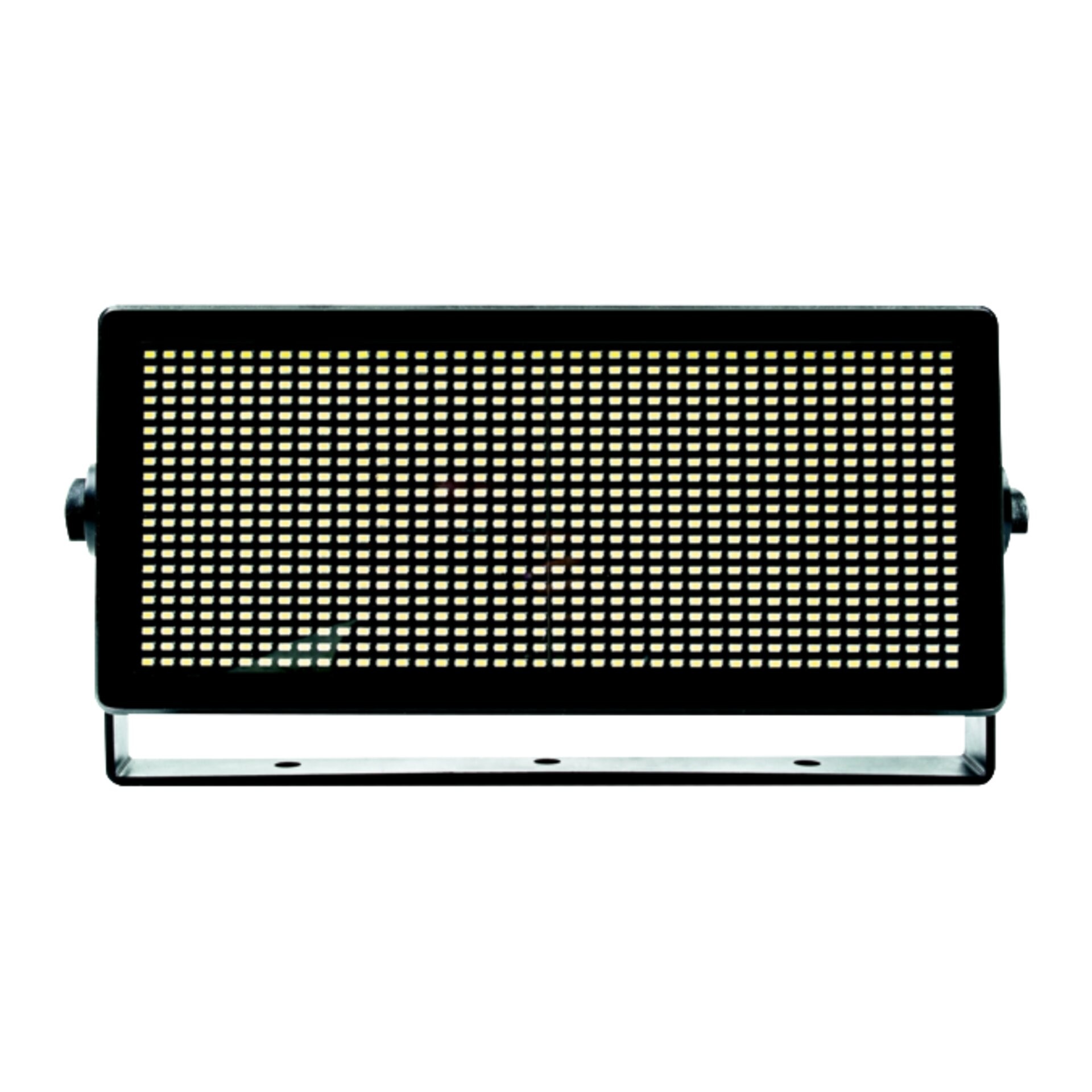

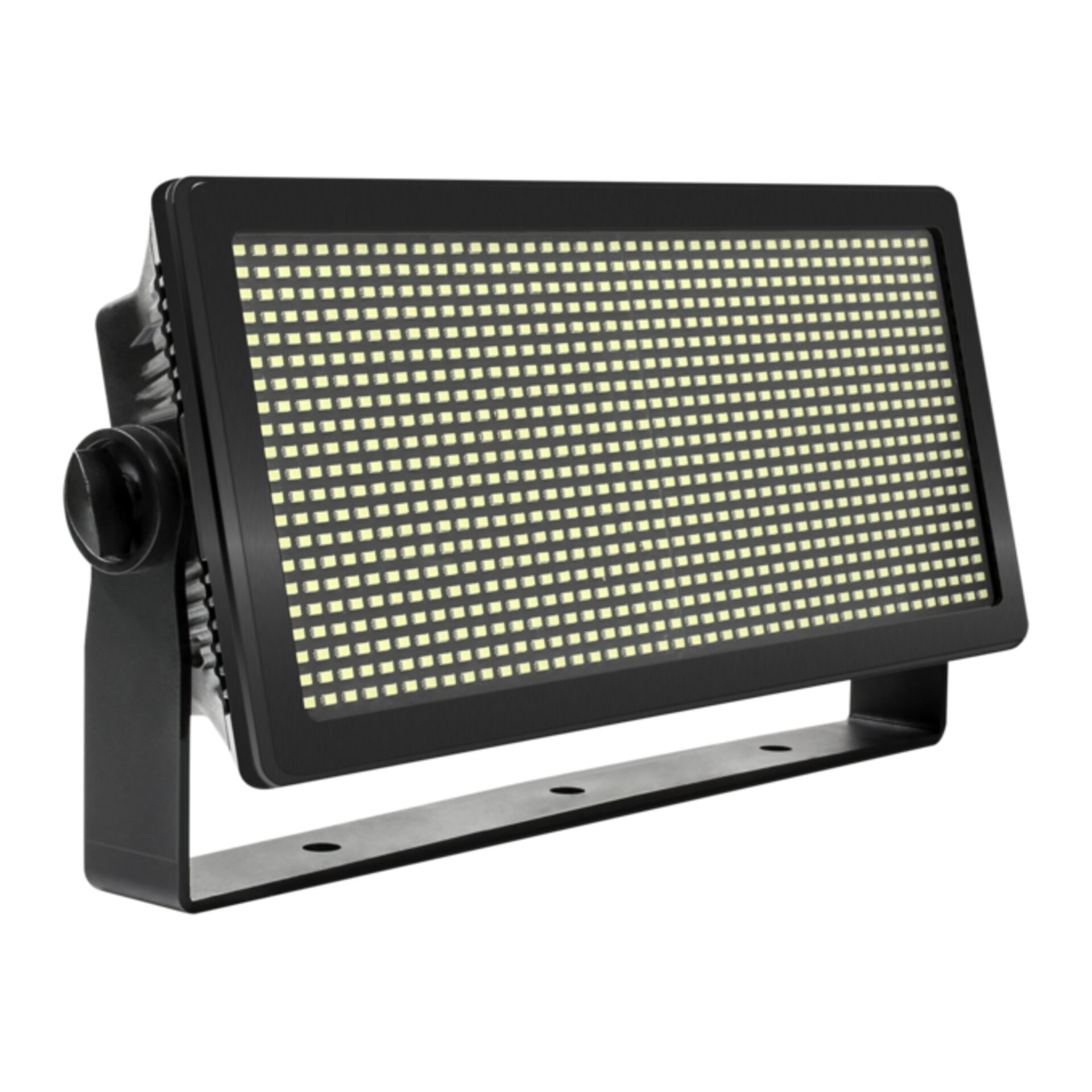

Prolights Polar 3000

21-00230

  • High power LED strobe
  • 882x0.5W LED
  • 120°

Omschrijving:

POLAR3000 is a revolutionary LED strobe, engineered to offer a true explosion of light and a range of dynamic effects - all in a unique fixture. The light source is composed by 892 SMD 6.500 K x 0,5 W LEDs allows a full-ON continuous operation with 6 independent section controls. Fully capable to offer an equal output of conventional 3.000 W Xenon strobe from just a sixth of the nominal power.

Merk

Product niet meer leverbaar

  • Documenten
  • productspecificaties
  • gerelateerde producten

Gegevens

Algemeen

Artikelnummer 21-00230
Merk ProLights
Artikelnummer fabrikant POLAR3000
Garantie 2 jaar

Lichtbron

Lichtbron882x0,5W Cold White LED
CCT6.500K
Luminous flux14'871lm
Lux1'800lx @3 m
Levensverwachting lichtbron> 50.000 h

Kleuren

Manual colour modemanual adjustment of dimmer and strobe

Behuizing

Kleur behuizingblack
Materiaalsturdy die-cast aluminium body

Aansturing

ProtocollenDMX512
DMX kanalen3 / 5 / 8 / 13channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLCD display
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik462W
Output (at 230V)5 units on a single power line

Fysieke eigenschappen

Koelingpassive cooling and fan-free
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

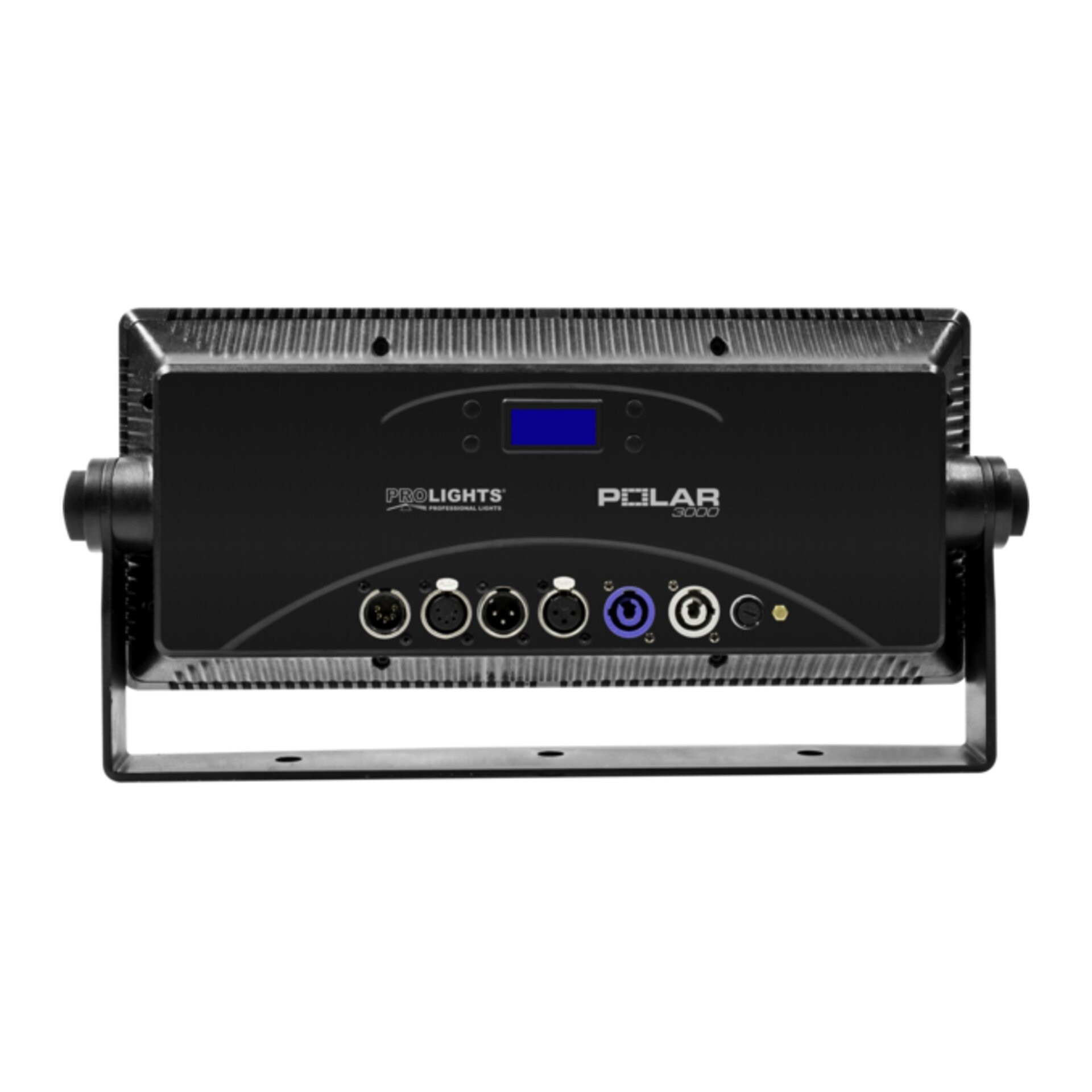

Signaal aansluiting3p + 5p in
StroomaansluitingNeutrik powerCON IN/OUT connectors
IP waarde44

Logistieke eigenschappen

Hoogte verpakking 18.7 cm
Breedte verpakking 41.8 cm
Diepte verpakking 8 cm
Gewicht verpakking 4 kg
