Lichtbron
Lichtbron91x3W RGB + lime LEDs
CCTCCT control, + / - green correction, tungsten emulation
Luminous flux(5°) 3'538 lm - (10°) 4'088 lm - (14°) 3'811 lm - (19°) 4'273 lm - (26
Lux(5°) 36'042 lx - (10°) 17'857 lx - (14°) 10'578 lx - (19°) 6'189 lx -
Levensverwachting lichtbron> 50.000 h
Optiek
Lens typehigh-quality glass lens optics
Kleuren
Manual colour modemanual adjustment of colour
KleurmengingRGB + lime / full colour
Wit macro's2.700 K ~10.000K
Effecten
Macrosbuilt-in white presets

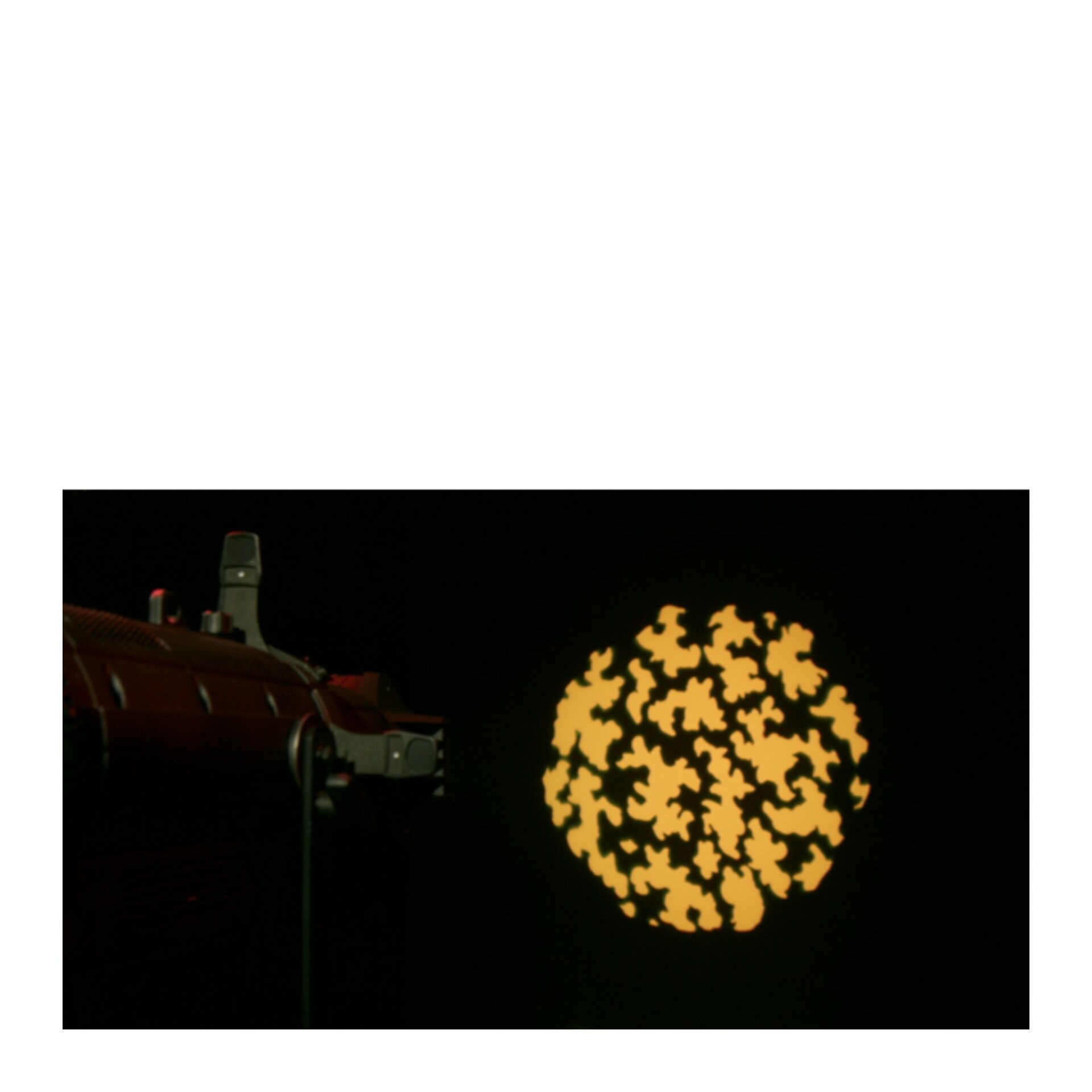

Gobo maatB, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
Behuizing

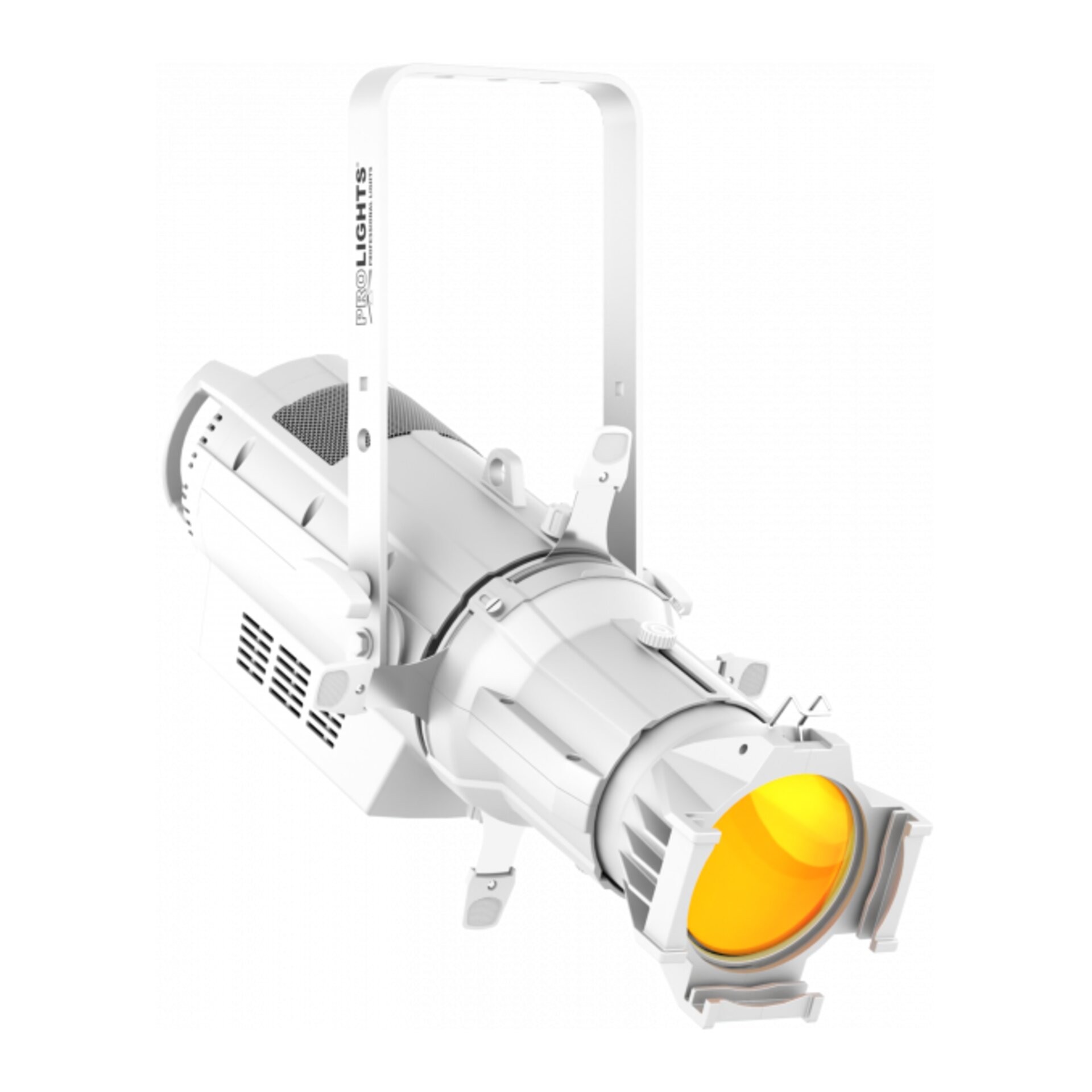

Kleur behuizingblack, white finishing available
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM
DMX kanalenTheater 1 / 3 / 5 / 17 channel - Tour 4 / 8 / 11channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik220W
Output (at 230V)6 units on a single power line
Fysieke eigenschappen
Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingbracket for hanging and positioning

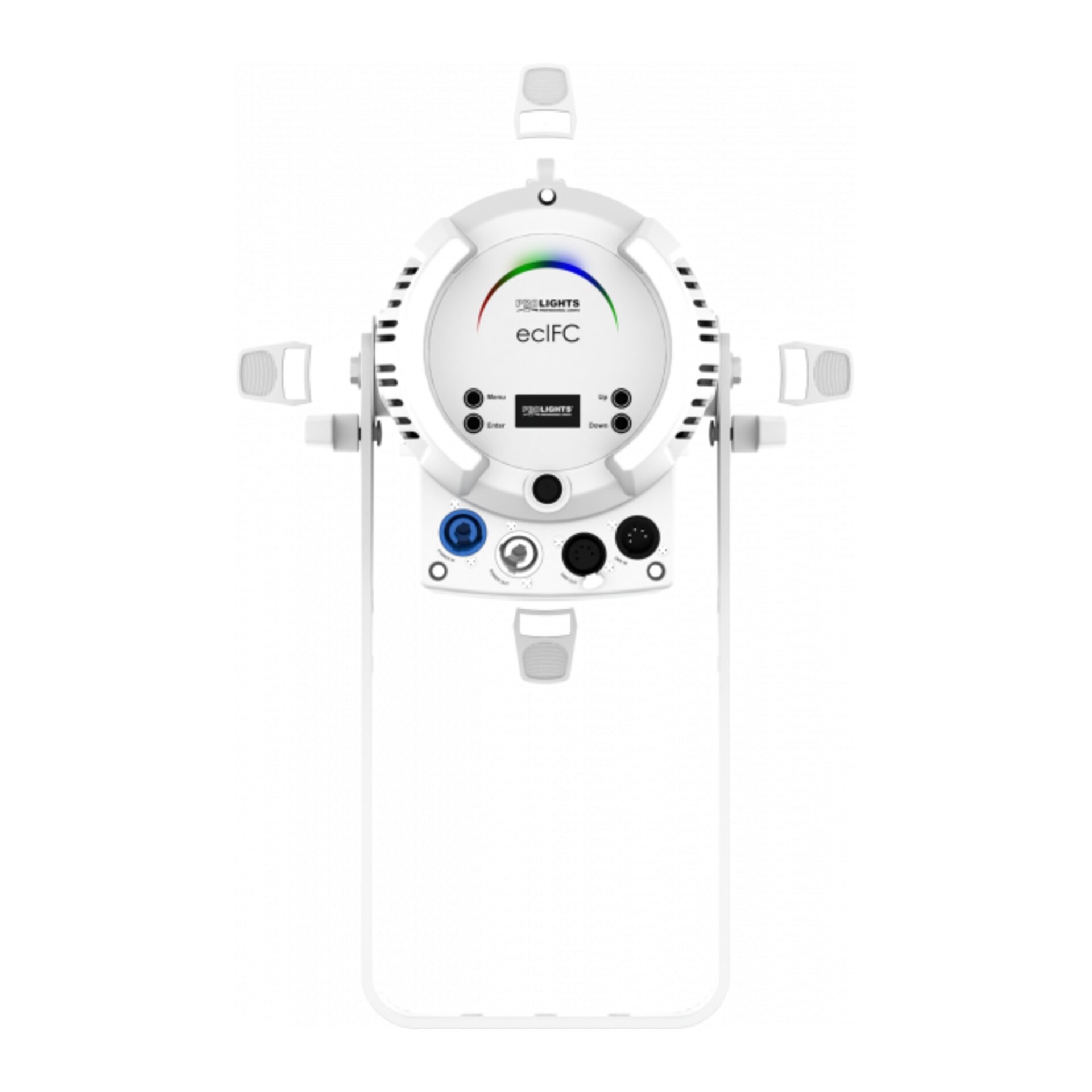

Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
34.2 cm
Breedte verpakking
73.4 cm
Diepte verpakking
34.2 cm
Gewicht verpakking
7 kg
