Algemeen
Artikelnummer
21-00150
Merk
ProLights
Artikelnummer fabrikant
STUDIOCOBDYWH
Garantie
2 jaar
Lichtbron
Lichtbron100W high-power white LED
CCT5.000K
Luminous flux5'290lm
Lux(30°) 1'940lx @3 m
Levensverwachting lichtbron> 30.000 h
CRI83
R982,6
Optiek
Lens typeparabolic reflector in combination with HD fresnel lens
Extra optieken30° (inc) - 15° (opt)
Kleuren
Manual colour modemanual adjustment of dimmer and strobe
Behuizing
Kleur behuizingblack, mirror and white finishing available
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512
DMX kanalen1 / 2 / 5channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik104W
Output (at 230V)12 units on a single power line
Power factor0,9346
Fysieke eigenschappen
Koelingactive, silent operation
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

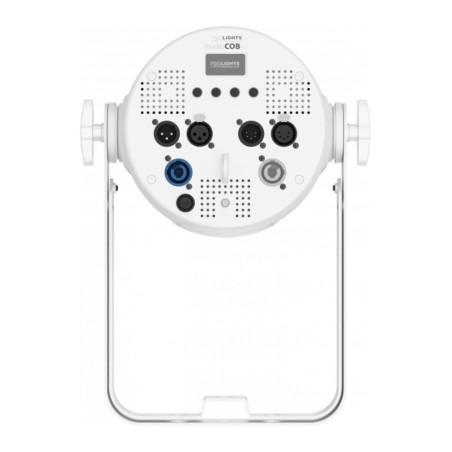

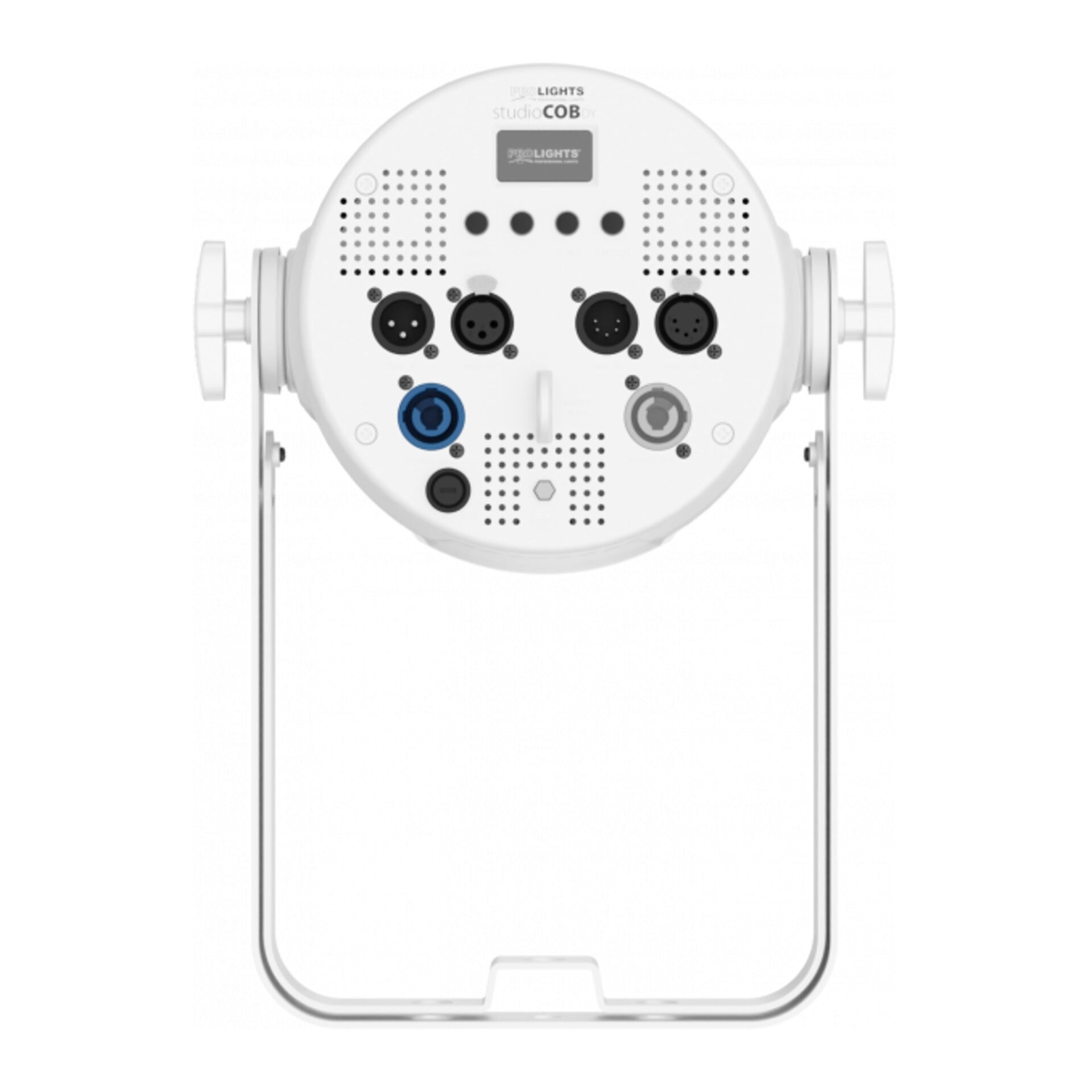

Signaal aansluitingXLR 3p + 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
24.3 cm
Breedte verpakking
26 cm
Diepte verpakking
37 cm
Gewicht verpakking
4.5 kg
