Lichtbron
Lichtbron13W high-power white LED
CCT(TU) 2.900 K - (DY) 6.100K
Luminous flux(TU) 755 lm - (DY) 978lm
Lux(TU) 5'030 lx - (DY) 6'320lx @3 m
Levensverwachting lichtbron > 30.000 h
CRI(TU) 90 - (DY) 80
Kleuren
Manual colour mode manual adjustment of dimmer and strobe
Behuizing
Kleur behuizing black
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512
DMX kanalen1 / 3channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves3 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
Display accu self-charging battery backup
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik18,9W
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging bracket for hanging and positioning

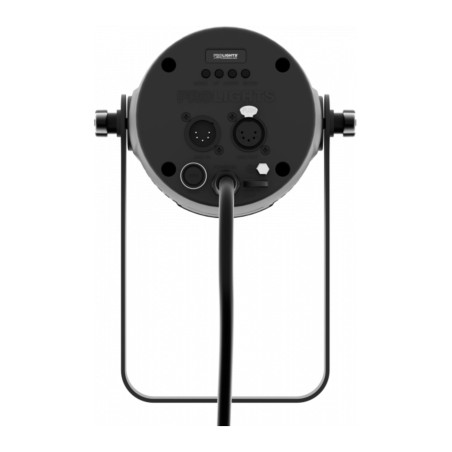

Signaal aansluiting XLR 5p IN/OUT connectors
Stroomaansluiting moulded IP power IN connector
IP waarde30
Logistieke eigenschappen
Hoogte verpakking
16.7 cm
Breedte verpakking
20.9 cm
Diepte verpakking
23.8 cm
