Algemeen
Artikelnummer
21-00132
Merk
ProLights
Artikelnummer fabrikant
STUDIOCOBFCWH
Garantie
2 jaar
Lichtbron
Lichtbron150W COB RGB / FC LED
Luminous flux2'163lm
Lux(30°) 678,6lx @3 m full
Levensverwachting lichtbron > 30.000 h
Optiek
Lens type parabolic reflector in combination with HD fresnel lens
Extra optieken30° (inc) - 15° (opt)
Kleuren
Manual colour mode manual adjustment of colour
Kleurmenging RGB / FC
Wit macro's2.800 K - 9.000K
Kleurenwiel virtual colour wheel with macros
Effecten
Macros built-in white presets
Behuizing
Kleur behuizingblack, mirror and white finishing available black
Materiaal sturdy die-cast aluminium body
Aansturing
Protocollen DMX512
DMX kanalen3 / 5 / 8channel
Master/Slave for synchronised operation of more units linked in a chain
Display Graphic User Interface
Firmware upgrade yes, via USB - DMX interface (UPBOX1) not included
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -10° ~ +45°
LED Control flicker free operation
Selecteerbare PWM frequentie 600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik140W
Output (at 230V)12 units on a single power line
Fysieke eigenschappen
Koeling active, silent operation
Bevestiging double hanging bracket suitable for safe hanging and for floor positioning

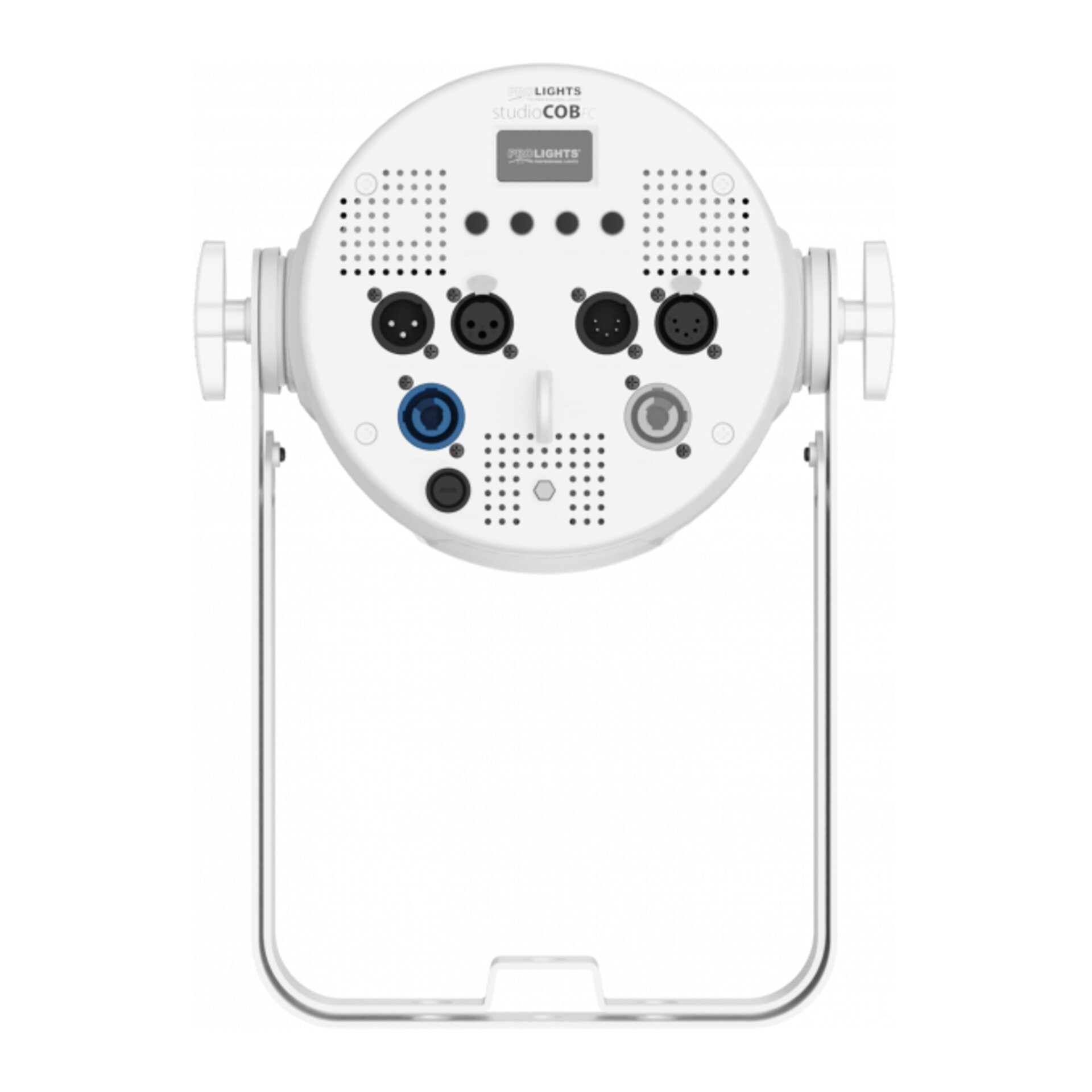

Signaal aansluiting XLR 3p + 5p IN/OUT connectors
Stroomaansluiting Neutrik powerCON IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
24.3 cm
Breedte verpakking
26 cm
Diepte verpakking
37 cm
Gewicht verpakking
4.5 kg
