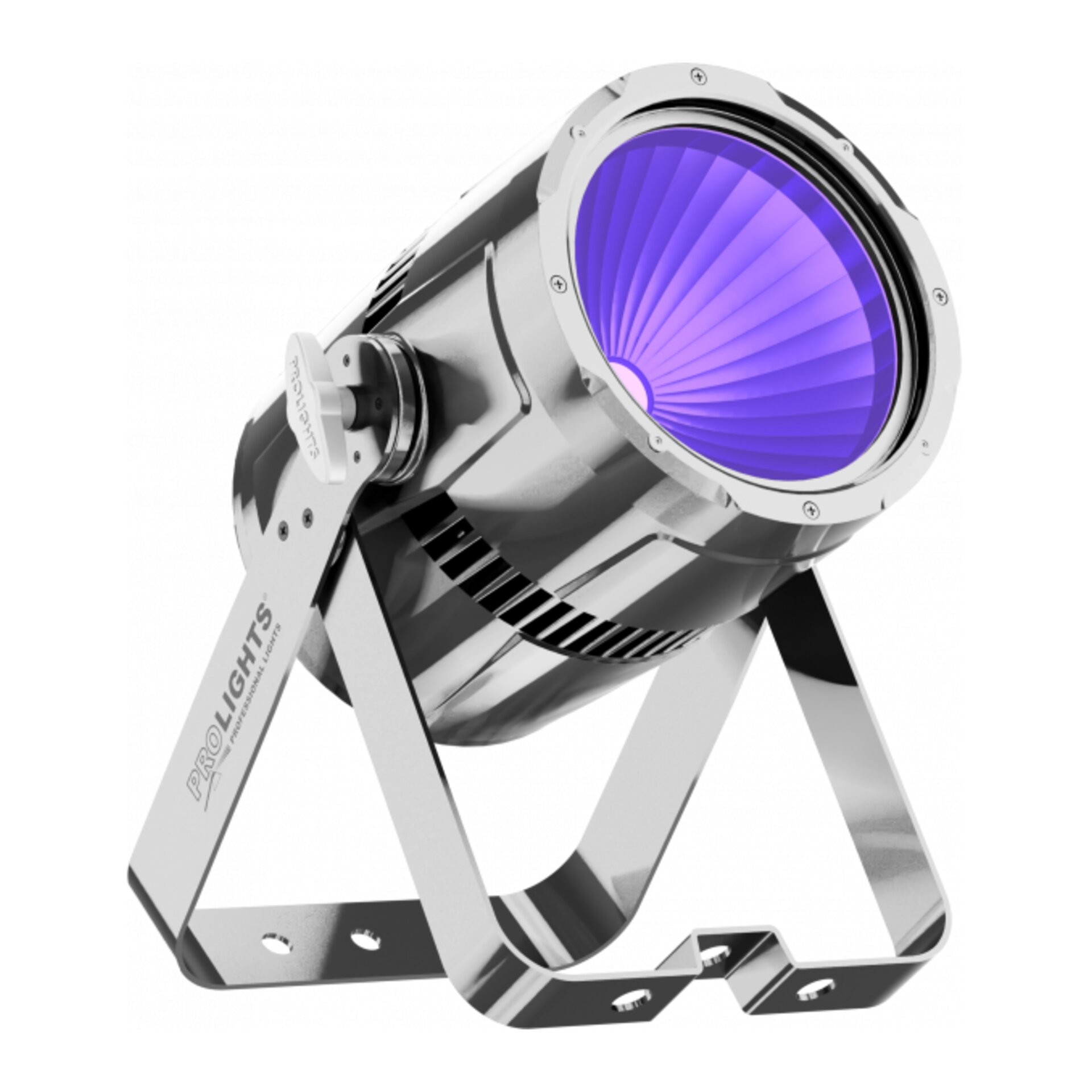

Prolights StudioCob UV

21-00129

  • 100W 405nm COB LED UV
  • Kleur: chroom
  • Openingshoek 60°

Omschrijving:
De Prolights StudioCob UV is een krachtige en ongelooflijk veelzijdige UV LED PAR. Het combineert oud en nieuw en combineert een UV COB LED-bron met een traditionele parabolische reflector om een goede LED-vervanging te leveren voor traditionele UV-lampen

Merk

Product niet meer leverbaar

  • accessoires (10)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (10)
  • Accessoires (3)
  • DMX kabels (2)
  • Haken/Safety's (2)
  • Stroom kabels (3)

ProAudio Tour 53415BK

Meerdere opties

ProAudio Tour 53415BK
  • 5 polige DMX kabel, zwarte kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 50,00

ProAudio Tour 53413BK

Meerdere opties

ProAudio Tour 53413BK
  • 3 polige DMX kabel, zwarte kabel
  • Neutrik XLR 3p female
  • Neutrik XLR 3p male
Bruto prijs:
€ 35,50

GDE Schuko aansluitkabel

Meerdere opties

GDE Schuko aansluitkabel
  • 3x2,5mm2 TH07 PowerCon aansluitkabel
  • Schuko 16A male stekker
  • PowerCon female kabeldeel 20A
Bruto prijs:
€ 34,00

GDE PowerCon aansluitkabel

Meerdere opties

GDE PowerCon aansluitkabel
  • 3x2,5mm2 TH07 PowerCon aansluitkabel
  • CEE 3p 16A male stekker
  • PowerCon female kabeldeel 20A
Bruto prijs:
€ 36,00

GDE PowerCon verlengkabel

Meerdere opties

GDE PowerCon verlengkabel
  • 3x2,5mm2 TH07 PowerCon verlengkabel
  • PowerCon male kabeldeel 20A
  • PowerCon female kabeldeel 20A
Bruto prijs:
€ 40,00

ProTruss RSR0630B

24-00246

ProTruss RSR0630B
  • Safety kabel, lengte 60cm
  • 3mm, maximaal 25kg
  • Kleur: zwart
Bruto prijs:
€ 4,80

ProTruss C6002B

24-00161

ProTruss C6002B
  • Halfcoupler
  • SWL: 200kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 11,40

Prolights STUDIOCOBL15

21-20138

Prolights STUDIOCOBL15 - Full AVL Distribution
  • Lens voor de StudioCOB serie
  • 15°
Bruto prijs:
€ 18,00

Prolights STUDIOCOBL30

21-20137

Prolights STUDIOCOBL30 - Full AVL Distribution
  • Lens voor StudioCOB serie.
  • 30°
  • Let op, lens is inbegrepen bij armatuur
Bruto prijs:
€ 18,00

Prolights STUDIOCOBBD

21-20079

Prolights STUDIOCOBBD - Full AVL Distribution
  • Barndoor voor de studioCOB serie
  • Kleur: zwart
  • incl filterframe
Bruto prijs:
€ 60,00

Gegevens

Algemeen

Artikelnummer 21-00129
Merk ProLights
Artikelnummer fabrikant STUDIOCOBUVCR
Garantie 2 jaar

Lichtbron

Lichtbron405 nm 100W UV LEDs
Luminous flux79lm
Levensverwachting lichtbron> 30.000 h

Optiek

Lens typeparabolic reflector in combination with HD fresnel lens
Extra optieken30° (inc) - 15° (opt)

Kleuren

Manual colour modemanual adjustment of dimmer and strobe

Behuizing

Kleur behuizingblack, mirror finishing available
Materiaalsturdy die-cast aluminium body

Aansturing

ProtocollenDMX512
DMX kanalen1 / 2 / 5channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayGraphic User Interface
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Selecteerbare PWM frequentie600 ~ 25.000 Hz

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik124W
Output (at 230V)12 units on a single power line

Fysieke eigenschappen

Koelingactive, silent operation
Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

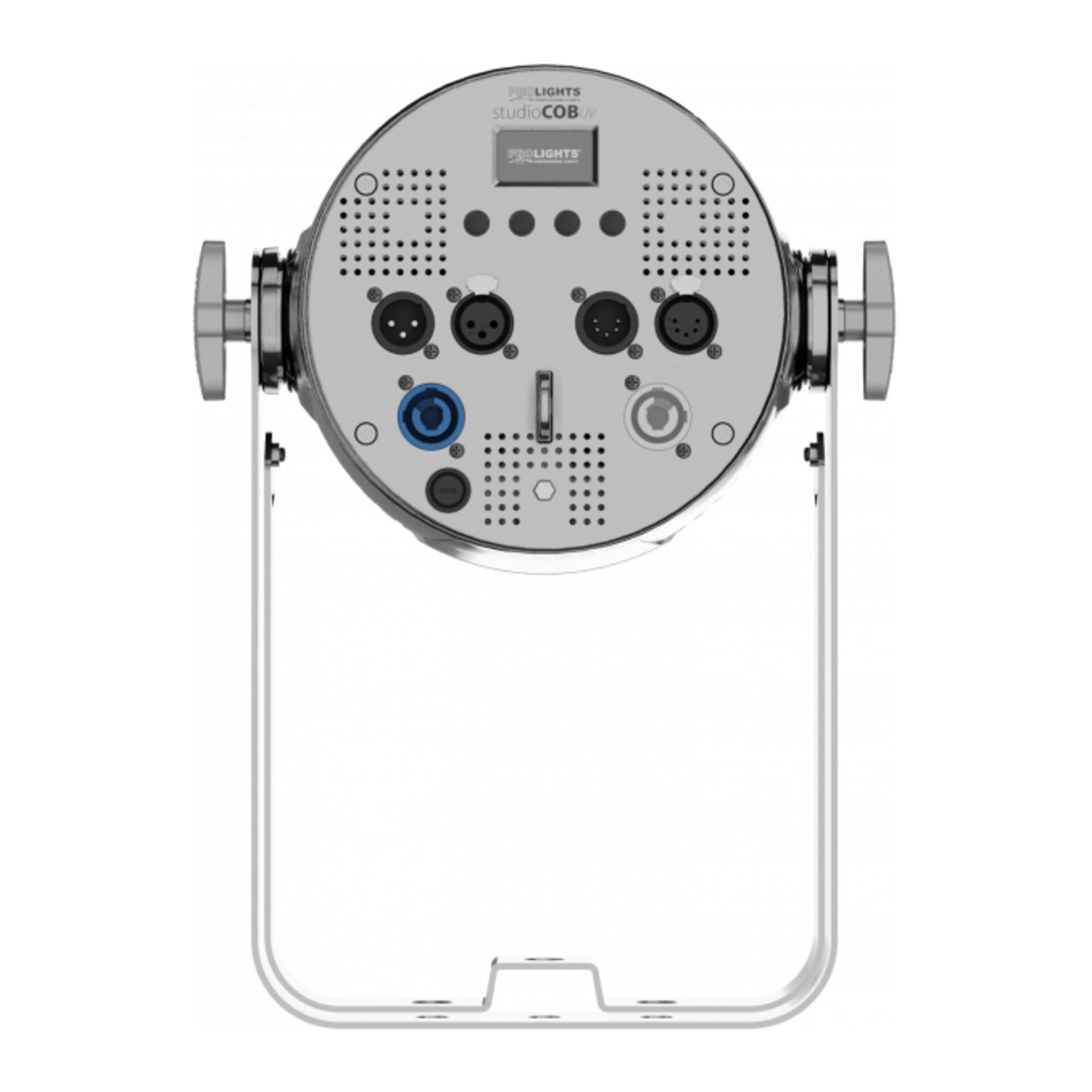

Signaal aansluitingXLR 3p + 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON IN/OUT connectors
IP waarde20

Logistieke eigenschappen

Hoogte verpakking 24.3 cm
Breedte verpakking 26 cm
Diepte verpakking 37 cm
Gewicht verpakking 4.5 kg
