Lamp eigenschappen

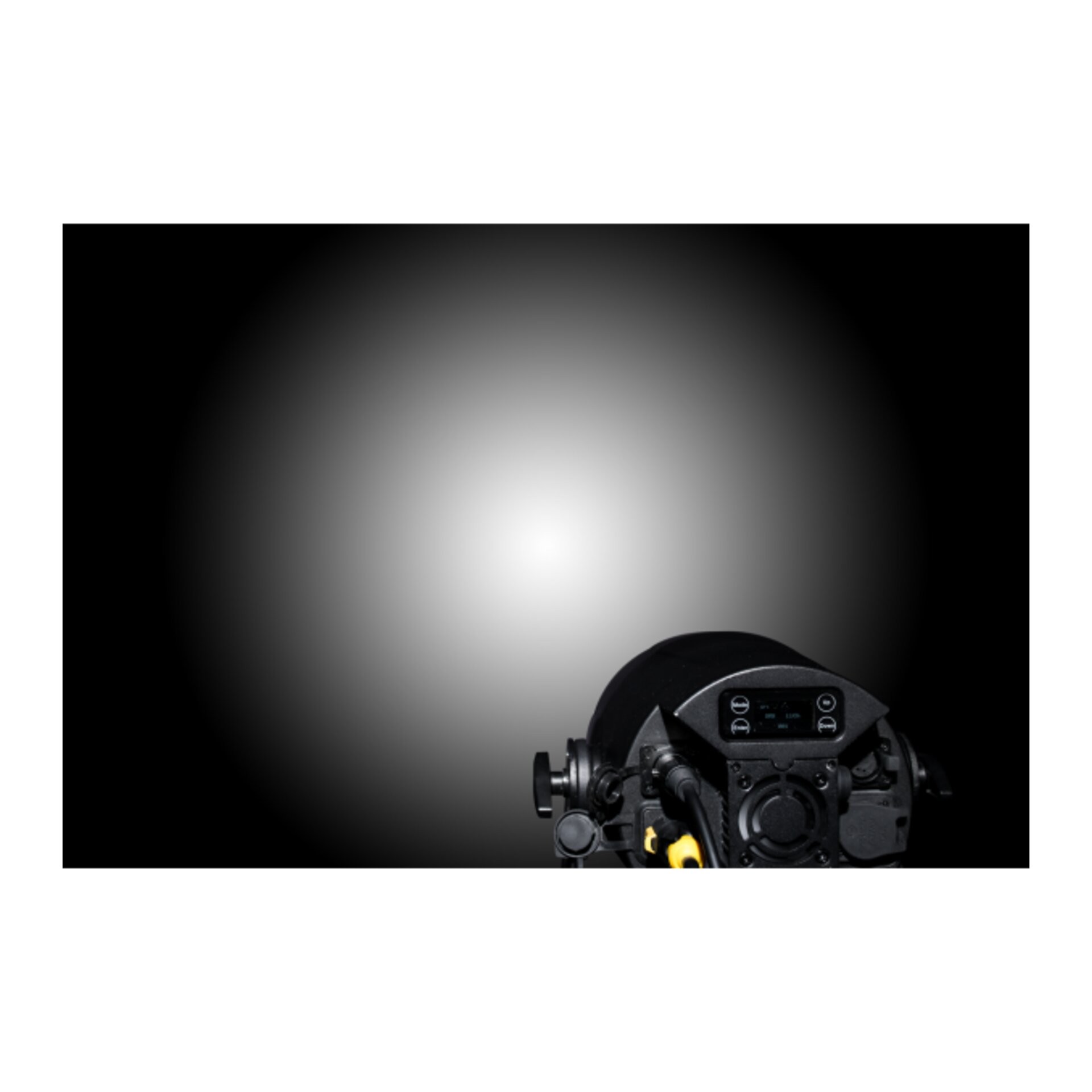

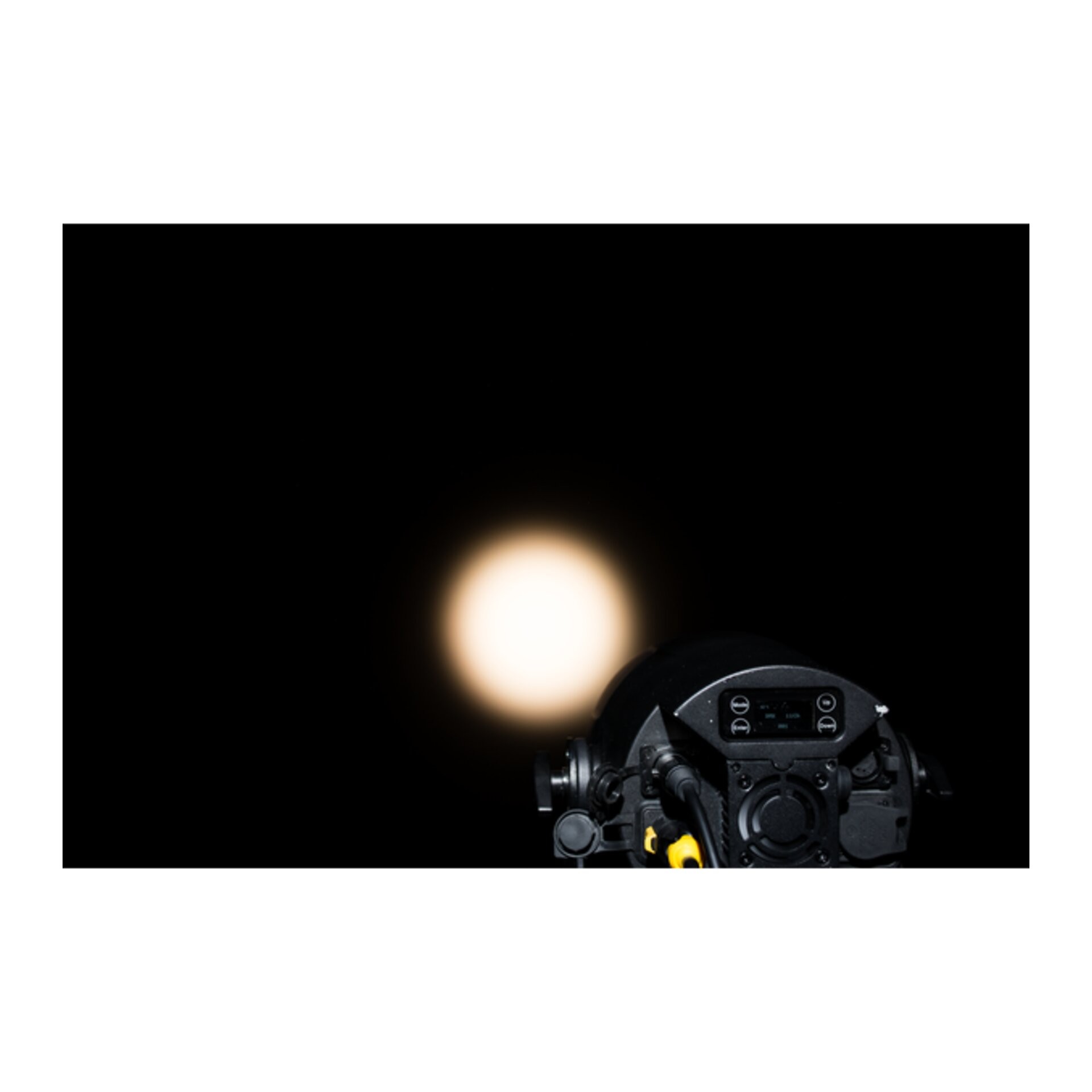

Zoom6° - 41,6° motorised linear zoom
Lichtbron
Lichtbron60W RGBW Osram LED
CCTCCT control through dedicated DMX channel
Luminous flux(6°) 777 lm - (41,6°) 926lm @full
Lux(6°) 2'996 lx - (41,6°) 208lx @5 m full
Levensverwachting lichtbron> 50.000 h
Optiek
Lens diameter100mm
Lens typehigh-quality glass lens optics
Kleuren
Manual colour modemanual adjustment of colour
KleurmengingRGBW / FC

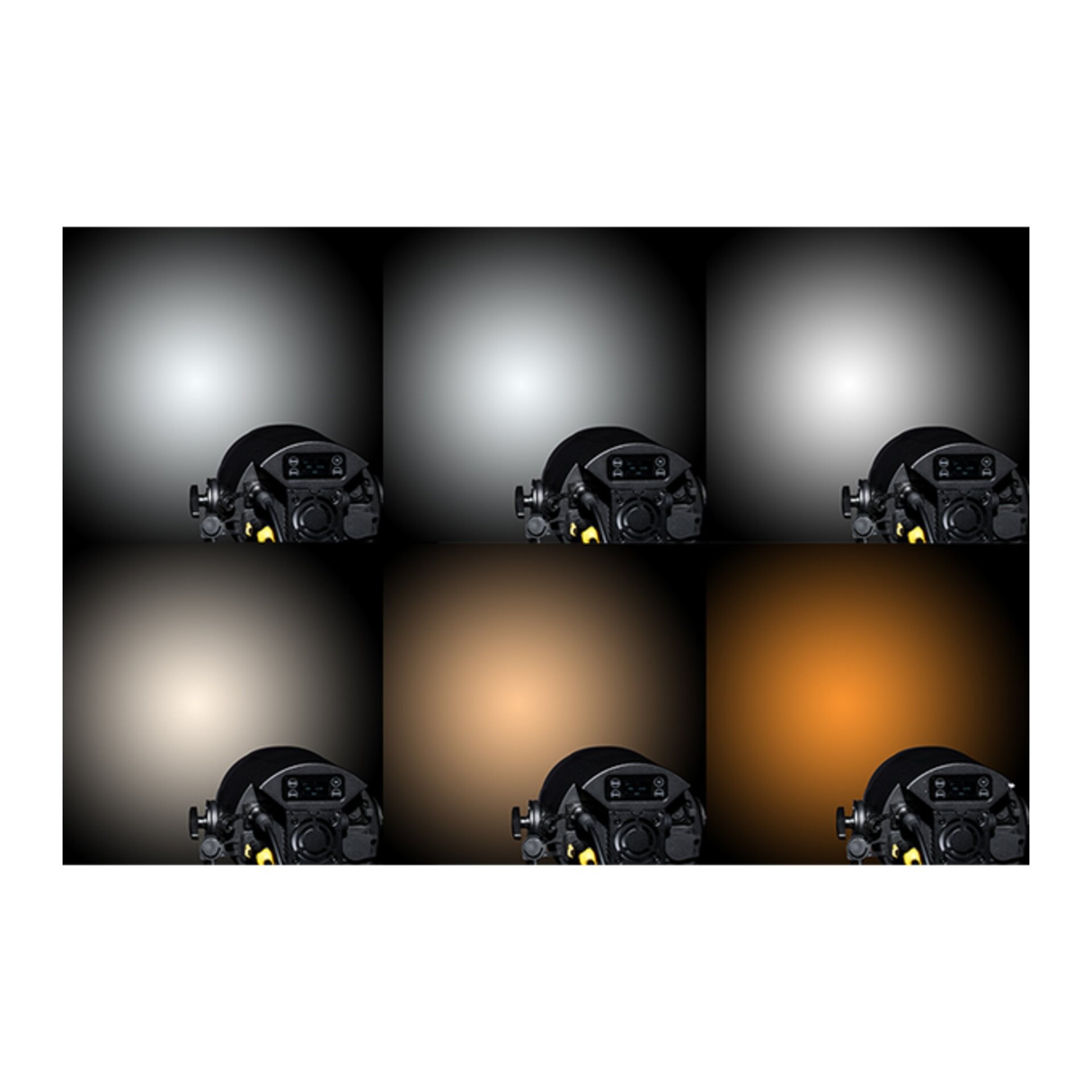

Wit macro's2.000 K ~ 8.000K
Kleurenwielvirtual colour wheel with macros
Behuizing
Kleur behuizingblack
Materiaalsturdy die-cast aluminium body
Aansturing
ProtocollenDMX512, RDM
DMX kanalen5 / 7 / 11channel
Master/Slavefor synchronised operation of more units linked in a chain

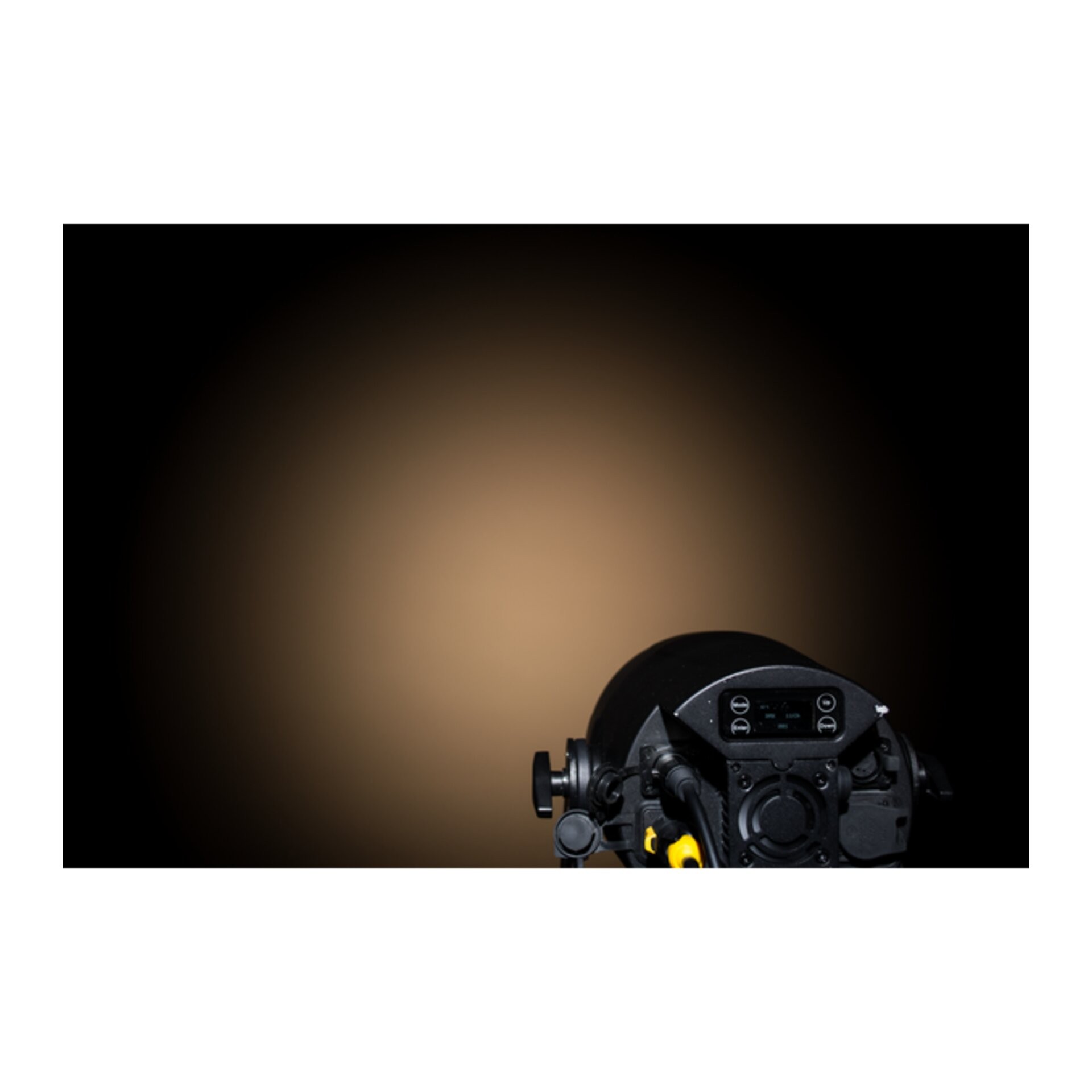

Displayblack OLED touch display
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curves4 selectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-20° ~ +45°
LED Controlflicker free frequency with adjustable PWM
Display accuself-charging battery backup
Selecteerbare PWM frequentie600 ~ 25.000 Hz
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik85W
Output (at 230V)22 units on a single power line
Power factor> 0,90
Fysieke eigenschappen
Koelingpressure and temperature balance through GORE membrane vents

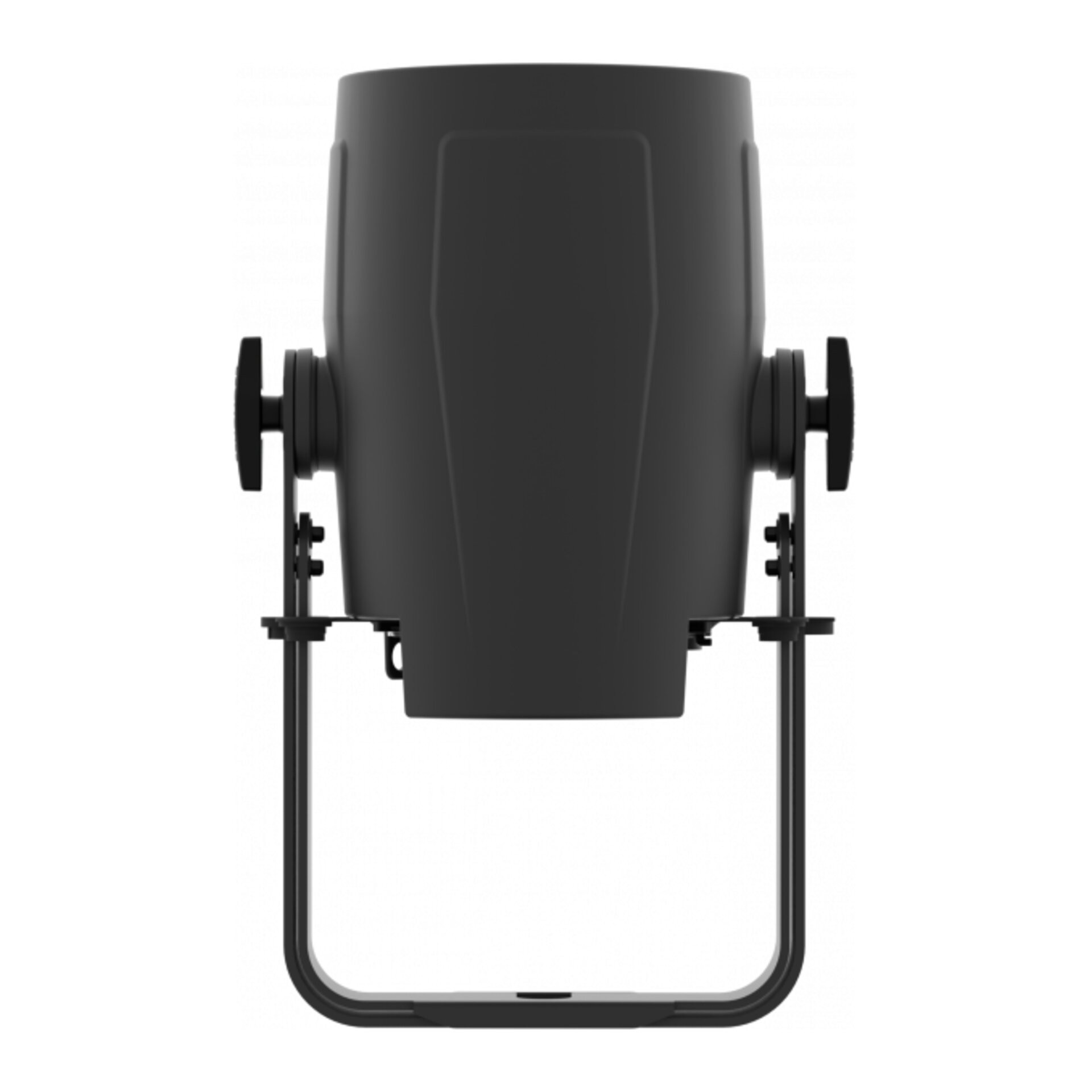

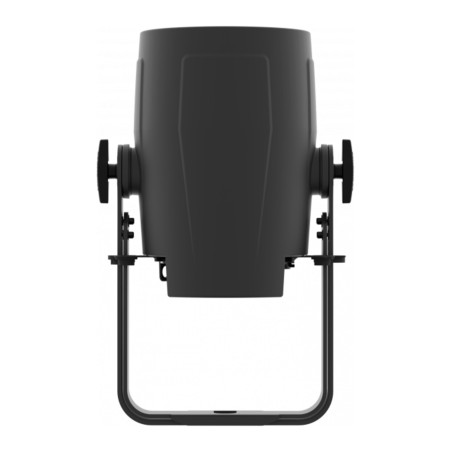

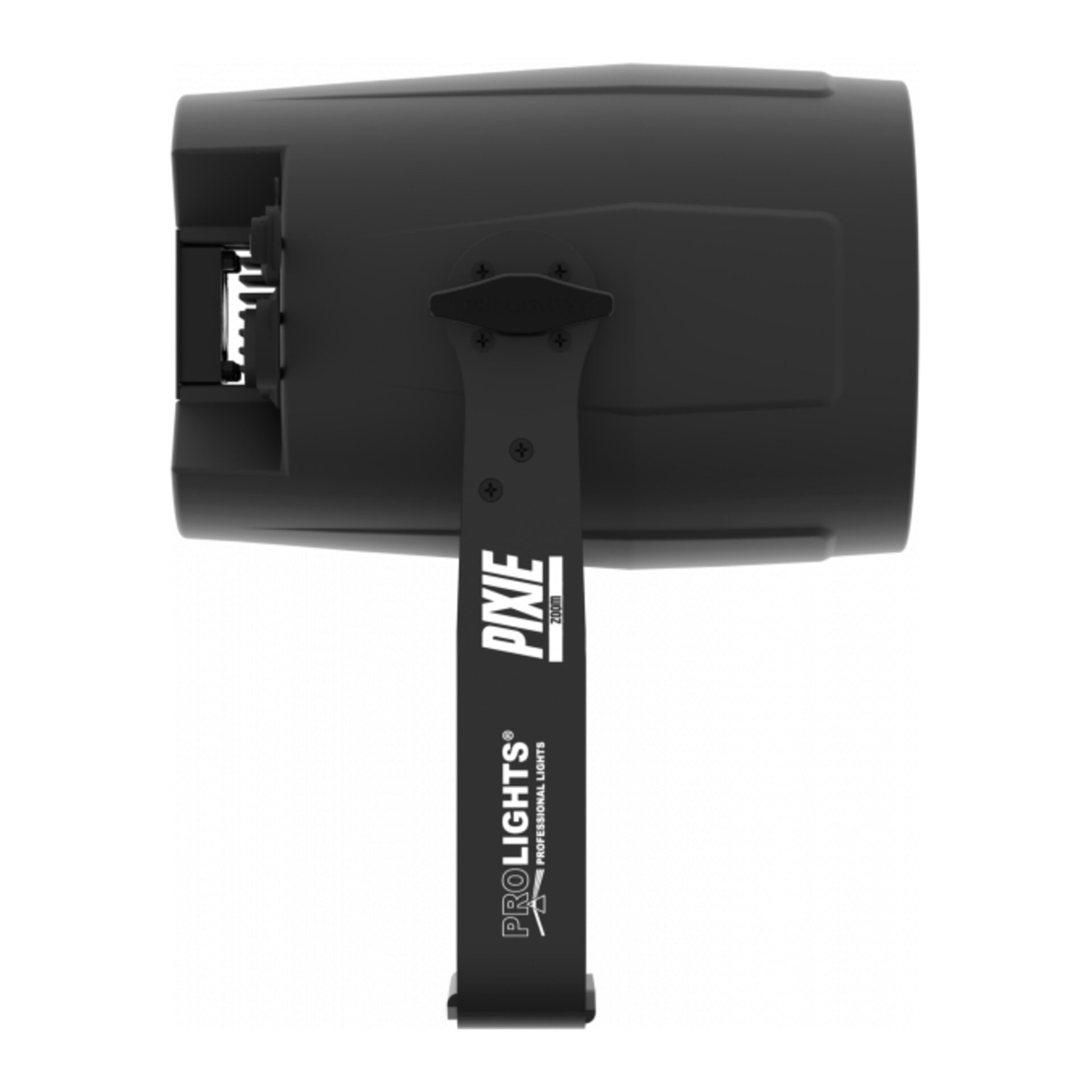

Bevestigingdouble hanging bracket suitable for safe hanging and for floor positioning

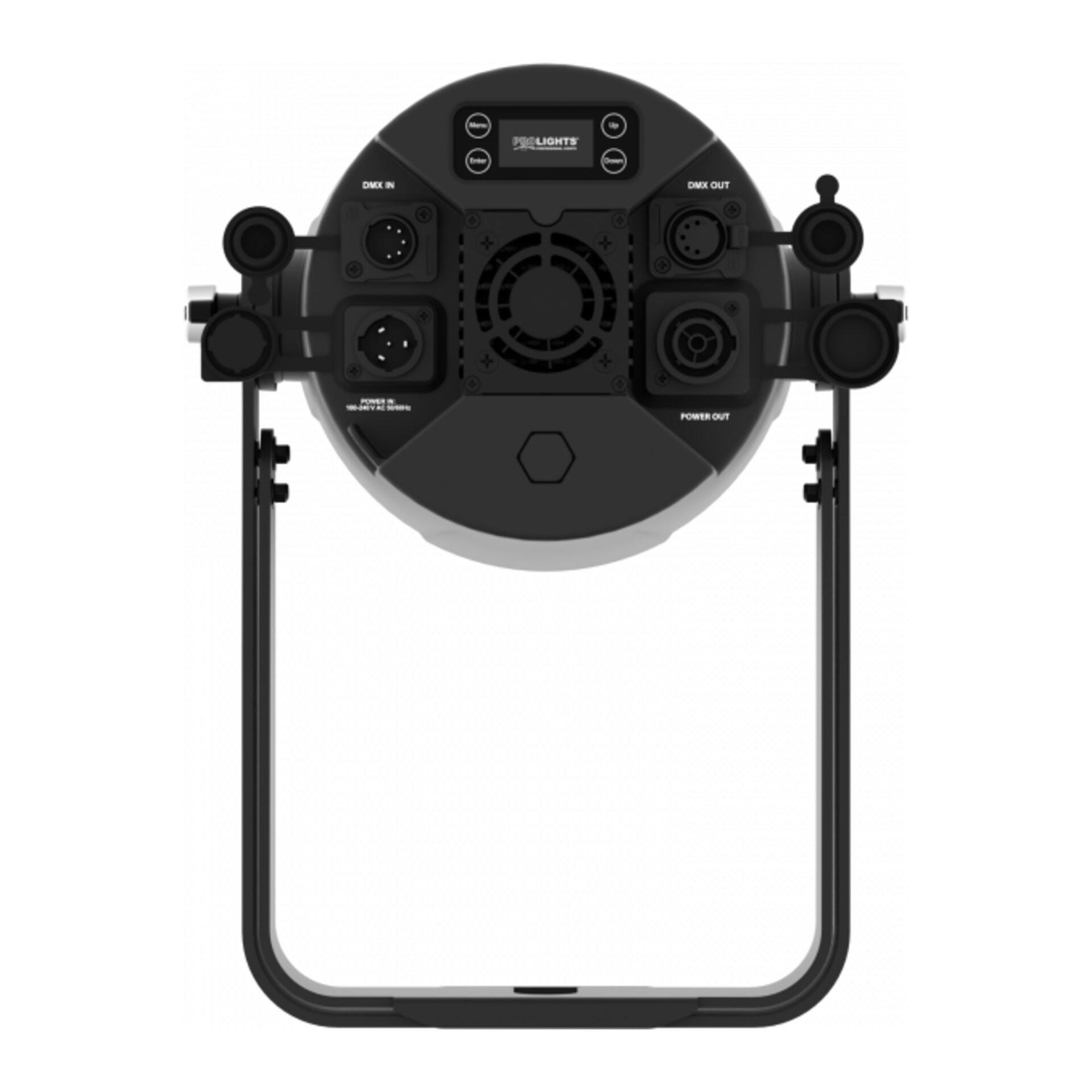

Signaal aansluitingSeetronic XLR 5p IN/OUT connectors
StroomaansluitingSeetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte verpakking
346.5 cm
Breedte verpakking
25.9 cm
Diepte verpakking
26.5 cm
Gewicht verpakking
5.5 kg
