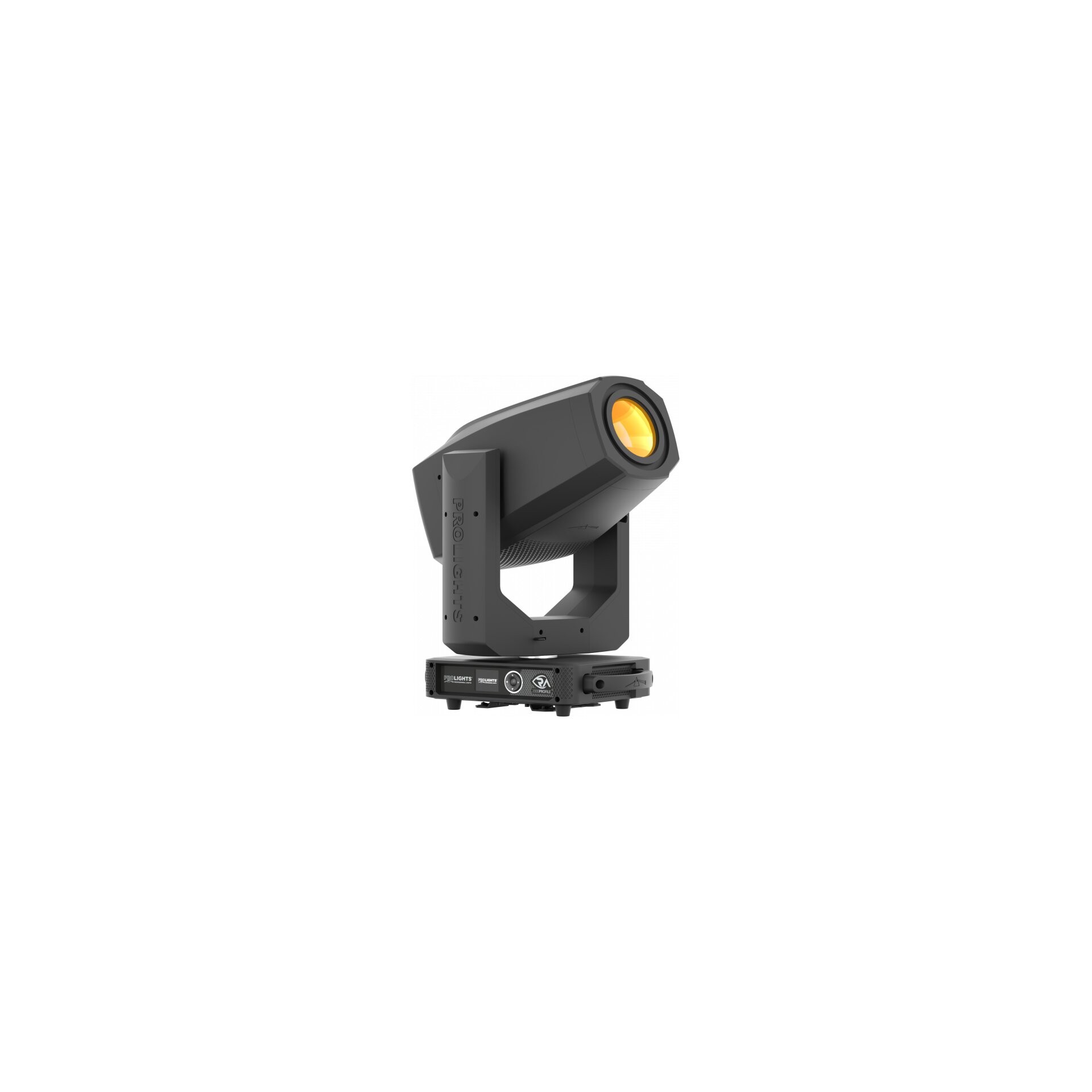

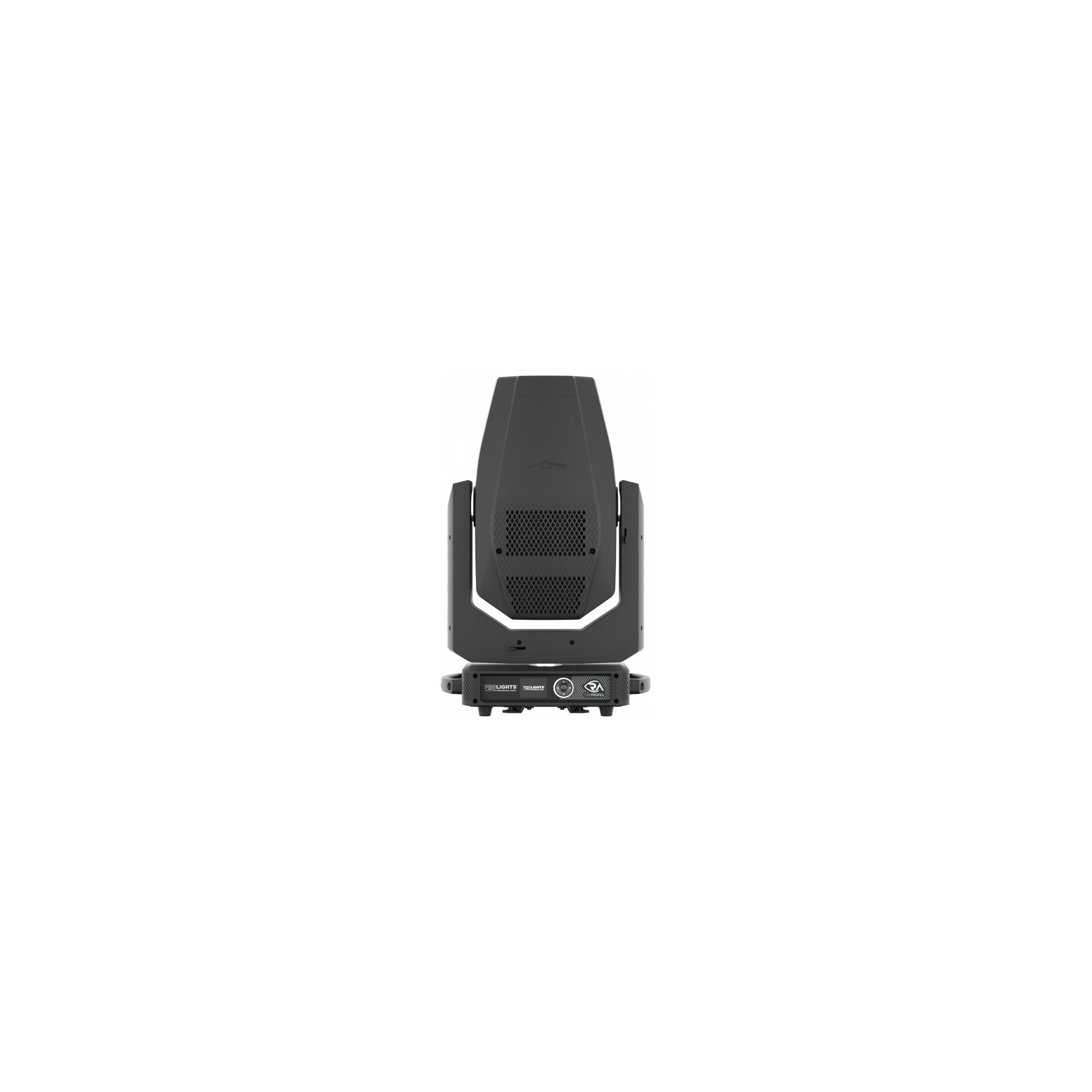

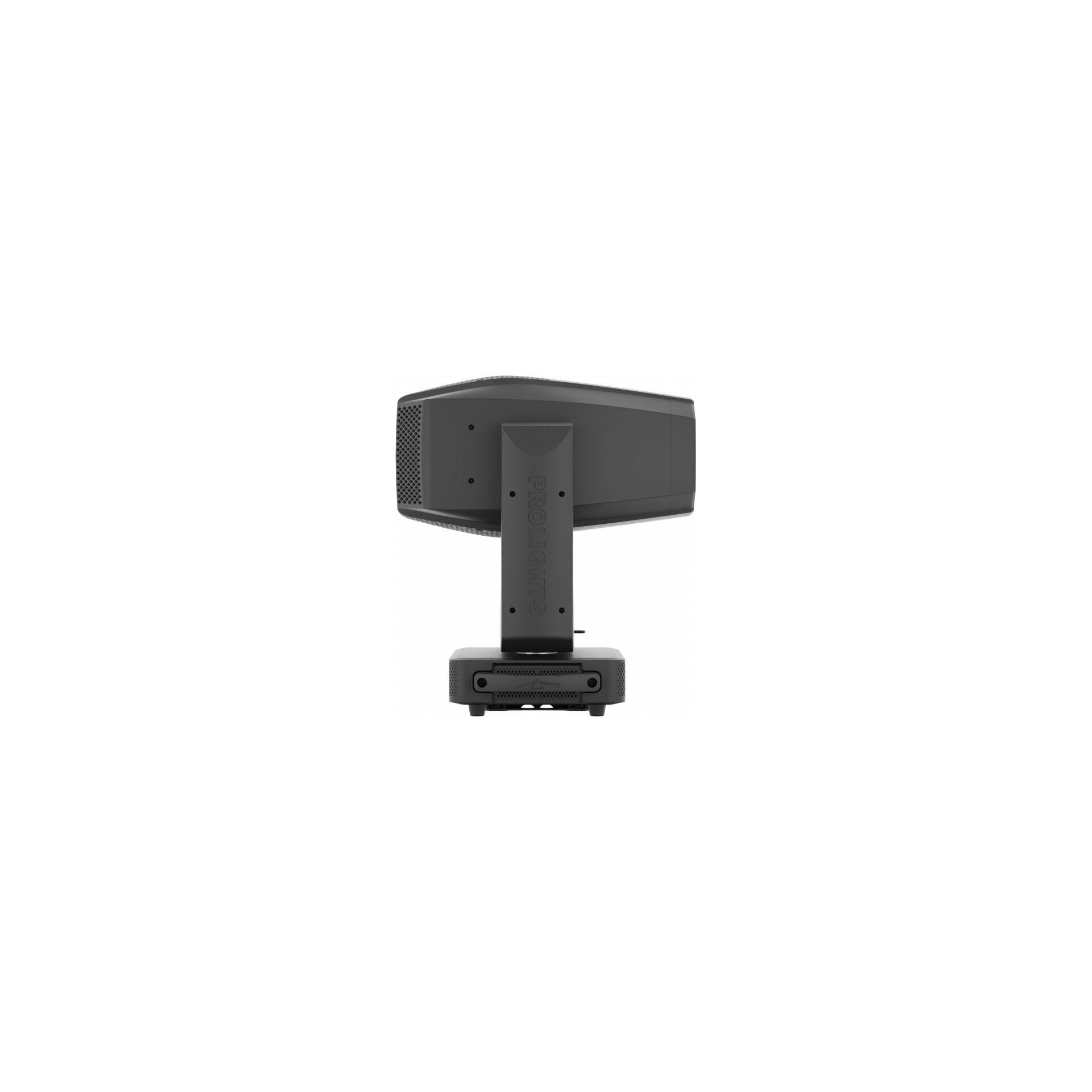

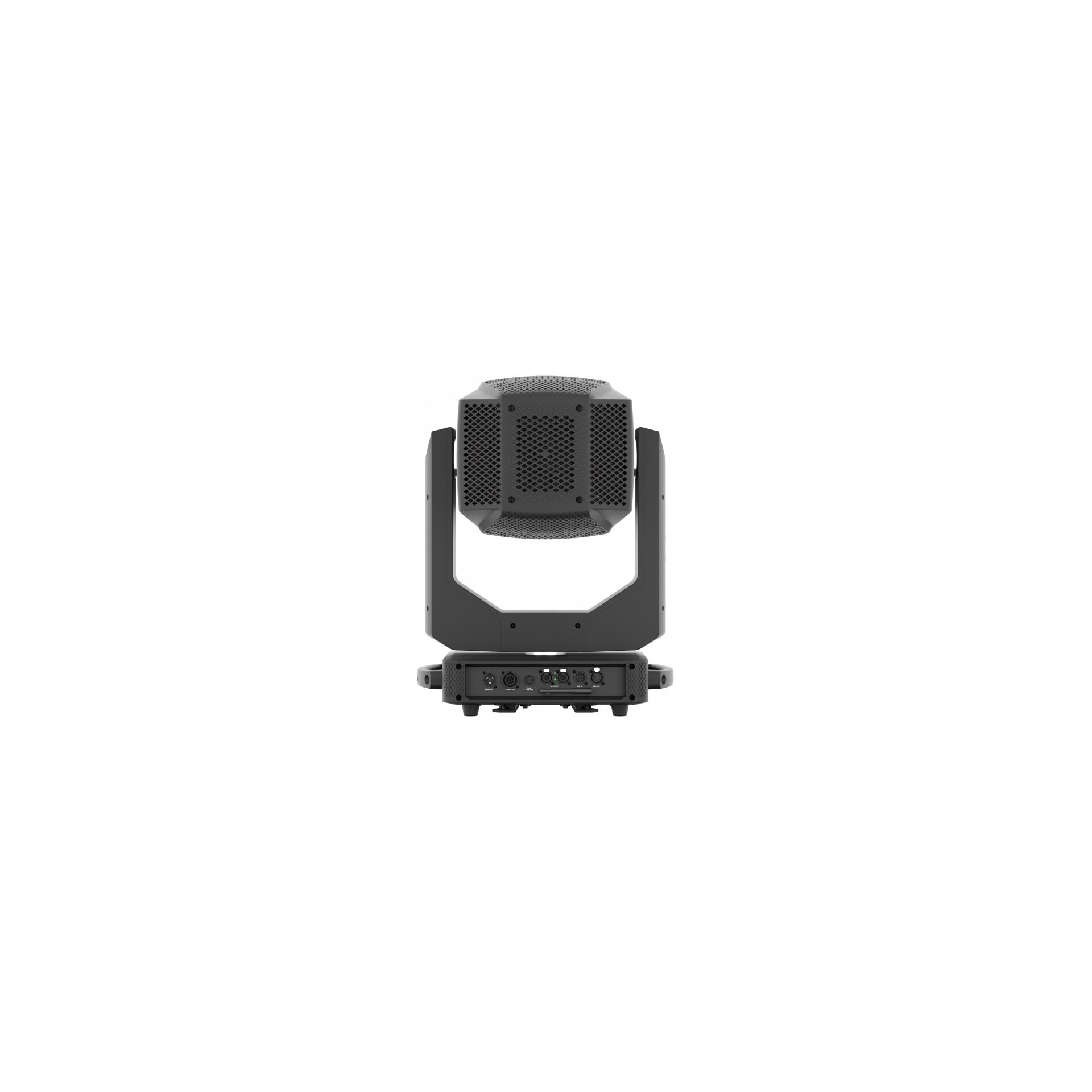

Prolights Ra 2000Profile

21-00033

  • 540W high-precision LED moving profile
  • 8°-48° zoom
  • CMY,CTO

Omschrijving:

The Ra 2000Profile has been designed in response to feedback from global users and by lighting designers. A universal moving profile/spot that lighting designers and users can use for theatrical, touring and TV productions. Powerful but silent, compact but fully equipped with both framing shutters and animation wheel, all whilst delivering a superior light quality, the Ra 2000Profile is an indispensable tool for any show.

The 6.500 K LED engine has been custom engineered to make the Ra 2000Profile hit a 13'900 lumen output, keeping a native CRI of 93, TLCI of 93, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.

The Ra 2000Profile's CMY system delivers beautiful pastels, stunning saturated colours and powerful primaries. One colour wheel provides split colours, and linear CTO allows the Ra 2000Profile to blend in with traditional sources.

Packed with a full feature set composed of a gobo wheel, adjustable framing shutters, animation wheel, iris, prism and dual linear frost. The highly efficient optical system delivers a 1:8 zoom from 8° to 48°, and crisp focus to perfectly merge multi-layer effects.

The Ra 2000Profile is the real embodiment of solid-state LED technology.

Merk

Product niet meer leverbaar

  • accessoires (7)
  • productspecificaties
  • gerelateerde producten

Accessoires

  • Alle accessoires (7)
  • Accessoires (1)
  • DMX kabels (1)
  • Haken/Safety's (2)
  • Stroom kabels (3)

ProAudio Tour 53415BK

Meerdere opties

ProAudio Tour 53415BK
  • 5 polige DMX kabel, zwarte kabel
  • Neutrik XLR 5p female
  • Neutrik XLR 5p male
Bruto prijs:
€ 50,00

GDE True1 aansluitkabel

Meerdere opties

GDE True1 aansluitkabel
  • 3x2,5mm2 TH07 True1 aansluitkabel
  • Schuko 16A male stekker
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 41,50

GDE True1 aansluitkabel

Meerdere opties

GDE True1 aansluitkabel
  • 3x2,5mm2 TH07 True1 aansluitkabel
  • CEE 3p 16A male stekker
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 43,50

GDE True1 verlengkabel

Meerdere opties

GDE True1 verlengkabel
  • 3x2,5mm2 TH07 True1 verlengkabel
  • PowerCon True1 male kabeldeel
  • PowerCon True1 female kabeldeel
Bruto prijs:
€ 55,00

ProTruss RSR0670B

24-00250

ProTruss RSR0670B
  • Safety kabel, lengte 60cm
  • 6mm, maximaal 70kg
  • Kleur: zwart
Bruto prijs:
€ 11,30

ProTruss C6016B

24-00173

ProTruss C6016B
  • Quick trigger
  • SWL: 250kg, zwart
  • 48-51mm buis
Bruto prijs:
€ 19,20

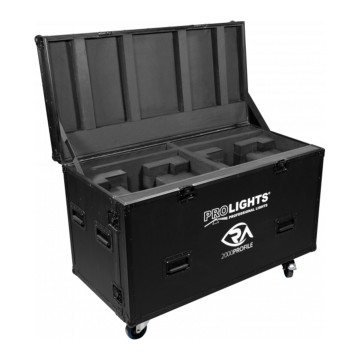

Prolights FCLRA2000

21-20053

Prolights FCLRA2000 - Full AVL Distribution
  • Flight case for 2 piece RA2000PROFILE
Bruto prijs:
€ 829,00

Gegevens

Algemeen

Artikelnummer 21-00033
Merk ProLights
Artikelnummer fabrikant RA2000PROFILE
Garantie 2 jaar

Lamp eigenschappen

Zoom8° - 48° motorised linear zoom

Lichtbron

Lichtbron540W LED
CCTamber shift activation by DMX and linear CTO correction 2700 K ~ 6000 K
Luminous flux13'900lm
Lux(8°) 24'537 lx - (48°) 991lx @5 m
Levensverwachting lichtbron50.000 h
CRI>93
R9>73
TLCI>92
TM30 Rf>89
TM30 Rg>99

Optiek

Lens diameter120mm
Focusmotorised

Kleuren

Manual colour modemanual adjustment of dimmer and strobe
Kleurmenginglinear CMY
Kleurenwiel6 colour filters

Effecten

FX generatorshutter macros with adjustable speed
Roterende gobo's7 rotating gobos + open, interchangeable, indexing
Prisma4f with bi-directional rotation, indexing
Frostdual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0 - 100% fro
Gobo maatouter: 26,7 mm - image: 20 mm - thickness: 1,1 mm
Messen systeem4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete fr
Animatiewielanimation wheel with CW and CCW rotation
Iris5 - 100% motorised iris

Behuizing

Pan angle540°
Tilt angle270°
Kleur behuizingblack finishing
Pan/Tilt resolutiebit 16bit

Aansturing

ProtocollenDMX512, RDM, Art-Net, W-DMX
DMX kanalen38 / 39 / 40 / 41/ 44channel
DisplayLCD high resolution colour display with autoflip
Firmware upgradeyes, via USB - DMX interface (UPBOX1) not included
W-DMXincluded, wireless solution receiver
RDMRDM ready for remote monitoring and settings

Electronics

Dimmerlinear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +50°
LED Controlflicker free operation
Display accuself-charging battery backup

Elektrische eigenschappen

Netvoeding100-240V - 50/60Hz
Max. stroomverbruik685W
Output (at 230V)4 units on a single power line
Power factor>0,95

Fysieke eigenschappen

Koelingcombination of heat pipe cooling system and low noise fan
Bevestiginghanging bracket for floor positioning with "Quick-Lock" system
Pan / tilt lockfor transportation and maintenance
Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN/OUT connectors
IP waarde20

Logistieke eigenschappen

Hoogte verpakking 69.7 cm
Breedte verpakking 44.3 cm
Diepte verpakking 41.6 cm
