Algemeen
Artikelnummer
21-00031
Artikelnummer fabrikant
PANORAMAIPSPOT
Garantie
2 jaar
Lamp eigenschappen
Zoom5° - 50° motorised linear zoom
Lichtbron
Lichtbron420W high-power white LED
CCT linear CTO correction 2.700 K ~ 6.000 K
Lux(50°) 1'173lx @5 m full
Levensverwachting lichtbron > 20.000 h
Optiek
Lens diameter120mm
Lens type HD anti-reflection lenses with achromatic coating
Focus motorised with auto-focus
Kleuren
Kleurmenging linear CMY
Kleurenwiel8 colour filters
Effecten
Roterende gobo's7 rotating gobos + open, interchangeable, indexing
Vaste gobo's6 fixed gobos + open, interchangeable
Prisma3f with bi-directional rotation, indexing
Frost linear 0 - 100% frost filter
Gobo maatouter: 26 mm - image: 19 mm - max thickness: 0,5 mm
Iris5 - 100% motorised iris
Behuizing
Pan angle540 - 630°
Tilt angle233°
Kleur behuizing black
Pan/Tilt resolutiebit 8 / 16bit
Materiaal aluminium structure with hi-resistance polycarbonate cover
Aansturing
Protocollen DMX512, RDM, Art-Net, W-DMX
DMX kanalen19 / 21 / 28 / 29 / 36channel
Display LCD high resolution colour display
Firmware upgrade yes, via USB - DMX interface (UPBOX2) not included
W-DMX included, wireless solution receiver
RDM RDM ready for remote monitoring and settings
Electronics
Dimmer linear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 28 Hz, electronic
Bedrijfstemperatuur -20° ~ +40°
Slaapstand power safe mode when lost DMX
Display accu self-charging battery backup
Elektrische eigenschappen
Netvoeding 100-240V - 50/60Hz
Max. stroomverbruik492W
Fysieke eigenschappen
Koeling combination of heat pipe cooling system and low noise fan

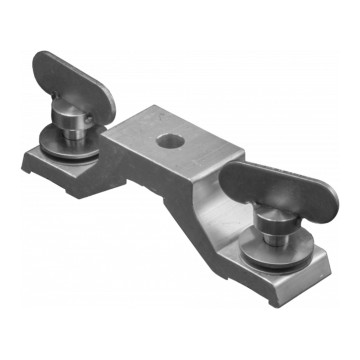

Bevestiging any position with quick-lock omega brackets
Pan / tilt lock for transportation and maintenance
Signaal aansluiting Amphenol XLR 5p IN/OUT connectors
Stroomaansluiting Seetronic powerCON waterproof IN/OUT connectors
IP waarde65 for temporary outdoor application, not for fixed installation
Logistieke eigenschappen
Hoogte verpakking
74 cm
Breedte verpakking
42 cm
Diepte verpakking
47.4 cm
