Lamp eigenschappen
Zoom4,4° - 36° motorised linear zoom
Lichtbron

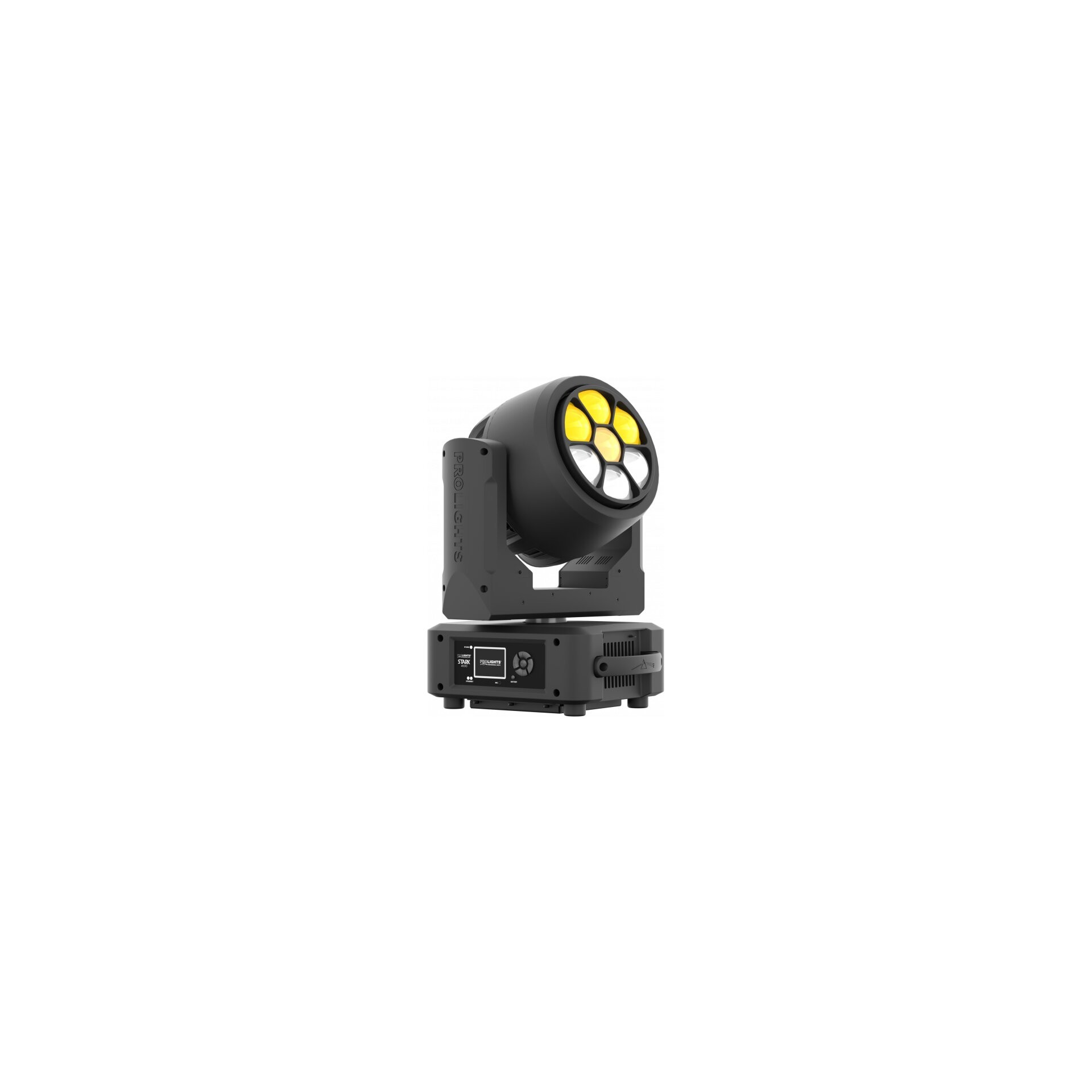

Lichtbron7x40W RGBW Osram Ostar LEDs
CCTCCT control through dedicated DMX channel
Luminous flux(4,4°) 1'944 lm - (36°) 2'700lm @full
Lux(4,4°) 15'584 lm - (36°) 848lx @5 m full
Levensverwachting lichtbron> 50.000 h
Optiek
Lens diameter165mm
Lens typehigh-quality glass lens optics
Kleuren
KleurmengingRGBW / FC
Wit macro's2.000 K ~ 10.000K
Kleurenwielvirtual colour wheel with macros
Effecten
FX generatoradjustable foreground/background colour, index, speed, direction
Macrosseveral pre-build pixel macros with adjustable speed
Behuizing
Pan angle540° / 630°
Tilt angle233°
Kleur behuizingblack
Pan/Tilt resolutiebit 16bit
Materiaalaluminium structure with hi-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM, Art-Net, W-DMX
DMX kanalen16 / 26 / 27 / 32 / 50 channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLCD high resolution colour display with autoflip
Firmware upgradeyes, via USB - DMX interface (UPBOX2) not included
W-DMXincluded, wireless solution receiver
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Dimmer curvesselectable dimming modes available
Strobe / shutter1 - 30 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Slaapstandpower safe mode when lost DMX
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik245W
Fysieke eigenschappen
Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingany position with quick-lock omega brackets

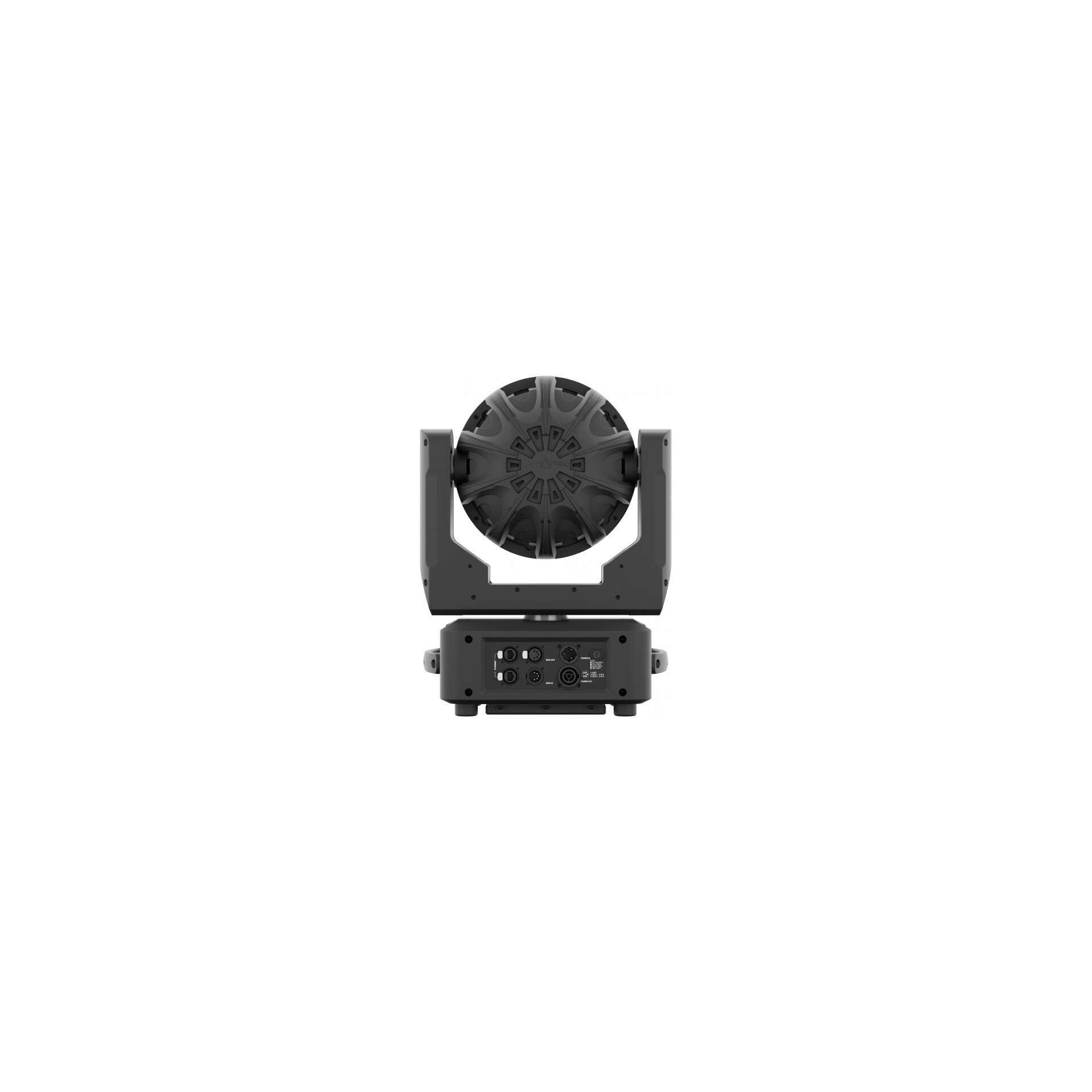

Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN/OUT connectors
IP waarde20
Logistieke eigenschappen
Hoogte verpakking
45.2 cm
Breedte verpakking
33.8 cm
Diepte verpakking
23.5 cm
Gewicht verpakking
12.4 kg
