Lamp eigenschappen
KleursysteemCMY, Kleurenwiel
Vermogen440W
Zoom2° ~ 50° motorised linear zoom
Lichtbron
Lichtbron440W S Osram Sirius HRI
CCTon wheel 2.500 K and 3.200 K + CTB
Luminous flux15'700lm
Lux(50°) 3'000lx @10 m
Levensverwachting lichtbron1.500 h
Optiek
Lens diameter153mm
Lens typehigh-quality glass lens optics
Focusmotorised with auto-focus
Min. Zoombereik2
Max. Zoombereik50
Kleuren
KleurmengingCMY colour system on 3 gradually fading colour wheels
Kleurenwiel13 dichroic filters on 3 independent colour wheels
Effecten

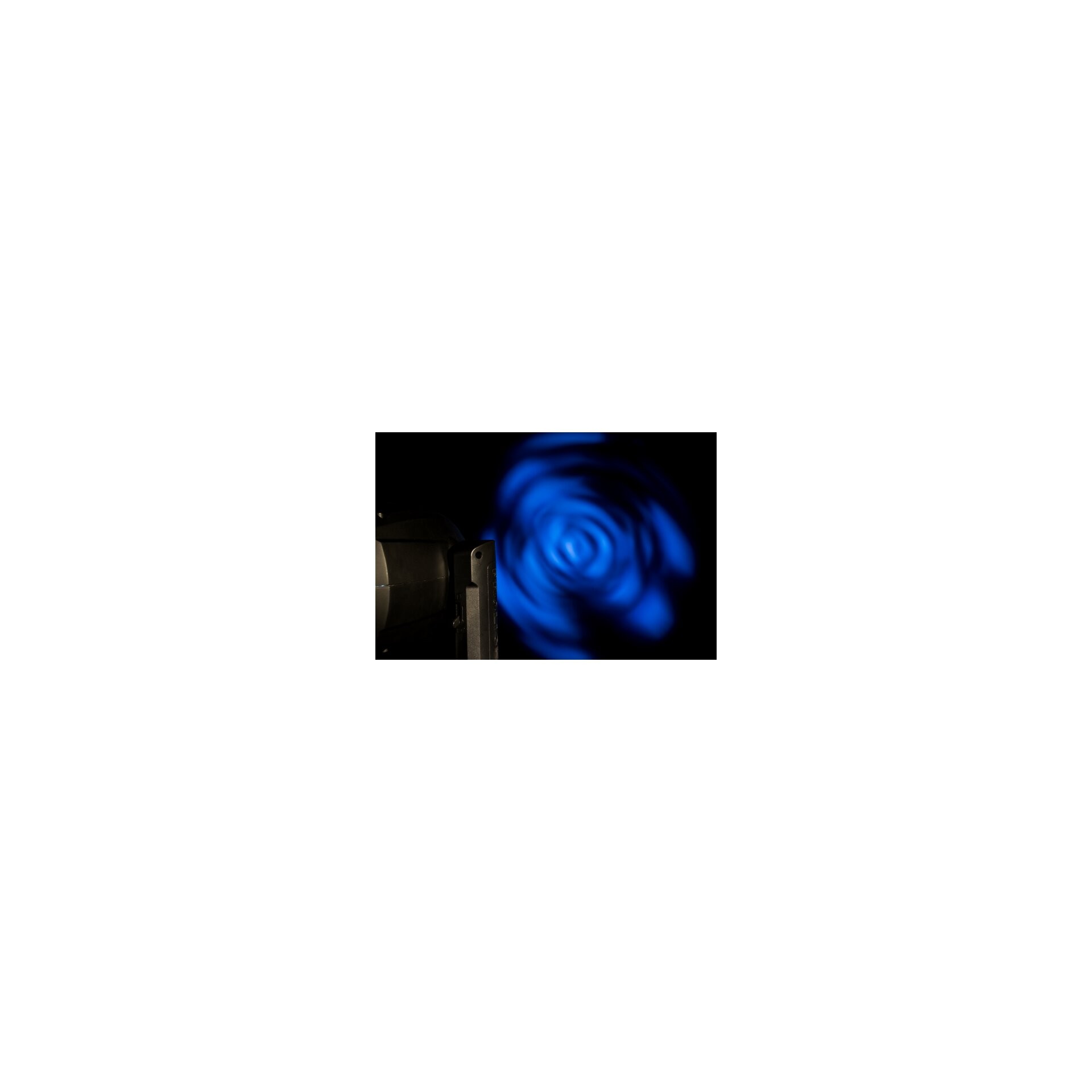

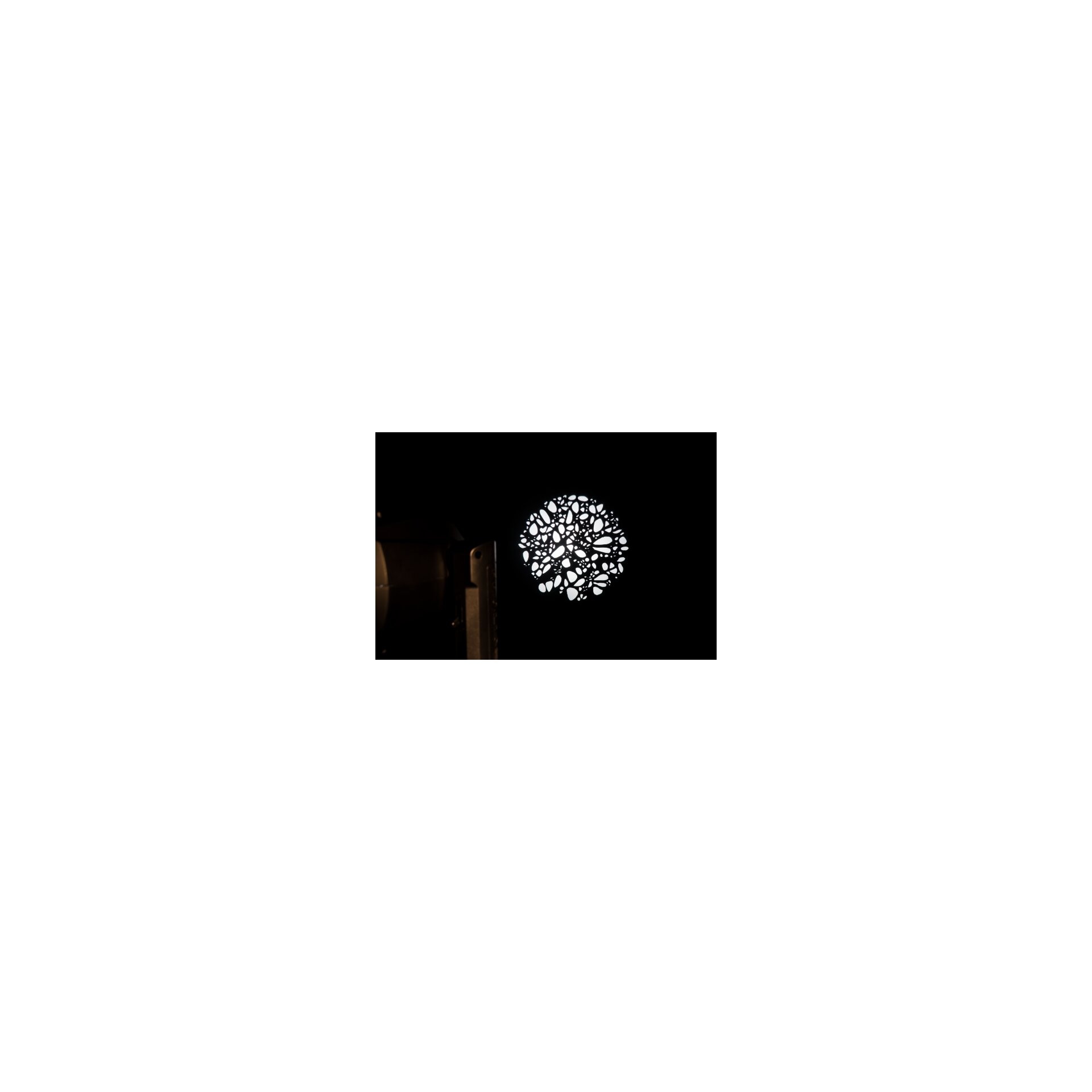

Roterende gobo's6 rotating gobos + open, interchangeable, indexing
Vaste gobo's18 fixed gobos + open

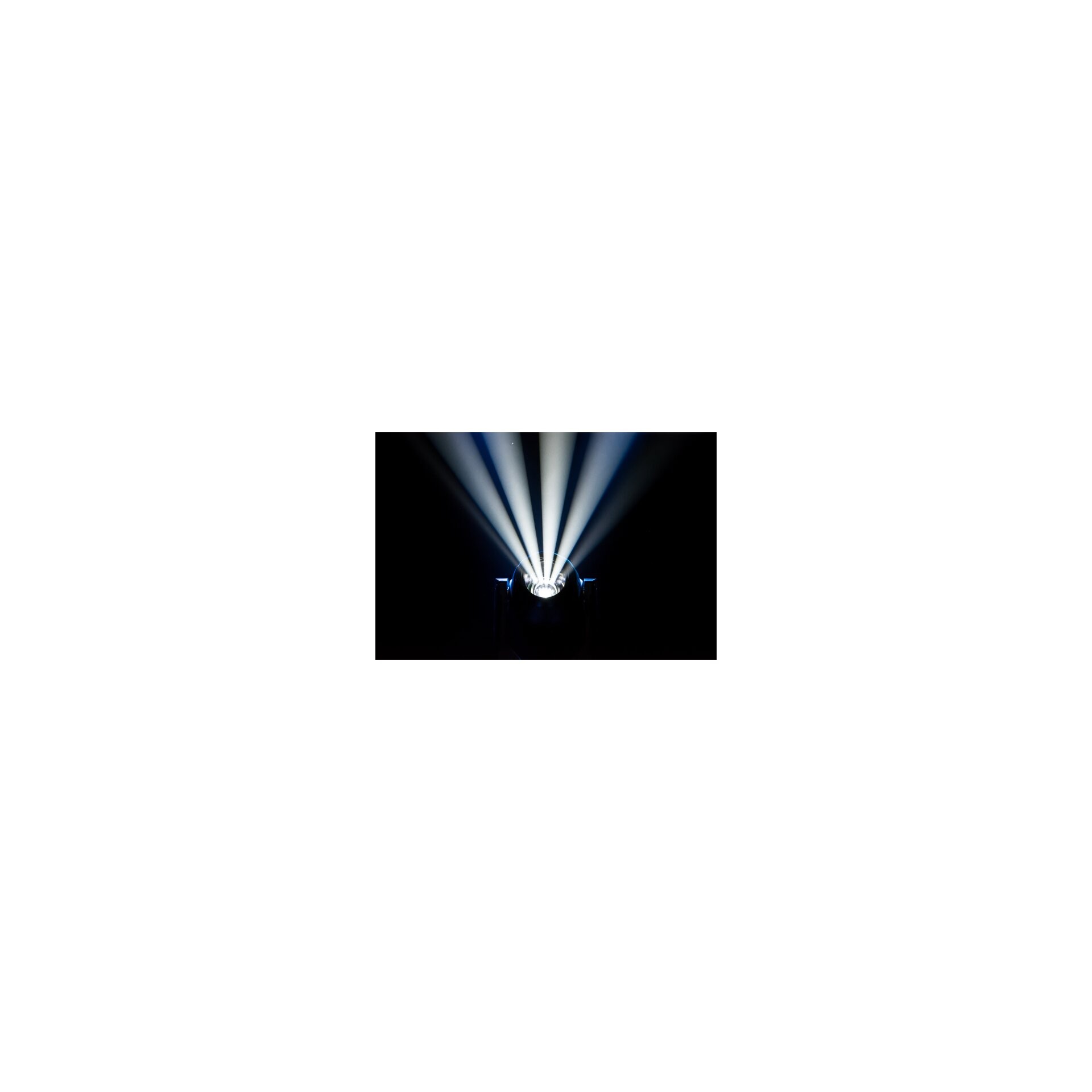

Prisma3f with bi-directional rotation, indexing
Linear prisma6f with bi-directional rotation, indexing

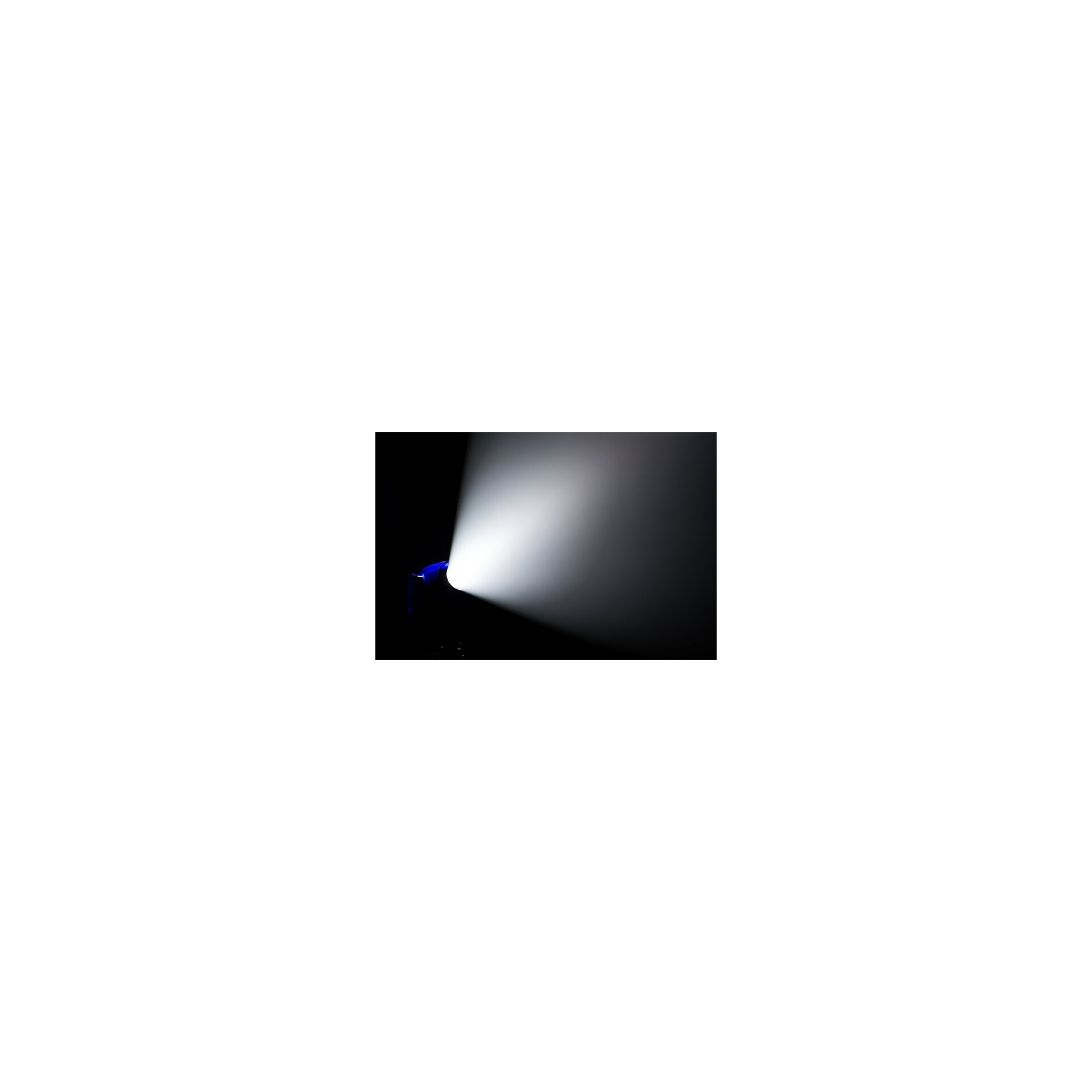

Frostlinear 0 - 100% frost filter
Gobo maatouter: 25,7 mm - image: 13 mm - thickness: 1,1 mm
Animatiewielanimation wheel with CW and CCW rotation

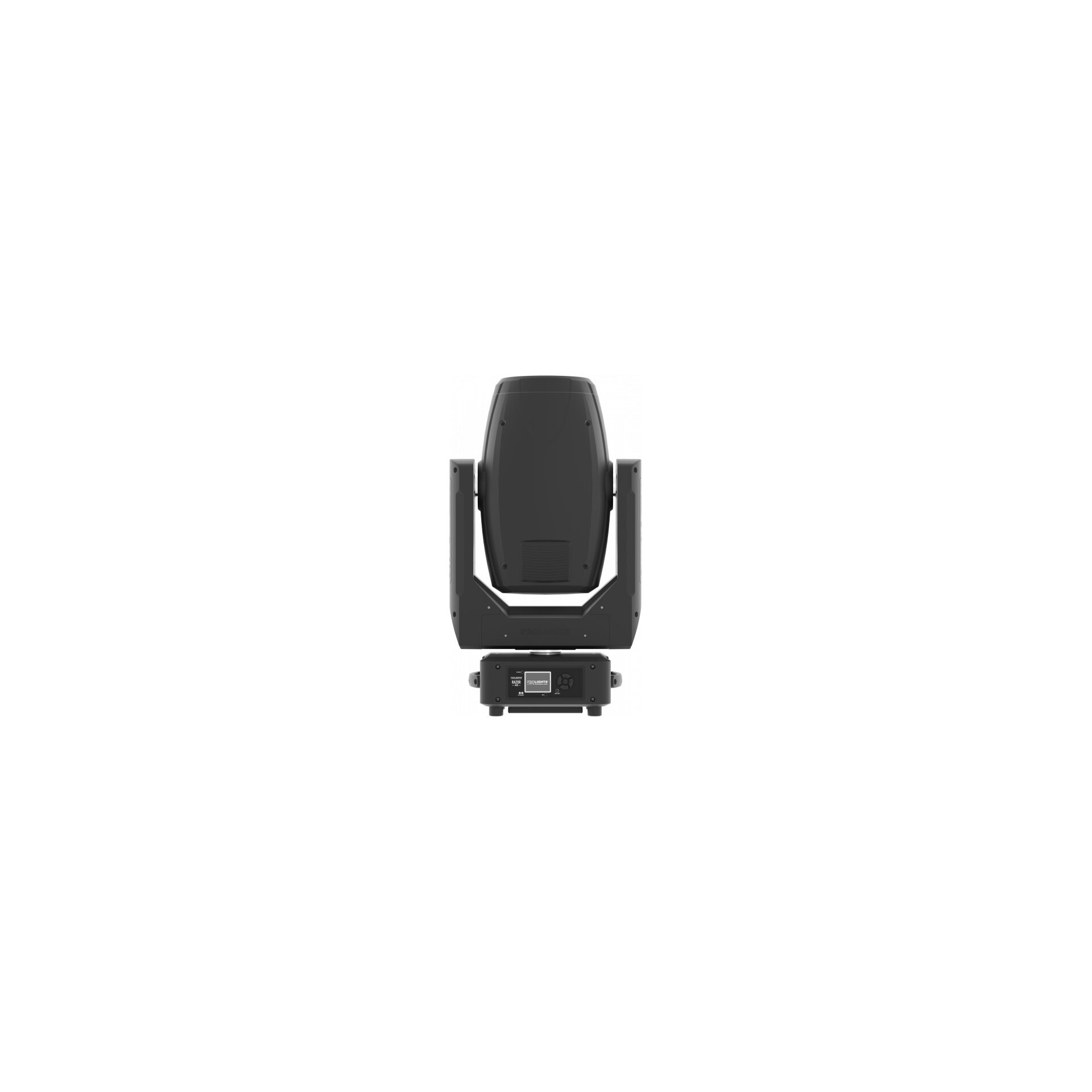

Behuizing
Pan angle630° - 540°
Tilt angle267°
Kleur behuizingZwart, black
Pan/Tilt resolutiebit 8 / 16bit
Materiaalaluminium structure with hi-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM, Art-Net, W-DMX
DMX kanalen21 / 24 / 26channel
DisplayLCD high resolution colour display with autoflip
Firmware upgradevia menu with internal memory or via USB - DMX interface (UPBOX2) not included
W-DMXincluded, wireless solution receiver
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% mechanical dimmer
Strobe / shutter1 - 28 flash(s), mechanical
Bedrijfstemperatuur-10° ~ +45°
Slaapstandpower safe mode when lost DMX
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik585W
Fysieke eigenschappen
Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingany position with quick-lock omega brackets
Pan / tilt lockfor transportation and maintenance
Signaal aansluitingAmphenol XLR 5p IN/OUT connectors
StroomaansluitingNeutrik powerCON TRUE1 IN connector, PowerCON TRUE1
IP waarde20, IP20
Gewicht27 kg
Logistieke eigenschappen
Hoogte verpakking
71.4 cm
Breedte verpakking
41.1 cm
Diepte verpakking
25.8 cm
Gewicht verpakking
26 kg
