Lamp eigenschappen
KleursysteemRGBW - Full Color
Vermogen270W
Zoom6° - 66° motorised linear zoom
Lichtbron

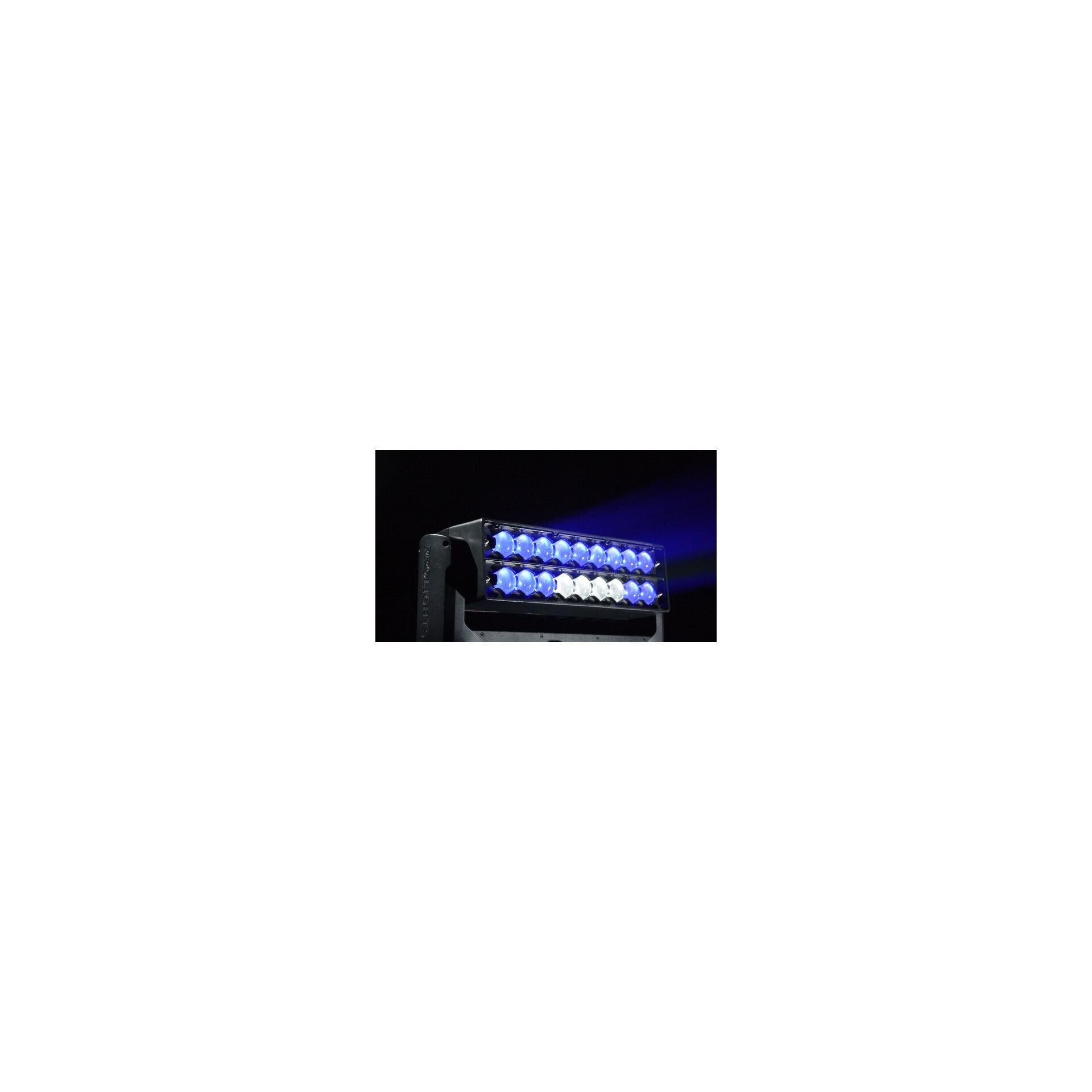

Lichtbron18x15W RGBW Osram Ostar LEDs
CCTCCT control through dedicated DMX channel
Luminous flux8'800lm
Lux(6°) 17'230 lx - (66°) 1'649lx @3 m full
Levensverwachting lichtbron> 50.000 h
Optiek
Lens typehoneycomb gapless plano-convex optics
Min. Zoombereik6
Max. Zoombereik66
Kleuren
KleurmengingRGBW / FC
Wit macro's2.800 K ~ 9.000K
Kleurenwielvirtual colour wheel with macros
Effecten
FX generatoradjustable foreground/background colour, index, speed, direction
Macrosbuilt-in white presets
EffectenLed ring
Behuizing
Pan angle630° with 360° continuous rotation
Tilt angle265°
Kleur behuizingZwart, black
Pan/Tilt resolutiebit 8 / 16bit
Materiaalaluminium structure with hi-resistance polycarbonate cover
Aansturing
ProtocollenDMX512, RDM
DMX kanalen25 / 27 / 36 / 99channel
Master/Slavefor synchronised operation of more units linked in a chain
DisplayLCD high resolution colour display
Firmware upgradeyes, via USB - DMX interface (UPBOX2) not included
W-DMXoptional, wireless solution receiver
RDMRDM ready for remote monitoring and settings
Electronics
Dimmerlinear 0 ~ 100% electronic dimmer
Strobe / shutter1 - 25 Hz, electronic
Bedrijfstemperatuur-10° ~ +45°
LED Controlflicker free operation
Slaapstandpower safe mode when lost DMX
Display accuself-charging battery backup
Elektrische eigenschappen
Netvoeding100-240V - 50/60Hz
Max. stroomverbruik270W
Output (at 230V)8 units on a single power line
Fysieke eigenschappen
Koelingcombination of heat pipe cooling system and low noise fan
Bevestigingany position with quick-lock omega brackets

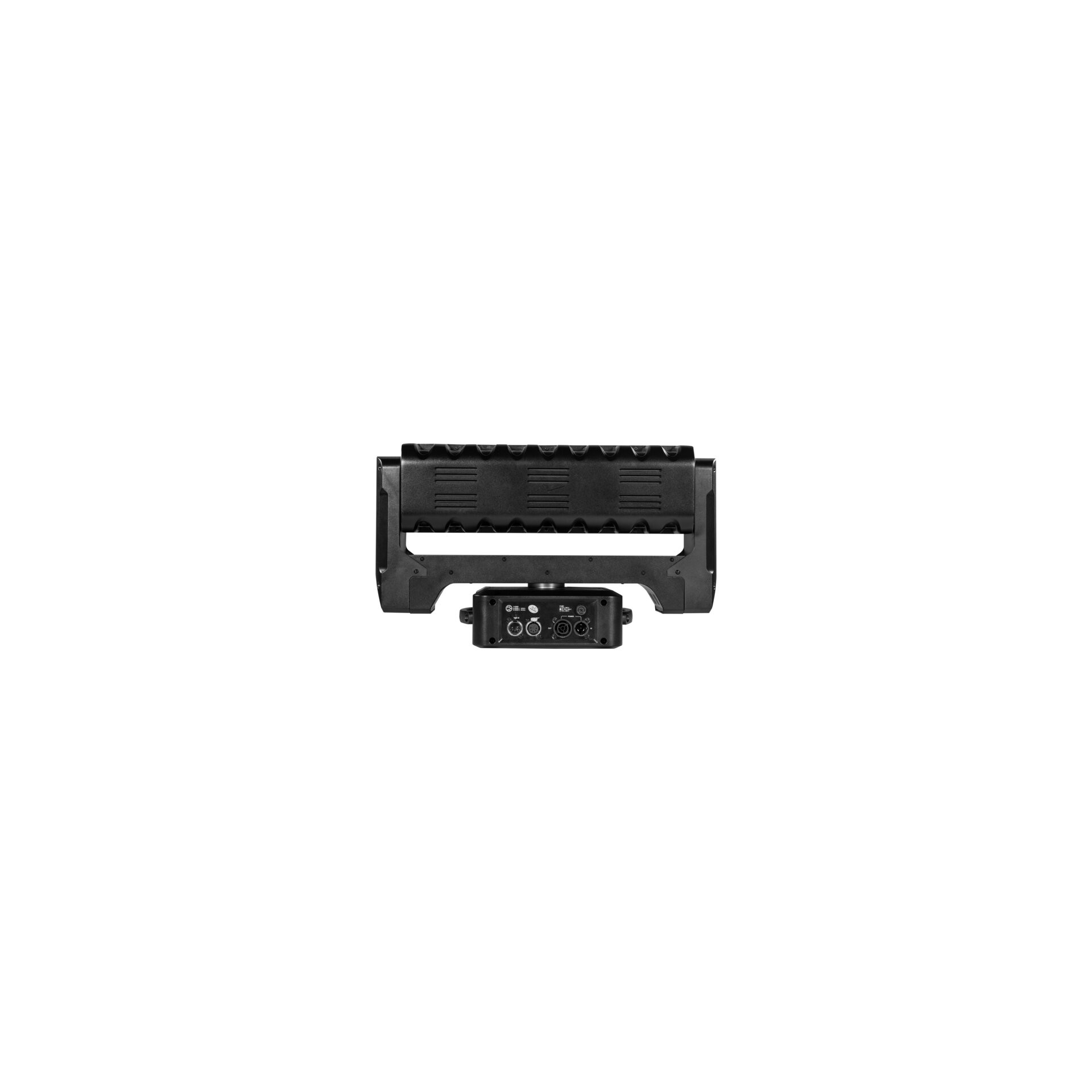

Signaal aansluitingXLR 5p IN/OUT connectors
StroomaansluitingPowerCON TRUE1, powerCON TRUE1 IN/OUT
IP waarde20, IP20
Gewicht3 kg
Logistieke eigenschappen
Hoogte verpakking
34.2 cm
Breedte verpakking
55 cm
Diepte verpakking
20 cm
Gewicht verpakking
13 kg
